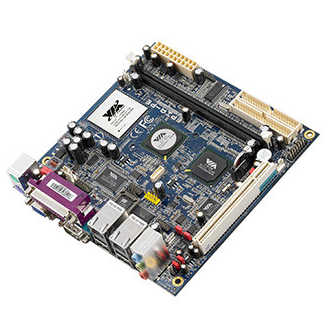

VIA EPIA PE-Series Mini-ITX Board PE10000G

Integrated VIA Chrome® Pro AGP graphics with MPEG-2 decoding acceleration
Supports Digital I/O, four pairs of GPIO
Four COM ports support, COM3/4 with 5V/12V VCC select
Supports dual LAN (10/100 Mbps)
Supports LVDS/DVI (an add-on card is required)

EPIA PE Mini-ITX Board

Introducing the ultra-compact and highly integrated VIA EPIA PE-Series Mini-ITX Mainboards. The VIA EPIA PE is more functionality with the onboard digital I/O and SMBus. It features four COM Ports and digital I/O support that is designed for use in POS systems. Its VT6106S and VT6103 Ethernet controllers make it a perfect fit for use as a hardware firewall system.

The mainboard is based on the VIA CLE266 chipset that features an Embedded hardware MPEG-2 accelerator and an integrated S3 Graphics Chrome® 2D/3D graphics controller. Its connectivity options include support for up to six USB 2.0 connections, four COM ports and two 10/100 Fast Ethernet ports. The VIA EPIA PE also offers support for a range of embedded LCD panels. Its additional expansion capabilities include one PCI slot. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA-133, the VIA EPIA PE delivers the performance to run commercial digital video and audio applications.

The VIA EPIA PE conforms to the Mini-ITX form-factor measuring a mere 17 cm x 17 cm. Its low profile makes it even more space saving. The VIA EPIA PE is available with the VIA C3® processor. Its x86-based platform makes it compatible with a wide range of software including Microsoft® Windows® and Linux operating systems.

VIA EPIA PE-Series Mini-ITX Board

The ultimate low profile, low power and small form factor platform featuring dual LAN and four COM ports for always-on Point Of Sales (POS) applications.

Introducing the ultra-compact and highly integrated VIA EPIA PE-Series Mini-ITX Mainboards. The VIA EPIA PE is more functionality with the onboard digital I/O and SMBus. It features four COM Ports and digital I/O support that is designed for use in POS systems. Its VT6106S and VT6103 Ethernet controllers make it a perfect fit for use as a hardware firewall system.

The mainboard is based on the VIA CLE266 chipset that features an embedded hardware MPEG-2 accelerator and an integrated S3 Graphics UniChrome? 2D/3D graphics controller. Its connectivity options include support for up to six USB 2.0 connections, four COM ports and two 10/100 Fast Ethernet ports. The VIA EPIA PE also offers support for a range of embedded LCD panels. Its additional expansion capabilities include one PCI slot. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA-133, the VIA EPIA PE delivers the performance to run commercial digital video and audio applications.

The VIA EPIA PE conforms to the Mini-ITX form-factor measuring a mere 17 cm x 17 cm. Its low profile makes it even more space saving. The VIA EPIA PE is available with the VIA C3 processor. Its x86-based platform makes it compatible with a wide range of software including Microsoft? Windows? and Linux operating systems.

Key Features:

Integrated VIA UniChrome? Pro AGP graphics with MPEG-2 decoding acceleration
Supports Digital I/O, four pairs of GPIO
Four COM ports support, COM3/4 with 5V/12V VCC select
Supports dual LAN (10/100 Mbps)
Supports LVDS/DVI (an add-on card is required)

--------------------------------------------------------------------------------

Specification
If you have questions about the model names; please refer to the Model Name Definition for EPIA/VB boards.VIA EPIA PE-Series Mini-ITX Board Specifications
Model Name VIA EPIA PE10000G
Processor 1.0GHz VIA C3? Processor
Chipset VIA CLE266 North Bridge
VIA VT8235M South Bridge
System Memory 1 x DDR266 DIMM Socket
Up To 1GB Memory Size
VGA Integrated VIA UniChrome? AGP graphics with MPEG-2 decoding acceleration
Expansion Slots 1 x PCI Slot
Onboard IDE 2 x UltraDMA 133/100/66 connectors
Onboard LAN 1 x VIA VT6103 10/100 Mbps Ethernet PHY
1 x VIA VT6106S 10/100 Mbps Ethernet controller
Onboard Audio VIA VT1612A 2 channel AC¡¯97 Codec
Onboard I/O Connectors 1 x USB connector for 2 additional USB 2.0 ports
1 x FIR connector
1 x Wake-on-LAN connector
3 x Serial port connectors for COM2/3/4 (COM3/4 are 5V/12V selectable)
1 x Digital I/O connector
1 x SMBus connector
1 x LVDS/DVI module connector, for 24-bit dual channel LVDS panel (an add-on card is required)
1 x CIR connector (switchable for KB/MS)
1 x Front panel audio connector for Line-out and Mic-in
3 x Fan connectors for CPU, system and power fans
1 x ATX power connector
Back Panel I/O 1 x PS2 mouse port
1 x PS2 keyboard port
1 x Parallel port
1 x VGA port
1 x Serial port
2 x RJ-45 LAN ports
4 x USB 2.0 ports
3 x Audio jacks: Line-out, Line-in and Mic-in (vertical, Smart 5.1 support)
BIOS Award BIOS
LPC 4/8Mbit flash memory
Operating System Windows 2000/XP, Linux, Win CE, XPe
System Monitoring & Management CPU temperature reading
CPU voltage monitoring
Fan control
Watch Dog Timer
Wake-on LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
Operating Temperature 0¡ៃ - 50 ¡ៃ
Operating Humidity 0% ~ 95% (relative humidity; non-condensing)
Form Factor Mini-ITX (6-layer)
17 cm x 17 cm

Ordering Information:

Model Name CPU Frequency Description
PE10000G 1.0GHz C3? Mini-ITX Board, VGA, LVDS, DVI, USB, 4 x COM, LPT, Dual LAN, 4 x GPI & 4 x GPO, IDE, SATA

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration; A is for configured without TV-out.
* The specification is subject to change without prior notice.
