>>Your Current Position: VIA Embedded Motherboard

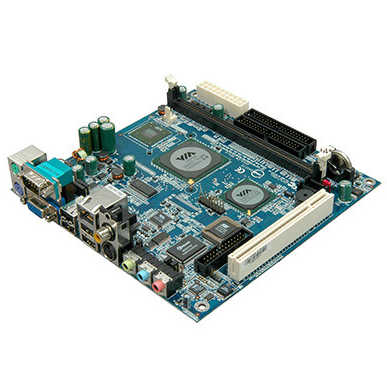

VIA EPIA CN-Series Mini-ITX Board

Integrated VIA Chrome® Pro AGP graphics with MPEG-2 decoding acceleration
Supports DDR2 400/533 SDRAM
Supports TV-out
Supports two SATA
Supports eight USB 2.0 (four as pin headers)

VIA EPIA CN Mini-ITX Board

The VIA EPIA CN Mini-ITX mainboard is available with either the 1.3GHz or 1.0GHz VIA C7® processor and boasts the ultra efficient VIA V4 bus interface and VIA CN700 digital media chipset to inspire a new generation of powerful and flexible digital media appliances.

Offering a rich digital media platform, the VIA EPIA CN Mini-ITX mainboard integrates the VIA Chrome® Pro IGP graphics processor with MPEG-2 hardware acceleration and the Chromotion™ CE engine to ensure smooth, crystal clear digital media streaming and playback. The platform also supports DuoView+ and has S-Video and RCA outputs to facilitate the design of dual display devices, as well as rich multi-channel audio for surround sound.

Setting new standards for flexibility and feature completeness, the VIA EPIA CN Mini-ITX mainboard supports up to 1GB of 400/533MHz DDR2 memory, native SATA II 0 and 1, and 10/100 Mbps broadband Ethernet. The platform also includes a PCI port, serial, parallel and USB ports for unparalleled connectivity options.

Leveraging the power efficient VIA C7® processor – based on the proven VIA Coolstream™ architecture and advanced 90nm process – with the energy efficient VIA CN700 digital media chipset supporting DDR2 memory, the VIA EPIA CN Mini-ITX mainboard boasts an average power consumption of just 16 watts to enable a new generation of low power consuming intelligent digital devices. The VIA C7® processor also integrates advanced hardware security with the VIA PadLock® Security Engine. Offering a comprehensive sets of security tools that includes the world’s fastest AES x86 encryption engine, the VIA PadLock Security Engine enables military-grade protection of data stored and exchanged without a hit to system performance.

The VIA EPIA CN Mini-ITX mainboard is compatible with Microsoft® Windows® 2000/XP, XPe and CE, as well as Linux, and offers developers a rich suite of security and media applications to accelerate time to market. Fully compatible with all Mini-ITX, FlexATX and MicroATX chassis and associated accessories including the new 120W DC-DC converter for VIA EPIA Mini-ITX mainboards, the VIA EPIA CN Mini-ITX gives developers and system integrators the essential tools to create innovative and flexible digital media appliances.

VIA EPIA CN-Series Mini-ITX Board

The VIA EPIA CN Mini-ITX mainboard extends the VIA C7? processor based EPIA family and offers developers a powerful and flexible platform solution.

The VIA EPIA CN Mini-ITX mainboard is available with either the 1.3GHz or 1.0GHz VIA C7? processor and boasts the ultra efficient VIA V4 bus interface and VIA CN700 digital media chipset to inspire a new generation of powerful and flexible digital media appliances.

Offering a rich digital media platform, the VIA EPIA CN Mini-ITX mainboard integrates the VIA UniChrome? Pro IGP graphics processor with MPEG-2 hardware acceleration and the Chromotion? CE engine to ensure smooth, crystal clear digital media streaming and playback. The platform also supports DuoView+ and has S-Video and RCA outputs to facilitate the design of dual display devices, as well as rich multi-channel audio for surround sound.

Setting new standards for flexibility and feature completeness, the VIA EPIA CN Mini-ITX mainboard supports up to 1GB of 400/533MHz DDR2 memory, native SATA II 0 and 1, and 10/100 Mbps broadband Ethernet. The platform also includes a PCI port, serial, parallel and USB ports for unparalleled connectivity options.

Leveraging the power efficient VIA C7? processor ¨C based on the proven VIA Coolstream? architecture and advanced 90nm process ¨C with the energy efficient VIA CN700 digital media chipset supporting DDR2 memory, the VIA EPIA CN Mini-ITX mainboard boasts an average power consumption of just 16 watts to enable a new generation of low power consuming intelligent digital devices. The VIA C7? processor also integrates advanced hardware security with the VIA PadLock Security Engine. Offering a comprehensive sets of security tools that includes the world's fastest AES x86 encryption engine, the VIA PadLock Security Engine enables military-grade protection of data stored and exchanged without a hit to system performance.

The VIA EPIA CN Mini-ITX mainboard is compatible with Microsoft? Windows? 2000/XP, XPe and CE, as well as Linux, and offers developers a rich suite of security and media applications to accelerate time to market. Fully compatible with all Mini-ITX, FlexATX and MicroATX chassis and associated accessories including the new 120W DC-DC converter for VIA EPIA Mini-ITX mainboards, the VIA EPIA CN Mini-ITX gives developers and system integrators the essential tools to create innovative and flexible digital media appliances.

Key Features:

Integrated VIA UniChrome? Pro AGP graphics with MPEG-2 decoding acceleration
Supports DDR2 400/533 SDRAM
Supports TV-out
Supports two SATA
Supports eight USB 2.0 (four as pin headers)


Specification
If you have questions about the model names; please refer to the Model Name Definition for EPIA/VB boards.VIA EPIA CN-Series Mini-ITX Board Specifications
Model Name VIA EPIA CN13000G
VIA EPIA CN10000EG
Processor 1.3GHz VIA C7? Processor

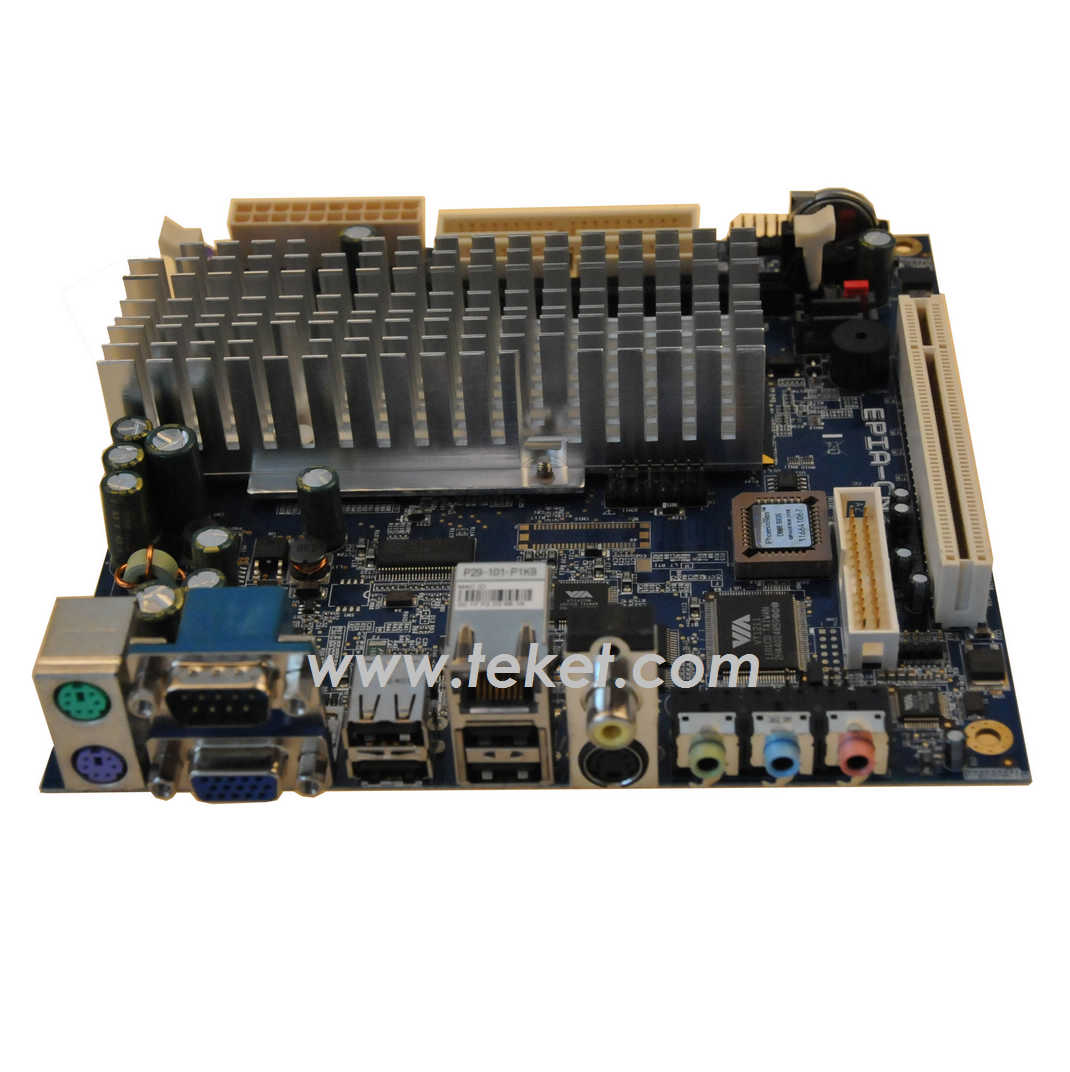

1.0GHz Fanless VIA C7? Processor
Chipset VIA CN700 North Bridge
VIA VT8237R Plus South Bridge
System Memory 1 x DDR2 533 DIMM Socket
Up to 1GB Memory Size

VGA Integrated VIA UniChrome? Pro AGP Graphics with MPEG-2 Decoding Acceleration
Expansion Slots 1 x PCI slot
Onboard IDE 2 x UltraDMA 133/100/66 Connectors
Onboard LAN 1 x VIA VT6103 10/100 Mbps Ethernet PHY
Onboard Audio VIA VT1618 Muliti-channel AC¡¯97 Codec
Onboard TV Out VIA VT1625M HDTV Encoder
Onboard I/O Connectors 1 x USB connector for four additional USB 2.0 ports
2 x SATA connectors
1 x LPT connector
1 x CD-in connector
1 x CIR connector (switchable for KB/MS)
1 x Front panel connector
1 x Front panel audio connector for Line-out and Mic-in
2 x Fan connectors for CPU and system fans
1 x ATX power connector
Back Panel I/O 1 x PS2 mouse port
1 x PS2 keyboard port
1 x VGA port
1 x Serial port
1 x RJ-45 LAN port
4 x USB 2.0 ports
1 x RCA port (S/PDIF or TV out)
1 x S-Video port
3 x Audio jacks: Line-out, Line-in and Mic-in (Horizontal, Smart 5.1 support)
BIOS Award BIOS
LPC 4/8Mbit flash memory
Operating System Windows 2000/XP, Linux, Win CE/XPe
System Monitoring & Management CPU voltage monitoring
Wake-on LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
Operating Temperature 0~50¡⁠
Operating Humidity 0% ~ 95% (relative humidity; non-condensing)
Form Factor Mini-ITX (4-layer)
17 cm x 17 cm

Ordering Information:

Model Name CPU Frequency Description
CN13000G 1.3GHz C7? Mini-ITX Board, VGA, TV-out, USB, LAN, COM, IDE & SATA
CN10000EG 1.0GHz C7? Mini-ITX Board, VGA, TV-out, USB, LAN, COM, IDE & SATA

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration.
* The specification is subject to change without prior notice.
