>>Your Current Position: VIA Embedded Motherboard



VIA EPIA LN-Series Mini-ITX Board LN10000EG LN10000EA

Integrated VIA Chrome® Pro AGP graphics with MPEG-2 decoding acceleration
Supports DDR2 533 SDRAM
Supports two SATA
Supports one 10/100 Mbps Ethernet
Supports eight USB 2.0 (six in pin connectors)

The VIA EPIA LN-Series Mini-ITX Mainboard boasts the latest generation 1.0GHz VIA C7® processor for fanless configurations with ultra low power requirements, optimized for a whole range of small form factor, low power and affordable embedded devices, and features TV-out for a rich multimedia experience.

The VIA CN700 digital media IGP chipset supports up to 1GB of high bandwidth DDR2 533 memory, and has integrated VIA Chrome® Pro 2D/3D graphics with MPEG-2 decoding for smooth digital video playback. Its companion South Bridge, the VIA VT8237R Plus supports a broad array of advanced connectivity and multimedia features, and brings the latest serial and storage technologies to a wide audience.

Offering a cost effective upgrade path from previous generations of VIA EPIA Mini-ITX mainboards, the VIA EPIA LN is fully compatible with all Mini-ITX, FlexATX and MicroATX chassis and associated accessories such as the new VIA 120W DC-DC converter and external PCI riser card, and supports Microsoft® Windows® XP/2000, XPe and CE, as well as Linux, making it the ideal platform for developers to create a wide spectrum of applications.

VIA EPIA LN-Series Mini-ITX Board

A reliable, low-power and cost effective platform for fanless and small footprint embedded applications.

The VIA EPIA LN-Series Mini-ITX Mainboard boasts the latest generation 1.0GHz VIA C7? processor for fanless configurations with ultra low power requirements, optimized for a whole range of small form factor, low power and affordable embedded devices, and features TV-out for a rich multimedia experience.

The VIA CN700 digital media IGP chipset supports up to 1GB of high bandwidth DDR2 533 memory, and has integrated VIA UniChrome? Pro 2D/3D graphics with MPEG-2 decoding for smooth digital video playback. Its companion South Bridge, the VIA VT8237R Plus supports a broad array of advanced connectivity and multimedia features, and brings the latest serial and storage technologies to a wide audience.

Offering a cost effective upgrade path from previous generations of VIA EPIA Mini-ITX mainboards, the VIA EPIA LN is fully compatible with all Mini-ITX, FlexATX and MicroATX chassis and associated accessories such as the new VIA 120W DC-DC converter and external PCI riser card, and supports Microsoft? Windows? XP/2000, XPe and CE, as well as Linux, making it the ideal platform for developers to create a wide spectrum of applications.

Key Features:

Integrated VIA UniChrome? Pro AGP graphics with MPEG-2 decoding acceleration
Supports DDR2 533 SDRAM
Supports two SATA
Supports one 10/100 Mbps Ethernet
Supports eight USB 2.0 (six in pin connectors)
Supports TV-out (SDTV resolution)




Specification
If you have questions about the model names; please refer to the Model Name Definition for EPIA/VB boards.VIA EPIA LN-Series Mini-ITX Board Specifications
Model Name VIA EPIA LN10000EG
VIA EPIA LN10000EAG (no TV-out)
Processor 1.0GHz VIA C7? Processor
Chipset VIA CN700 North Bridge
VIA VT8237R Plus South Bridge
System Memory 1 x DDR2 533 DIMM socket
Up to 1GB memory size
Onboard TV Out VIA VT1622AM SDTV Encoder

VGA Integrated VIA UniChrome? Pro AGP graphics with MPEG-2 decoding acceleration
Expansion Slots 1 x PCI slot
Onboard IDE 2 x UltraDMA 133/100/66 connectors
Onboard Serial ATA 2 x SATA connectors
Onboard LAN VIA VT6103L 10/100Mbps Ethernet PHY
Onboard Audio VIA VT1618 8-channel AC¡¯97 Codec
Onboard I/O Connectors 3 x USB pin connectors for 6 additional USB 2.0 ports
1 x FIR connector
2 x SATA connectors
1 x LPC connector
1 x LPT connector
1 x SMBus connector
1 x Buzzer
1 x S/PDIF-out connector (optical)
1 x CIR connector (switchable for KB/MS)
1 x Front panel audio connector for Line-out and Mic-in
2 x Fan connectors for CPU and system fans
1 x ATX power connector

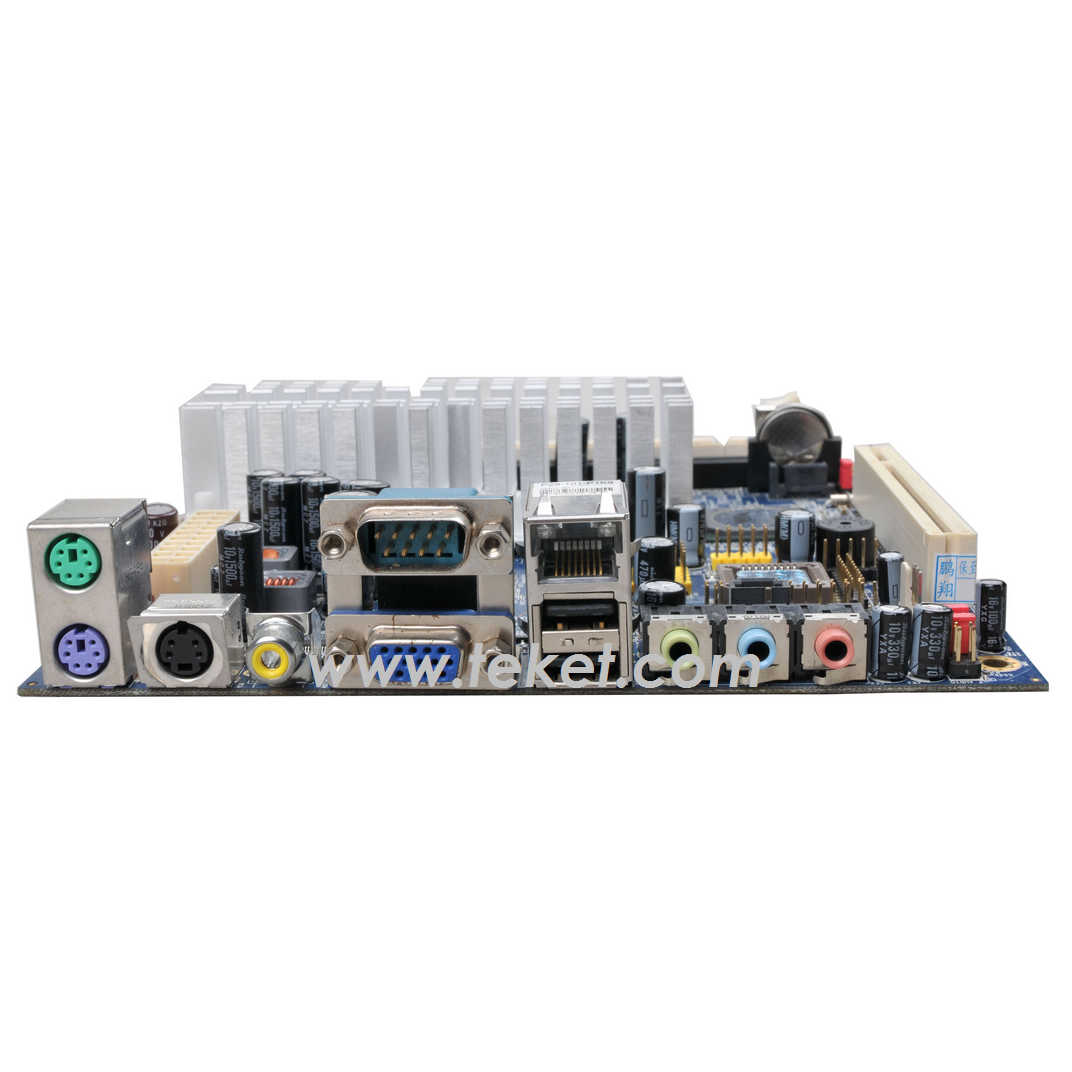

Back Panel I/O 1 x PS2 mouse port
1 x PS2 keyboard port
1 x S-Video port (optional)
1 x RCA port for composite TV out (optional) or S/PDIF (coaxial)
1 x Serial port
1 x VGA port
1 x RJ-45 LAN port
2 x USB 2.0 ports
3 x Audio jacks: Line-out, Line-in and Mic-in (horizontal, Smart 5.1 Support)
BIOS Award BIOS
LPC 2/4/8Mbit flash memory
System Monitoring & Management System voltage monitoring
CPU voltage monitoring,
Timer power-on, Wake-on LAN/KB/MS
AC power failure recovery
Operating Temperature 0 ~ 50> Operating Humidity 0% ~ 95% (relative humidity ; non-condensing)
Form Factor Mini-ITX (4-layer)
17 cm x 17 cm

Ordering Information:

Model Name CPU Frequency Description
LN10000EG 1.0GHz C7? Mini-ITX Board, VGA, TV-out, USB, LAN, IDE & SATA
LN10000EAG 1.0GHz C7? Mini-ITX Board, VGA, USB, LAN, IDE & SATA

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration; A is for configured without TV-out.
* The specification is subject to change without prior notice.
