>>Your Current Position: VIA Embedded Motherboard



VIA EPIA M-Series Mini-ITX Board M10000G ME6000G

Integrated VIA Chrome® AGP graphics with MPEG-2 decoding acceleration
Two onboard IEEE 1394 pin headers
Onboard Floppy pin header
Supports LVDS/DVI (an add-on card is required)
Supports TV-out
Supports six-channel audio

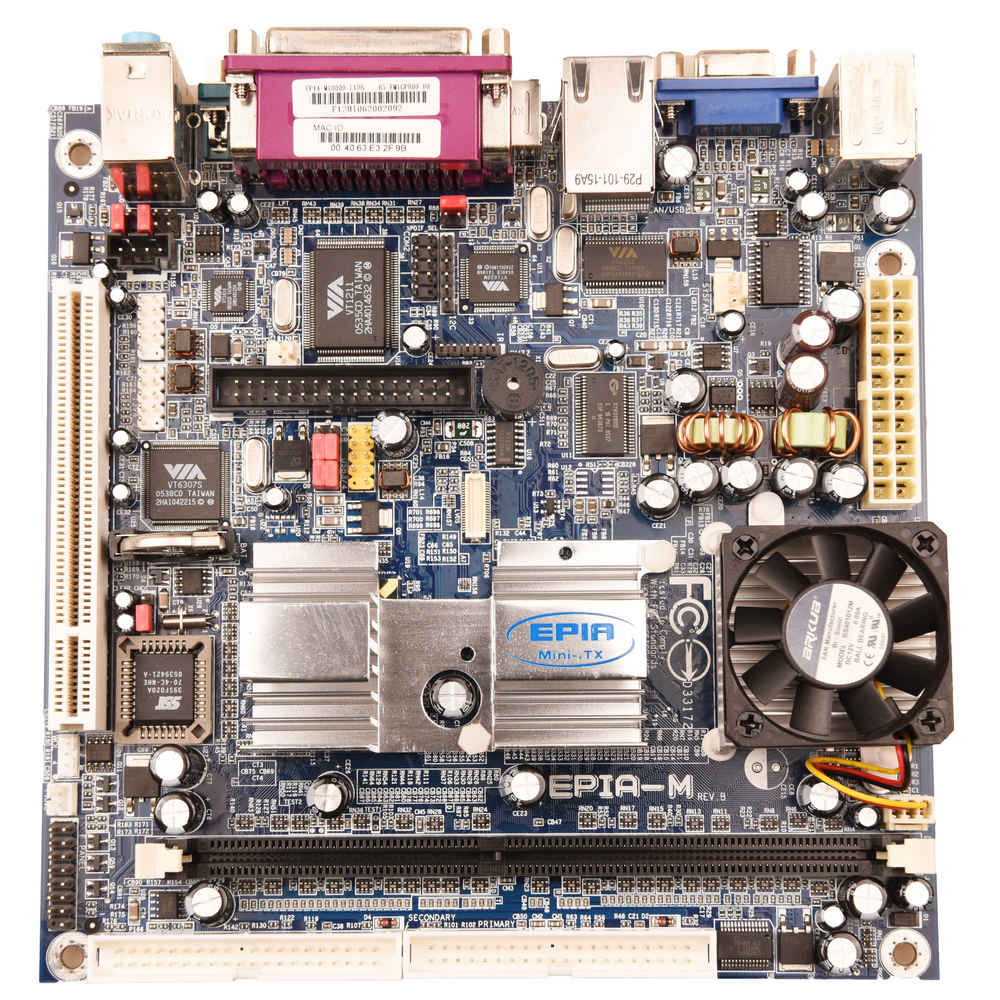

EPIA M Mini-ITX Board

The VIA EPIA M-Series Mini-ITX Mainboard is a revolutionary, ultra-compact x86 platform optimized for today’s killer digital applications. At just 17cm x 17cm, Mini-ITX is the world’s smallest native x86 mainboard platform, and is fully compatible with Microsoft® and Linux Operating Systems. Available with an embedded VIA Eden® ESP processor core for fanless systems with ultra low-power requirements, or an embedded VIA C3® E-Series processor for more demanding digital multimedia applications, the EPIA M-Series is the perfect platform for a whole range of small form factor, low-power digital media devices and home entertainment centers.

The EPIA M-Series’ VIA Apollo CLE266 chipset features an embedded MPEG-2 Accelerator for silky smooth digital video playback, and integrated 2D/3D graphics for a rich multimedia experience. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA/133, the EPIA M-Series ensures the high performance levels required of today’s most popular digital media applications. The user’s digital media experience is further enhanced by support for 5.1 surround sound, courtesy of the onboard VIA VT1616 6 Channel AC’97 codec.

The latest in high-bandwidth connectivity is supported with both IEEE 1394 and USB 2.0 connections provided, as well as S-Video and RCA TV-Out (NTSC & PAL) and 10/100 Ethernet for seamless broadband connectivity. The EPIA M-Series also offers support for the latest LVDS embedded LCD panels, has one PCI slot for expandability options, and is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX chassis.

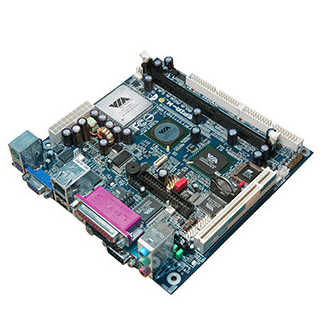

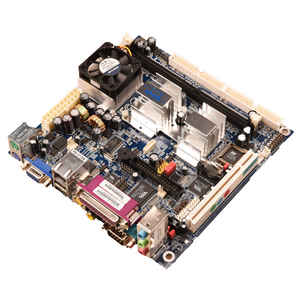

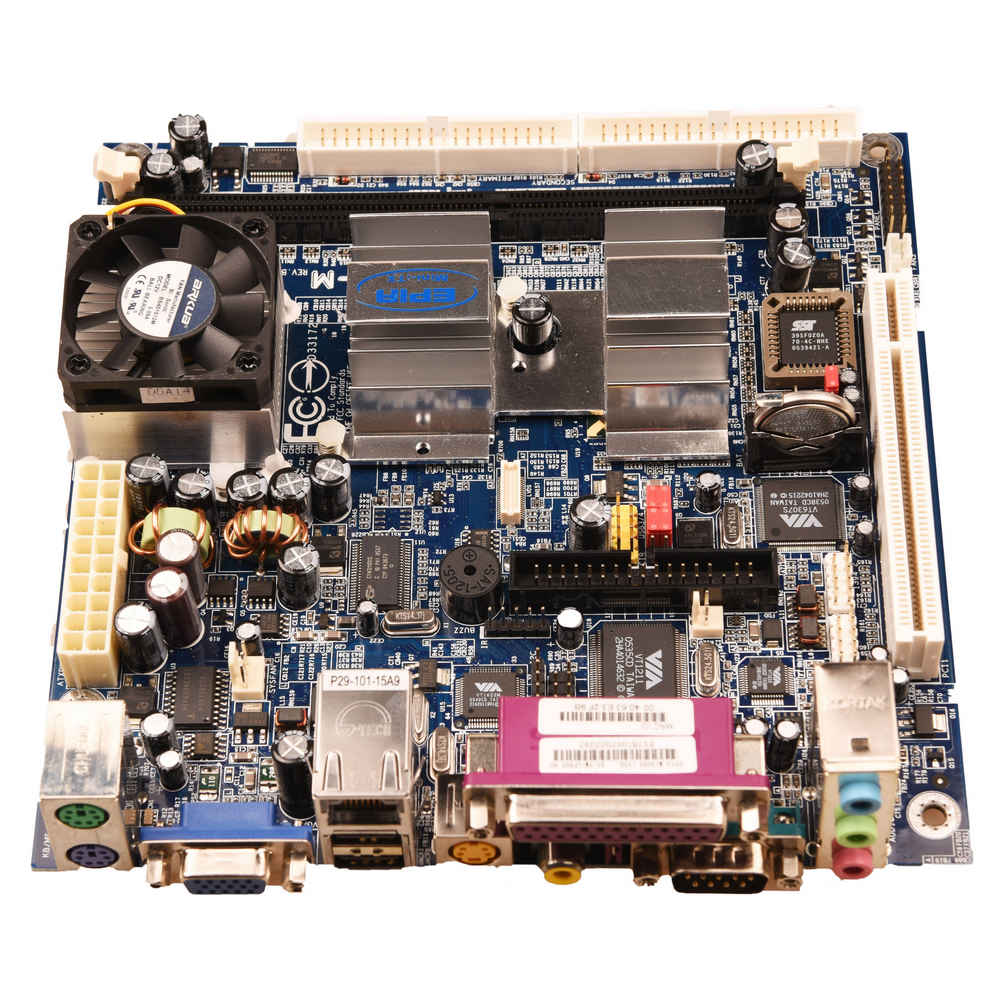

VIA EPIA M-Series Mini-ITX Board

The ultimate platform for the new generation of innovative digital media devices and home entertainment centers.

The VIA EPIA M-Series Mini-ITX Mainboard is a revolutionary, ultra-compact x86 platform optimized for today's killer digital applications. At just 17cm x 17cm, Mini-ITX is the world's smallest native x86 mainboard platform, and is fully compatible with MicrosoftR and Linux Operating Systems. Available with an embedded VIA Eden? ESP processor core for fanless systems with ultra low-power requirements, or an embedded VIA C3? E-Series processor for more demanding digital multimedia applications, the EPIA M-Series is the perfect platform for a whole range of small form factor, low-power digital media devices and home entertainment centers.

The EPIA M-Series' VIA Apollo CLE266 chipset features an embedded MPEG-2 Accelerator for silky smooth digital video playback, and integrated 2D/3D graphics for a rich multimedia experience. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA/133, the EPIA M-Series ensures the high performance levels required of today's most popular digital media applications. The user's digital media experience is further enhanced by support for 5.1 surround sound, courtesy of the onboard VIA VT1616 6 Channel AC'97 codec.

The latest in high-bandwidth connectivity is supported with both IEEE 1394 and USB 2.0 connections provided, as well as S-Video and RCA TV-Out (NTSC & PAL) and 10/100 Ethernet for seamless broadband connectivity. The EPIA M-Series also offers support for the latest LVDS embedded LCD panels, has one PCI slot for expandability options, and is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX chassis.

Key Features:

Integrated VIA UniChrome? AGP graphics with MPEG-2 decoding acceleration
Two onboard IEEE 1394 pin headers
Onboard Floppy pin header
Supports LVDS/DVI (an add-on card is required)
Supports TV-out
Supports six-channel audio

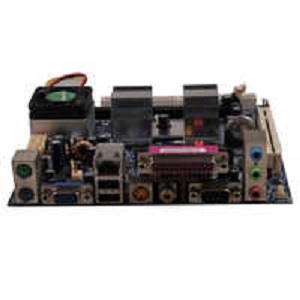

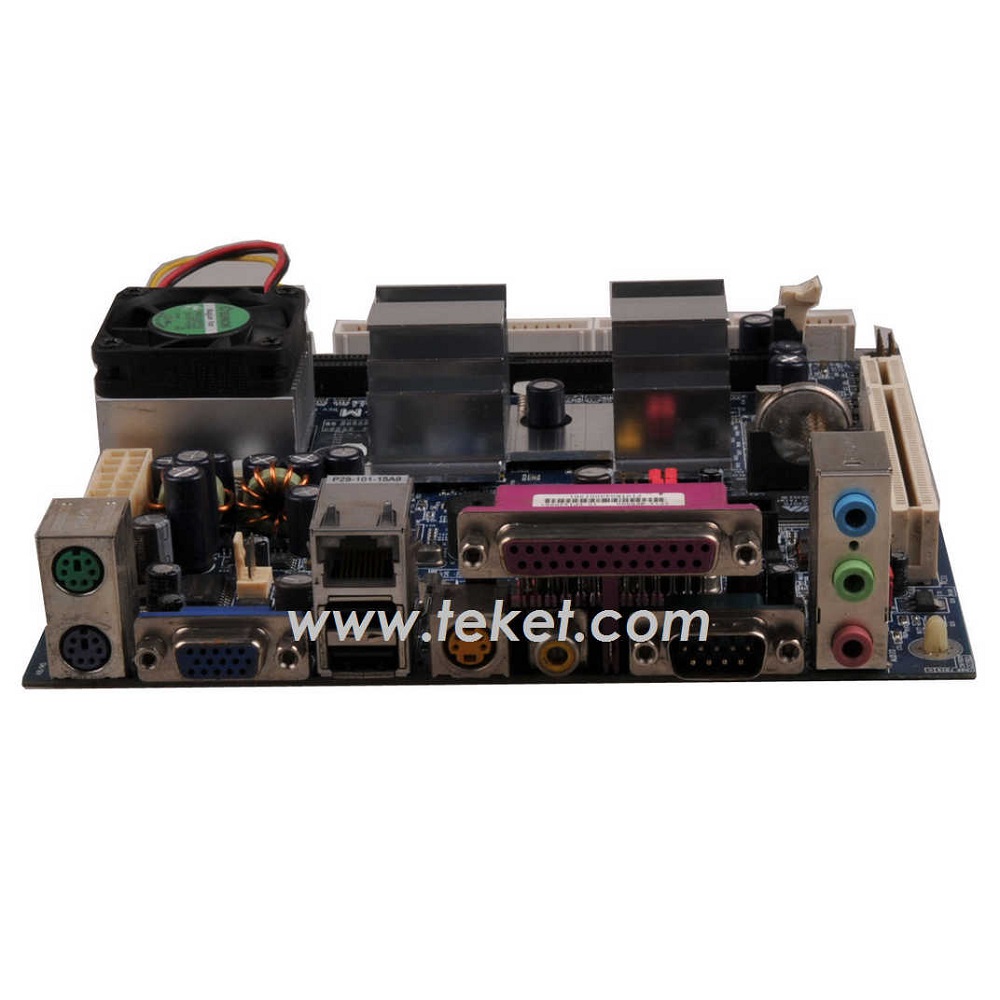

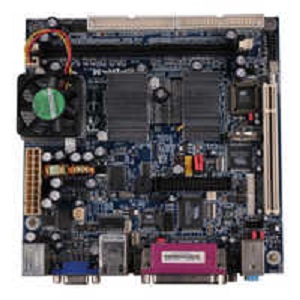

ME6000G show (used boards)



Specification
If you have questions about the model names; please refer to the Model Name Definition for EPIA/VB boards.VIA EPIA M-Series Mini-ITX Board Specifications
Model Name VIA EPIA M10000G
VIA EPIA ME6000G
Processor 1.0GHz VIA C3? Processor
600MHz Fanless VIA Eden? Processor
Chipset VIA CLE266 North Bridge
VT8235M South Bridge
System Memory 1 x DDR266 DIMM socket
Up to 1GB memory size
VGA Integrated VIA UniChrome? AGP graphics with MPEG-2 decoding acceleration
Expansion Slots 1 x PCI slot
Onboard IDE 2 X UltraDMA 133/100/66 Connectors
Onboard Floppy 1 x Floppy connector
Onboard LAN 1 x VIA VT6103 10/100 Mbps Ethernet PHY
Onboard Audio VIA VT1616 6-channel AC¡¯97 Codec
Onboard TV Out VIA VT1622M TV out
Onboard 1394 VIA VT6307S IEEE 1394 Firewire
Onboard I/O Connectors 1 x USB connector for 2 additional USB 2.0 ports
2 x IEEE1394 connectors
1 x Serial port connector for a second COM port
1 x Buzzer
1 x FIR connector
1 x CIR connector (switchable for KB/MS)
1 x Wake-on LAN connector
1 x SMBus connector
1 x LVDS/DVI connector, for 24-bit dual channel LVDS panel (an add-on card is required)
1 x CD audio-in connector
1 x Front panel audio connector for Line-out and Mic-in
3 x Fan connectors for CPU/Sys FAN/Fan 3
1 x ATX power connector

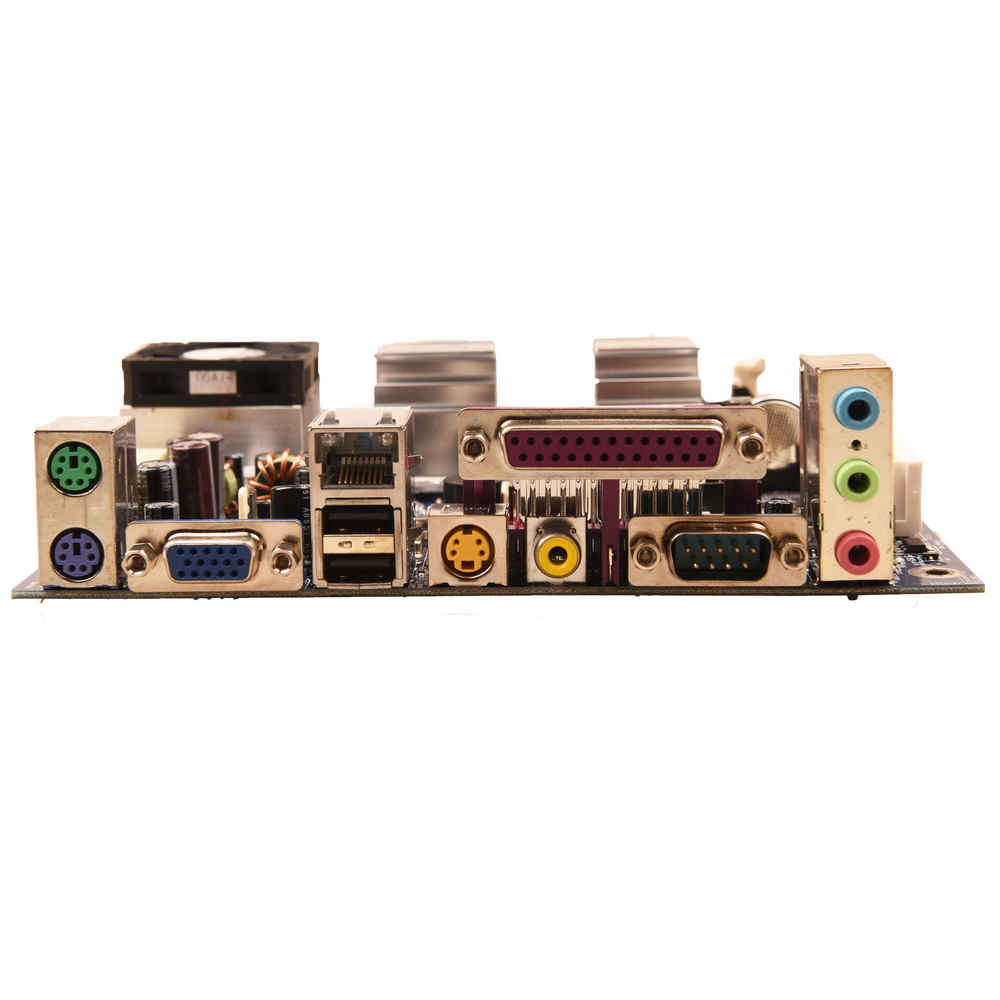

Back Panel I/O 1 x PS2 mouse port
1 x PS2 keyboard port
1 x VGA port
1 x RJ-45 LAN port
2 x USB 2.0 ports
1 x Parallel port
1 x S-Video port
1 x RCA port (S/PDIF or TV out)
1 x Serial port
3 x Audio jacks: Line-out, Line-in and Mic-in (vertical, Smart 5.1 support)
BIOS Award BIOS
2/4Mbit flash memory
System Monitoring & Management CPU voltage monitoring
Wake-on LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
Operating Temperature 0~50¡⁠
Operating Humidity 0% ~ 93% (relative humidity; non-condensing)
Form Factor Mini-ITX (4-layer)
17 cm x 17 cm

Ordering Information:

Model Name CPU Frequency Description
M10000G 1.0GHz C3? Mini-ITX Board, VGA, LVDS, DVI, TV-out, USB, 1394, COM, LAN, LPT, FDD, IDE
ME6000G 600MHz Eden? Mini-ITX Board, VGA, LVDS, DVI, TV-out, USB, 1394, COM, LAN, LPT, FDD, IDE

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration; A is for configured without TV-out.
* The specification is subject to change without prior notice.
