>>Your Current Position: VIA Embedded Motherboard

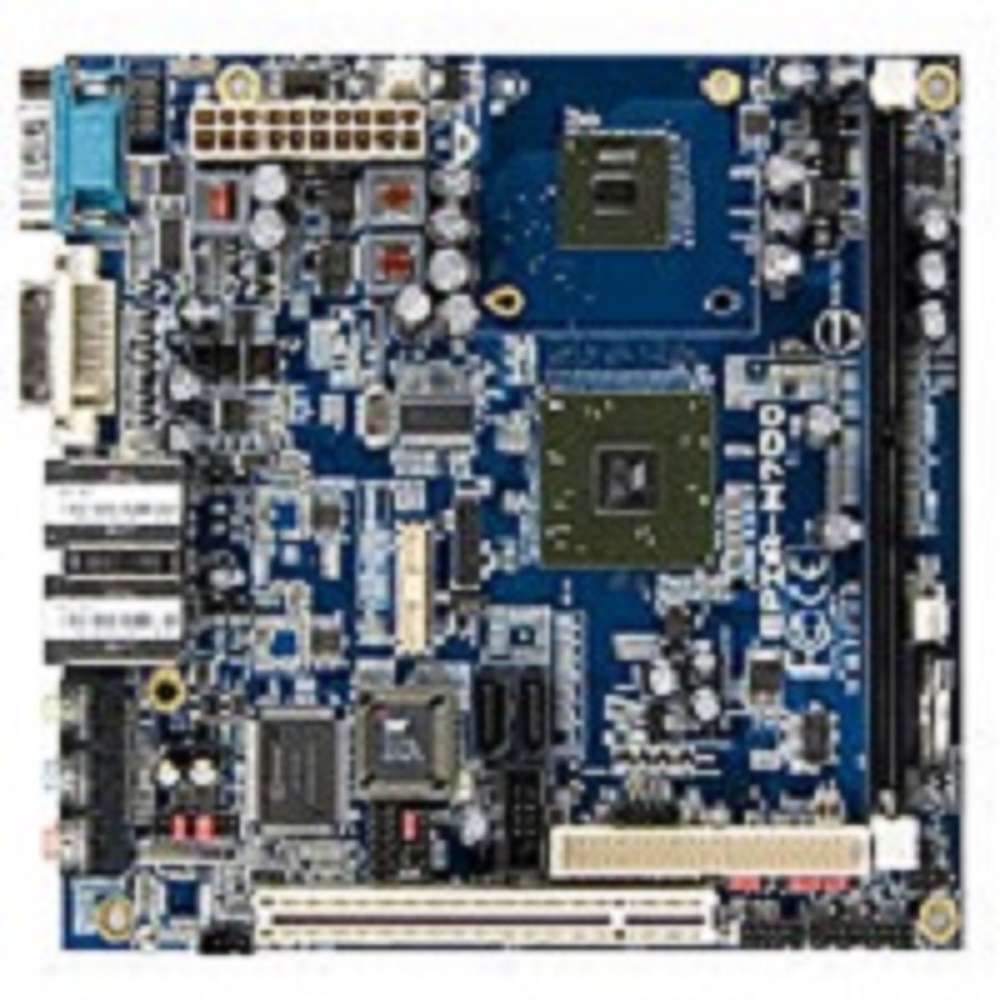

VIA EPIA-M700 Mini-ITX Board

1.5GHz or a fanless 1.0GHz VIA C7® processor
VIA VX800 unified chipset with its integrated VIA Chrome®9 HC3 integrated graphics core
Up to six-channel VIA Vinyl HD Audio rich surround sound
Supports up to 2GB of DDR2 system memory
Dual Gigabit LAN ports on the high speed PCI-Express bus

EPIA-M700 Mini-ITX Board

The VIA EPIA M700 is the first Mini-ITX board to feature the all-in-one VIA VX800 digital media IGP chipset, providing enhanced media playback and visual clarity across multiple displays in digital multimedia applications.

Key features include dual-DVI or DVI plus HDMI configurations with unique resolutions, pixel depths and refresh rates as well as two PCI-Express based Gigabit LAN ports to facilitate wideband data transfer for large video and other files over networks.

Featuring a 1.5GHz or a fanless 1.0GHz VIA C7® processor, the VIA EPIA M700 leverages the uncompromising multimedia performance of the VIA VX800 unified chipset with its integrated VIA Chrome®9 HC3 integrated graphics core for DirectX® 9.0 3D graphics and up to six-channel VIA Vinyl HD Audio rich surround sound, while the VIA Chromotion™ video engine provides advanced hardware video acceleration and an improved visual experience for MPEG-2, WMV9, VC1 video, plus a VMR capable HD video processor.

The VIA EPIA M700 supports up to 2GB of the latest DDR2 system memory. Storage includes both an IDE port with a shared Type I Compact Flash port, 2 SATA II ports and up to 6 USB 2.0 ports, two through onboard connectors. Connectivity comes in the form of dual Gigabit LAN ports on the high speed PCI-Express bus. Data protection is assured with the integrated VIA PadLock® Security Engine.

VIA EPIA-M700 Mini-ITX Board
Featuring the VIA VX800 digital media chipset for enhanced video playback, dual display and dual Gigabit LAN.

The VIA EPIA M700 is the first Mini-ITX board to feature the all-in-one VIA VX800 digital media IGP chipset, providing enhanced media playback and visual clarity across multiple displays in digital multimedia applications.

Key features include dual-DVI or DVI plus HDMI configurations with unique resolutions, pixel depths and refresh rates as well as two PCI-Express based Gigabit LAN ports to facilitate wideband data transfer for large video and other files over networks.

Featuring a 1.5GHz or a fanless 1.0GHz VIA C7? processor, the VIA EPIA M700 leverages the uncompromising multimedia performance of the VIA VX800 unified chipset with its integrated VIA Chrome9? HC3 integrated graphics core for DirectX? 9.0 3D graphics and up to six-channel VIA Vinyl HD Audio rich surround sound, while the VIA Chromotion? video engine provides advanced hardware video acceleration and an improved visual experience for MPEG-2, WMV9, VC1 video, plus a VMR capable HD video processor.

The VIA EPIA M700 supports up to 2GB of the latest DDR2 system memory. Storage includes both an IDE port with a shared Type I Compact Flash port, 2 SATA II ports and up to 6 USB 2.0 ports, two through onboard connectors. Connectivity comes in the form of dual Gigabit LAN ports on the high speed PCI-Express bus. Data protection is assured with the integrated VIA PadLock? Security Engine.

Key Features:

Integrated VIA Chrome9? HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration
Supports one IDE and two SATA
Supports dual PCIe Gigabit Ethernet
Supports one CF (Compact Flash) Type I
Supports one DVI-I port
Supports digital I/O, SPI and proprietary MFX interfaces
Supports four USB 2.0 ports
Supports HD audio
Designed for Digital Signage and Kiosk applications

Ordering Information:

Model Name CPU Frequency Description
M700-15 1.5GHz C7? Mini-ITX Board, DVI-I, USB, GLAN, COM, IDE, CF, SATA & Smart 5.1 Audio
M700-10E 1.0GHz C7? Mini-ITX Board, DVI-I, USB, GLAN, COM, IDE, CF, SATA & Smart 5.1 Audio

* Model Name Definition: E is for fanless configuration.
* The specification is subject to change without prior notice.
