>>Your Current Position: VIA Embedded Motherboard

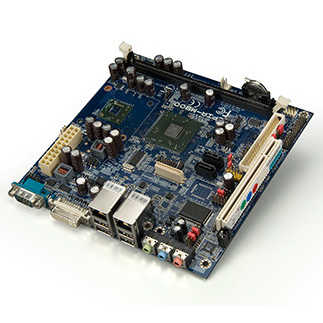

VIA EPIA-M800 Mini-ITX Board

VIA Nano® E Series processor
Integrated VIA Chrome®9 HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration
Supports one IDE and two SATA
Supports dual PCIe Gigabit Ethernet
Designed for Digital Signage and Kiosk applications

M800 Mini-ITX Board

The VIA EPIA-M800 is the first EPIA Mini-ITX board to combine both the VIA Nano® processor and the all-in-one VIA VX800 digital media IGP chipset. This potent combination provides enhanced media playback of the latest HD codecs in multiple display configurations.

An ideal digital signage platform the VIA EPIA-M800 offers dual-DVI or DVI plus HDMI configurations with unique resolutions, pixel depths and refresh rates as well as two PCI-Express based Gigabit LAN ports to facilitate wideband data transfer for large video and other files over networks.

The VIA EPIA-M800 is powered by a choice of 1.6 GHz or a fanless 1.2GHz VIA Nano® processors, making it a suitable choice for a wide range of applications including both performance-intensive and mission critical applications. The VIA Nano® processor also combines the highly adept multimedia performance of the VIA VX800 unified chipset with its integrated VIA Chrome®9 HC3 integrated graphics core for DirectX 9.0 3D graphics.

Up to six-channels of VIA Vinyl HD Audio offers rich surround sound, while the VIA Chromotion™ video engine provides advanced hardware video acceleration and an improved visual experience for range of codecs including WMV-9. Storage includes both an IDE and Compact Flash shared connector, 2 SATA II connectors and up to 6 USB 2.0 ports. Connectivity comes in the form of dual Gigabit LAN ports on the high speed PCI-Express bus. Data protection is assured with the integrated VIA PadLock® Security Engine and an MFX-01 module.

VIA EPIA-M800 Mini-ITX Board

EPIA-M800
Combines the VIA Nano processor with VIA VX800 MSP for smooth HD video playback on dual displays

The VIA EPIA-M800 is the first EPIA Mini-ITX board to combine both the VIA Nano processor and the all-in-one VIA VX800 digital media IGP chipset. This potent combination provides enhanced media playback of the latest HD codecs in multiple display configurations.


An ideal digital signage platform the VIA EPIA-M800 offers dual-DVI or DVI plus HDMI configurations with unique resolutions, pixel depths and refresh rates as well as two PCI-Express based Gigabit LAN ports to facilitate wideband data transfer for large video and other files over networks.

The VIA EPIA-M800 is powered by a choice of 1.6 GHz or a fanless 1.2GHz VIA Nano processors, making it a suitable choice for a wide range of applications including both performance-intensive and mission critical applications. The VIA Nano processor also combines the highly adept multimedia performance of the VIA VX800 unified chipset with its integrated VIA Chrome9? HC3 integrated graphics core for DirectX 9.0 3D graphics.

Up to six-channels of VIA Vinyl HD Audio offers rich surround sound, while the VIA Chromotion? video engine provides advanced hardware video acceleration and an improved visual experience for range of codecs including WMV-9. Storage includes both an IDE and Compact Flash shared connector, 2 SATA II connectors and up to 6 USB 2.0 ports. Connectivity comes in the form of dual Gigabit LAN ports on the high speed PCI-Express bus. Data protection is assured with the integrated VIA PadLock Security Engine and an MFX-01 module.

Key Features
Integrated VIA Chrome9? HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration
Supports one IDE and two SATA
Supports dual PCIe Gigabit Ethernet
Supports one CF (Compact Flash) Type I
Supports one DVI-I port
Supports digital I/O, SPI and proprietary MFX interfaces
Supports six USB 2.0 ports (two as pin headers)
Supports HD audio
Designed for Digital Signage and Kiosk applications

Ordering Information:

Model Name CPU Frequency Description
M800-16 1.6GHz Nano? Mini-ITX Board with DVI-I, USB, GLAN, COM, IDE, CF, SATA & Smart 5.1 Audio
M800-12E 1.6GHz Nano? Mini-ITX Board with DVI-I, USB, GLAN, COM, IDE, CF, SATA & Smart 5.1 Audio
* Model Name Definition: E is for fanless configuration.
* The specification is subject to change without prior notice.
