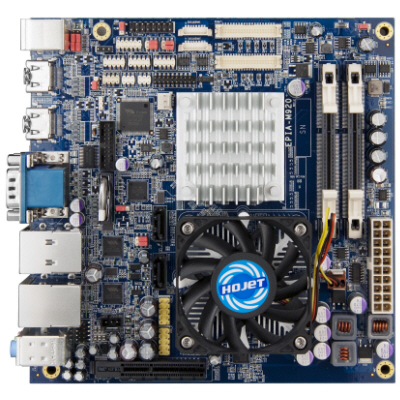

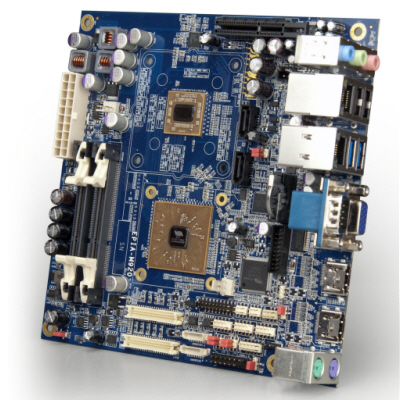

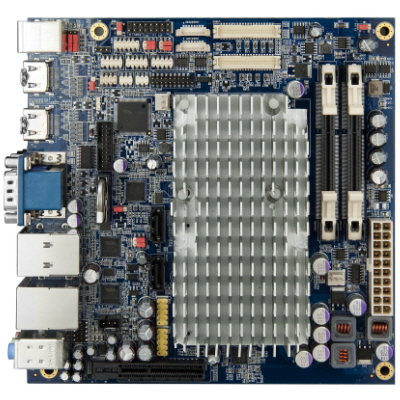

VIA EPIA-M920 Mini-ITX Board

VIA EPIA-M920 Mini-ITX Board

First Mini-ITX with VIA VX11H Media System Processor with DirectX 11 and 3D stereoscopic display.

The VIA EPIA-M920 Mini-ITX board pairs the latest 64-bit VIA Nano E-Series processor with the VIA VX900 media system processor creating the most complete platform for commercial embedded multimedia and media center devices.




•Active and passive cooling configurations
•DirectX 11 and 3D stereoscopic display
•Hardware acceleration for MPEG-2, MPEG-4, WMV9, VC-1 and H.264 video
•Support for up to 16GB of DDR3 at speeds up to 1333MHz

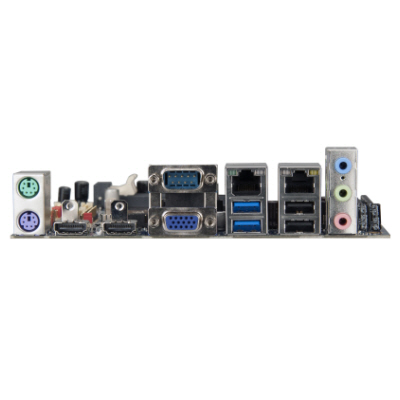

•Rich connectivity options with support for 2 HDMI ports, one VGA port and two 18/24-bit LVDS
•Supports dual Gigabit Ethernet, three USB 3.0 and six USB 2.0 ports
•Four COM ports and support for SD (SDXC/SDHC)
•Available with ATX or DC-in power supply support
•Windows 7/WES7/ XP, and Linux OS & driver support
•Designed for advanced Industrial Automation, POS, Kiosk, ATM, Gaming, Digital Signage, Healthcare and Digital Media Applications

Ordering Information:

Model Name CPU Frequency Description
M920

* Model Name Definition: E is for fanless configuration.
* The specification is subject to change without prior notice.
