>>Your Current Position: VIA Embedded Motherboard

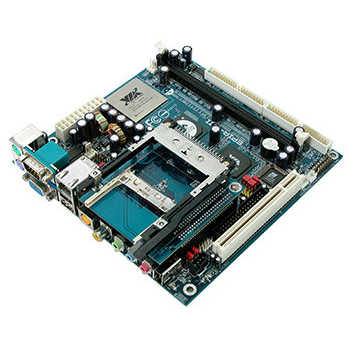

VIA EPIA MII Mini-ITX Board

1.5GHz or a fanless 1.0GHz VIA C7® processor
VIA VX800 unified chipset with its integrated VIA Chrome®9 HC3 graphics core
Integrated VIA PadLock® Security Engine
Supports up to 2GB of DDR2 system memory
Storage includes both an IDE port with a shared Type I Compact Flash port, 2 SATA II ports and up to 6 USB 2.0 ports


EPIA MII-Series Mini-ITX Board

The VIA EPIA M700 is the first Mini-ITX board to feature the all-in-one VIA VX800 digital media IGP chipset, providing enhanced media playback and visual clarity across multiple displays in digital multimedia applications.

Key features include dual-DVI or DVI plus HDMI configurations with unique resolutions, pixel depths and refresh rates as well as two PCI-Express based Gigabit LAN ports to facilitate wideband data transfer for large video and other files over networks.

Featuring a 1.5GHz or a fanless 1.0GHz VIA C7® processor, the VIA EPIA M700 leverages the uncompromising multimedia performance of the VIA VX800 unified chipset with its integrated VIA Chrome®9 HC3 integrated graphics core for DirectX® 9.0 3D graphics and up to six-channel VIA Vinyl HD Audio rich surround sound, while the VIA Chromotion™ video engine provides advanced hardware video acceleration and an improved visual experience for MPEG-2, WMV9, VC1 video, plus a VMR capable HD video processor.

The VIA EPIA M700 supports up to 2GB of the latest DDR2 system memory. Storage includes both an IDE port with a shared Type I Compact Flash port, 2 SATA II ports and up to 6 USB 2.0 ports, two through onboard connectors. Connectivity comes in the form of dual Gigabit LAN ports on the high speed PCI-Express bus. Data protection is assured with the integrated VIA PadLock® Security Engine.

Ordering Information:

Model Name CPU Frequency Description
. . .
. . .

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration.
* The specification is subject to change without prior notice.
