>>Your Current Position: VIA Embedded Motherboard

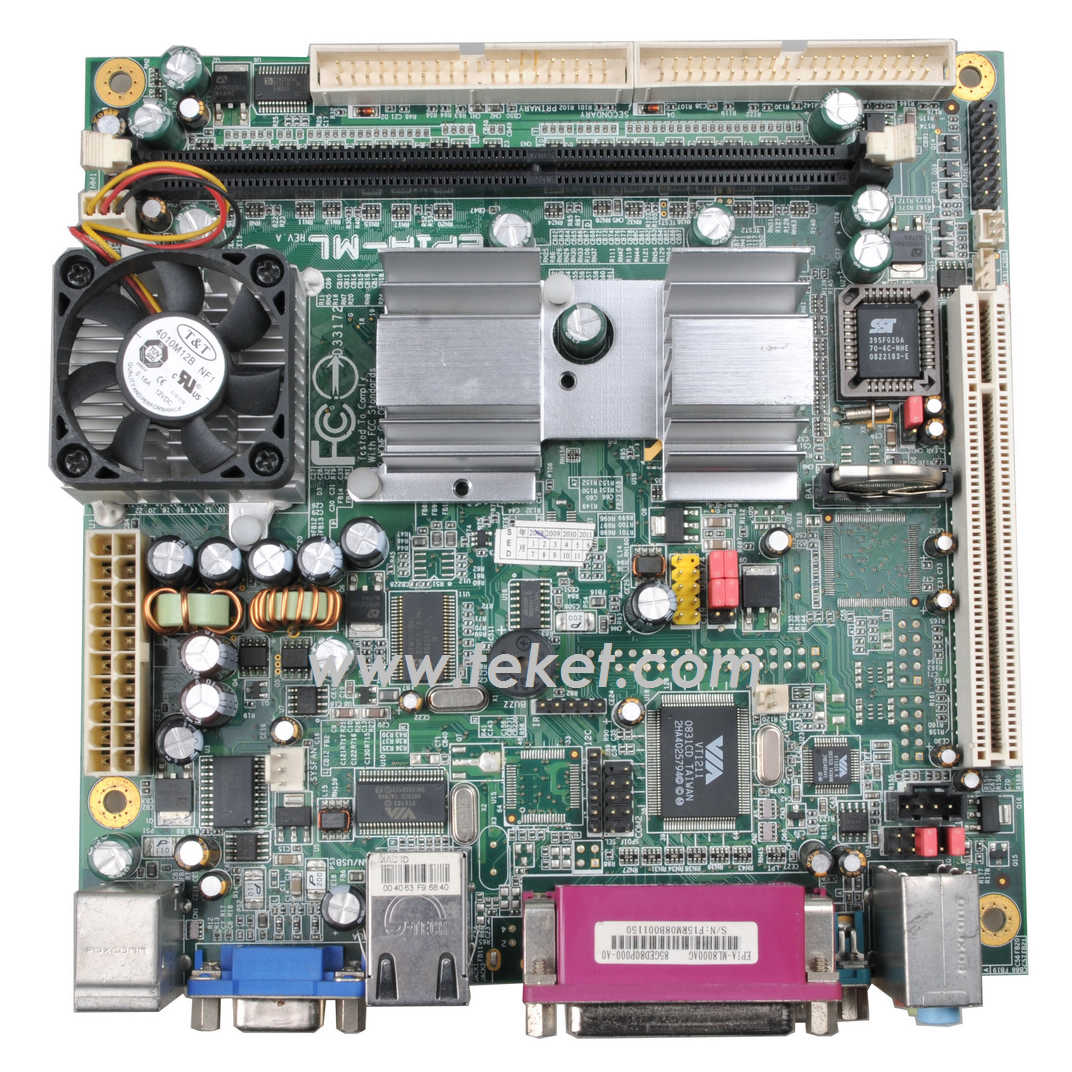

VIA EPIA ML-Series Mini-ITX Board ML8000 ML6000

Integrated VIA Chrome® AGP graphics with MPEG-2 decoding acceleration
Supports DDR266 SDRAM
Supports TV-out (optional)
Supports four USB 2.0 ports (two as pin headers)
Supports 6-channel audio

VIA EPIA ML Mini-ITX Board

The VIA EPIA ML-Series Mini-ITX Mainboard is an ultra-compact native x86 platform optimized for today’s demanding embedded and productivity applications. At just 17cm x 17cm, the Mini-ITX form factor can fit into very cramped spaces that are not suitable for other motherboard form factors, and is fully compatible with Microsoft® and Linux Operating Systems. Available with an embedded VIA Eden® ESP processor for fanless systems with ultra low-power requirements, or an embedded VIA C3® processor for more demanding digital multimedia applications, the VIA EPIA ML-Series is the perfect platform for a whole range of small form factor, low-power and affordable PCs and embedded devices.

The EPIA ML-Series’ VIA CLE266 chipset features a hardware-based MPEG-2 accelerator for silky smooth DVD playback, and integrated 2D/3D graphics for a rich multimedia experience. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA/133, the EPIA ML-Series ensures the high performance levels required of today’s most popular productivity and digital media applications. The user’s digital media experience is further enhanced by support for 5.1 surround sound, courtesy of the onboard VIA VT1616 6-Channel AC’97 codec.

High-bandwidth connectivity is supported with up to four USB 2.0 connections provided, as well as 10/100 Ethernet for seamless broadband connectivity. The EPIA ML-Series also has one PCI slot for expandability options and is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX chassis.

VIA EPIA ML-Series Mini-ITX Board

The most reliable platform for hard working small and quiet PCs and embedded systems.

The VIA EPIA ML-Series Mini-ITX Mainboard is an ultra-compact native x86 platform optimized for today's demanding embedded and productivity applications. At just 17cm x 17cm, the Mini-ITX form factor can fit into very cramped spaces that are not suitable for other motherboard form factors, and is fully compatible with Microsoft? and Linux Operating Systems. Available with an embedded VIA Eden? ESP processor for fanless systems with ultra low-power requirements, or an embedded VIA C3? processor for more demanding digital multimedia applications, the VIA EPIA ML-Series is the perfect platform for a whole range of small form factor, low-power and affordable PCs and embedded devices.

The EPIA ML-Series' VIA CLE266 chipset features a hardware-based MPEG-2 accelerator for silky smooth DVD playback, and integrated 2D/3D graphics for a rich multimedia experience. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA/133, the EPIA ML-Series ensures the high performance levels required of today's most popular productivity and digital media applications. The user's digital media experience is further enhanced by support for 5.1 surround sound, courtesy of the onboard VIA VT1616 6-Channel AC'97 codec.

High-bandwidth connectivity is supported with up to four USB 2.0 connections provided, as well as 10/100 Ethernet for seamless broadband connectivity. The EPIA ML-Series also has one PCI slot for expandability options and is compatible with a full range of Mini-ITX chassis as well as FlexATX and MicroATX chassis.

Key Features:

Integrated VIA UniChrome? AGP graphics with MPEG-2 decoding acceleration
Supports DDR266 SDRAM
Supports TV-out (optional)
Supports four USB 2.0 ports (two as pin headers)
Supports 6-channel audio


Specification
If you have questions about the model names; please refer to the Model Name Definition for EPIA/VB boards.VIA EPIA ML-Series Mini-ITX Board Specifications
Model Name VIA EPIA ML8000G
VIA EPIA ML8000AG(no TV-out)
VIA EPIA ML6000EAG(no TV-out)



Processor 800MHz VIA C3? processor
667MHz Fanless VIA Eden? processor
Chipset VIA CLE266 North Bridge
VIA VT8235M South Bridge
System Memory 1 x DDR266 DIMM socket
Up to 1GB memory size
Onboard TV Out VIA VT1622AM TV out

VGA Integrated VIA UniChrome? AGP graphics with MPEG-2 decoding acceleration
Expansion Slots 1 x PCI slot
Onboard IDE 2 X UltraDMA 133/100/66 Connectors
Onboard LAN 1 x VIA VT6103 10/100 Mbps Ethernet PHY
Onboard Audio VIA VT1616 6-channel AC¡¯ 97 codec
Onboard I/O Connectors 1 x USB connector for 2 additional USB 2.0 ports
1 x Serial port connector for a second COM port
1 x Buzzer
1 x FIR connector
1 x CIR connector (switchable for KB/MS)
1 x Wake-on LAN connector
1 x SMBus connector
1 x CD audio-in connector
1 x Front panel audio connector for Line-out and Mic-in
3 x Fan connectors for CPU/Sys FAN/Fan 3
1 x ATX power connector

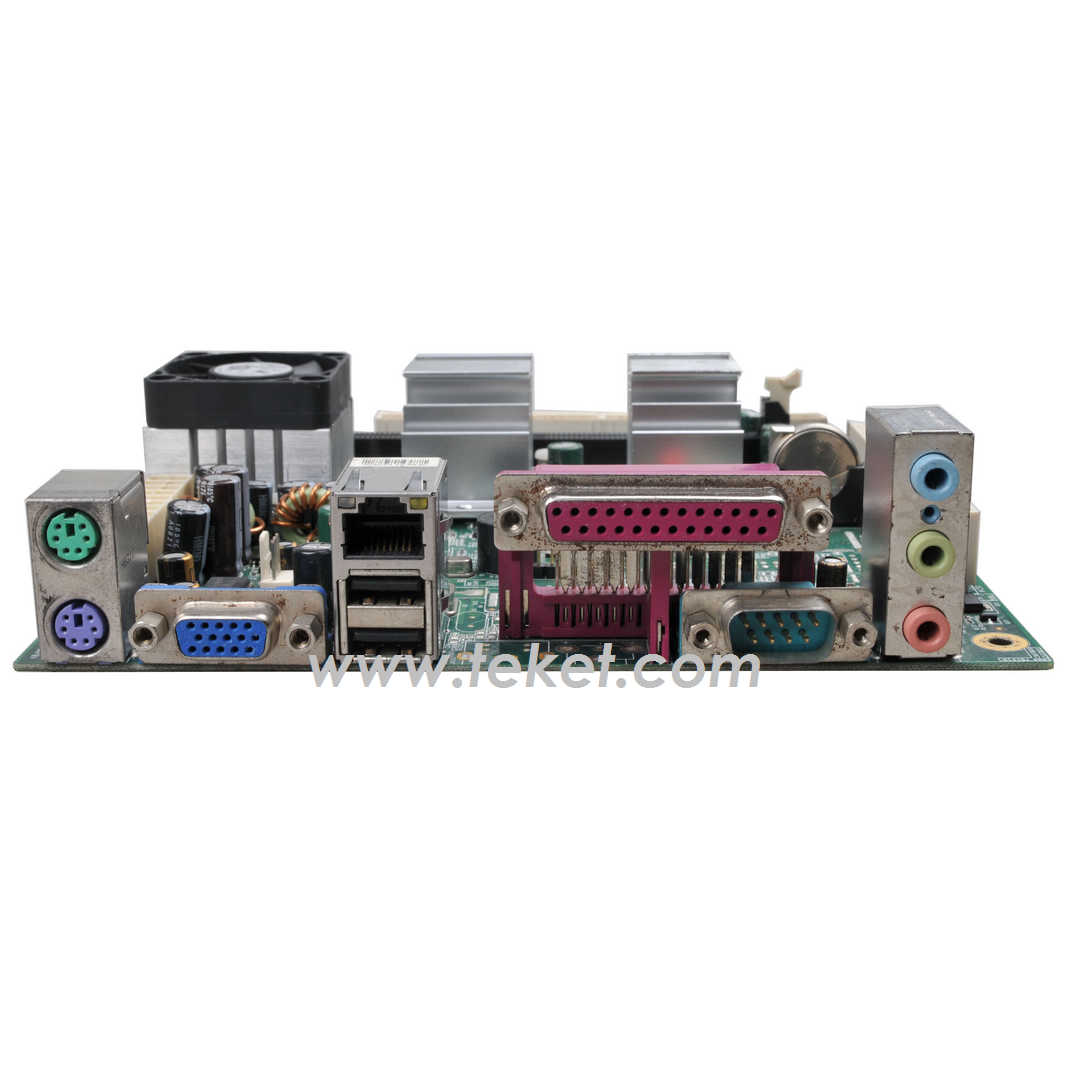

Back Panel I/O 1 x PS2 mouse port
1 x PS2 keyboard port
1 x VGA port
1 x RJ-45 LAN port
2 x USB 2.0 ports
1 x Parallel port
1 x Serial port
3 x Audio jacks: Line-out, Line-in and Mic-in (horizontal, Smart 5.1 support)
BIOS Award BIOS
2Mbit flash memory
System Monitoring & Management CPU voltage monitoring
Wake-on-LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
Operating Temperature 0~50¡⁠
Operating Humidity 0% ~ 93% (relative humidity; non-condensing)
Form Factor Mini-ITX (4-layer)
17 cm x 17 cm

Ordering Information:

Model Name CPU Frequency Description
ML8000G 800MHz C3? Mini-ITX Board, VGA, TV-out, COM, LAN, LPT, USB, IDE
ML8000AG 800MHz C3? Mini-ITX Board, VGA, COM, LAN, LPT, USB, IDE
ML6000EAG 667MHz Eden? Mini-ITX Board, VGA, COM, LAN, LPT, USB, IDE

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration; A is for configured without TV-out.
* The specification is subject to change without prior notice.
