>>Your Current Position: VIA Embedded Motherboard



VIA Nano-ITX Series Board N700

Integrated VIA Chrome™9 HC3 DX9 3D/2D graphics with MPEG-2, WMV9 decoding acceleration
Supports DDR2 533/667 SDRAM (SODIMM)
Supports wide temperature from -20 to 70 °C
Supports one IDE and two SATA
Supports one CF (Compact Flash) Type I

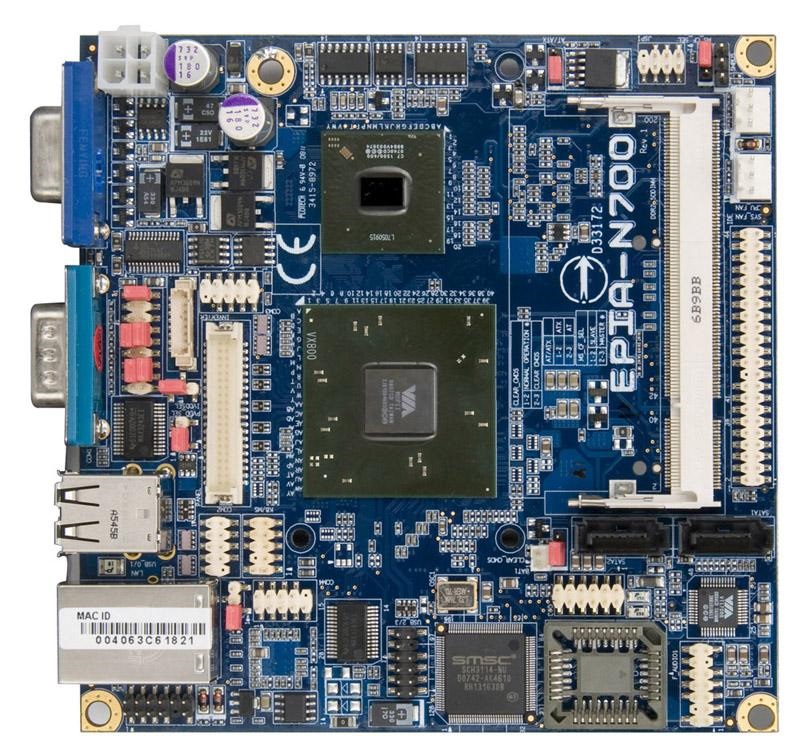

VIA EPIA-N700 Nano-ITX Mainboard

The VIA EPIA-N700 is a compact, low heat, power-efficient Nano-ITX board, ideal for compact industrial PCs and embedded automation devices. The addition of the VIA VX800 media system processor, an all-in-one chipset solution that provides an extensive feature set while using less real estate, helps to make the VIA EPIA N700 a superb choice for developers of compact systems.

Measuring only 12cm x 12cm, the VIA EPIA-N700 board is the lowest profile Nano-ITX board yet. VGA, USB, COM and Gigabit network ports are provided on the board to help reduce system foot-print size and eradicate cluttered cabling for improved air-flow and enhanced stability in always-on systems.

The VIA VX800 offers an integrated DirectX9 graphics core and excellent hardware accelerated video playback for MPEG-2, WMV9, VC1 video formats. An on-board VGA port is provided along with support for DVI and a multi-configuration 24-bit, dual channel LVDS transmitter, enabling display connection to embedded panels.

The VIA EPIA-N700 is available with either a power-efficient 1.5GHz VIA C7 or 500MHz VIA Eden® processor, supports up to 2GB of DDR2 system memory and includes two onboard S-ATA connectors, USB 2.0, COM and Gigabit LAN ports. Expansion includes a Mini-PCI slot with an IDE port, additional COM and USB ports and PS/2 support available through pin-headers.

VIA EPIA-N700-10EW: Stability in Extreme Environments

The VIA EPIA-N700-10EW is an affordable solution that offers total system stability at extreme temperatures ranging from -20°C to 70°C, an ideal solution in environments where machinery can create intense operating temperatures, as well as extreme climate scenarios.

All VIA EPIA-N700-10EW boards are rigorously tested for compatibility and reliability prior to shipping and are bundled with special wide temperature-verified system memory modules to ensure complete system stability.

VIA Nano-ITX Series Board N700

Compact, yet user friendly, the VIA EPIA N700 boasts the latest VX800 unified all-in-one media system processor.

The VIA EPIA N700 is a compact, low heat, power-efficient Nano-ITX board, ideal for compact industrial PCs and embedded automation devices. The addition of the VIA VX800 media system processor, an all-in-one chipset solution that provides an extensive feature set while using less real estate, helps to make the VIA EPIA N700 a superb choice for developers of compact systems.

Measuring only 12cm x 12cm, the VIA EPIA N700 board is the lowest profile Nano-ITX board yet. VGA, USB, COM and Gigabit network ports are provided on the board to help reduce system foot-print size and eradicate cluttered cabling for improved air-flow and enhanced stability in always-on systems.

The VIA VX800 offers an integrated DirectX9 graphics core and excellent hardware accelerated video playback for MPEG-2, WMV9, VC1 video formats. An on-board VGA port is provided along with support for DVI and a multi-configuration 24-bit, dual channel LVDS transmitter, enabling display connection to embedded panels.

The VIA EPIA N700 is available with either a power-efficient 1.5GHz VIA C7 or 500MHz VIA Eden processor, supports up to 2GB of DDR2 system memory and includes two onboard S-ATA connectors, USB 2.0, COM and Gigabit LAN ports. Expansion includes a Mini-PCI slot with an IDE port, additional COM and USB ports and PS/2 support available through pin-headers.

VIA EPIA N700-10EW: Stability in Extreme Environments
The VIA EPIA N700-10EW is an affordable solution that offers total system stability at extreme temperatures ranging from -20C to 70C, an ideal solution in environments where machinery can create intense operating temperatures, as well as extreme climate scenarios.

All VIA EPIA N700-10EW boards are rigorously tested for compatibility and reliability prior to shipping and are bundled with special wide temperature-verified system memory modules to ensure complete system stability.

Key Features:

Integrated VIA Chrome9? HC3 DX9 3D/2D graphics with MPEG-2, WMV9 decoding acceleration
Supports DDR2 533/667 SDRAM (SODIMM)
Supports one IDE and two SATA
Supports one PCIe Gigabit Ethernet
Supports one CF (Compact Flash) Type I
Supports one VGA port
Supports four USB 2.0 ports (two as pin headers)
Onboard LVDS support: one dual channel LVDS panel support
Supports HD audio

Ordering Information:

Model Name CPU Frequency Description
N700-15L 1.5GHz C7? Nano-ITX Board, VGA, LVDS, COM, USB, IDE, SATA, CF & GigaLAN
N700-05LE 500MHz Eden? ULV Nano-ITX Board, VGA, LVDS, COM, USB, IDE, SATA, CF & GigaLAN
N700-10EW 1.0GHz Eden? ULV Nano-ITX Board, VGA, LVDS, COM, USB, IDE, SATA, CF, GigaLAN & 1GB DDR2 667 SODIMM RAM Module

* Model Name Definition: L: configured with Gigabit LAN; E: fanless configuration; W: wide temperature configuration.
* The specification is subject to change without prior notice.
