VIA Nano-ITX Series Board EPIA NR10000EG

Integrated VIA Chrome® Pro II 3D/2D AGP graphics with MPEG-2 and WMV9 decoding acceleration
Supports two SATA
Supports one 10/100 Mbps Ethernet (optional Gigabit Ethernet)
Supports two COM ports, COM 1 with 5V/12V select
Supports six USB 2.0 (pin connector)

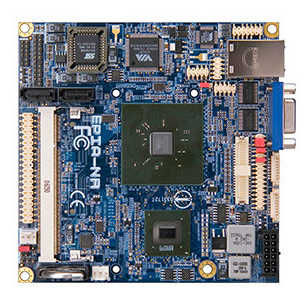

VIA EPIA NR Nano-ITX Mainboard

The VIA EPIA NR Nano-ITX embedded board is powered by the 1GHz VIA C7® processor, enabling convection cooled systems in locations where noiseless or dust-free systems are essential yet providing desktop performance with a maximum CPU TDP of just 9 watts and average operating power of well below 1 watt.

Additionally, the VIA EPIA NR leverages the display, storage and I/O flexibility of the VIA CX700 system media processor, the all-in-one, highly integrated embedded chipset featuring the VIA Chrome® Pro II IGP graphics core. The VIA EPIA NR is the first Nano-ITX mainboard to natively support LVDS in two single or one dual-channel monitor configuration without the need for a daughterboard.

This new Nano-ITX board also provides considerable storage options, with Serial ATA and IDE hard drive connectors for mainstream systems and Compact Flash for local OS storage in industrial automation. Moreover, an extensive I/O set includes broadband Ethernet as well as a mini-PCI port, USB2.0, COM, LPC and Super I/O headers; while WLAN connectivity can be supported through an add-in card for greater flexibility in system design.

VIA Nano-ITX Series Board EPIA NR10000EG

With unrivalled storage flexibility and native LVDS support the new VIA EPIA NR is a low profile Nano-ITX mainboard ideal for healthcare, industrial automation and digital signage systems.

The VIA EPIA NR Nano-ITX embedded board is powered by the 1GHz VIA C7? processor, enabling convection cooled systems in locations where noiseless or dust-free systems are essential yet providing desktop performance with a maximum CPU TDP of just 9 watts and average operating power of well below 1 watt.

Additionally, the VIA EPIA NR leverages the display, storage and I/O flexibility of the VIA CX700 system media processor, the all-in-one, highly integrated embedded chipset featuring the VIA UniChrome? Pro II IGP graphics core. The VIA EPIA NR is the first Nano-ITX mainboard to natively support LVDS in two single or one dual-channel monitor configuration without the need for a daughterboard.

This new Nano-ITX board also provides considerable storage options, with Serial ATA and IDE hard drive connectors for mainstream systems and Compact Flash for local OS storage in industrial automation. Moreover, an extensive I/O set includes broadband Ethernet as well as a mini-PCI port, USB2.0, COM, LPC and Super I/O headers; while WLAN connectivity can be supported through an add-in card for greater flexibility in system design.

Key Features:

Integrated VIA UniChrome? Pro II 3D/2D AGP graphics with MPEG-2 and WMV9 decoding acceleration
Supports two SATA
Supports one 10/100 Mbps Ethernet (optional Gigabit Ethernet)
Supports two COM ports, COM 1 with 5V/12V select
Supports six USB 2.0 (pin connector)
Supports one type I Compact Flash (share with IDE)
Onboard LVDS support: two single-channel or one dual-channel LVDS panel support

Ordering Information:

Model Name CPU Frequency Description
NR10000EG 1.0 GHz C7? Nano-ITX Board, VGA, USB, LAN, LVDS, COM, Compact Flash, IDE & SATA

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration.
* The specification is subject to change without prior notice.
