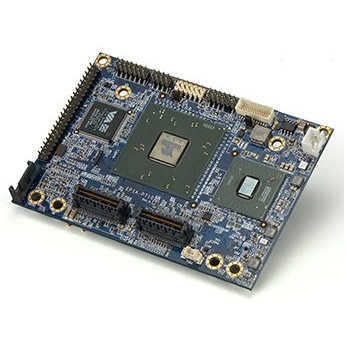

VIA EPIA P710 Pico-ITXe Board

Pico-ITXe (Pico-ITX Express) form factor
Integrated VIA Chrome®9 HC3 DX9 3D/2D graphics with MPEG-2 video decoding acceleration
Supports DDR2 533/667 SDRAM (SODIMM)
Supports two SUMIT QMS expansion connectors (USB, LPC, PCIe x1, PCIe x4, SMBus and SPI)
Supports one IDE and one SATA

VIA EPIA-P710 Pico-ITX Board

The VIA EPIA-P710 takes a rational, modular approach to embedded system design. The compact VIA EPIA-P710 is designed to be used with a customizable I/O expansion board in a stackable, I/O-centric implementation.

The VIA EPIA-P710 is the very first board to take advantage of the new Pico-ITXe standard and SUMIT™ connector specifications. Using the SUMIT connectors to mount a customized expansion board, the VIA EPIA-P710 allows simple connection of both high and low speed, legacy and serial buses including S-ATA, USB 2.0 and PCI Express.

Powered by a 1GHz VIA C7® processor and the VIA VX800 media system processor, the compact VIA EPIA-P710 is incredibly versatile with a full feature set that makes it perfect for a range of embedded applications. Measuring only 10cm x 7.2cm, the VIA EPIA-P710 features the VIA Chrome®9 IGP with DX9 graphics and hardware acceleration for MPEG-2, WMV9 and VC1 codecs.

The VIA EPIA-P710 supports up to 2GB of DDR2 system memory, one IDE channel, two S-ATA channels and high definition audio. I/O configurations include support for up to 3 USB, 1 LPC, 2 PCIe x1, 1 PCIe x4, SMBus and SPI buses. Pin headers provide Gigabit LAN, VGA, LVDS, audio and front panel LED.

Ordering Information:

Model Name CPU Frequency Description
. . .
. . .

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration.
* The specification is subject to change without prior notice.
