VIA Pico-ITX Series Board EPIA-P910

VIA Pico-ITX Series Board EPIA-P910

The Pico-ITX board form factor is a complete, native x86 embedded board measuring just 10 cm x 7.2 cm. Developed by VIA as part of its "Small is Beautiful" strategy, the Pico-ITX form factor is 75% smaller than the Mini-ITX form factor, and inspires innovative system design for future generations of smaller computing and connecting devices.

Smaller than the existing Mini-ITX and Nano-ITX, the Pico-ITX form factor is the latest advance for embedded board designs. As the third generation miniature platform conceived by VIA, it supersedes the previous title holder of "World's Smallest Full-Featured Board" by 50%.

The Pico-ITX form factor leverages VIA's focus on enhancing power efficiency, thermal management and feature integration. Designed specifically to be powered by VIA's energy efficient processor platforms, such as the VIA C7R or fanless VIA Eden™ processor, and based on the new breed of VIA's system media processors, such as the VX700M, the Pico-ITX combines processing power, core logic, graphics, multimedia, connectivity, and storage technologies into a tiny form factor.

With VIA's twofold vision of propelling x86 platform usage more widely and empowering more people to enjoy the digital lifestyle, the Pico-ITX embedded board form factor is designed to enable system developers and OEMs to create smaller, lighter, quieter, and even more mobile devices than ever before — opening up a new world of possibilities across multiple embedded computer, system, and appliance segments.

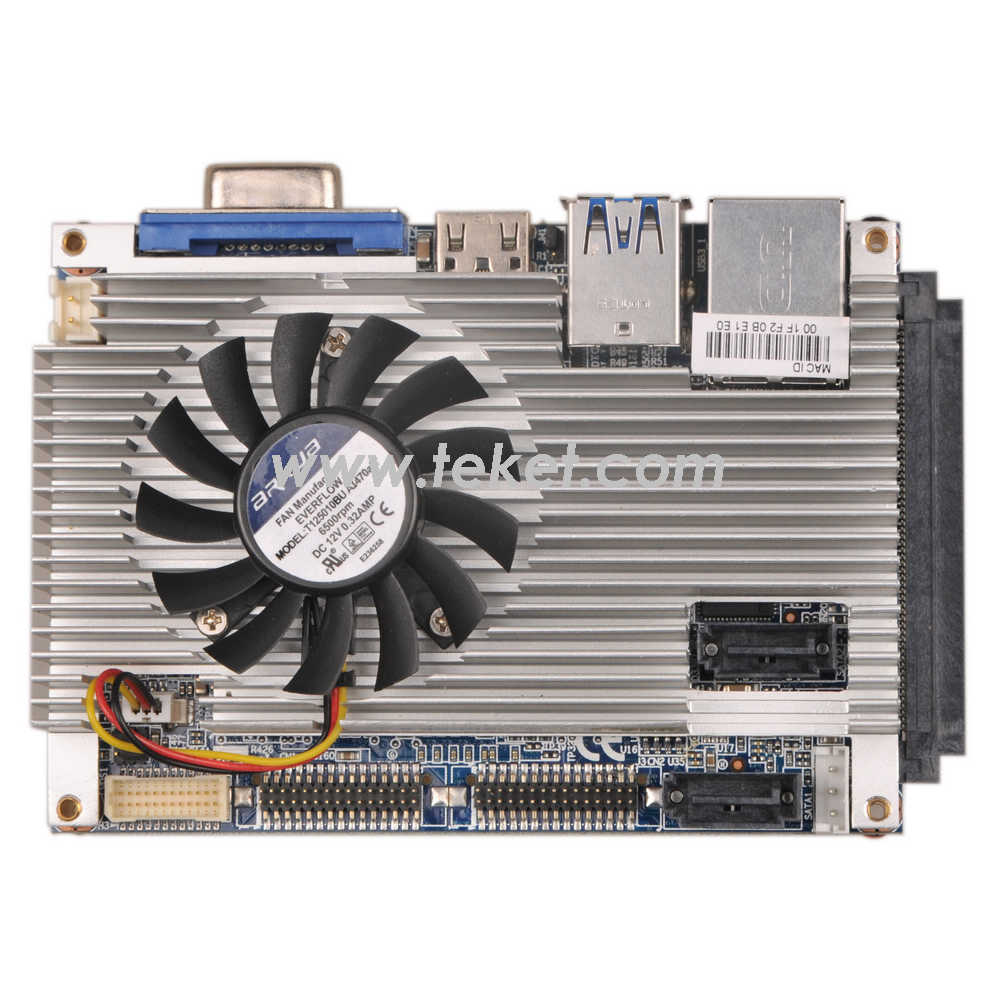

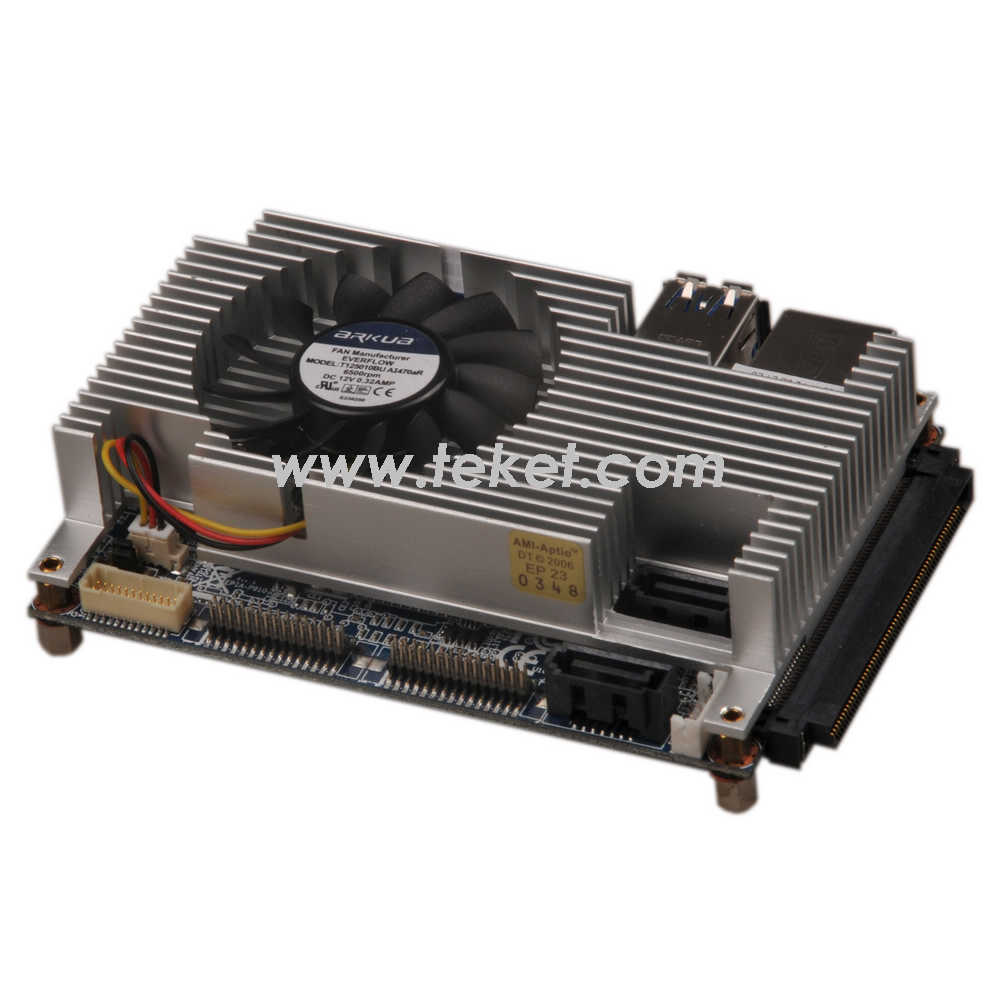

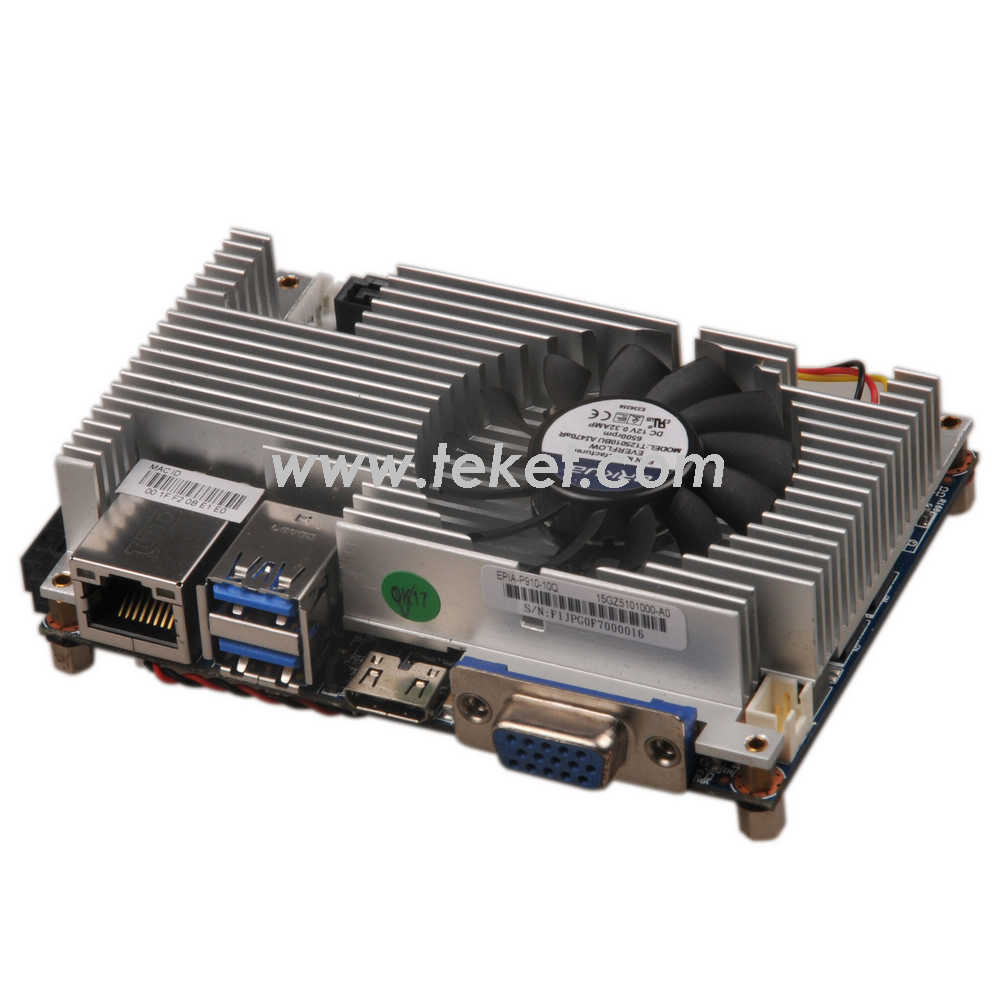

The VIA EPIA-P910 Pico-ITX delivers top class performance combining a VIA QuadCore E-Series processor with the latest VIA VX11H media system processor for immersive display environments.

Compact 10cm x 7.2cm Pico-ITX form factor
•High-performance 64-bit VIA QuadCore E-Series processor
•Latest VIA VX11H media system processor with DirectX11 support
•Flawless 3D and HD video performance up to 1080p
•Supports 2 USB 3.0 and 6 USB 2.0 ports
•HDMI, VGA and one single-channel 24-bit LVDS support
•Supports high-bandwidth DDR3 1333MHz memory, up to 8GB
•Support for two SATA
•HD audio support
•Supports digital I/O

Full system P910-based mini pc are available

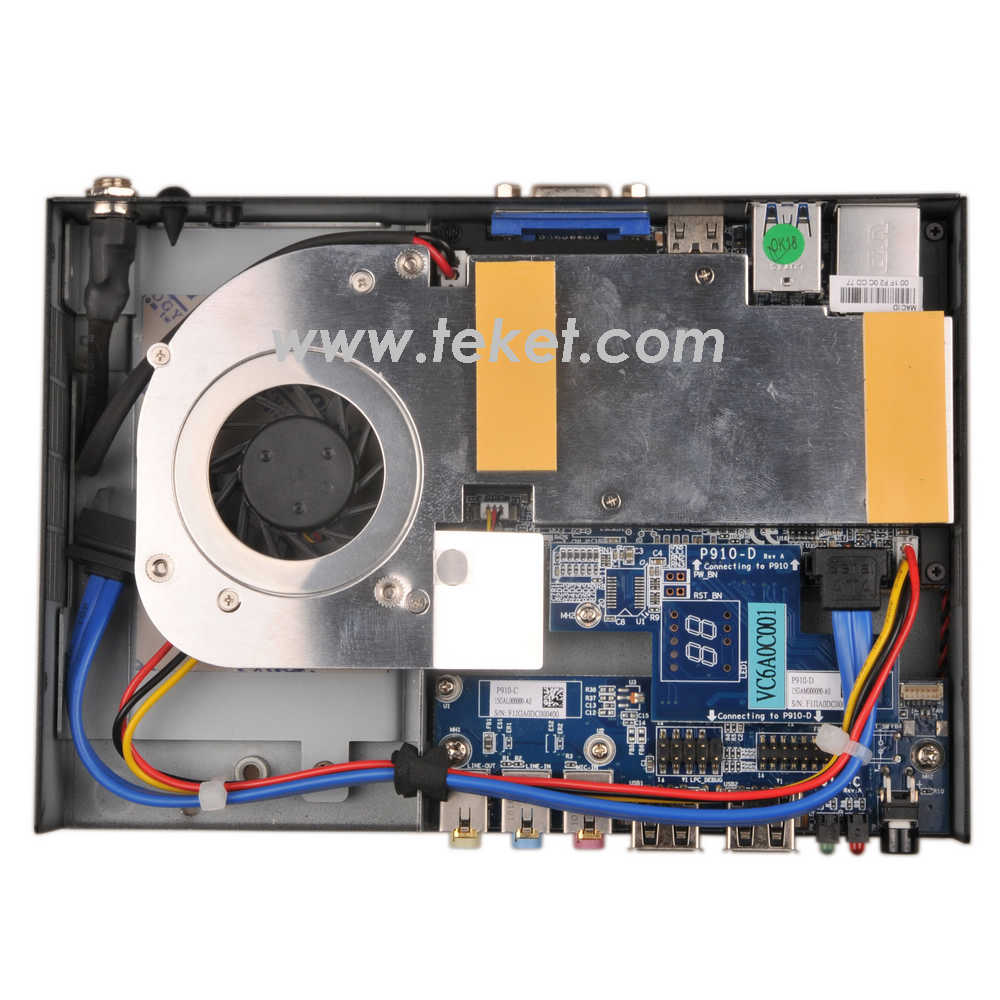

Low profile system with EPIA-P910
Ultra-slim form factor
1.2GHz VIA Eden® X4 processor
DX11 2D/3D graphics with MPEG-2/WMV9/VC1/H.264 decoding acceleration
VIA MagicView® content management software available
Support for dual independent VGA + HDMI displays

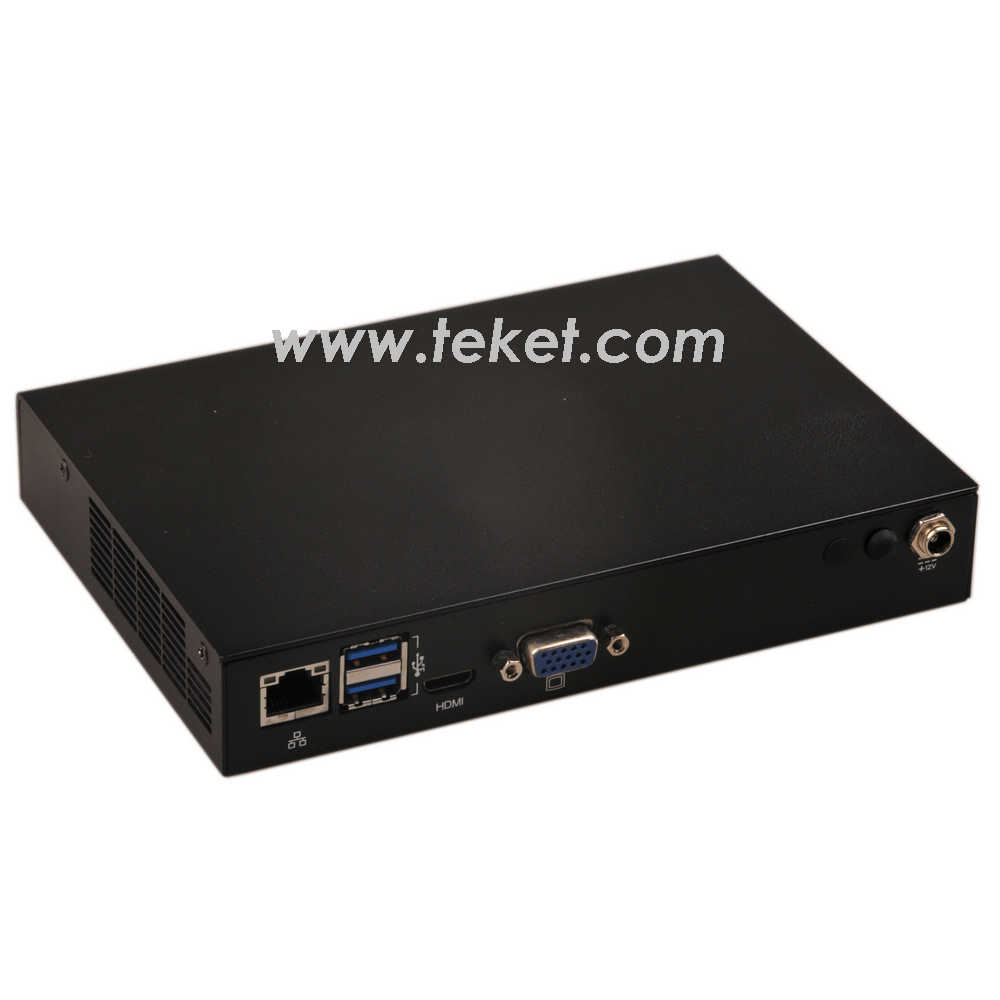

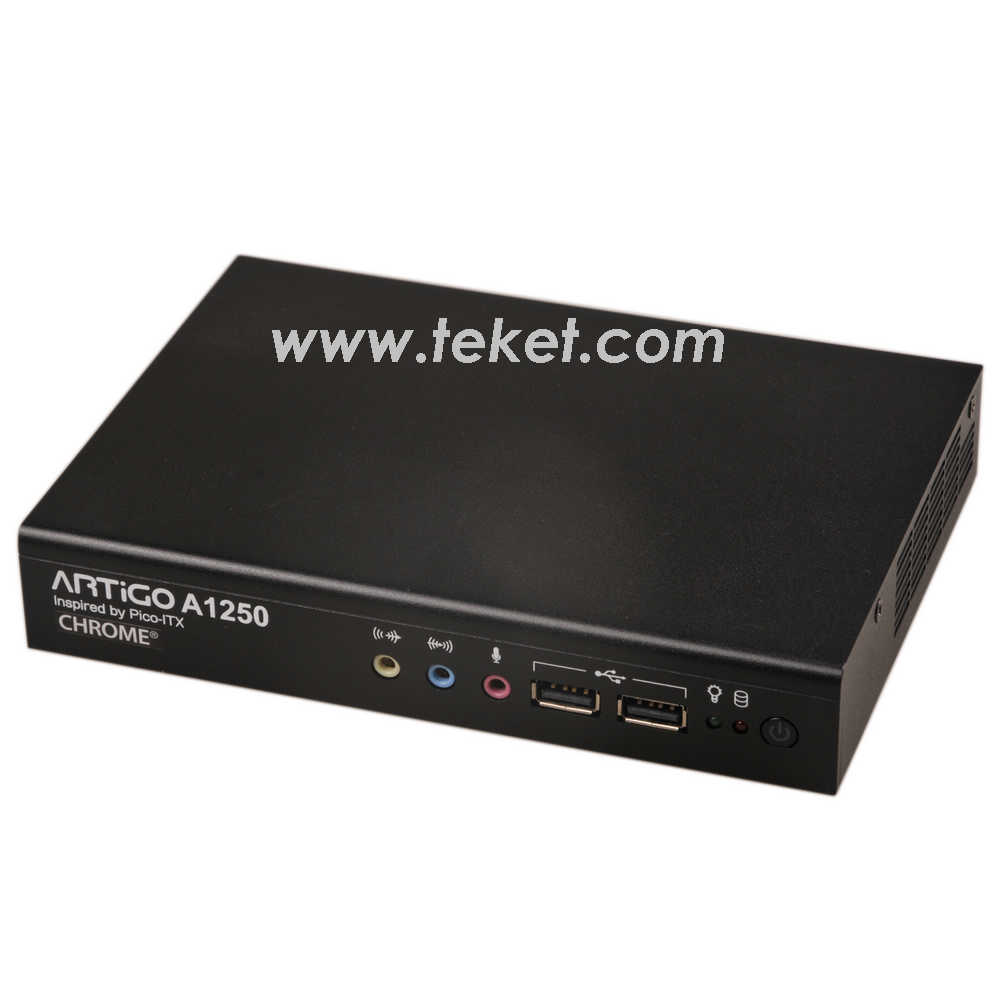

VIA ARTiGO A1250 Small Form Factor PC
The VIA ARTiGO A1250 is a high-performance, feature-rich ultra-slim system that fits easily into any environment and is suitable for a broad spectrum of applications, including media streaming, home automation, digital signage, and surveillance.

The VIA ARTiGO A1250 combines the advanced performance of a 1.2GHz VIA Eden® X4 processor with the rich multimedia capabilities of the VIA VX11H media system processor featuring an integrated VIA ChromotionHD™ 5.0 video processor with DirectX® 11 support in a robust and versatile low profile system measuring just 17.7cm x 12.5cm x 3.0cm (W X D X H).

ARTiGO A1250 Specifications
Model Name ARTiGO A1250
Processor 1.2GHz VIA Eden® X4
Chipset VIA VX11H Media System Processor
BIOS AMI Aptio UEFI BIOS, 32Mbit Flash memory
System Power Management Timer Power-On
ACPI compliant
System Memory 1 DDR3 1066/1333 SODIMM socket
Up to 8GB memory size
Storage Supports 1 2.5” SATA HDD/SSD
Graphics Integrated Chrome® 640 DX11 3D/2D graphics with MPEG-2, WMV9, VC1and H.264 video decoding acceleration
Audio VIA VT2021 High Definition Audio Codec
Display I/O 1 Mini HDMI port
1 VGA port supporting VGA resolutions up to 2560 x1600 pixels
Dual independent VGA + HDMI display at different resolutions, pixel depths, and refresh rates
USB 2 USB 2.0 ports
LAN VIA VT6130 PCIe Gigabit Ethernet controller
Supports wake-on-LAN and Boot from LAN (PXE)

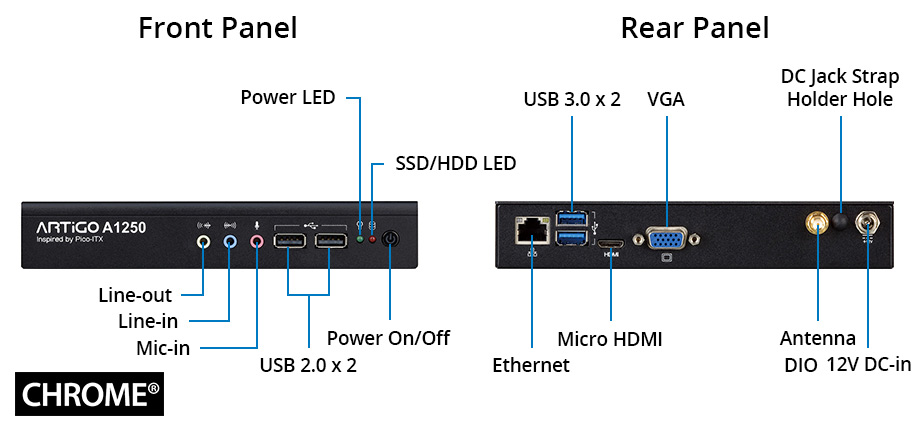

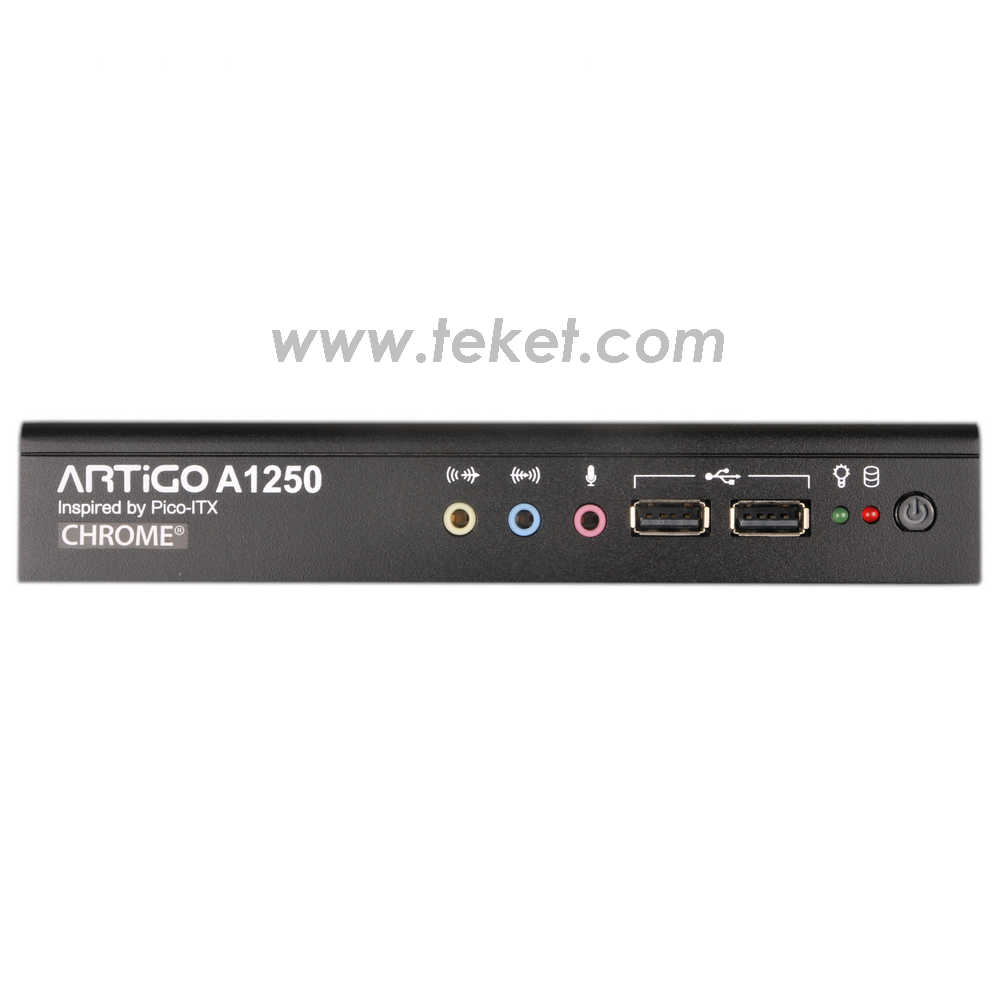

Front Panel I/O 2 USB 2.0 ports
3 Audio jacks: Line-in, Line-out and Mic-in
1 Power on/off switch
1 Red LED for HDD activity
1 Green LED for power status

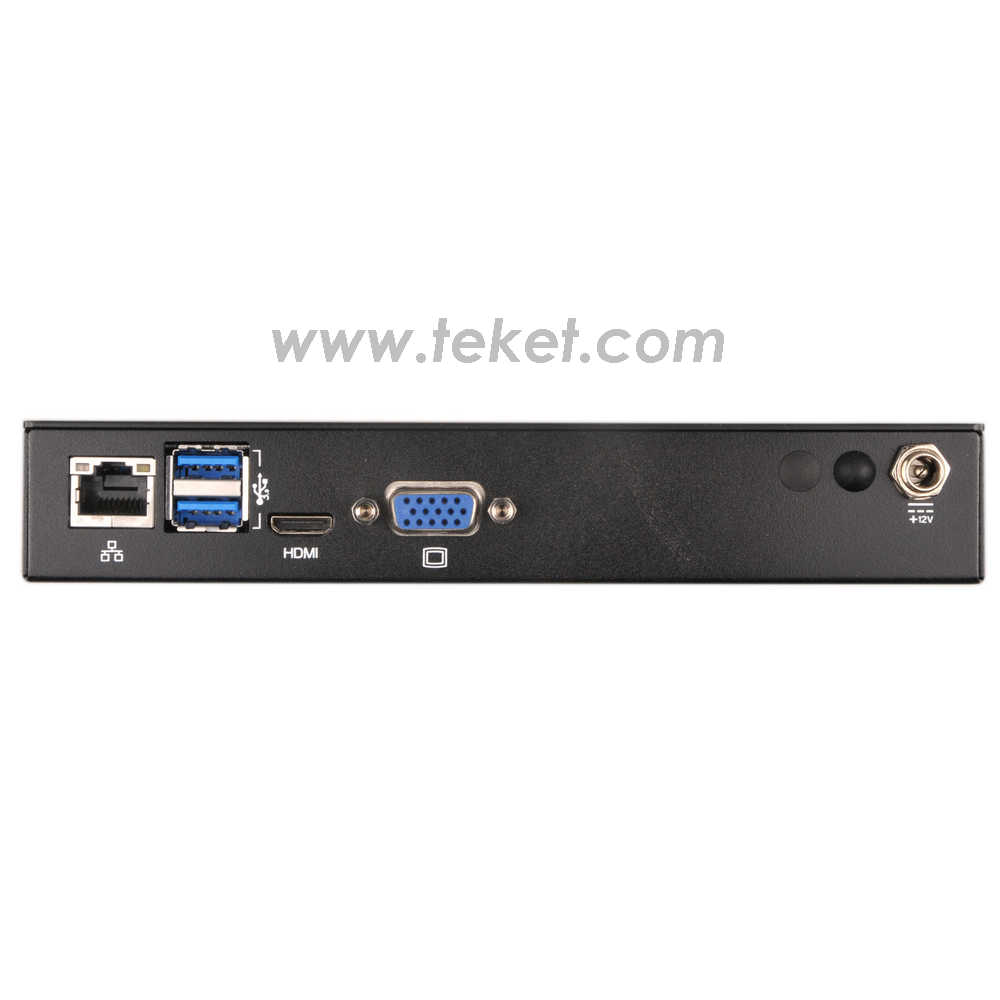

Back Panel I/O 2 USB 3.0 ports
1 Mini HDMI port
1 VGA port
1 Gigabit Ethernet port
1 DC strap holder hole
1 Antenna hole reserved to support WI-Fi
1 DC-in jack
Power Supply System reset; programmable 1~255 sec
Operating System Windows® 10 / 8.1 / 8 / 7, WES 7, Linux
Mechanical Construction Aluminum top cover chassis housing
Galvanized steel sheet (SECC) body chassis housing
Front removable aluminum face plate
Mounting VESA mount
Dimensions 177mm(W) x 30mm(H) x 125mm(D) (6.96" x 1.18" x 4.92")
Weight 0.68kg (1.49lbs)
Operating Temperature 0°C ~ 40 °C
Operating Humidity 0% ~ 90% (non-condensing)
Storage Temperature -10°C ~ 60 °C
Compliance CE/FCC

ARTiGO A1250 Accessories
Wireless Modules
EMIO-1533-00A2 VNT9271 IEEE 802.11 b/g/n USB Wi-Fi module with assembly kit
Mounting Options
99G42-09288E-1 Mechanism kit, wall mount bracket, 116mm x 116mm x 18.4mm

Ordering Information:
EPIA-P910-12QE Pico-ITX Board with 1.2GHz VIA Eden® X4 @ 1.2GHz CPU, Mini HDMI, VGA, LVDS, 2 USB 3.0, 6 USB 2.0, Gigabit Ethernet, 2 SATA, 12V DC-in
Packing list: EPIA-P910 board, DC power cable, SATA cable, SATA power cable

Model Name CPU Frequency Description
EPIA-P910-12QE VIA Eden® X4 @ 1.2GHz Pico-ITX Board with 1.2GHz VIA Eden® X4 @ 1.2GHz CPU, Mini HDMI, VGA, LVDS, 2 USB 3.0, 6 USB 2.0, Gigabit Ethernet, 2 SATA, 12V DC-in


* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration; A is for configured without TV-out.
* The specification is subject to change without prior notice.

ARTiGO A1250 Ordering Information
ATG-A1250-5Q12A3 1.2GHz VIA Eden® X4 CPU Based Semi-Embedded System with Mini HDMI, VGA, 2 USB 3.0, 2 USB 2.0, Gigabit Ethernet, SATA, 12V DC-in, US Power Cord
ATG-A1250-6Q12A3 1.2GHz VIA Eden® X4 CPU Based Semi-Embedded System with Mini HDMI, VGA, 2 USB 3.0, 2 USB 2.0, Gigabit Ethernet, SATA, 12V DC-in, EU Power Cord
ATG-A1250-7Q12A3 1.2GHz VIA Eden® X4 CPU Based Semi-Embedded System with Mini HDMI, VGA, 2 USB 3.0, 2 USB 2.0, Gigabit Ethernet, SATA, 12V DC-in, JP Power Cord
ATG-A1250-8Q12A3 1.2GHz VIA Eden® X4 CPU Based Semi-Embedded System with Mini HDMI, VGA, 2 USB 3.0, 2 USB 2.0, Gigabit Ethernet, SATA, 12V DC-in, CN Power Cord

Packing List: ARTiGO A1250 system, AC-to-DC power adapter, Power cord, HDD screws, DC jack strap holder, SATA ribbon cable
