>>Your Current Position: VIA Embedded Motherboard



VIA EPIA PE-Series Mini-ITX Board PD10000G

Integrated S3 Graphics Chrome® 2D/3D graphics
VIA C3 or fanless VIA Eden® ESP processor
Support for up to six USB 2.0 connections, four COM ports and two 10/100 Fast Ethernet ports
Compatible with a wide range of software including Microsoft® Windows® and Linux operating systems
Additional expansion capabilities include one PCI slot

EPIA PD-Series Mini-ITX Board

Introducing the new VIA EPIA PD-Series Mini-ITX mainboard. Based on the VIA EPIA CL-Series of Mini-ITX mainboards, the VIA EPIA PD adds more functionality with the onboard digital I/O and SMBus. It features four COM Ports and digital I/O support that is designed for use in POS systems. Its VT6105 and VT6103 Ethernet controllers make it a perfect fit for use as a hardware firewall system.

The mainboard is based on the VIA CLE266 chipset that features an embedded hardware MPEG-2 accelerator and an integrated S3 Graphics Chrome® 2D/3D graphics controller. Its connectivity options include support for up to six USB 2.0 connections, four COM ports and two 10/100 Fast Ethernet ports. The VIA EPIA PD also offers support for a range of embedded LCD panels. Its additional expansion capabilities include one PCI slot. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA-133, the VIA EPIA PD delivers the performance to run commercial digital video and audio applications.

The VIA EPIA PD conforms to the Mini-ITX form-factor measuring a mere 17 cm x 17 cm. Its low profile makes it even more space saving. The VIA EPIA PD is available with either the highly efficient VIA C3 or fanless VIA Eden® ESP processor. Its x86-based platform makes it compatible with a wide range of software including Microsoft® Windows® and Linux operating systems.

VIA EPIA PD-Series Mini-ITX Board
The ultimate low profile, low power and small form factor platform featuring dual LAN and four COM ports for always-on Point Of Sales (POS) applications.

Introducing the new VIA EPIA PD-Series Mini-ITX mainboard. Based on the VIA EPIA CL-Series of Mini-ITX mainboards, the VIA EPIA PD adds more functionality with the onboard digital I/O and SMBus. It features four COM Ports and digital I/O support that is designed for use in POS systems. Its VT6105 and VT6103 Ethernet controllers make it a perfect fit for use as a hardware firewall system.

The mainboard is based on the VIA CLE266 chipset that features an embedded hardware MPEG-2 accelerator and an integrated S3 Graphics Chrome™ 2D/3D graphics controller. Its connectivity options include support for up to six USB 2.0 connections, four COM ports and two 10/100 Fast Ethernet ports. The VIA EPIA PD also offers support for a range of embedded LCD panels. Its additional expansion capabilities include one PCI slot. With the sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA-133, the VIA EPIA PD delivers the performance to run commercial digital video and audio applications.

The VIA EPIA PD conforms to the Mini-ITX form-factor measuring a mere 17 cm x 17 cm. Its low profile makes it even more space saving. The VIA EPIA PD is available with either the highly efficient VIA C3 or fanless VIA Eden® ESP processor. Its x86-based platform makes it compatible with a wide range of software including Microsoft® Windows® and Linux operating systems.

Phased Out. VIA Embedded Platform Division has ceased the manufacture of this product. Drivers for new operating systems or any other support is not provided; the drivers and other utilities provided through this page are the latest versions and will not be updated.





Specifications
PROCESSOR: VIA C3 / VIA Eden EBGA processor
CHIPSET: VIA CLE266 North Bridge
VIA VT8235 South Bridge
SYSTEM MEMORY: 1 DDR266 DIMM socket
Up to 1GB memory size
VGA: Integrated VIA UniChrome AGP graphics with MPEG-2 Accelerator
EXPANSION SLOTS: 1 PCI
ONBOARD IDE: 2 X UltraDMA 133/100/66 Connector
ONBOARD LAN: VIA VT6105 LOM+VT6103 10/100 Base-T Ethernet PHY
ONBOARD AUDIO: VIA VT1612A 2 channel AC' 97 codec

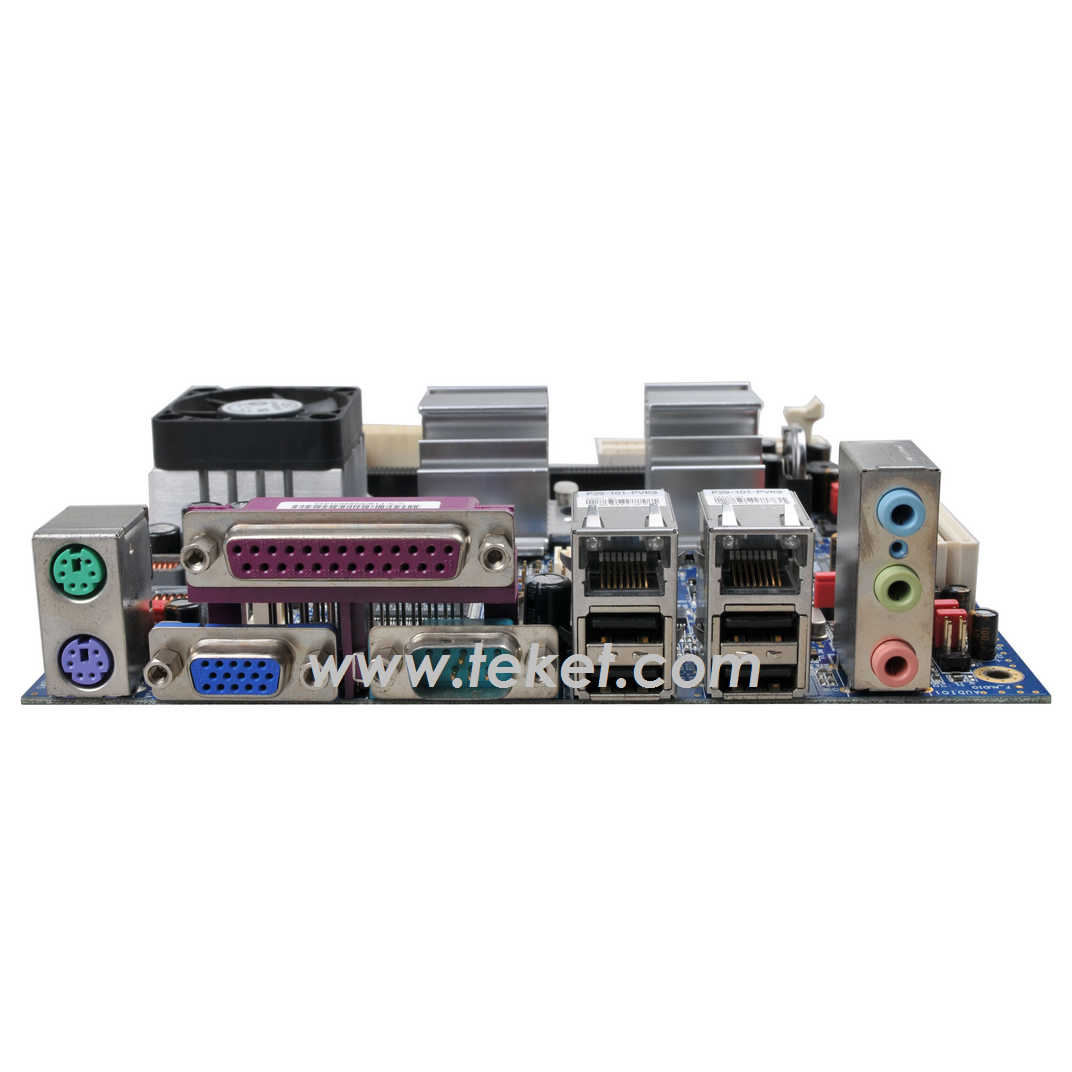

BACK PANEL I/O: 2 RJ-45 LAN port
1 PS2 mouse port
1 PS2 keyboard port
1 Serial port
1 Parallel
4USB 2.0 ports
1 VGA port
3 Audio jacks: line-out, line-in and mic-in

ONBOARD I/O CONNECTORS: 1 USB connector for 2 additional USB 2.0 ports
Front-panel audio connectors (mic-in and line-out)
1 Buzzer
SIR connector
CIR connector (Switchable for KB/MS)
Wake-on-LAN
CPU/Sys FAN/Fan 3
1 Connector for LVDS module
3 Serial port connector for 3 additional com port; 3/4 com port with 5V or 12V power jumper selection (Default power setting is 5V)
ATX Power Connector
Award BIOS
2/4Mbit flash memory
SYSTEM MONITORING & MANAGEMENT: CPU voltage monitoring
Wake-on-LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
OPERATING TEMPERATURE: 0~50 degrees celcius
OPERATING HUMIDITY: 0% ~ 93% (relative humidity; non-condensing)
FORM FACTOR: Mini-ITX (6 layer)
17 cm x 17 cm


Ordering Information:

Model Name CPU Frequency Description
PD10000 1.0GHz C3? Mini-ITX Board, VGA, LVDS, DVI, USB, 4 x COM, LPT, Dual LAN, 4 x GPI & 4 x GPO, IDE, SATA

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration; A is for configured without TV-out.
* The specification is subject to change without prior notice.
