VIA EPIA PX Pico-ITX Board

Integrated VIA Chrome® Pro II 3D/2D AGP graphics with MPEG-2 and WMV9 decoding acceleration
Supports DDR2 533/667 SDRAM (SODIMM)
Audio connector for Line-in, Mic-in, S/PDIF in, and 5.1 channels audio output
Low profile design: All back panel I/O in pin header format except for the RJ-45 LAN and VGA port
1.0GHz VIA C7® or a fanless 500MHz VIA Eden® ULV processor

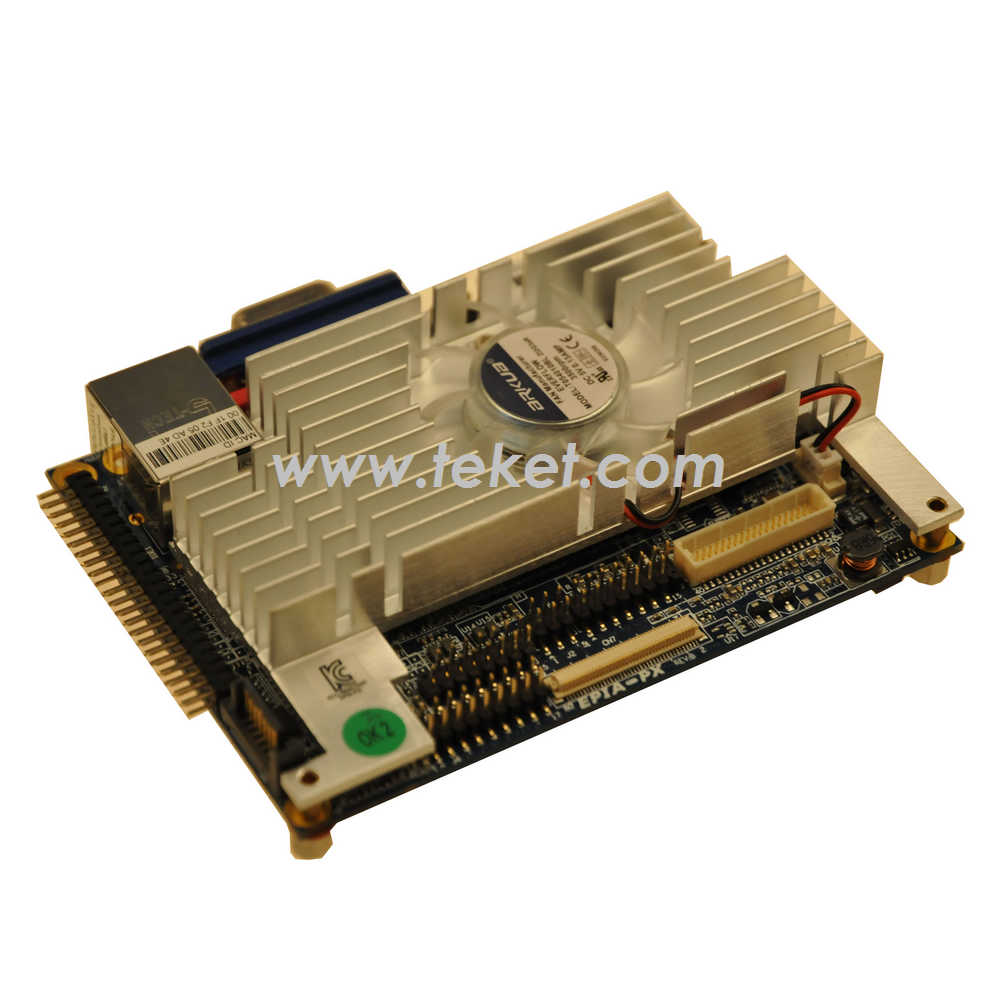

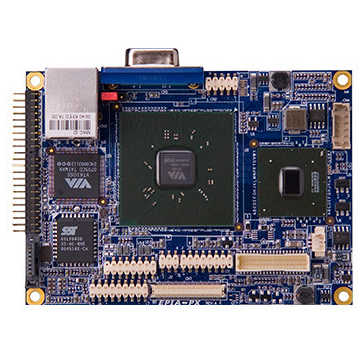

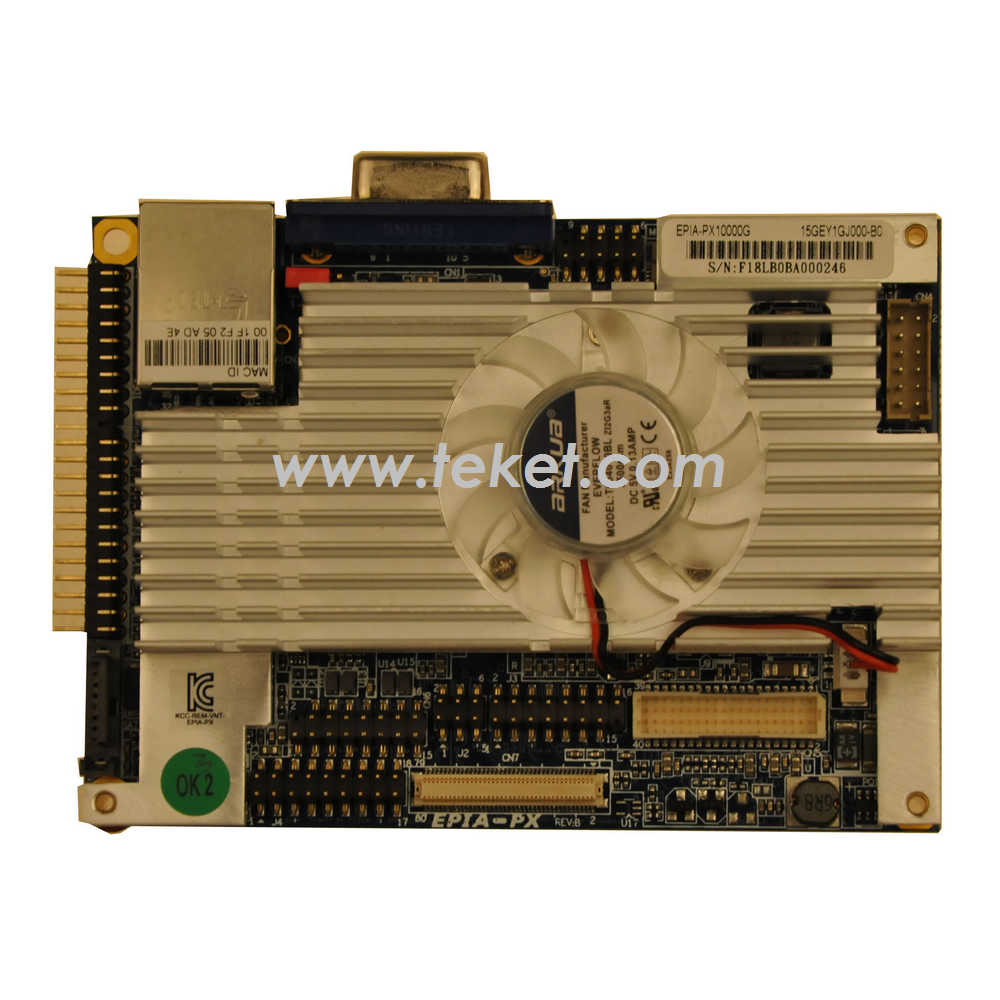

VIA EPIA-PX Pico-ITX Board

The VIA EPIA PX Embedded board is the first commercial Embedded board based on VIA’s Pico-ITX form factor measuring just 10cm x 7.2cm. Designed to enable x86 to be built into Embedded systems where it was previously impractical for space reasons, the VIA EPIA PX provides a full complement of multimedia and connectivity options on a platform smaller than any standard mainboard or x86 system on module.

Powered by the 1.0GHz VIA C7® or a fanless 500MHz VIA Eden® ULV processor and supporting up to 1GB of DDR2 533 SO-DIMM system memory, the 10-layer VIA EPIA PX mainboard is based on the single-chip VIA VX700 system media processor, which boasts the VIA Chrome® Pro II IGP 3D/2D graphics core, MPEG-2 and WMV9 hardware decoding acceleration and display flexibility. The onboard VIA VT1708A HD audio codec also contributes a rich entertainment experience. This highly power efficient board runs standard productivity and multimedia applications at under 13 watts, thanks to the combination of VIA’s energy efficient processor and core logic platform and the significantly lower power DDR2 system memory.

The VIA EPIA PX Pico-ITX embedded board also supports flexible hard drive storage options, with one SATA and one UltraDMA 133 connector, as well as 10/100Mbps Fast Ethernet through the RJ-45 LAN port, an LVDS/DVI connector and extensive connectivity options including USB2.0, COM and PS2. A multimedia connector supports external TV-out, video capture port interface & LPC interface (an add-on card is required), while an audio connector supports line-out, line-in, mic-in, S/PDIF in & 5.1 channel audio output.

Ordering Information:

Model Name	CPU Frequency	Description
.	.	.
.	.	.

* Model Name Definition: G is for RoHS-compliant; E is for fanless configuration.
* The specification is subject to change without prior notice.

PX1000-based mini pc as the following

Artigo epia-px1000g Mini Computadora Kit-Via technoligies

VIA Technologies offers the ARTIGO, a particular kit for building your own complete but ultra small desktop PC (only 15cm x 11cm x 4cm, with a weight of just 520g).

VIA ARTIGO is based on the motherboard PX1000 VIA EPIA Pico-ITX, equipped with a 1.0 GHz VIA C7 processor, VIA VX700 chipset with integrated subsystem video VIA Unichrome Pro II IGP 3D/2D (it integrates hardware accelerator MPEG-2, MPEG-4 and Windows Media 9 High Definition Video) which supports up to 1GB memory in DDR2 533MHz SO-DIMM format.
The system power consumption is very low, only 15 Watts in idle state and 20 Watts in full running state.

The ARTiGO Kit is composed by:
•A case box for Pico-ITX board
•A motherboard VIA EPIA PX1000 Pico-ITX
•A compact size power adapter
•A power supply cable for Pico-ITX
•A DC-DC converter
•A ATA-66/100/133 IDE cable
•A PS/2 cable
•A cable for COM port
•A DVI cable
•A CD-ROM with driver and documentation

Main technical features
•Processor: CPU VIA C7 1GHz
•Chipset: VIA VX700Unified Digital Media IGP Chipset
•RAM memory: 1 DDR2 533MHz SO-DIMM Socket, up to 1GB
•Hard Disk support: 1 Ultra DMA133/100/66 IDE Connector (2.0mm 44-pin Header) for 2.5 inches Hard Disk
•Supported Operating Systems: Windows 2000/XP, WinCE, XPe, Linux
•USB Ports: 4 USB 2.0
•LAN port: 1 10/100Mbps RJ-45 LAN
•Audio board: chip integrated VT1708HD
•Audio Interface: 1 Microphone-in jack and 1 Line-out jack
•Display port: 1 VGA (DVI on external cable)
•Dimensions: 15cm(L) x 11cm(W) x 4.5cm(H)
•Weight: 520g

New, never but into service. Been in box for several years.
The RAM memory and the hardisk are not included in the Kit.
