>>Your Current Position: VIA Embedded Motherboard
VIA EPIA Mini-ITX Board EPIA8000AG EPIA5000EAG PLE133 VT8231 chipset VT6103 LAN VT1612A Audio

VIA C3® E-Series processor for more multimedia rich applications
Onboard SoundBlaster™ and SoundBlaster™ Pro compatible audio
Embedded onboard graphics
Onboard PCI slot expansion slot

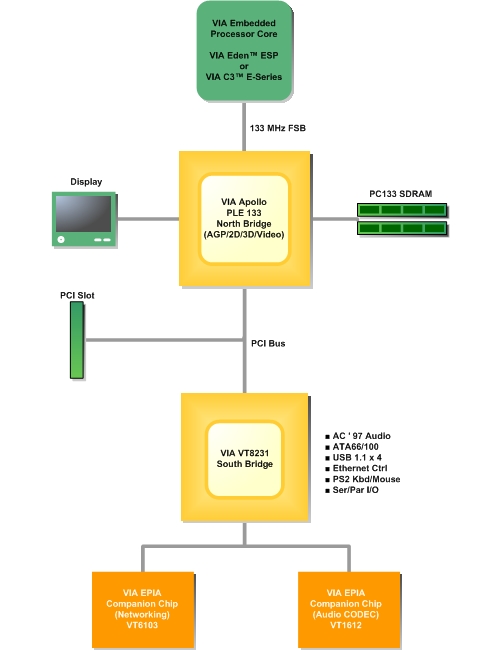

VIA Apollo PLE133 North Bridge

EPIA Mini-ITX Board

The VIA EPIA Mini-ITX mainboard brings the industry’s smallest, most highly integrated, and most flexible x86 platform to OEMs and System Integrators looking for solutions that offer the maximum of features without sacrificing design flexibility. Offering the choice of a VIA Eden® ESP processor core for fanless systems with power sensitive requirements, or a VIA C3® E-Series processor for more multimedia rich applications, the EPIA Mini-ITX mainboard also features embedded onboard graphics and audio support. The VIA EPIA Mini-ITX mainboard is the ideal platform for an almost unlimited variety of Extreme Value PC, Information Appliance, Set Top Box, Personal Video Recorder, and Industrial PC designs.

Measuring just 170mm x 170mm, the VIA EPIA Mini-ITX mainboard is 30% smaller than the smallest Flex-ATX platforms, while maintaining Micro ATX chassis compliancy. It also provides the smallest and coolest processing environment available, including an optional fanless configuration. The VIA Apollo PLE133 North Bridge features integrated graphics with 2D/3D acceleration and Motion Compensation, accompanied by onboard SoundBlaster™ and SoundBlaster™ Pro compatible audio, delivering key multimedia capabilities. Onboard 10/100 LAN, an additional PCI slot, and a full set of I/O features provide ample connectivity and expansion options.

Standardized Embedded Solutions for Total Mainboard Connectivity.

The VIA EPIA Mini-ITX mainboard brings the industry's smallest, most highly integrated, and most flexible x86 platform to OEMs and System Integrators looking for solutions that offer the maximum of features without sacrificing design flexibility. Offering the choice of a VIA Eden? ESP processor core for fanless systems with power sensitive requirements, or a VIA C3? E-Series processor for more multimedia rich applications, the EPIA Mini-ITX mainboard also features embedded onboard graphics and audio support. The VIA EPIA Mini-ITX mainboard is the ideal platform for an almost unlimited variety of Extreme Value PC, Information Appliance, Set Top Box, Personal Video Recorder, and Industrial PC designs.

Measuring just 170mm x 170mm, the VIA EPIA Mini-ITX mainboard is 30% smaller than the smallest Flex-ATX platforms, while maintaining Micro ATX chassis compliancy. It also provides the smallest and coolest processing environment available, including an optional fanless configuration. The VIA Apollo PLE133 North Bridge features integrated graphics with 2D/3D acceleration and Motion Compensation, accompanied by onboard SoundBlaster? and SoundBlaster? Pro compatible audio, delivering key multimedia capabilities. Onboard 10/100 LAN, an additional PCI slot, and a full set of I/O features provide ample connectivity and expansion options.



Specification
If you have questions about the model names; please refer to the Model Name Definition for EPIA/VB boards.
VIA EPIA Mini-ITX Board Specifications
Model Name VIA EPIA8000AG
VIA EPIA5000EAG

Processor 800MHz VIA C3? Processor
533MHz Fanless VIA Eden? Processor
Chipset VIA PLE133 North Bridge
VIA VT8231 South Bridge
System Memory 2 x PC133 DIMM socket
Up to 1 GB memory size
VGA Integrated AGP 4X Graphics
Expansion Slots 1 x PCI slot
Onboard IDE 2 x UltraDMA 100/66 connectors
Onboard LAN 1 x VIA VT6103 10/100Mbps Ethernet PHY
Onboard Audio VIA VT1612A 2-channel AC¡¯97 Codec
Onboard I/O Connectors 1 x USB connector for 2 USB 1.1 ports
1 x Buzzer
1 x FIR connector
1 x CIR connector
1 x CD audio-in connector
2 x Fan connectors for CPU and system fans
1 x ATX power connector
Back Panel I/O 1 x PS2 mouse port
1 x PS2 keyboard port
1 x Parallel port
1 x VGA port
1 x RJ-45 LAN port
1 x S-Video port
1 x RCA port (S/PDIF or TV-out)
2 x USB 1.1 ports
1 x Serial port
3 x Audio jacks: Line-out, Line-in and Mic-in
BIOS Award BIOS
2Mbit flash memory
System Monitoring & Management CPU voltage monitoring
Wake-on LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
Operating Temperature 0~50
Operating Humidity 0% ~ 93% (relative humidity; non-condensing)
Form Factor Mini-ITX (4-layer)
17 cm x 17 cm

* The specification is subject to change without prior notice.
Ording information:
VIA EPIA8000AG
VIA EPIA5000EAG
