IDPCI7E Mini-ITX C7 Motherboard

C7 IDPCI7E Mini-ITX Board

A reliable, low-power and cost effective platform for small footprint embedded applications.

CPU:Processor VIA C7 processor 1.5GHZ / FSB400MHZ
Chipset:VIA CN700+VT8237R Plus
Graphics Integrated UniChirome Pro 3D/2D Graphics
Max up to 64MB frame buffer sharing system memory
RAM: 1 x DDRII DIMM memory slot Max. Memory Support to 1GB
LAN: Realtek RTL8100C 10/100 Mbit
Audio Realtek ALC655 CODEC
Supports 2 channel audio
Supports Line Out¡¢MIC In
I/O Control IT8716
O.S Support Microsoft Windows 2000/XP/Linux
Expand Port: Slots 1 x PCI slot
Internal Connectors
1 x 20-pin ATX power connector
1 x IDE 40 pin connector with UDMA 100/ATA 133 support
1 x IDE 44 pin connector with UDMA 100/ATA 133 support
2 x SATA connectors
1 x CPU fan connector
1 x system fan connector
1 x front panel connector
1 x front audio connector
1 x COM2 connector
2 x USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables
1 x IR connector
1 x LAN LED connector

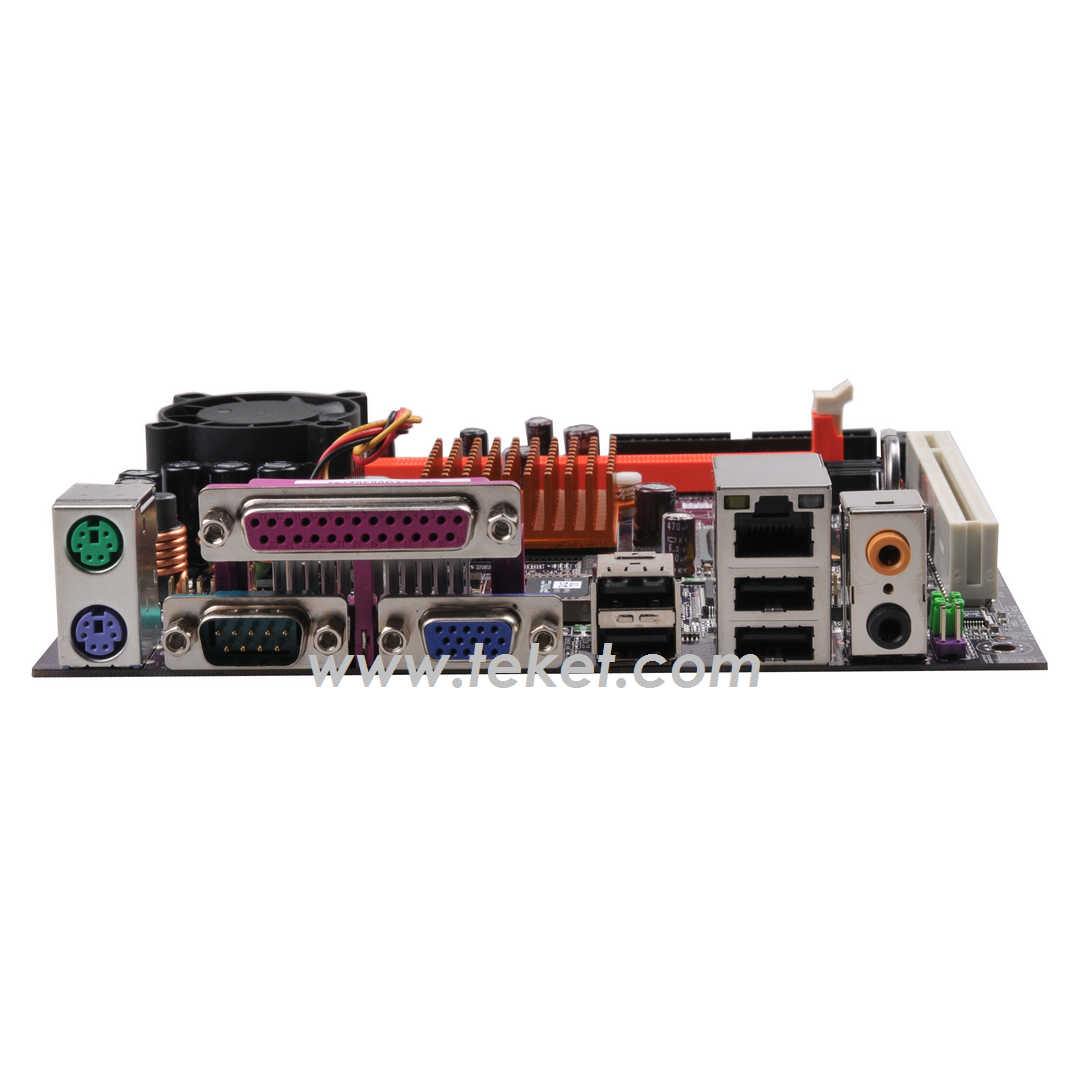

Rear Panel I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x COM1 port
1 x VGA port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x audio jacks (Line Out / MIC In )
BIOS Award BIOS, 4Mb Flash ROM.
Supports Plug and Play
Supports ACPI & DMI
Supports S1/S2/S3/S4/S5
Form Factor: Mini-ITX form factor
Dimensions: 17.0cm x 17.0cm, 4-layer
1 x Driver CD (Include manual)
1 x I/O Shield
1 x 40 Pin IDE Cable Support ATA 100/133
1 x SATA Cable

* The specification is subject to change without prior notice.
