>>Your Current Position: VIA Embedded Motherboard

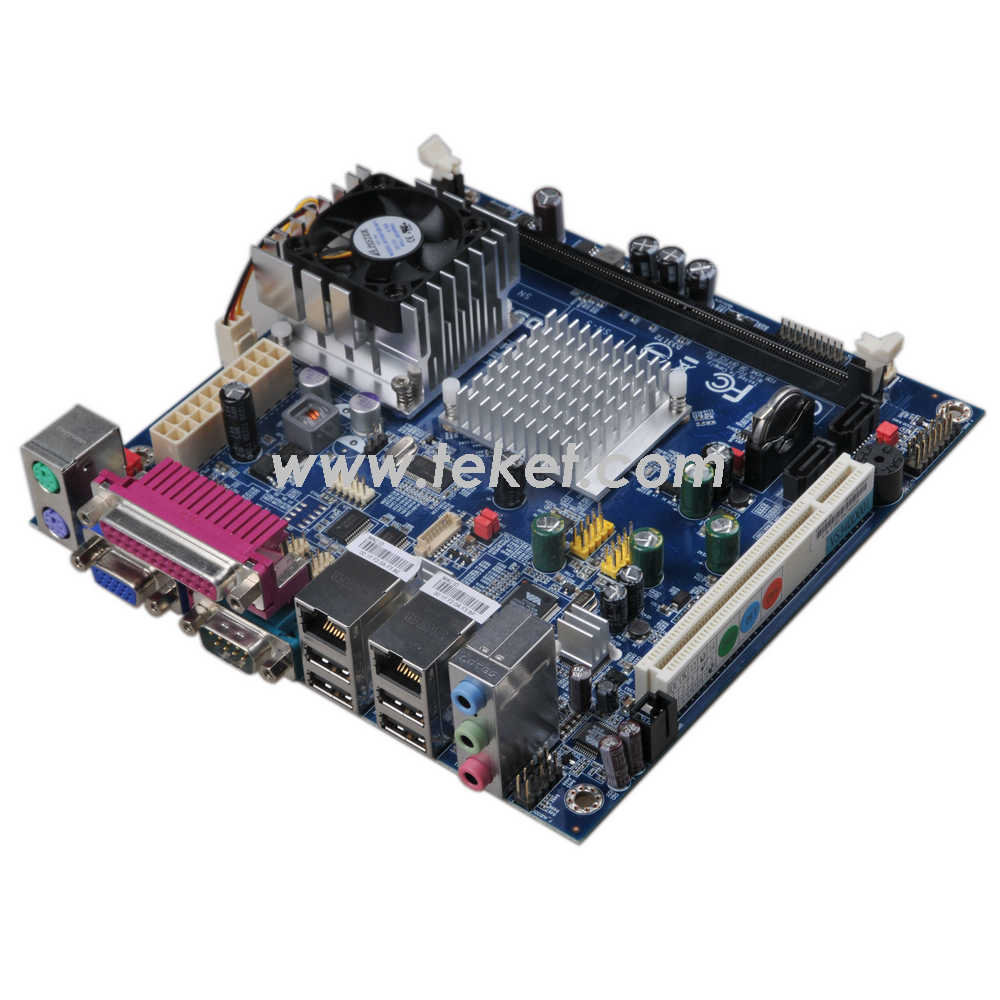

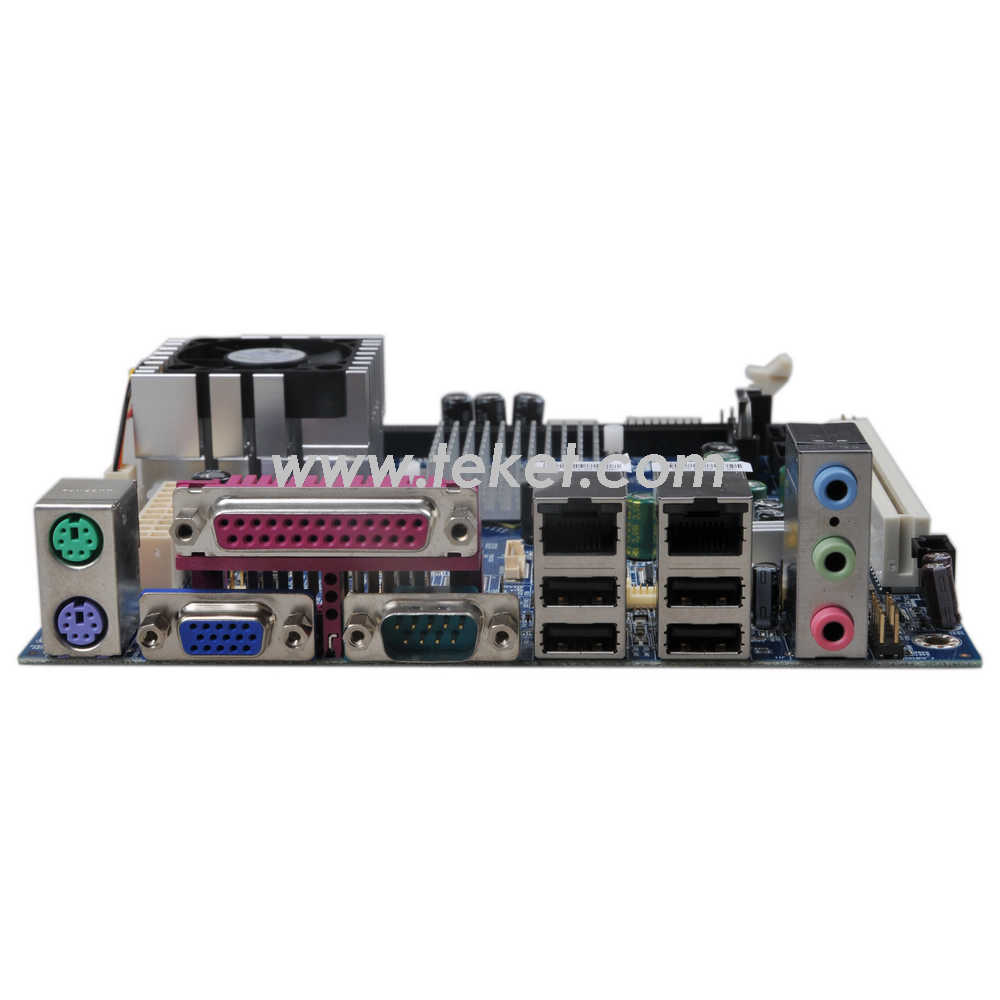

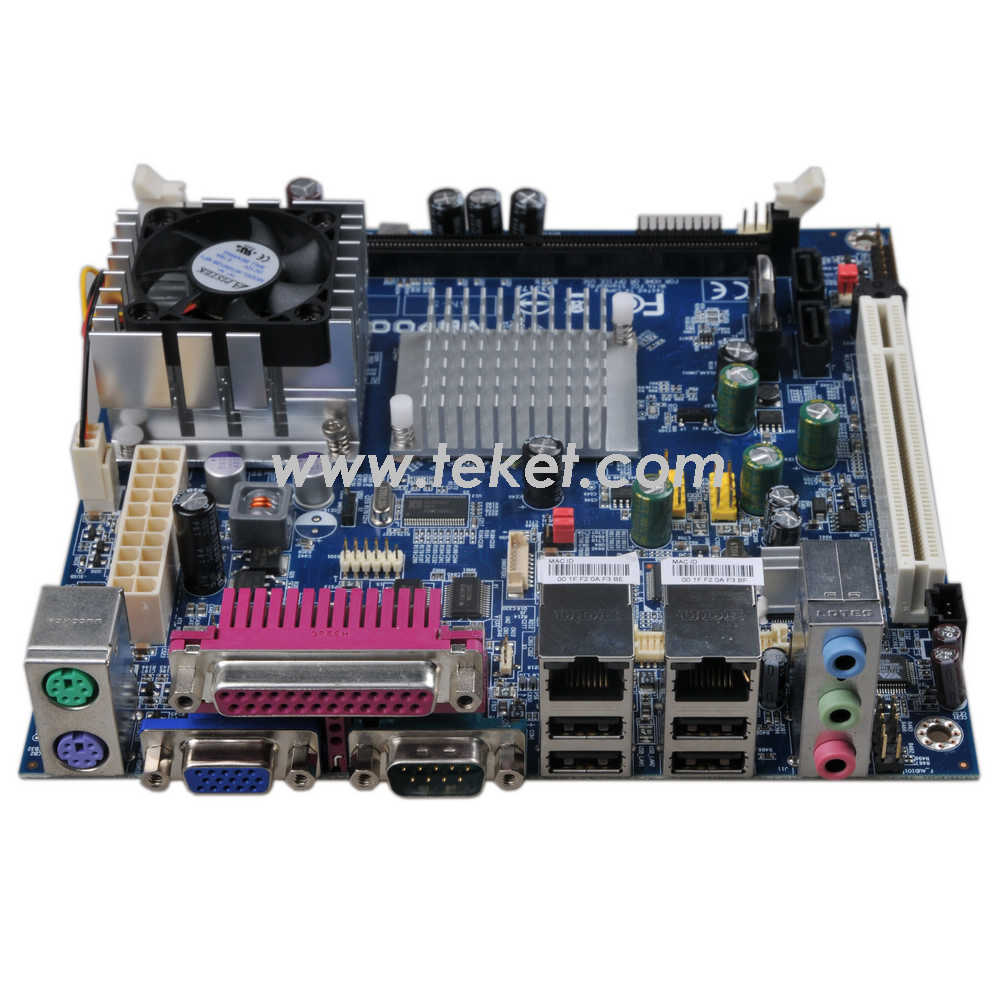

VIA VB-Series Mini-ITX Board VB7009

VIA VB-Series Mini-ITX Board VB7009

Designed for POS and kiosk applications, the full featured VIA VB7009 is an extremely flexible embedded board with top-class performance.


•Choice of high-performance 64-bit dual core VIA Nano™ X2, VIA C7®-D or VIA C7® processor
•Integrated VIA Chrome™9 HD DX9 3D/2D graphics with VC1, MPEG-2, WMV9 and H.264 decoding acceleration
•Supports up to 4GB of DDR3 1066 DIMM RAM
•Supports two SATA hard drives
•Supports dual Gigabit Ethernet
•Supports one VGA port
•Supports eight high-speed USB 2.0 ports
•Supports six onboard COM ports
•Supports onboard dual-channel LVDS

Ordering Information:

Model Name CPU Frequency Description
VB7009 Nano™ X2, VIA C7®-D or VIA C7® processor

* Model Name Definition: E is for fanless configuration.
* The specification is subject to change without prior notice.
