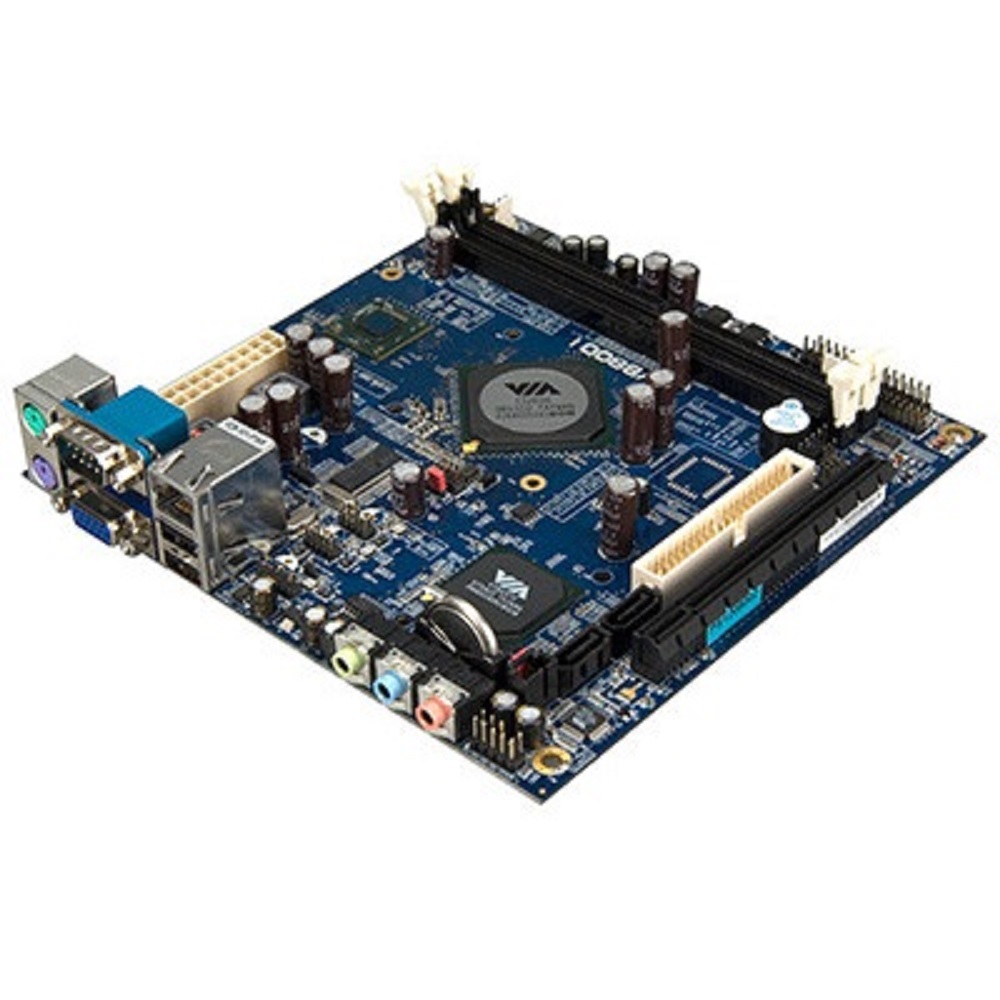

VIA VB-Series Mini-ITX Board VB8001

VIA VB-Series Mini-ITX Board VB8001

The VIA VB8001 pairs the latest VIA Nano processor with 16 lane PCI Express.

Powered by a 64-bit, superscalar, 1.6GHz VIA Nano processor, the VIA VB8001 brings stellar performance to the Mini-ITX form factor. Offering system expansion options for a truly power-efficient and visually optimized PC, the VIA VB8001 combines the performance of the VIA Nano processor with PCI Express.

A combination of performance and energy-efficiency, the VIA VB8001 is a perfect choice for mini desktop and optimized PCs. The VIA CN896 chipset offers superb graphics and video playback with hardware acceleration for the latest video codecs for a smooth multimedia experience.

The VIA VB8001 board is a full featured Mini-ITX board using the latest 1.6 GHz VIA Nano processor. Supporting up to 4GB of DDR2 system memory, the VIA VB8001 features integrated VIA Chrome9? graphics with unified video acceleration, one x16 PCI Express slot, Gigabit LAN, two COM ports, 2 S-ATA ports, a Mini PCI port and 5.1 channel audio.

Key Features:

Integrated VIA Chrome9? HC graphics with 2D/3D and video acceleration
Supports DDR2 667 SDRAM
Supports one IDE and two SATA hard drives
Supports one PCIe Gigabit Ethernet
Supports one VGA port
Supports two COM ports
Supports six USB 2.0 ports
Supports one 16-lane PCIe and one Mini PCI

--------------------------------------------------------------------------------

Specification
If you have questions about the model names; please refer to the Model Name Definition for EPIA/VB boards.VIA VB8001 Mini-ITX Board Specifications
Model Name VIA VB8001-16
Processor 1.6GHz VIA Nano? CPU
Chipset VIA CN896 North Bridge
VIA VT8237S South Bridge
System Memory 2 DDR2 533/667 DIMM sockets
Up to 4 GB memory size
VGA Integrated VIA Chrome9? HC graphics with 2D/3D and video acceleration
Expansion Slots 1 x 16-Lane PCIe slot
1 x 32 Bit Mini PCI slot
Onboard IDE 1 x UltraDMA 133/100/66 connector
Onboard LAN 1 x VIA VT6130 PCIe Gigabit Ethernet controller
Onboard Audio VIA VT1708A High Definition Audio Codec
Super I/O VIA VT1211 LPC Super I/O
Onboard I/O Connectors 2 x SATA (3 Gbps) connectors
2 x Fan pin connectors: CPU/Sys FAN
3 x USB pin connectors for 6 additional USB 2.0 ports (1 supports VIA WLAN module)
1 x Serial port pin connector for COM2 (5V/12V selectable)
1 x LPC header
1 x CIR pin connector (switchable for KB/MS)
1 x FIR pin connector (IrDA 1.0)
1 x SMBus connector
1 x Buzzer
1 x S/PDIF out pin connector
1 x Front panel pin connector
1 x Front panel audio pin connector (Mic-in and Line-out)
1 x ATX power connector
Back Panel I/O 1 x PS2 mouse port
1 x PS2 keyboard port
1 x Serial port
1 x VGA port
1 x RJ-45 LAN port
2 x USB 2.0 ports
3 x Audio jacks: Line-out, Line-in and Mic-in (horizontal, Smart 5.1 Supported)
BIOS Award BIOS, SPI 4/8Mbit flash memory
Operating System Windows XP, Linux, Win CE, XPe
System Monitoring & Management CPU/System voltage monitoring
Watch Dog Timer
Wake-on LAN, Keyboard Power-on, Timer Power-on
AC power failure recovery
Operating Temperature 0 ~ 50¡⁠
Operating Humidity 0% ~ 95% (relative humidity; non-condensing)
Form Factor Mini-ITX (6-layer)
17 cm x 17 cm

Ordering Information:

Model Name CPU Frequency Description
VB8001 1.6GHz Nano? Mini-ITX Board, VGA, USB 2.0, COM, GigaLAN, SATA, Mini PCI, PCIe x16

* Model Name Definition: E is for fanless configuration.
* The specification is subject to change without prior notice.
