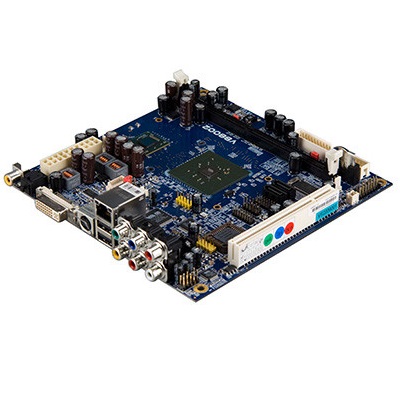

VIA VB-Series Mini-ITX Board VB8002

VIA VB-Series Mini-ITX Board VB8002

Featuring the VIA Nano processor for superior performance in digital media server devices

The VIA VB8002 Mini-ITX board is a well balanced, feature rich platform for system integrators of home media server devices, incorporating the latest VIA Nano processor, a HDTV encoder, rich 8-channel HD audio and an array of onboard multimedia I/O.

The VIA VB8002 is powered by a 1.6GHz VIA Nano processor and the VIA CX700M2 media system processor for advanced digital multimedia performance and support for a wide range of digital media technologies appropriate for a broad variety of consumer electronics devices including media server, media streaming and digital set top designs.

The integrated HDTV encoder is complete with an advanced ASIC which uses VIA's Advance ProScale? Technology to scale regular input resolutions up to standard HDTV resolution output. The VIA UniChrome Pro II integrated graphics processor (IGP) supports hardware MPEG-2 and WMV9 acceleration and includes the Chromotion? CE engine for crystal clear video playback.

I/O configurations include LVDS and DVI module connectors, S-Video, component, composite and RCA outputs for versatile digital options. Two S-ATA ports provide ample storage while onboard Gigabit Ethernet ensures fast data transfer speeds and smooth media streaming.

The VIA VB8002 supports Microsoft Windows XP, XPe, CE, and Linux operating systems.

Key Features:

Integrated VIA UniChrome? Pro II 3D/2D AGP graphics with MPEG-2 and WMV9 decoding acceleration
Supports HD Audio, with back panel I/O RCA (L+R) to support 2-CH; with S/PDIF output to have 8-CH audio experience
Supports onboard single channel LVDS and back panel DVI-I connector
Supports HDTV resolution TV-out and with S-Video, Composite & Component RCA connectors available in the back panel
Supports Gigabit Ethernet
Supports six USB 2.0 ports (four as pin headers)
Onboard LPC and SMBus pin headers

Ordering Information:

Model Name CPU Frequency Description
VB8002-16 1.6GHz Nano? Mini-ITX Board, DVI, USB, LVDS, GigaLAN, TV-out, SATA, Coaxial & Optical SPDIF-out

* Model Name Definition: E is for fanless configuration.
* The specification is subject to change without prior notice.
