VIA VB-Series Mini-ITX Board VB8004

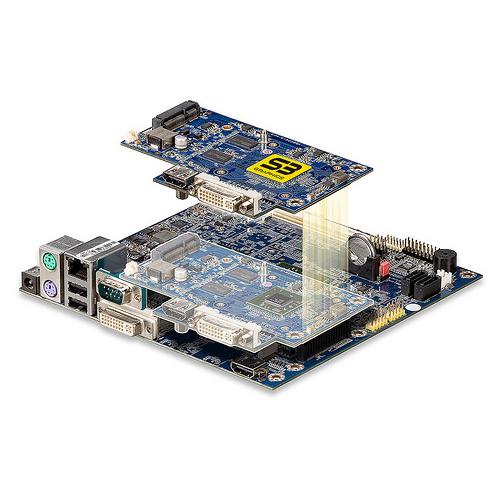

VIA VB-Series Mini-ITX Board VB8004

The VIA VB8004 with VIA Nano X2 E-Series dual core computing provides a scalable multi-display platform for advanced digital signage and gaming applications.


Key Features
•Choice of high-performance 64-bit dual core 1.6GHz VIA Nano™ X2, or 1.6GHz and fanless 1.2GHz VIA Nano™ processor
•Integrated VIA Chrome™ 9 HC DX9 3D/2D graphics with VC1, MPEG-2, WMV9 and H.264 decoding acceleration
•Supports high-bandwidth DDR3 memory, up to 4GB
•Supports two SATA hard drives, six USB 2.0 ports, two COM ports
•Supports one Gigabit Ethernet
•Accepts DC power input
•Expansion I/O connector for one 4-lane PCIe, one 1-lane PCIe and one USB
•Supports one DVI-I port, one HDI port and one single channel 24-bit LVDS panel connector

Ordering Information:

Model Name CPU Frequency Description
VB8004-16 1.6GHz Nano? Mini-ITX Board with up to 4 Display Outputs, supporting HDI, DVI, CRT, USB, COM, CF, IDE, SATA, GigaLAN

* Model Name Definition: E is for fanless configuration.
* The specification is subject to change without prior notice.
