compact atx power atx_s03

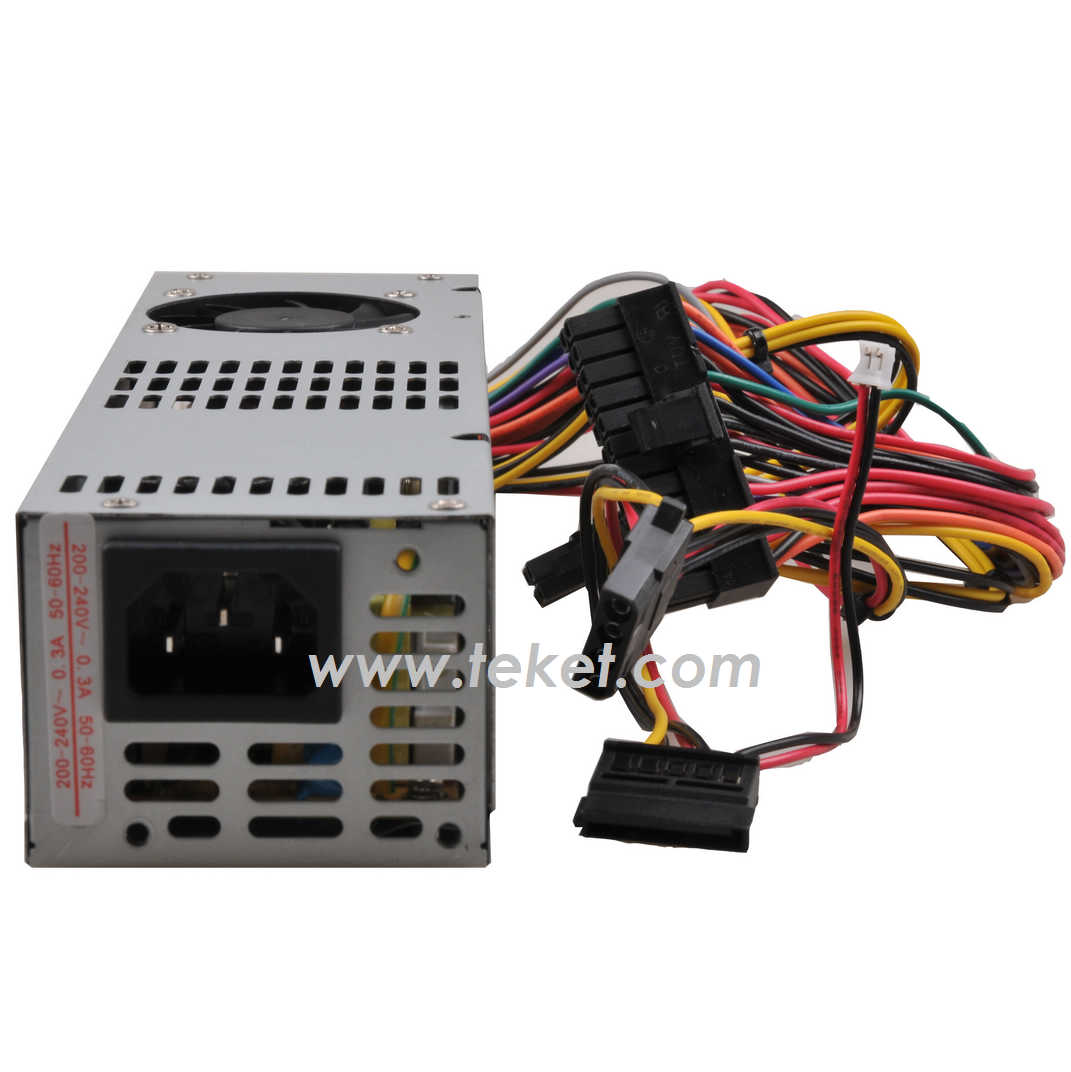

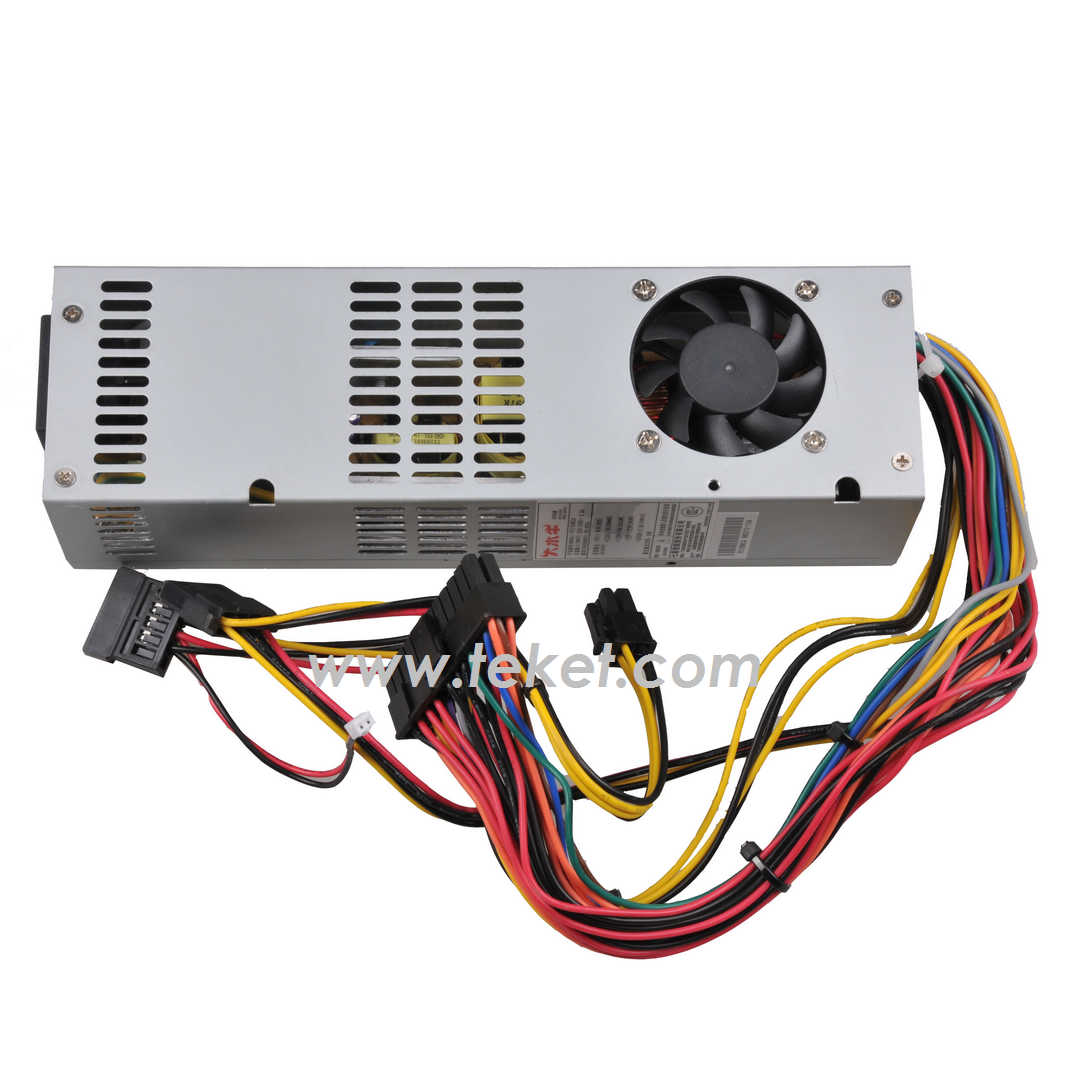

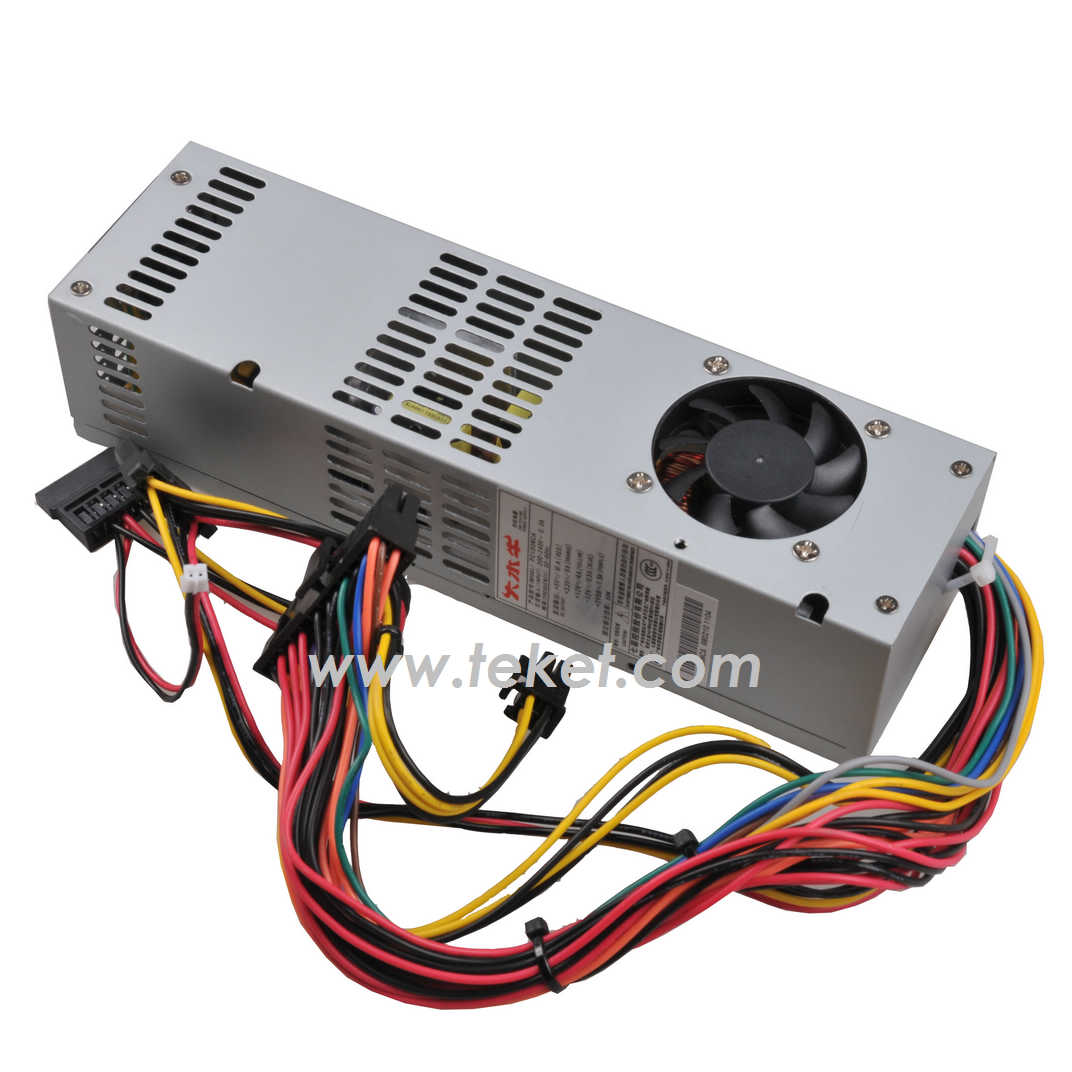

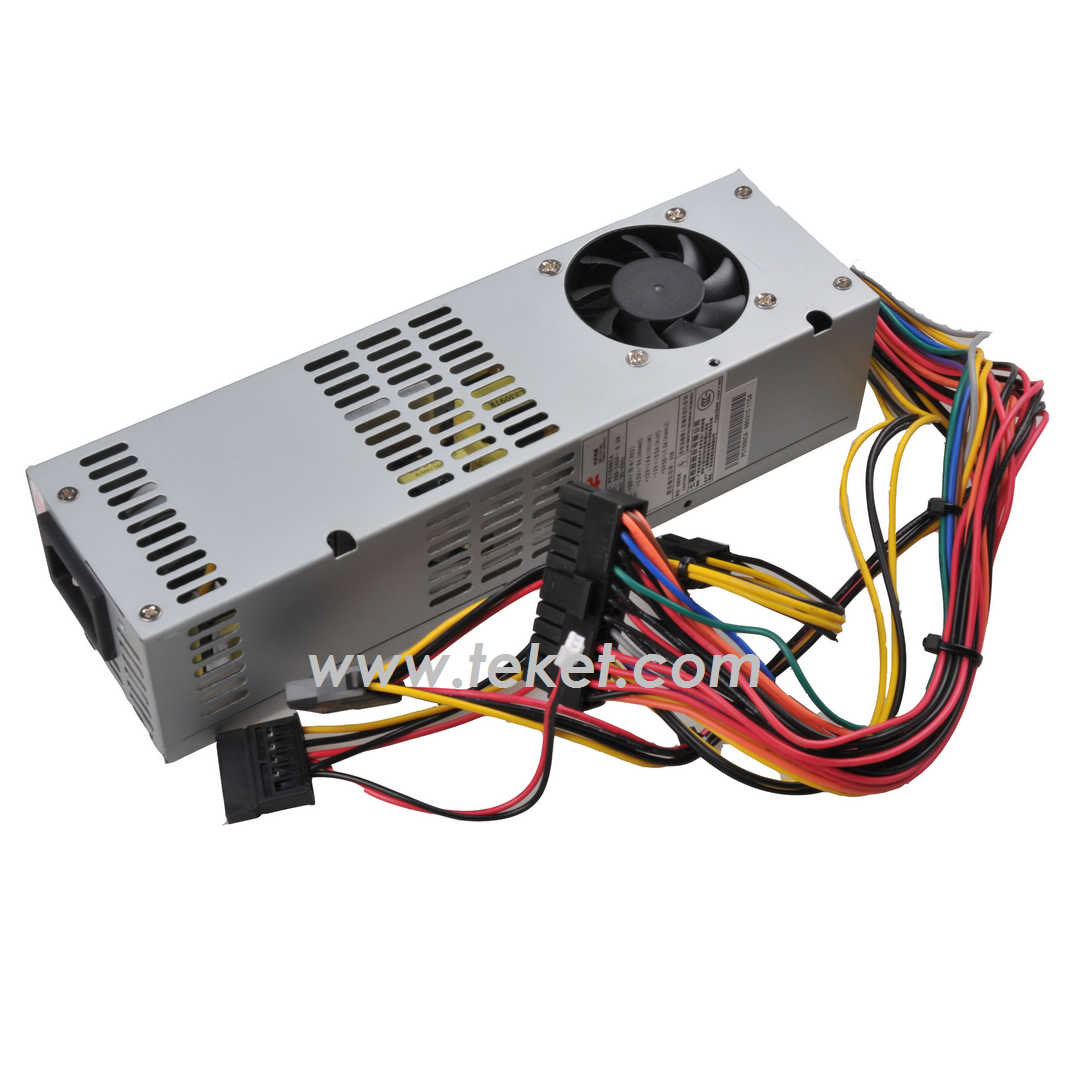

-->> Compact 60W ATX power supply for mini pc Model: ATX_S03 <<--

ATX_S03

AC input: 220-240VAC,3A,50-60Hz
Output:
+3.3V,6A
+5V,10A
+12V,6A
-12V,0.5A
+5VSB,1.5A
Total combined output of +5V & +3.3V is 60w

INPUT Characteristics:
Input Range: 180~264V
90~132V (optional)
Frequency: 50~60Hz
Input Current: 3A max @ 200~240Vac
Efficiency: ¡۶5%
Output Characteristics:
Max power: 150W
Holdup time: >17mS @Max. Load
Rise time: 2~20mS
Leakage Current:<1.5mA
Overvoltage protection: +3.3V, +5V, +12V
Short-Circuit Protection: Latch off
Power Good Singal:
TTL compatible on delay 100mS
to 500mS, off delay 1mS

High efficiency
FLEX ATX 12V 1.0 version
Low noise
Over voltage protection
Short circuit protection
Reset table power shut down
Vacuum-impregnated transformer
Remote On/Off
Line input fuse protection
1x 50cm fan
One socket
20+4PIN/ 220mm+/-50mm
110/220V (optional)
P4-4pin /400mm+/-50mm
