fanless industral atx power atx_w04

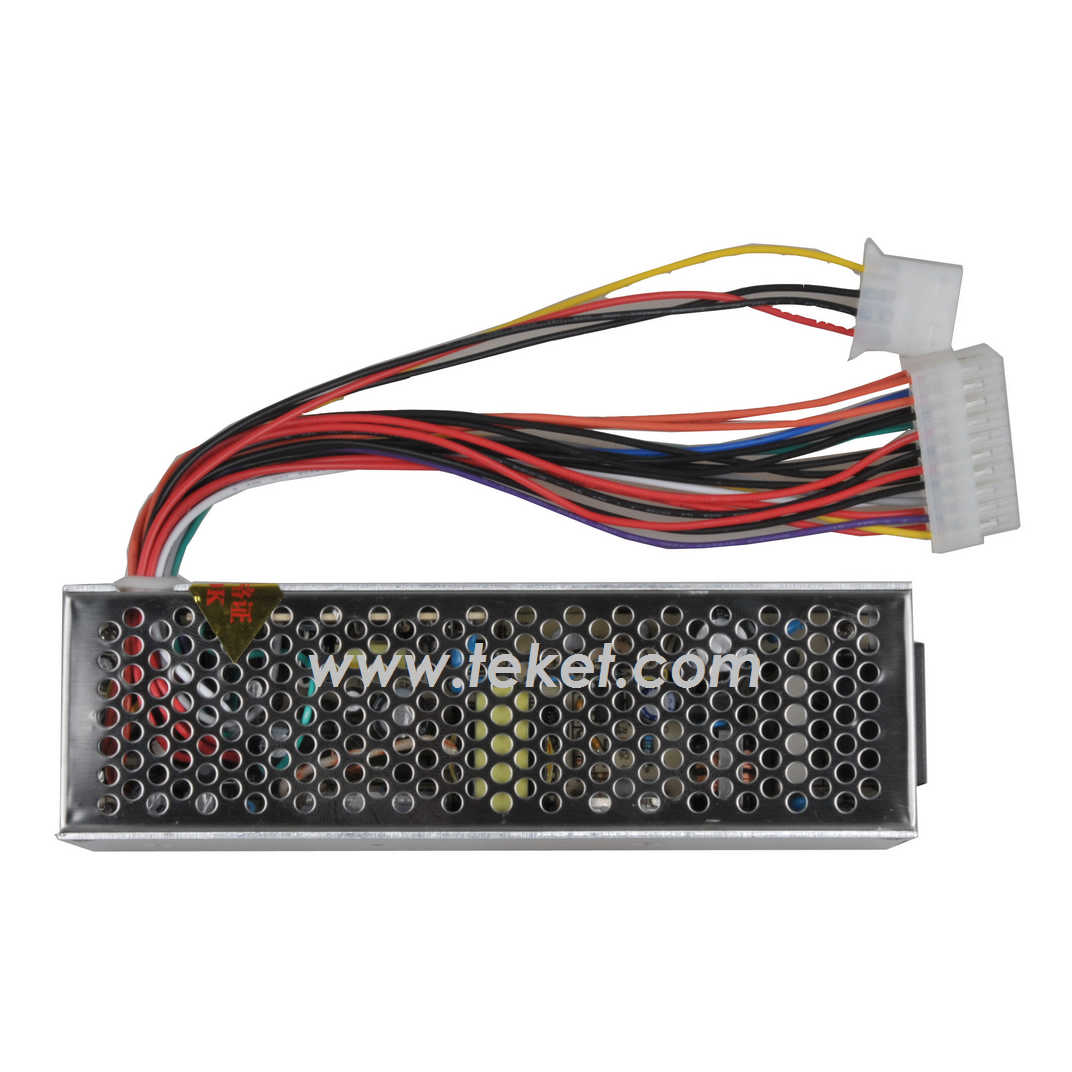

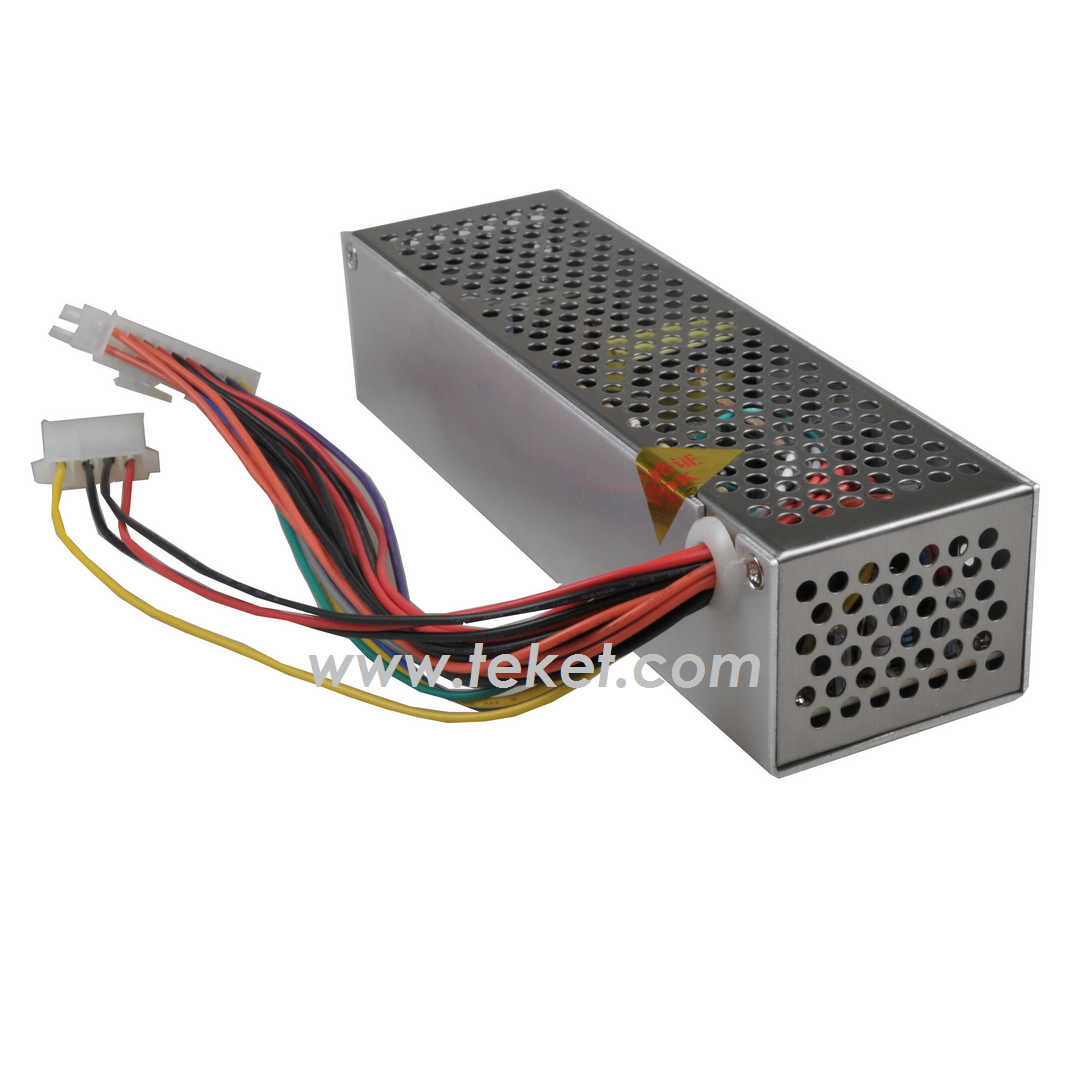

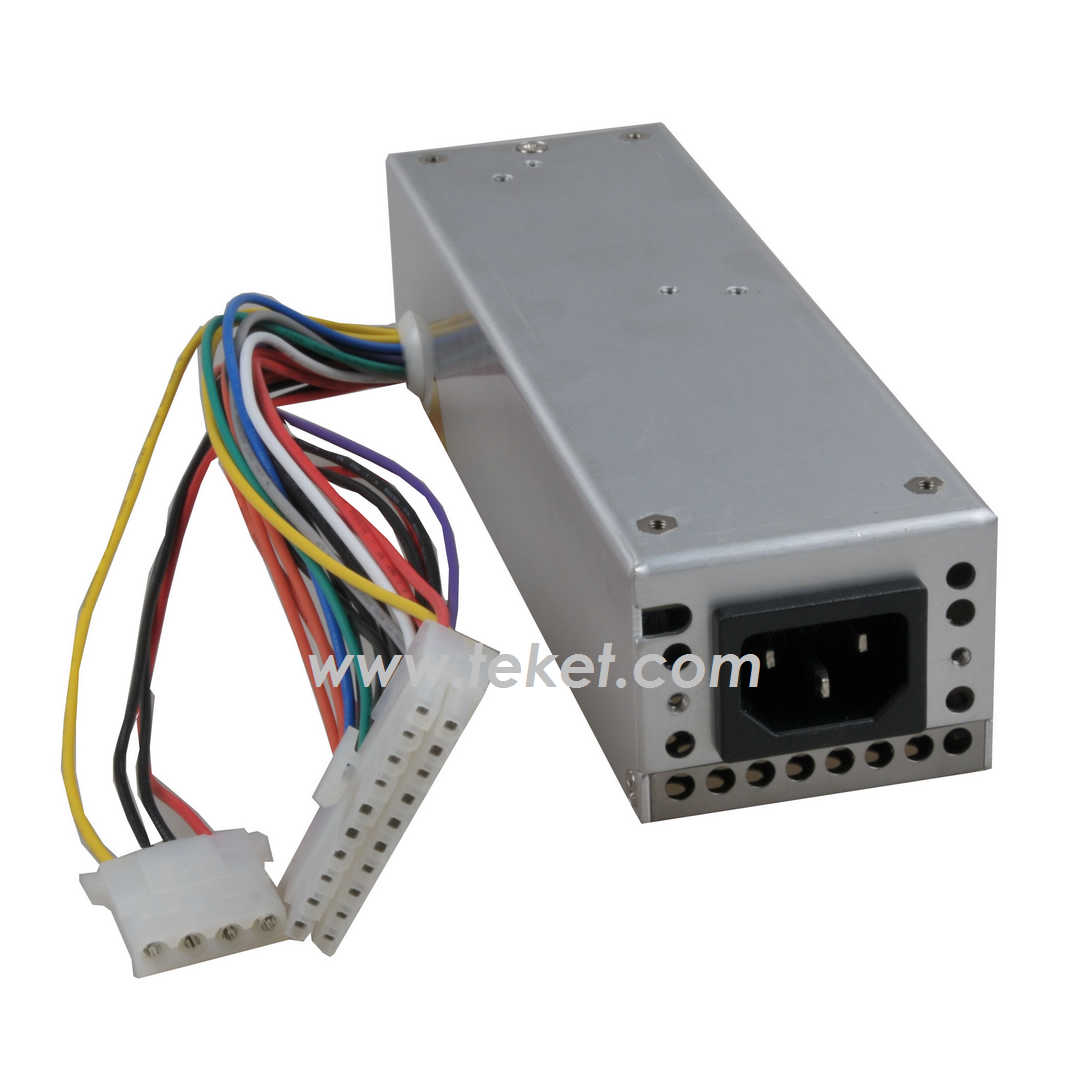

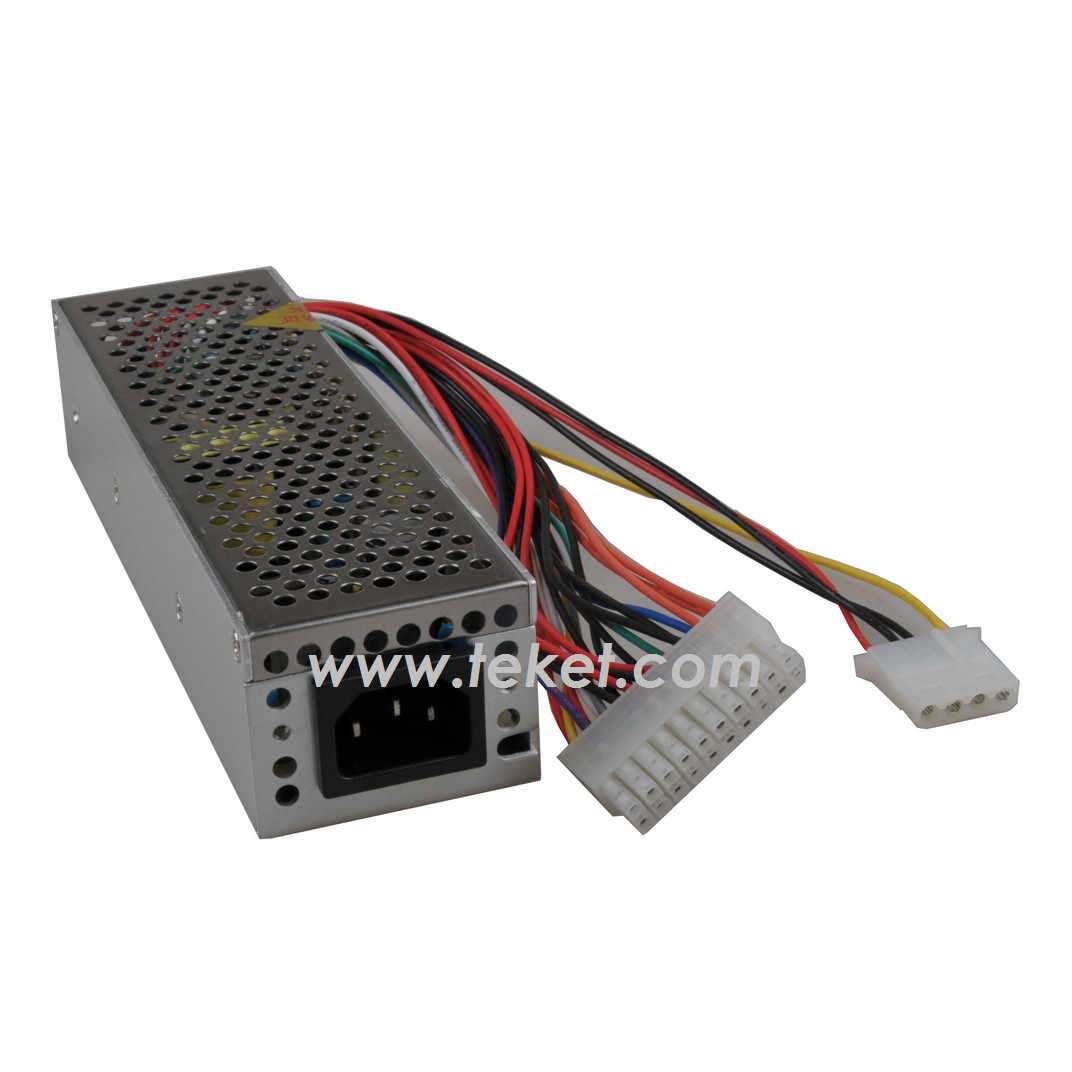

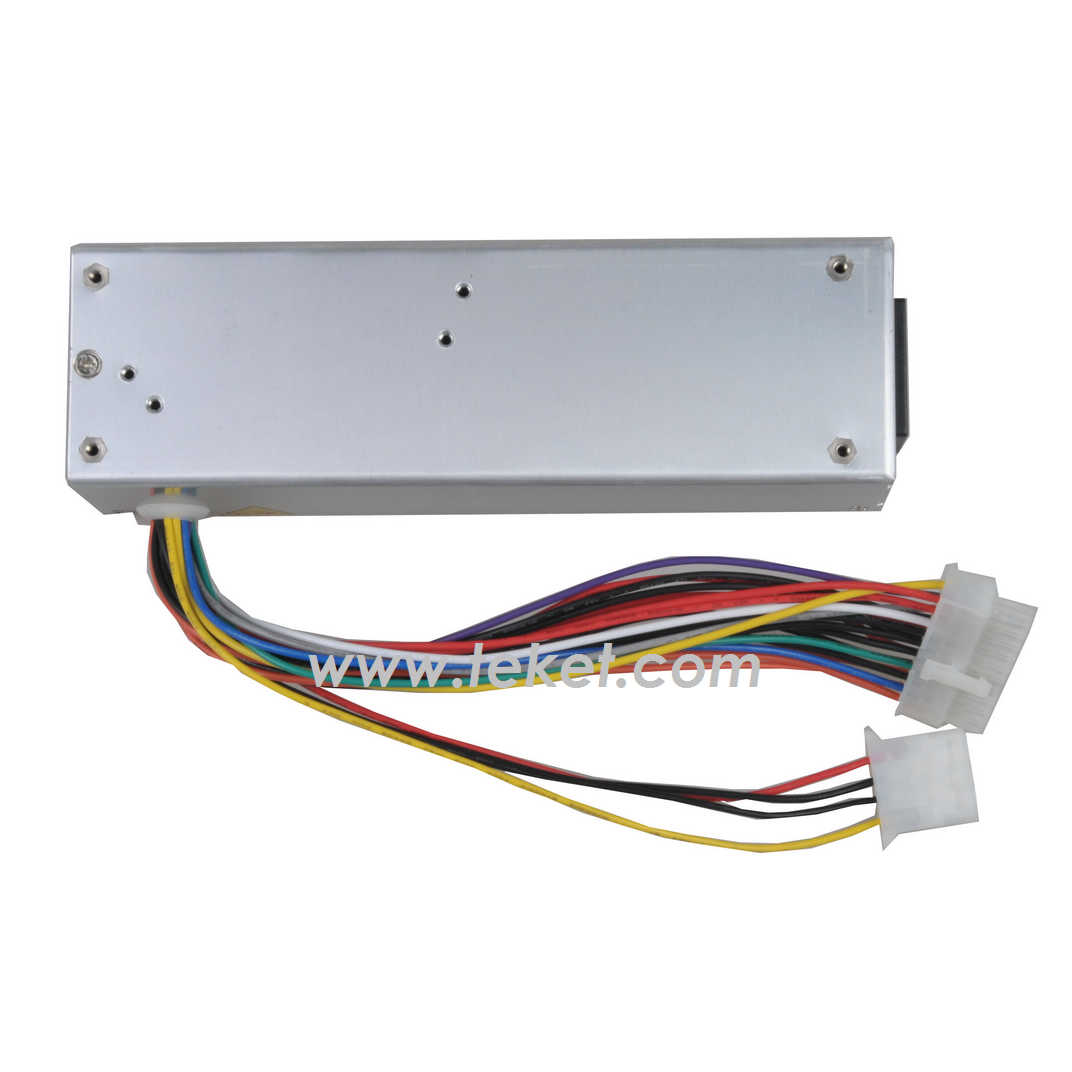

==>> Compact fanless ATX power supply for inudustal PC Model: ATX_W04 <<==

Specifications:

1,Power AC input characteristics

Rated input
Enable input
 MIN
 NOM
 MAX
AC220V
 voltage V
 85
 110­240
 265
50/60
 frequency Hz
 47
 50
 63

2,DC output voltage range

Typical value
 Vmin
 Vnom
 Vmax
 Error
+3.3V
 +3.135V
 +3.300V
 +3.465V

+5V
 +4.750V
 +5.000V
 +5.250V

+12V
 +10.800V
 +12.000V
 +13.500V
-12V
 -10.800V
 -12.00V
 -13.500V
+5VSB
 +4.750V
 +5.000V
 +5.250V


3,DC current output range

DC output ports
 Amin
 Anom
 Amax
+3.3V
 3A
 3A
 5A
+5V
 3A
 3A
 5A
+12V
 1.0A
 1A
 1.5A
-12V
 0.2A
 0.2A
 0.5A
+5VSB
 0.5A
 0.5A
 1A

4,noise and ripple

DC output ports
 +3.3V
 +5V
 +12V
 +5VSB
noise and ripple
 50mV 50mV

 120mV
 50mV

5,Power output power and efficiency

output rated power 50W

If the power at 220/50Hz overall loading£¬the power efficiency is greater than or equal 75%

6,Size

Dimension (WxLxH):175mm*54mm*42mm -> 178mm*54mm*42mm (2013-11-26)
New weight with cable: 0.373kg
