-->> DC Invertor Module for Bus Truck Battery <<--

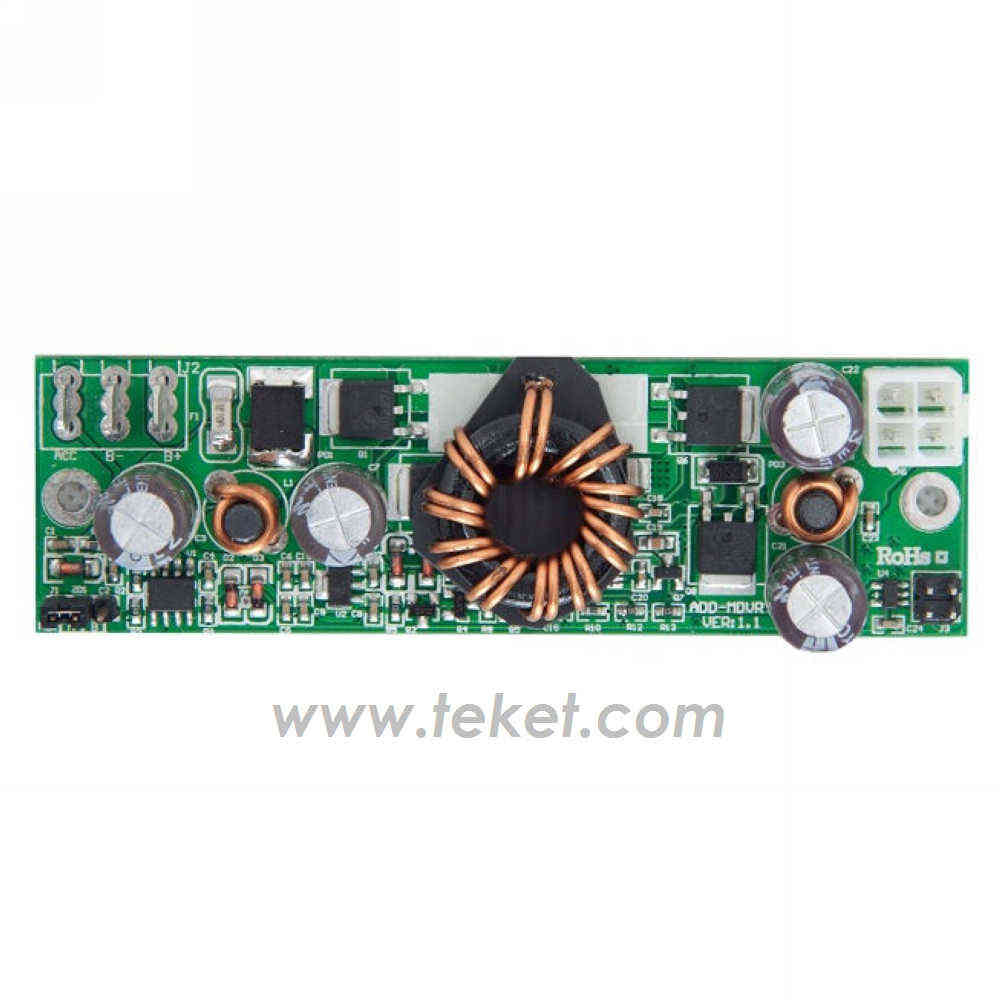

Nodel: DC2DC_836V60W-12/-19/-24
Application Car PC, Car dvr ,Mini Computer，POS，HTPC，ITX System
Dimensions (MM): L100 × W30× H17
Input voltage: +8V / DC - + 36V / DC
Output Power: 60W
Efficiency:> = 92%
Operating temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~ 80 ℃
Output electrical characteristic
| Model | Output(V) | Min(V) | Max(V) | Min(A) | Max(A) | Ripple(mV) | Scp |
|---|---|---|---|---|---|---|---|
| 836V60W-12 | 12 | 11.4 | 12.6 | 0 | 5 | 120 | Auto |
| 836V60W-19 | 19 | 18.05 | 19.95 | 0 | 3.15 | 190 | Auto |
| 836V60W-24 | 24 | 22.8 | 25.2 | 0 | 2.5 | 240 | Auto |
Remarks:ITPS 2 Model

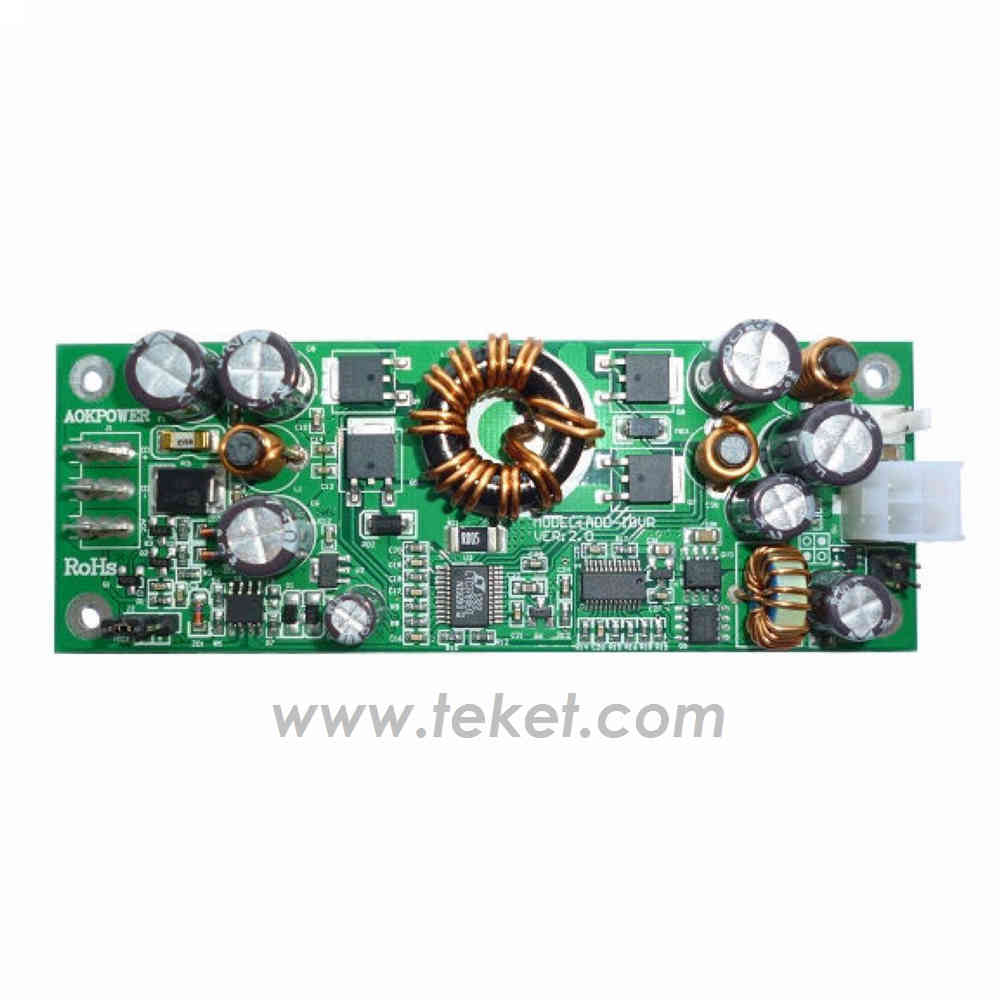

Model: DC2ATX_836V85W
Dimensions (MM): L116 × W42 × H17
Input voltage: +8 V / DC - +36 V / DC
Output Power: 85W
Efficiency:> = 92%
Operating temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~ 80 ℃
Output electrical characteristic
| Votage | Min(V) | Max(V) | Min(A) | Max(A) | Ripple(mV) | Line | Scp |
|---|---|---|---|---|---|---|---|
| 12 | 11.4 | 12.6 | 0 | 5 | 120 | Yellow | SPS-down |
| 5 | 18.05 | 19.95 | 0 | 5 | 190 | Red | SPS-down |
Remarks:ITPS 2 Model

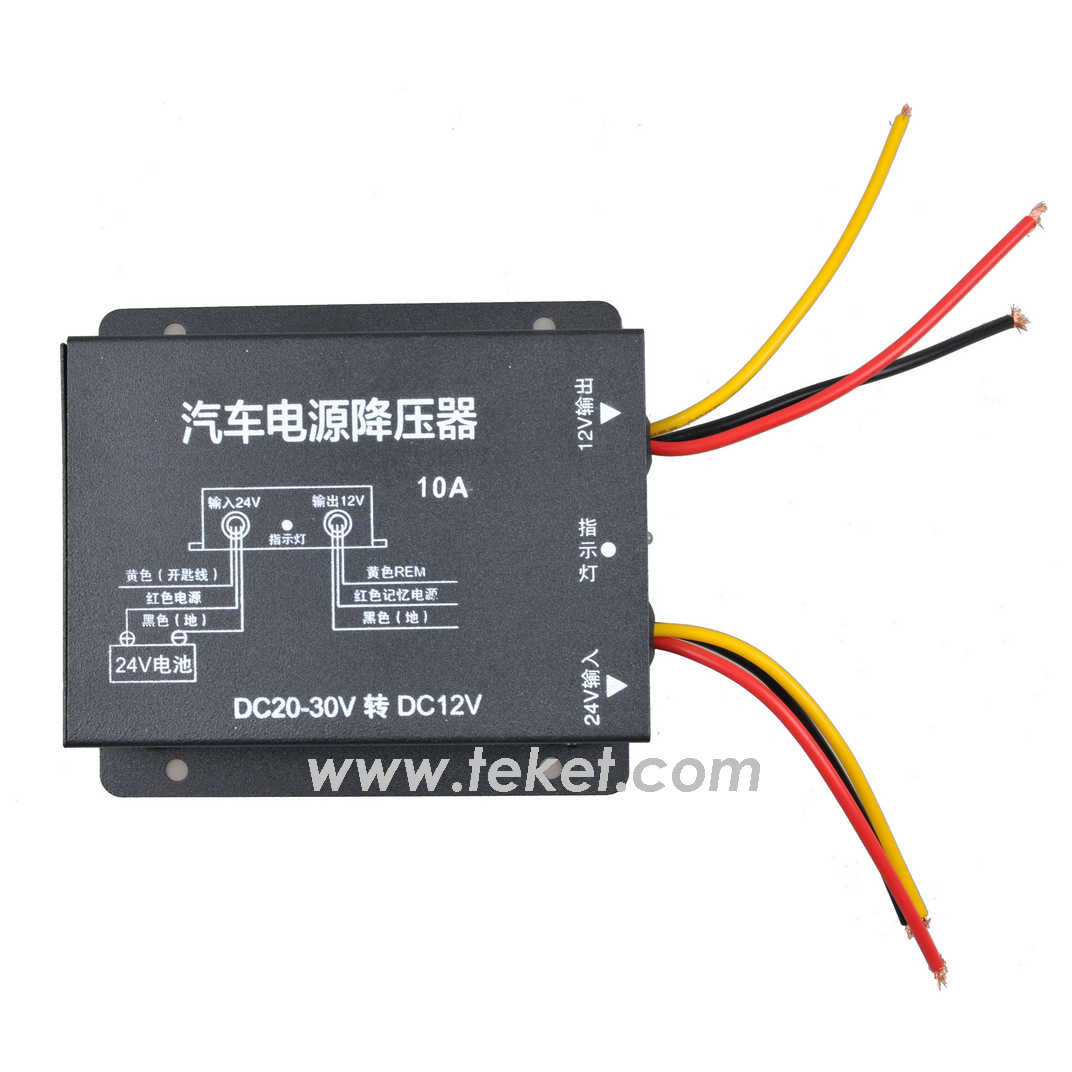

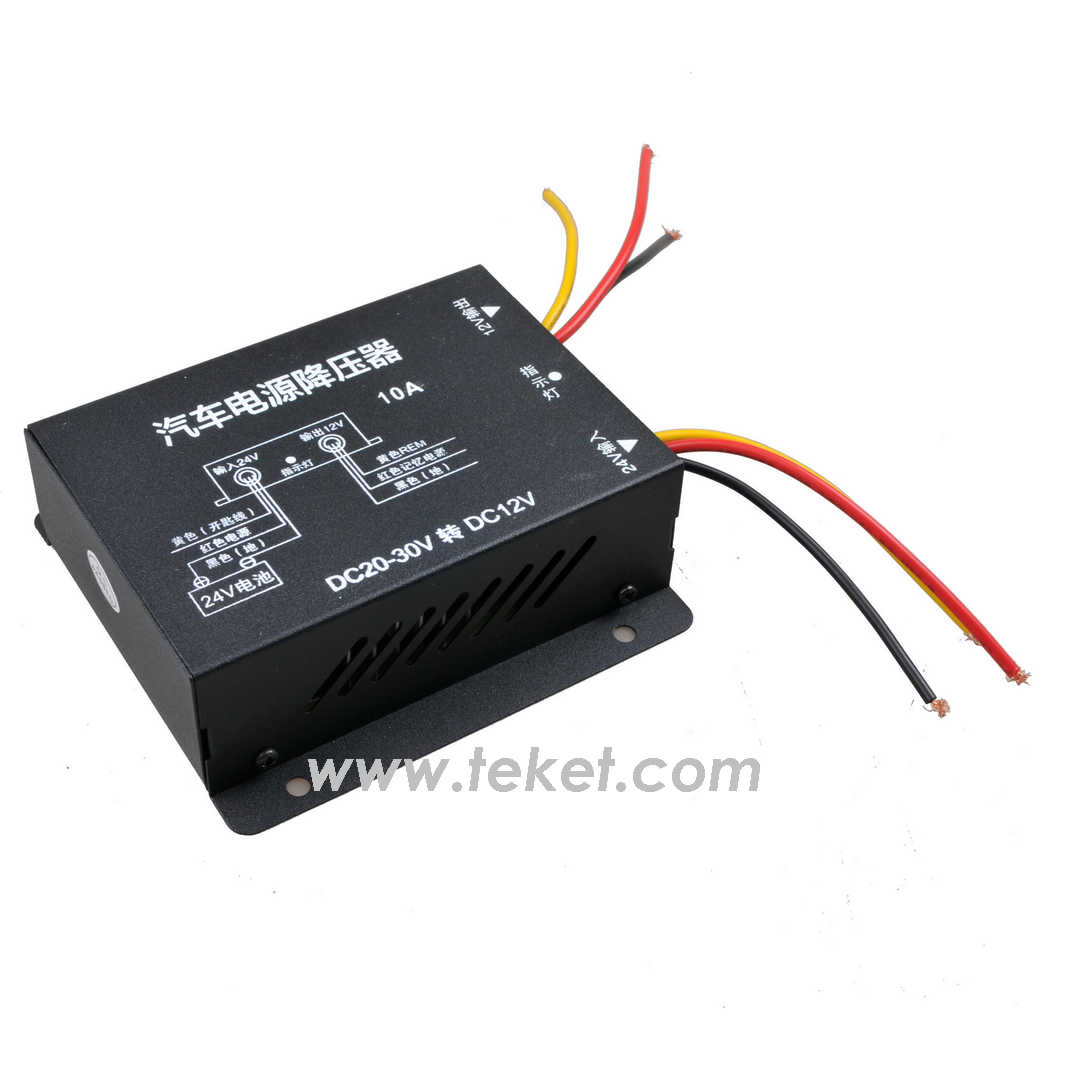

DC-DC convertor for bus/truck battery
input: 20-30v dc
output: 12v dc max to 10a
model: DC2DC_2030V120W (option 10A,15A,20A,30A,45A,60A)

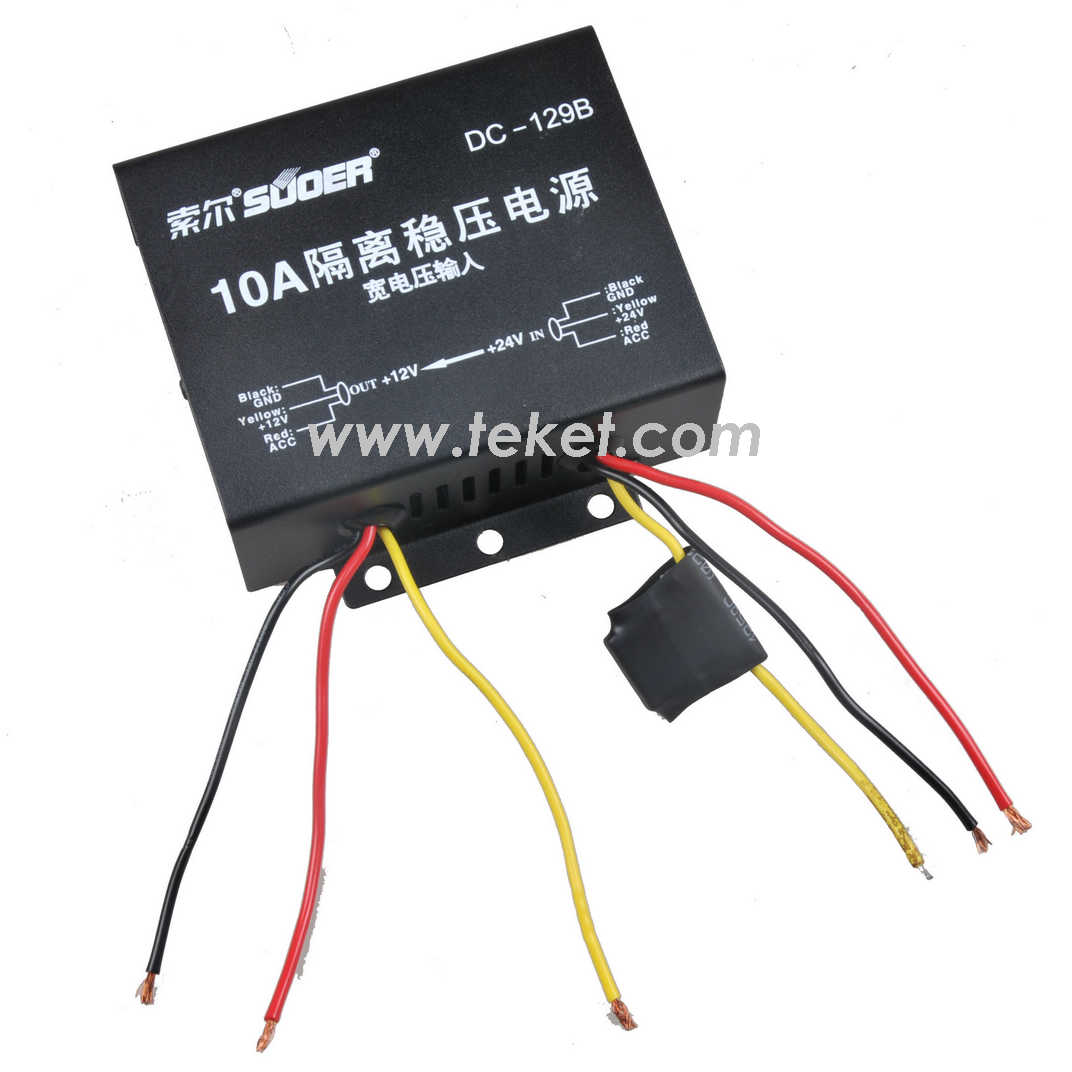

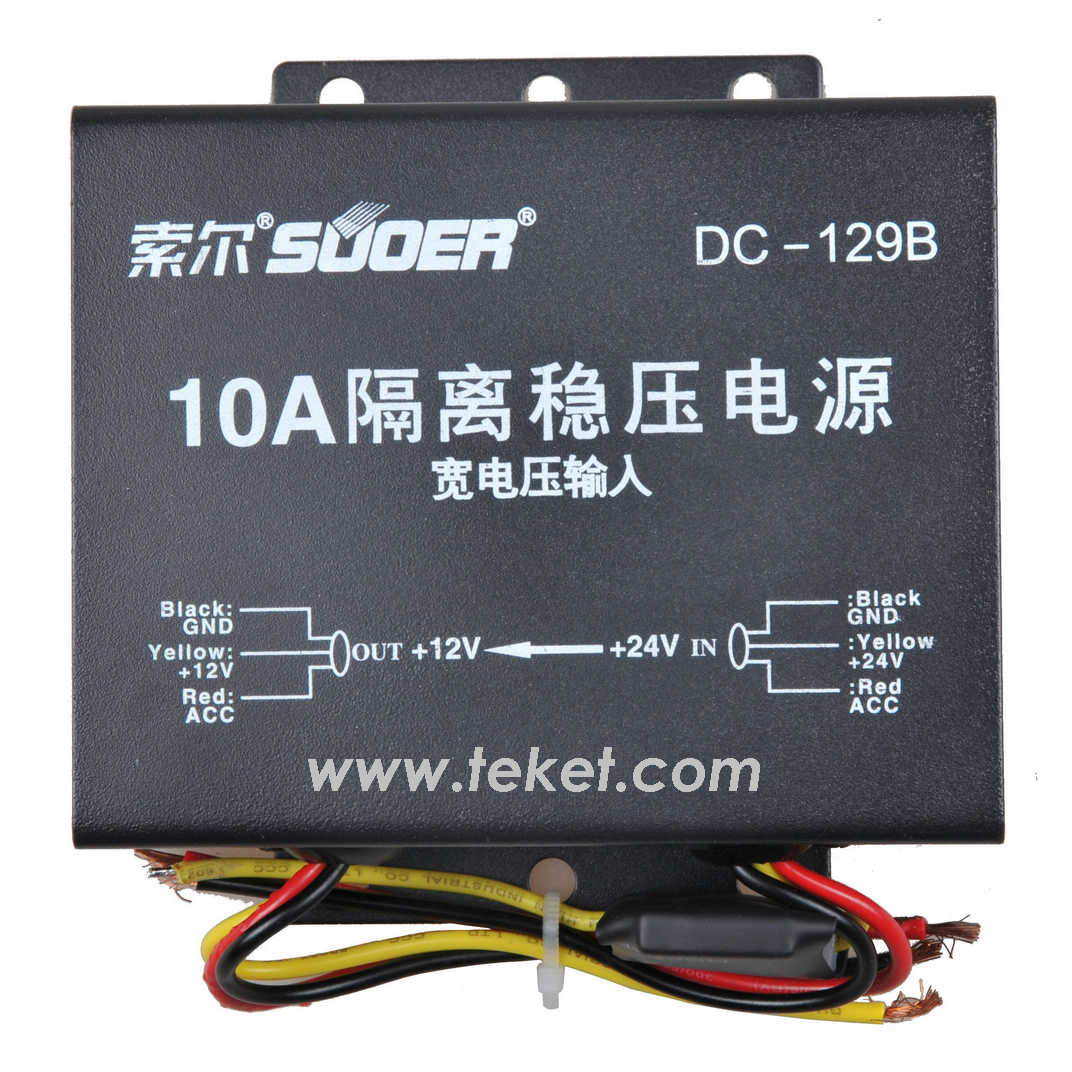

DC-DC convertor for bus/truck battery
input: 8-36v dc
output: 12v dc max to 10a
model: DC2DC_836V120W (option 10A,15A,20A,30A,45A,60A)
