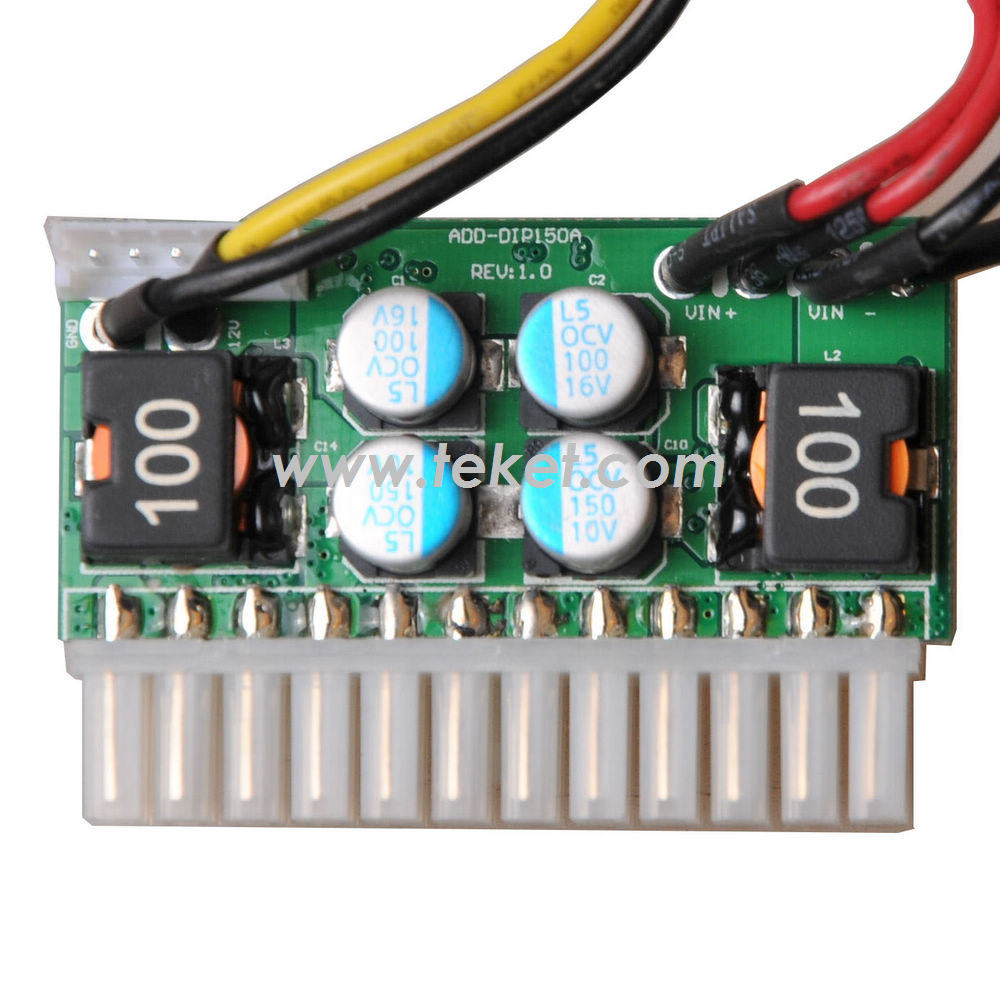

-->> ATX Power Supply Unit PSU ATX Module PSU_12V150W_GR <<--
MODEL: PSU_12V150W_GR
Dimensions (MM): Plug-Type 24P
Input voltage: +12 V / DC (11.4V-12.6V)
Output Power: 150W
Efficiency:> = 92%
Operating temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~ 80 ℃
Output electrical characteristic
| Vout | Min (V) | Max(V) | min(A) | Max(A) | Ripple (mV) | cabble color | SCP |
| +12V | 11.40 | 12.60 | 0 | 8 | 120MAX | yellow | SPS-down |
| +5V | 4.75 | 5.25 | 0 | 6 | 50MAX | red | SPS-down |
| -12V | -10.40 | -12.6 | 0 | 0.05 | 240MAX | blue | NON |
| +3.3V | 3.14 | 3.47 | 0 | 6 | 50MAX | orange | SPS-down |
| +5VSB | 4.75 | 5.25 | 0 | 1 | 50MAX | purple | SPS-down |
.jpg){kind=link}
24PIN connector
Order Information
PSU_12V150W_GR 12vdcin,151w output 12v8a,5v6a,3.3v6a,-12v0.05a,5vsb1a,24pin (green pcb)
