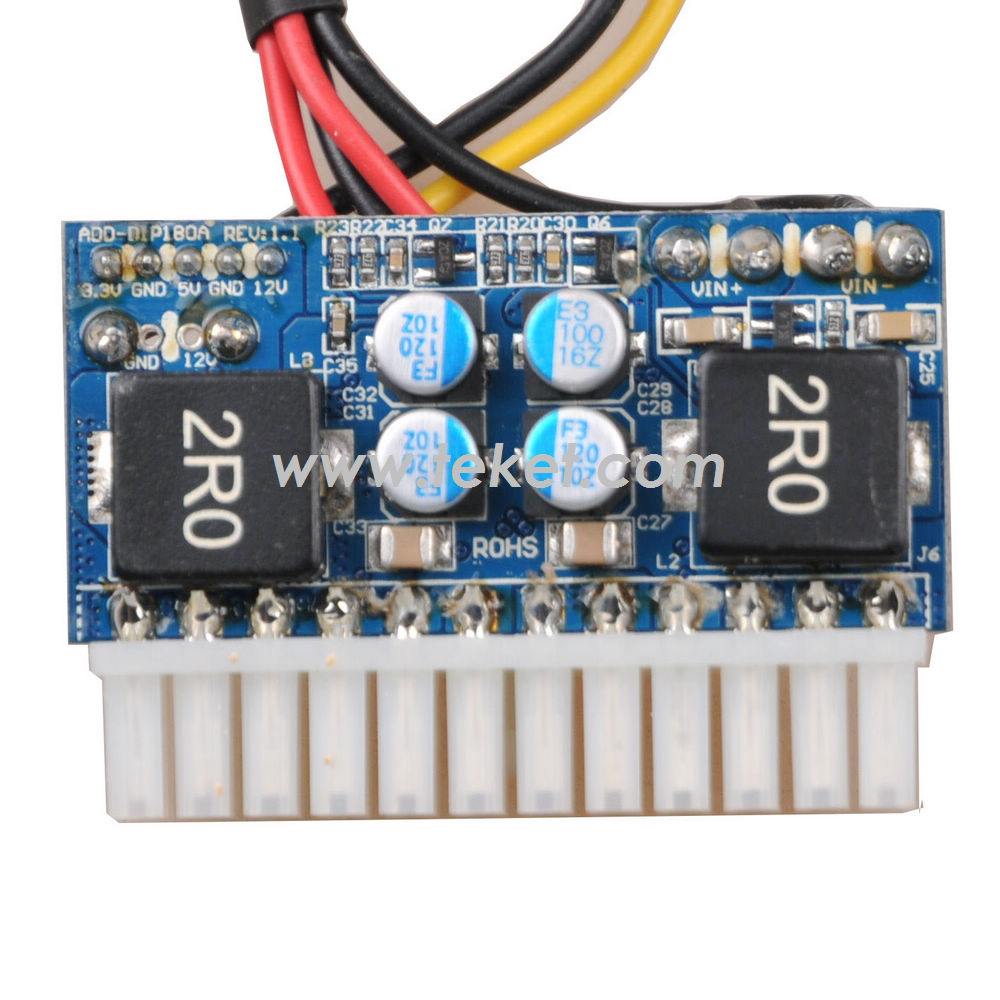

-->> ATX Power Supply Unit PSU ATX Module PSU_12V180W_BL <<--

MODEL: PSU_12V180W_BL

Dimensions (MM): Plug-Type 24P
Input voltage: +12 V / DC (11.4V-12.6V)
Output Power: 180W
Efficiency:> = 92%
Operating temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~ 80 ℃
Output electrical characteristic

Vout Min (V) Max(V) min(A) Max(A) Ripple (mV) cabble color SCP
+12V 11.40 12.60 0 8 120MAX yellow SPS-down
+5V 4.75 5.25 0 10 50MAX red SPS-down
-12V -10.40 -12.6 0 0.05 240MAX blue NON
+3.3V 3.14 3.47 0 10 50MAX orange SPS-down
+5VSB 4.75 5.25 0 1 50MAX purple SPS-down



24PIN connector

Order Information
PSU_12V180W_BL 12vdcin,185w output 12v8a,5v10a,3.3v10a,-12v0.05a,5vsb1a,24pin (blue pcb)
