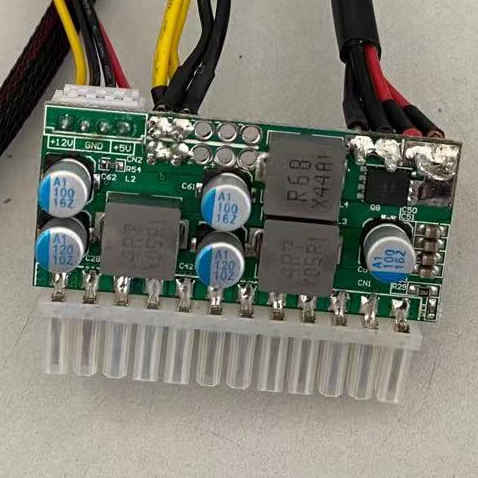

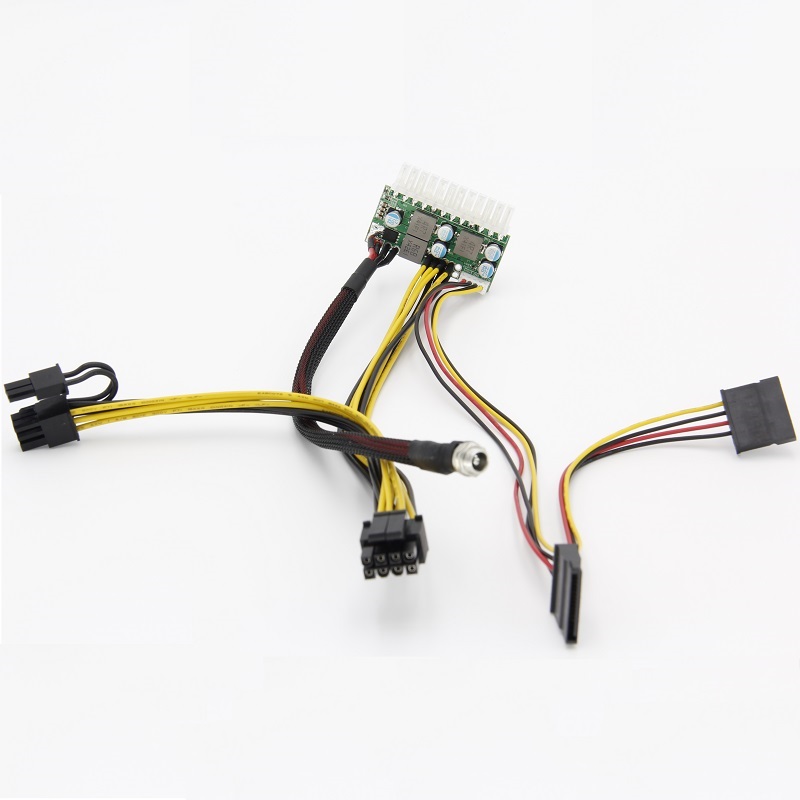

-->> ATX Power Supply Unit PSU ATX Module PSU_12V300W_BL <<--

MODEL: PSU_12V300W_BL

Dimensions (MM): Plug-Type 24P
Input voltage: +12 V / DC (11.4V-12.6V)
Output Power: 300W
Efficiency:> = 96%
Operating temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~ 80 ℃
Output electrical characteristic

Vout Min (V) Max(V) min(A) Max(A) Ripple (mV) cabble color SCP
+12V 11.40 12.60 0 21 120MAX yellow SPS-down
+5V 4.75 5.25 0 5 50MAX red SPS-down
-12V -11.40 -12.6 0 0.01 240MAX blue NON
+3.3V 3.14 3.47 0 5 50MAX orange SPS-down
+5VSB 4.75 5.25 0 1 50MAX purple SPS-down



24PIN connector

Order Information

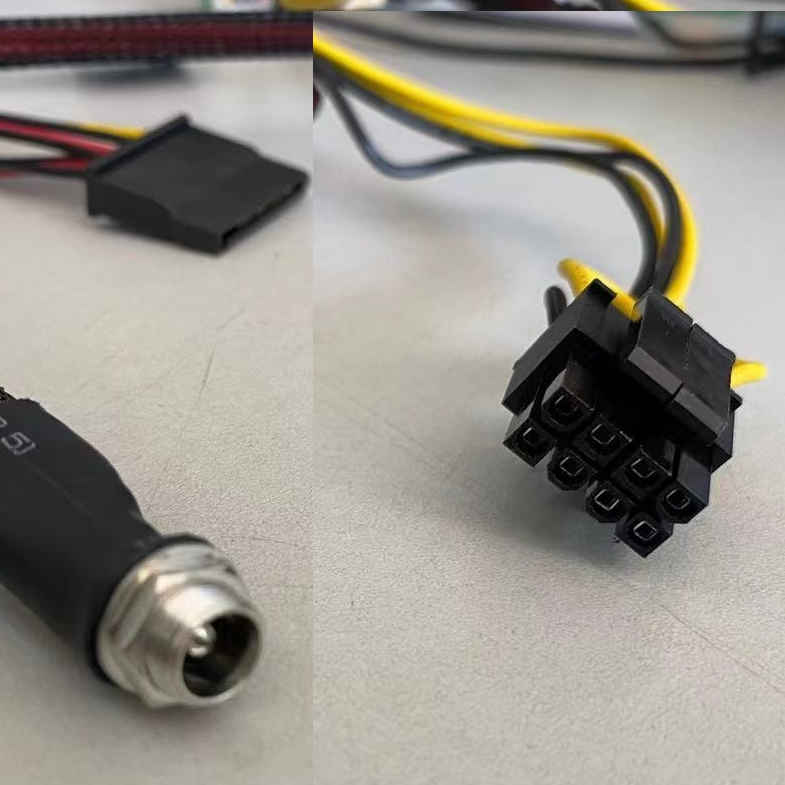

PSU_12V300W_BL 12vdcin,+12V21A,+5V5A,-12V0.01A,+3.3V5A,+5VSB1A,Efficiency>96%,8pin power connector
