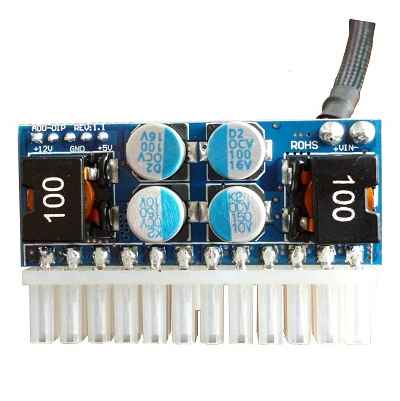

-->> ATX Power Supply Unit PSU ATX Module PSU_12V84W_BL <<--

MODEL: PSU_12V84W_BL

Dimensions (MM): Plug-Type 20P or 24P
Input voltage: +12 V / DC (11.4V-12.6V)
Output Power: 84W
Efficiency:> = 92%
Operating temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~ 80 ℃
Output electrical characteristic

Vout	Min (V)	Max(V)	min(A)	Max(A)	Ripple (mV)	cabble color	SCP
+12V	11.40	12.60	0	3	120MAX	yellow	SPS-down
+5V	4.75	5.25	0	5	50MAX	red	SPS-down
-12V	-10.40	-12.6	0	0.1	240MAX	blue	NON
+3.3V	3.14	3.47	0	5	50MAX	orange	SPS-down
+5VSB	4.75	5.25	0	1	50MAX	purple	SPS-down

20PIN connector

24PIN connector

Order Information
PSU_12V84W_BL(P20) 12vdcin,84w output 12v3a,5v5a,3.3v5a,-12v0.1a,5vsb1a,20pin
PSU_12V84W_BL(P24) 12vdcin,84w output 12v3a,5v5a,3.3v5a,-12v0.1a,5vsb1a,24pin
