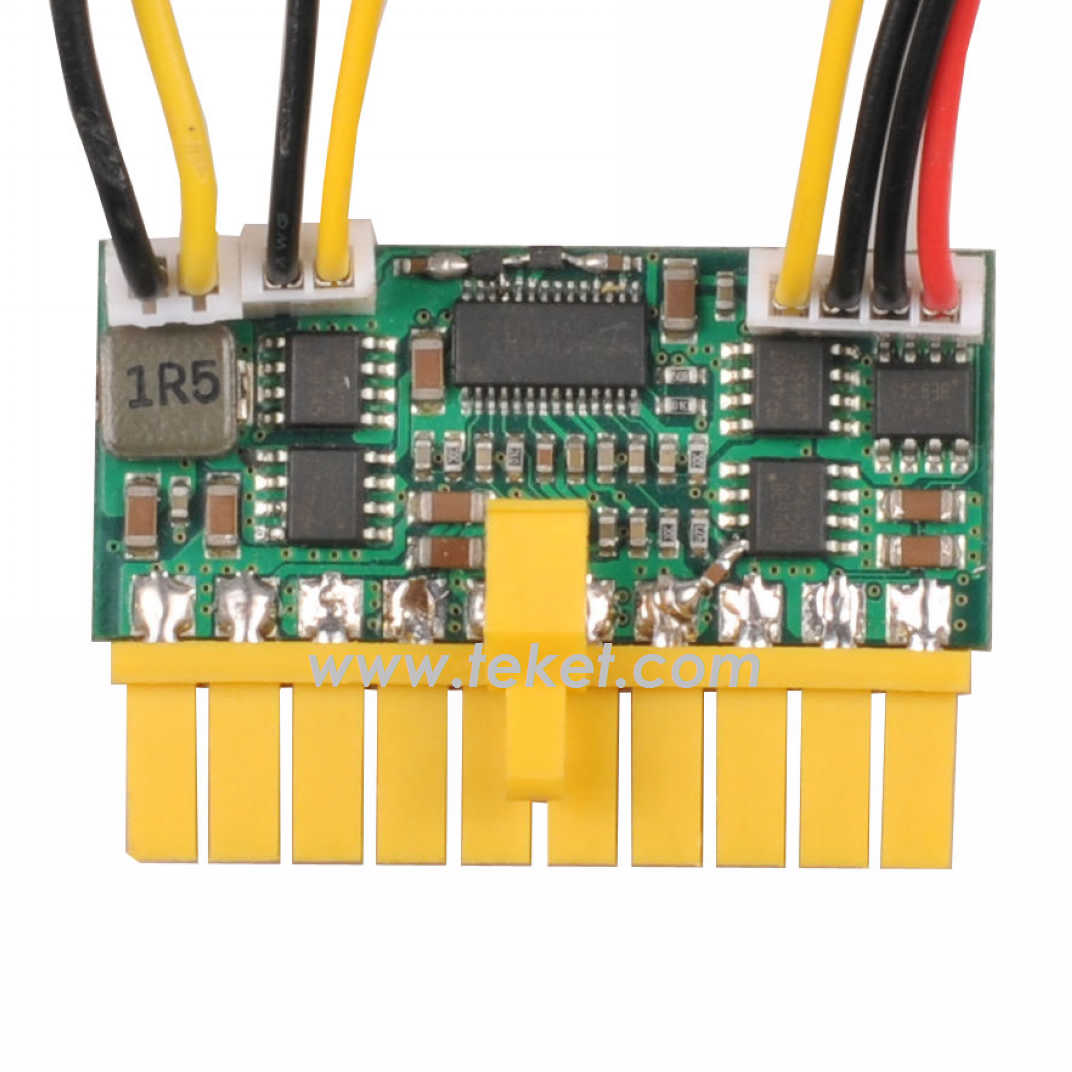

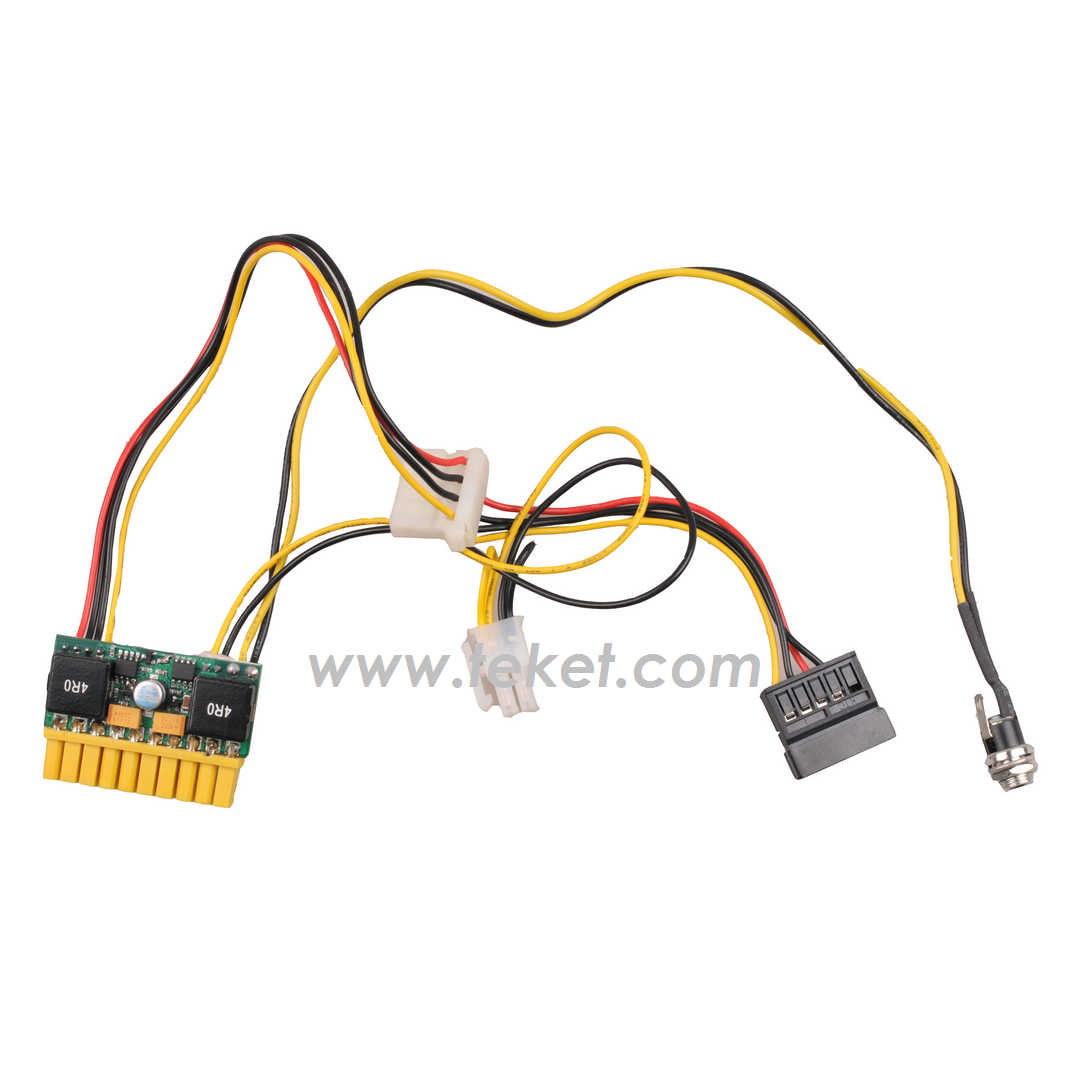

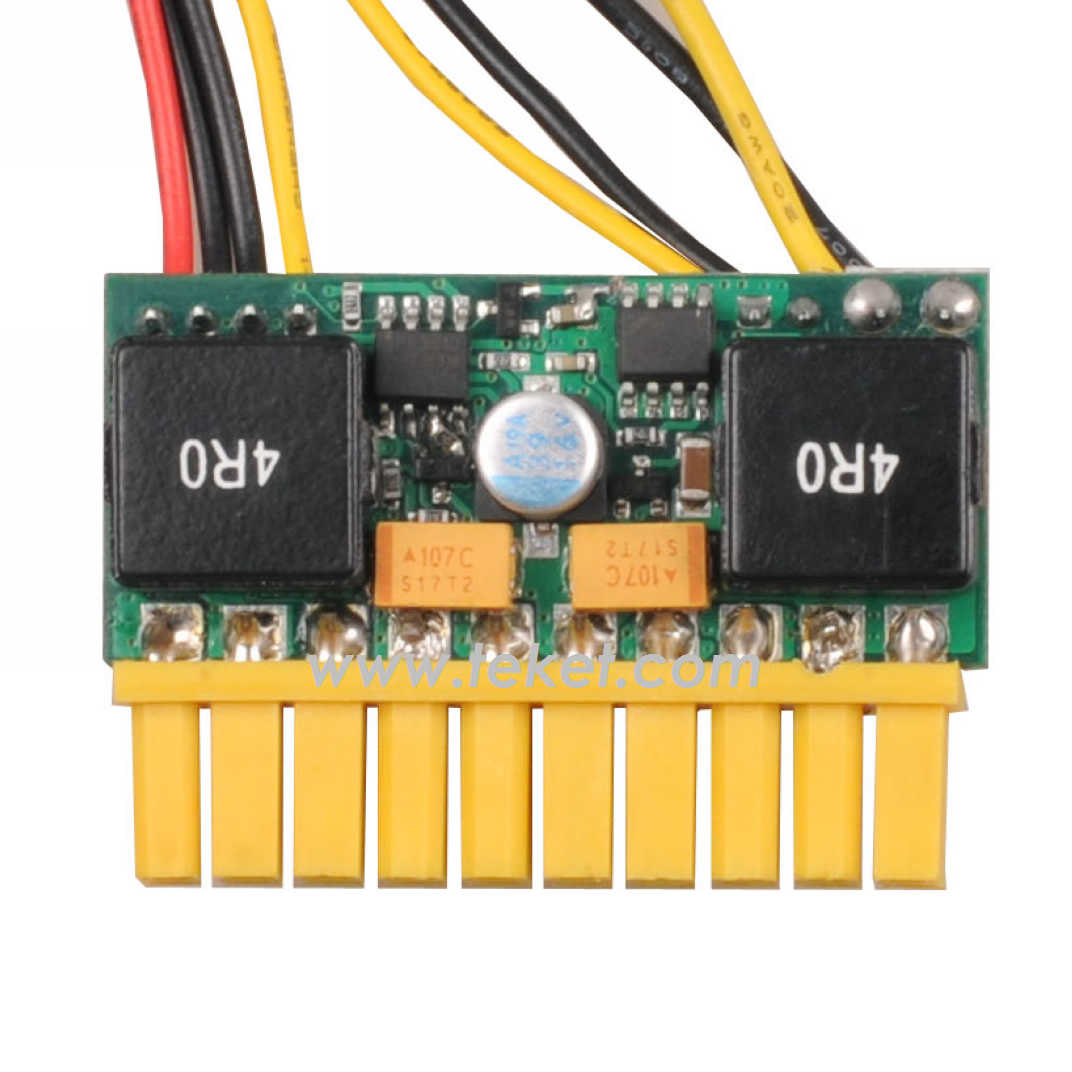

-->> ATX Power Supply Unit PSU ATX Module PSU_12V100W-Y1 <<--



MODEL: PSU_12V100W-Y1
YLstand for blue, the color of the atx connector

input: 12vdc
output: +5v,+12v,+3.3v,-12v,+5vsb
Maximum Combined Power : 100watts
Efficiency: not be less than 90%
Dimension: 45x31x10, unit: mm
Over Voltage Protection:
When the +12VDC, +5Vdc, and +3.3VDC output have over voltage condition, the converter shall provide latch mode over voltage protection

Environment:
Operation Temperature: 0C to 40C
Relative humidity: 20% to 85%, non-Condensing.

Shipping and storage Temperature: -20 to +60C
Relative humidity: 10% to 95%, non-Condensing.

Input: 12vdc+/-5%
Input current: 12amax
input freq: 50hz

Output Power Distribution:
Load Current (A),
+12V: 4.5a(11.5-12.5v)
+5V: 5a(4.8-5.2)
+3.3V: 5a(3.1-3.45)
-12V: 0.1a(11.0-12.4)
+5VSB: 1a(4.8-5.2)

Maximum Ripple & Noise ( mVp-p)
+12V: 120
+5V: 50
+3.3V: 50
-12V: 150
+5VSB: 50
