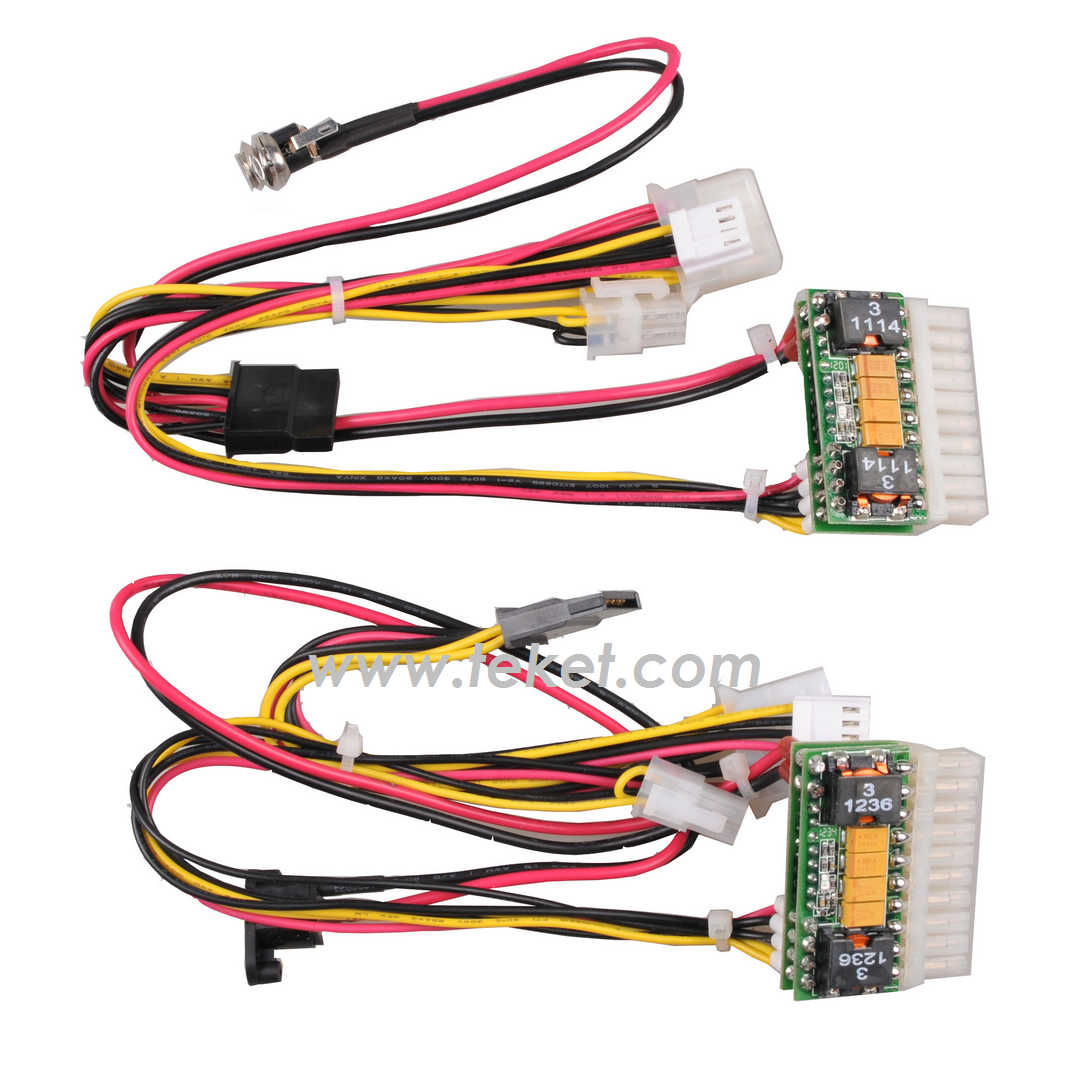

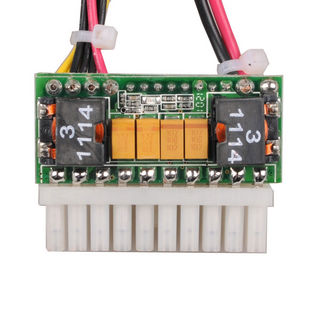

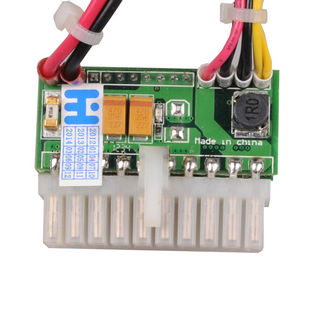

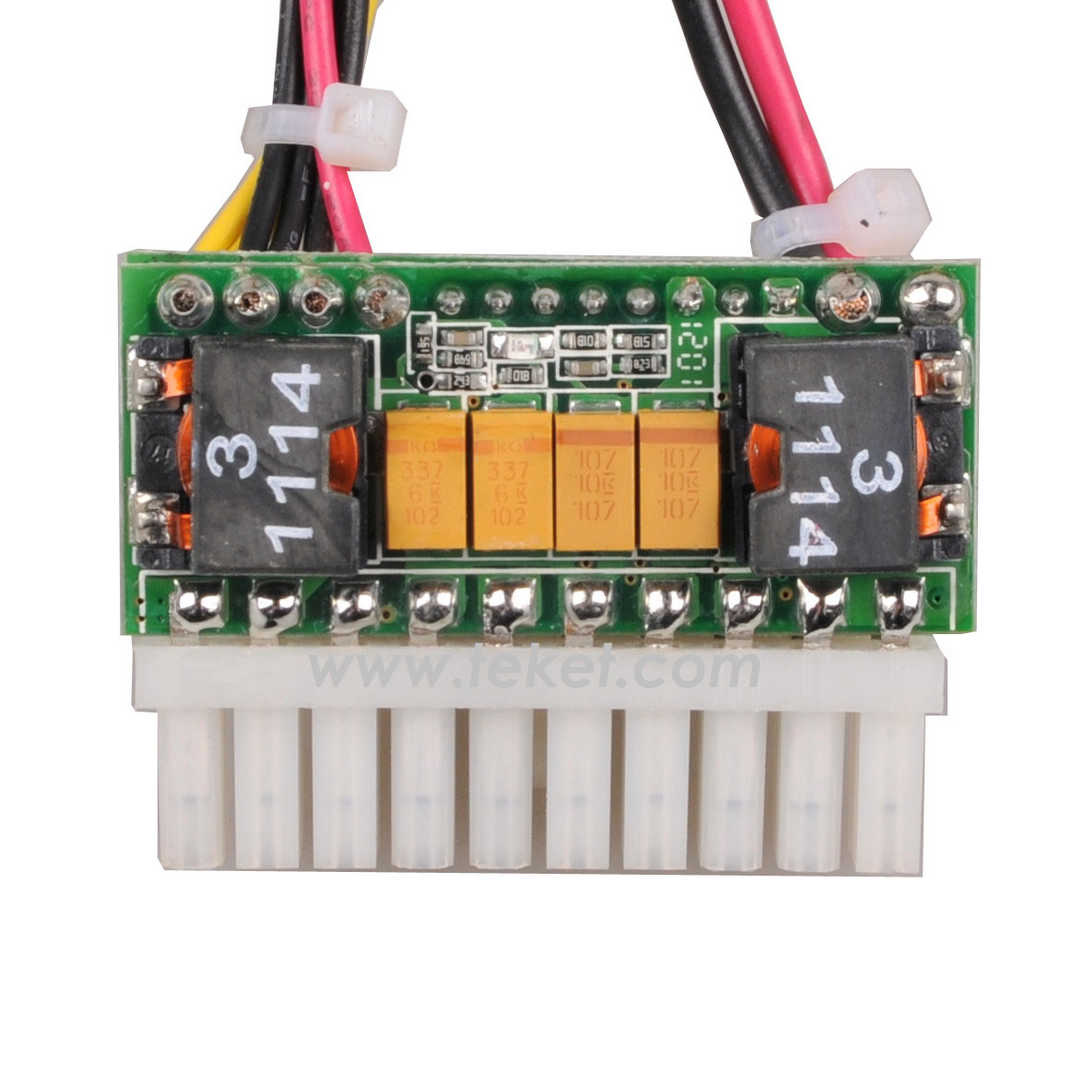

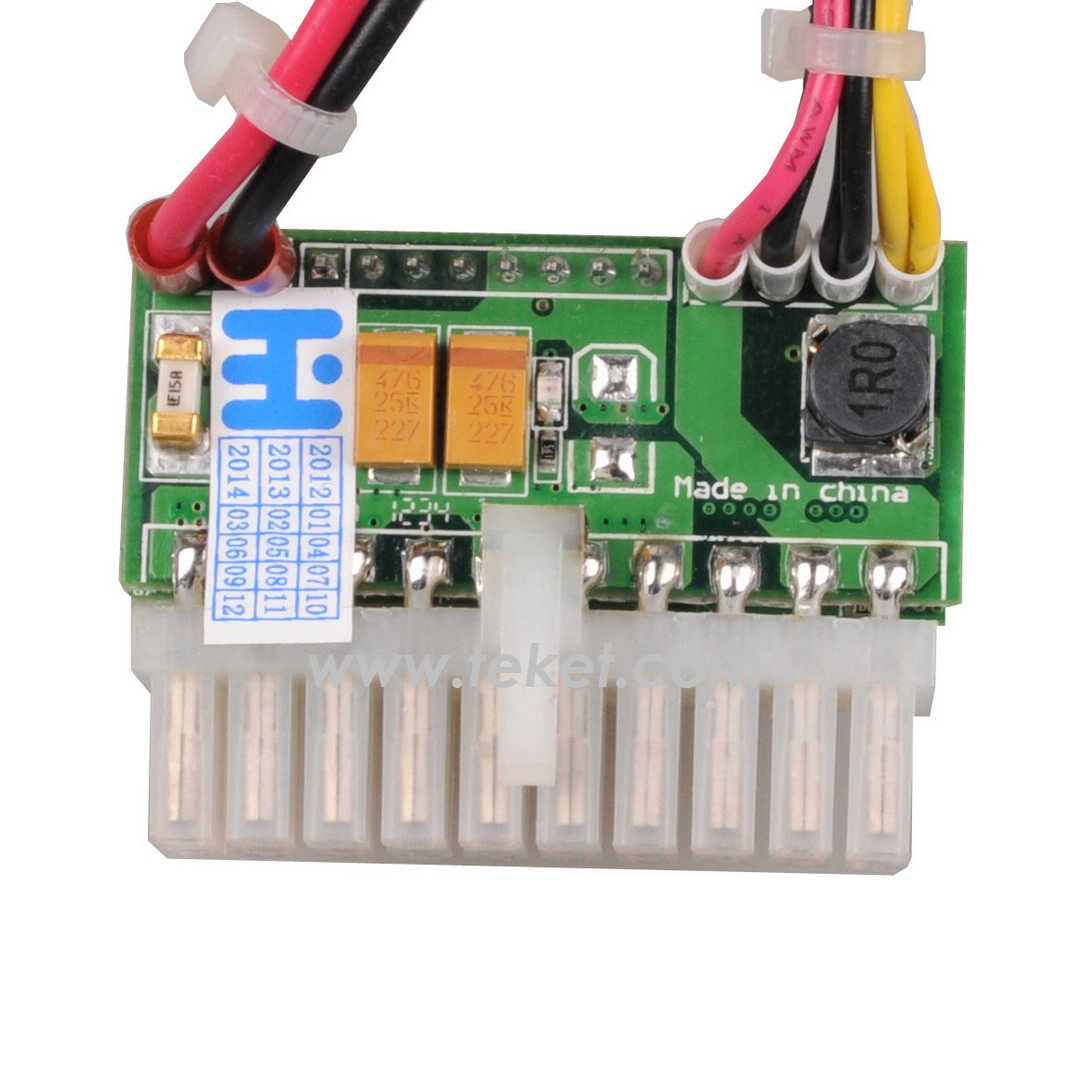

-->> ATX Power Supply Unit PSU ATX Module PSU_12V120W_HL <<--

MODEL: PSU_12V120W_HL

12VDC INPUT 120W MINI DC-DC ATX POWER SUPPLY
Features:
• 12VDC input ,120W ATX output
• Over voltage and short circuit protection
• Over 94% efficiency
• Tiniest DC-DC ATX power supply
• Plugs directly into the ATX connector
• Low profile fits 1U applications
• RoHS compliant
All specifications are typical at nominal input, full load at 25 °C unless otherwise stated.

INPUT SPECIFICATIONS
Input current: 13A
Input fuse: 15A
ISO7637-2 compliance: None
Input voltage range: 12VDC+/-5%
Inrush current (cold start): 15A@12VDC
Input to output: Non-Isolated
Input over voltage protection: None
Input under voltage protection: None
Input inversion protection: None

OUTPUT SPECIFICATIONS
Current 6A 6A 5A 1.5 A 0.05A
Ripple(mV)* 50 50 120 50 120
OCP yes yes N/A N/A yes
Voltage +3.3V +5V +12V +5VSB -12V
Regulation 2% 2% 5% 2% 10%
OVP yes yes yes N/A N/A
SCP yes yes N/A yes yes
Rise time 10ms 10ms 10ms 10ms 10ms
Overshoot 10% 10% 10% 10% 10%
Dynamic** 5% 5% 5% 5% 5%

GENERAL SPECIFICATIONS
Efficiency: 94%
Hold up time: 2ms
Switching frequency: 200K
Meet safety: UL,CE,CCC
Weight: 150g
MTBF(MIL-HDBK-217): >120,000hours
Life: >5years
Failure rate: <0.5%
ITPS function: None

ENVIRONMENTAL SPECIFICATIONS
Operating temperature: -20 to +50 degree
Storage temperature: -40 to +85 degree
Cooling: Fan Cooling
Relative humidity: 5 to 95% RH
Altitude: 10,000 feet max.
Vibration: 5-500 Hz,2.4 G rms
Shock: Per MIL-STD-810E
Conducted immunity: EN55022 Class A
Radiated immunity: EN55022 Class A
ESD: EN61000-4-2, level 3
Surge: EN61000-4-5, level2
Fast transients: EN61000-4-4, level 3
