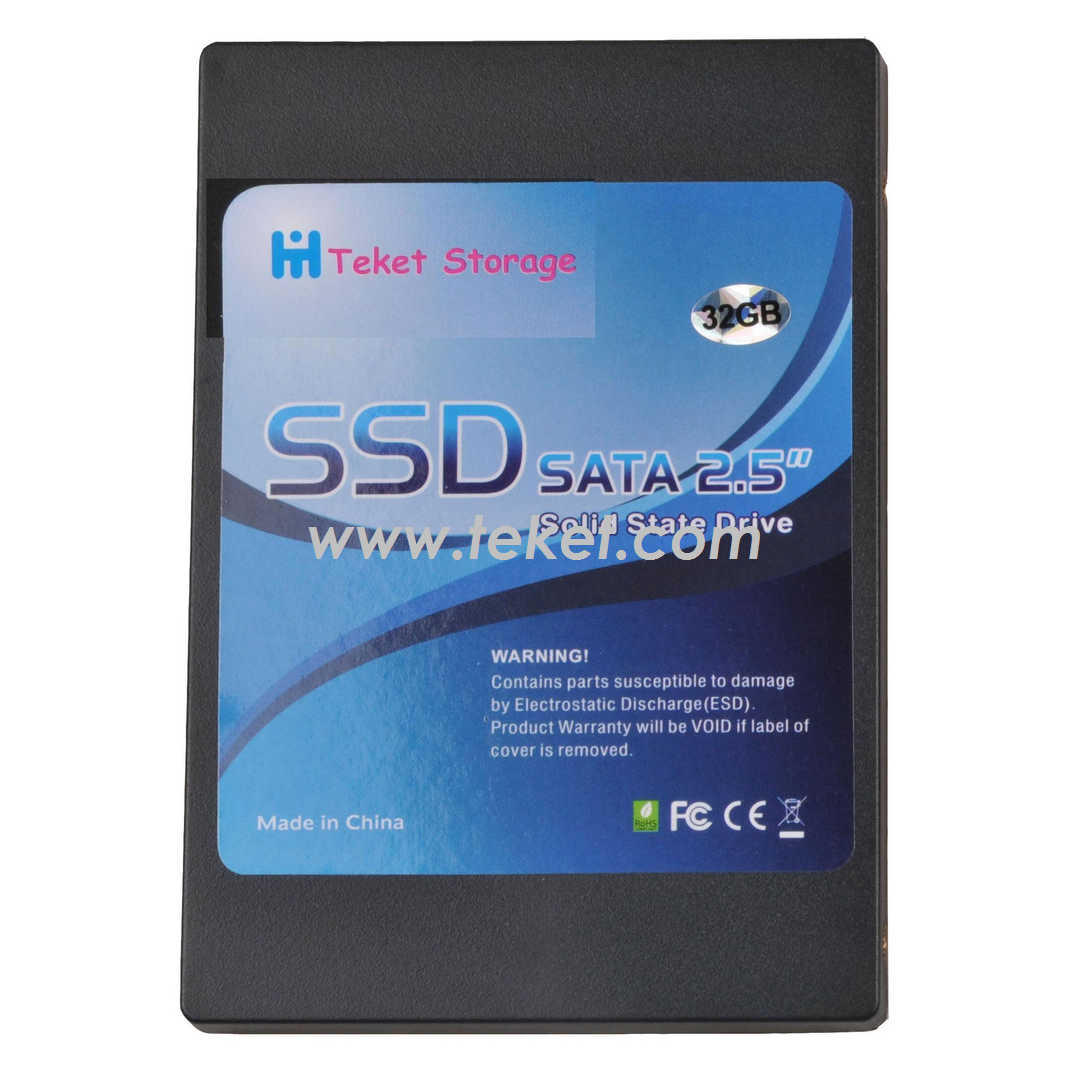

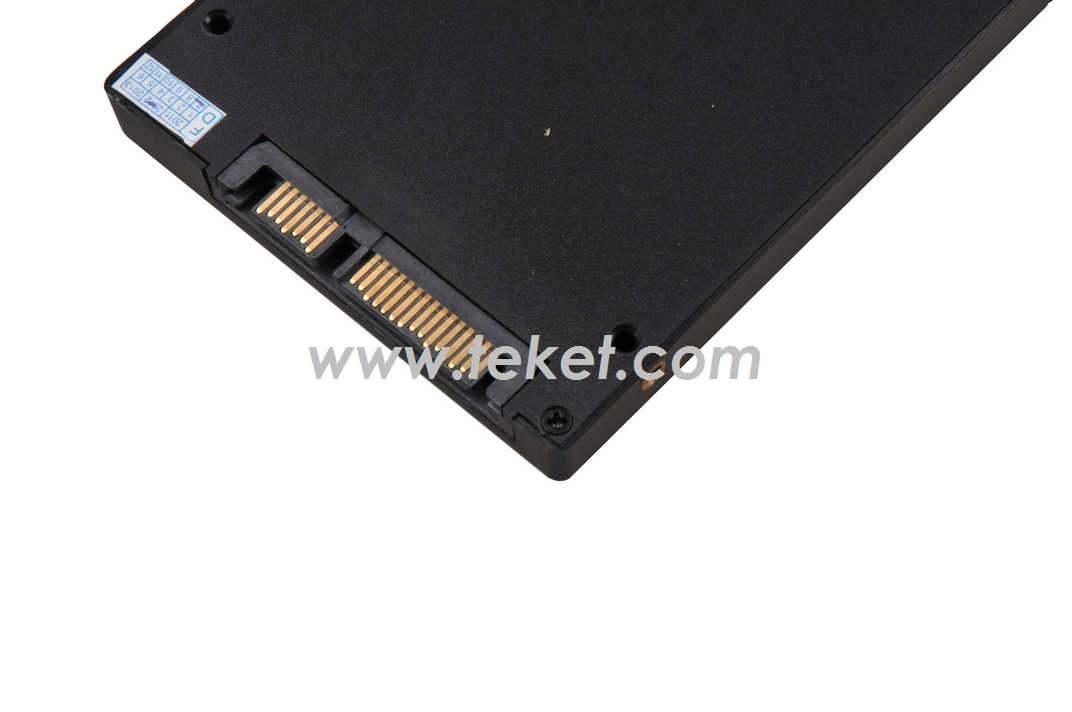

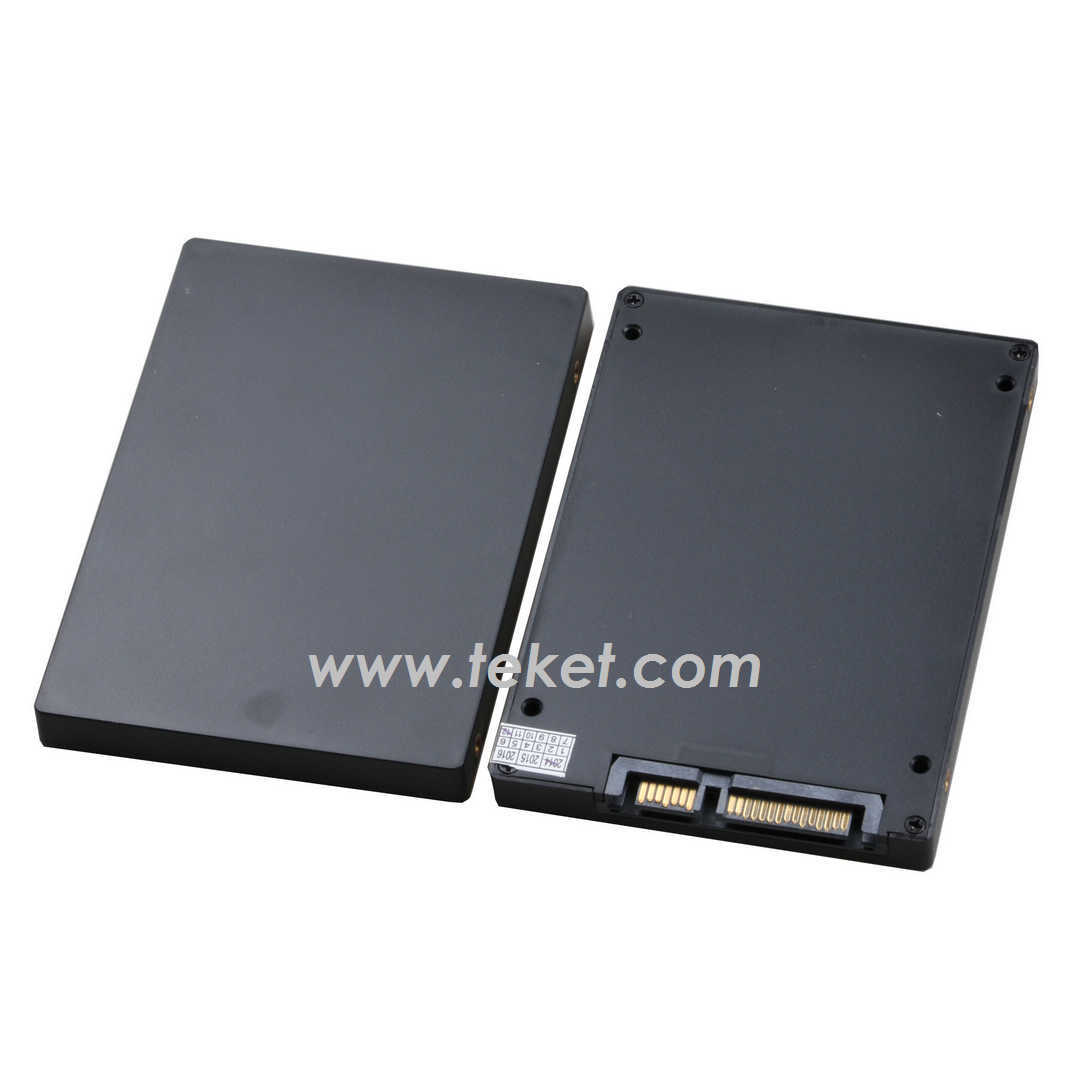

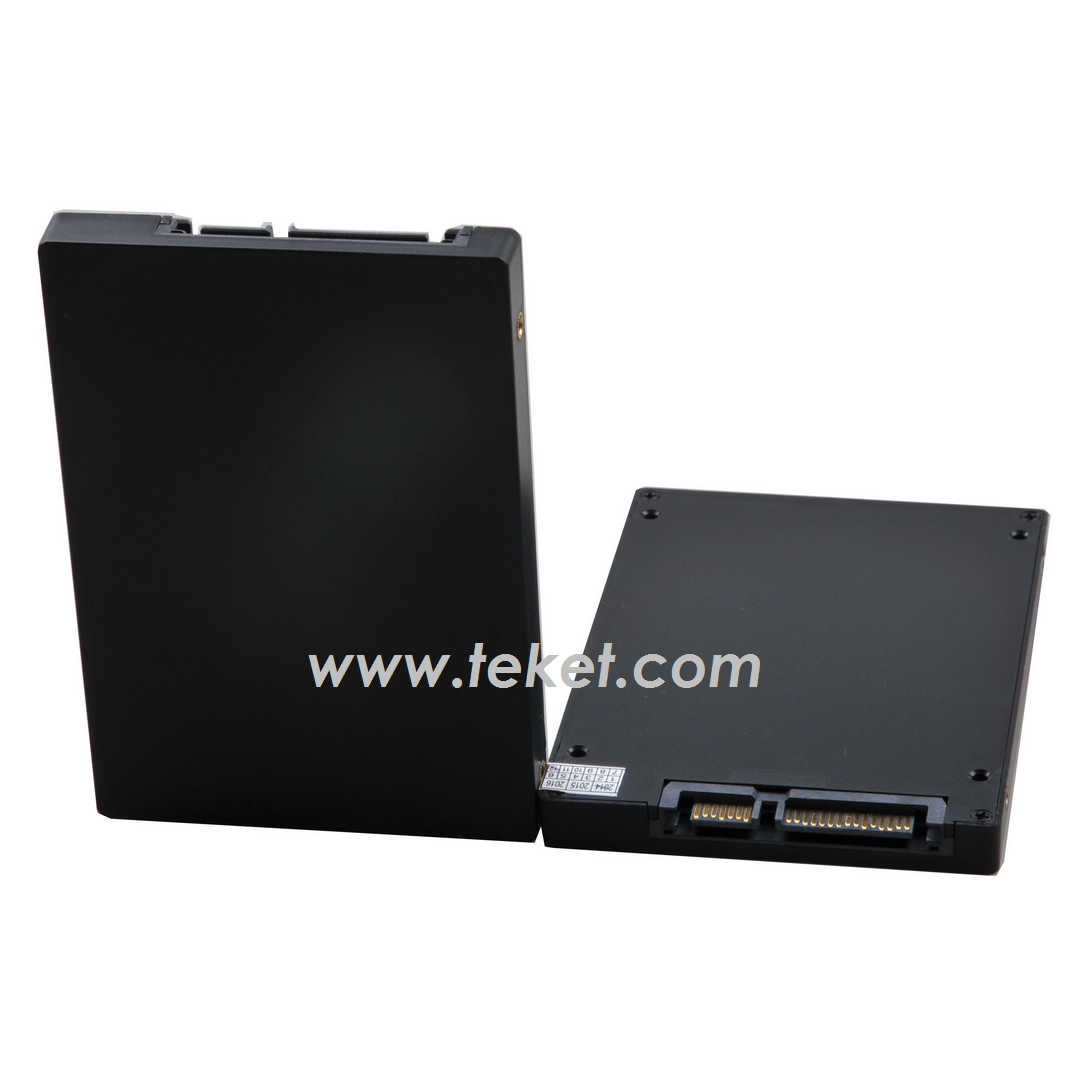

2.5 " SATA SSD Black plastic case package

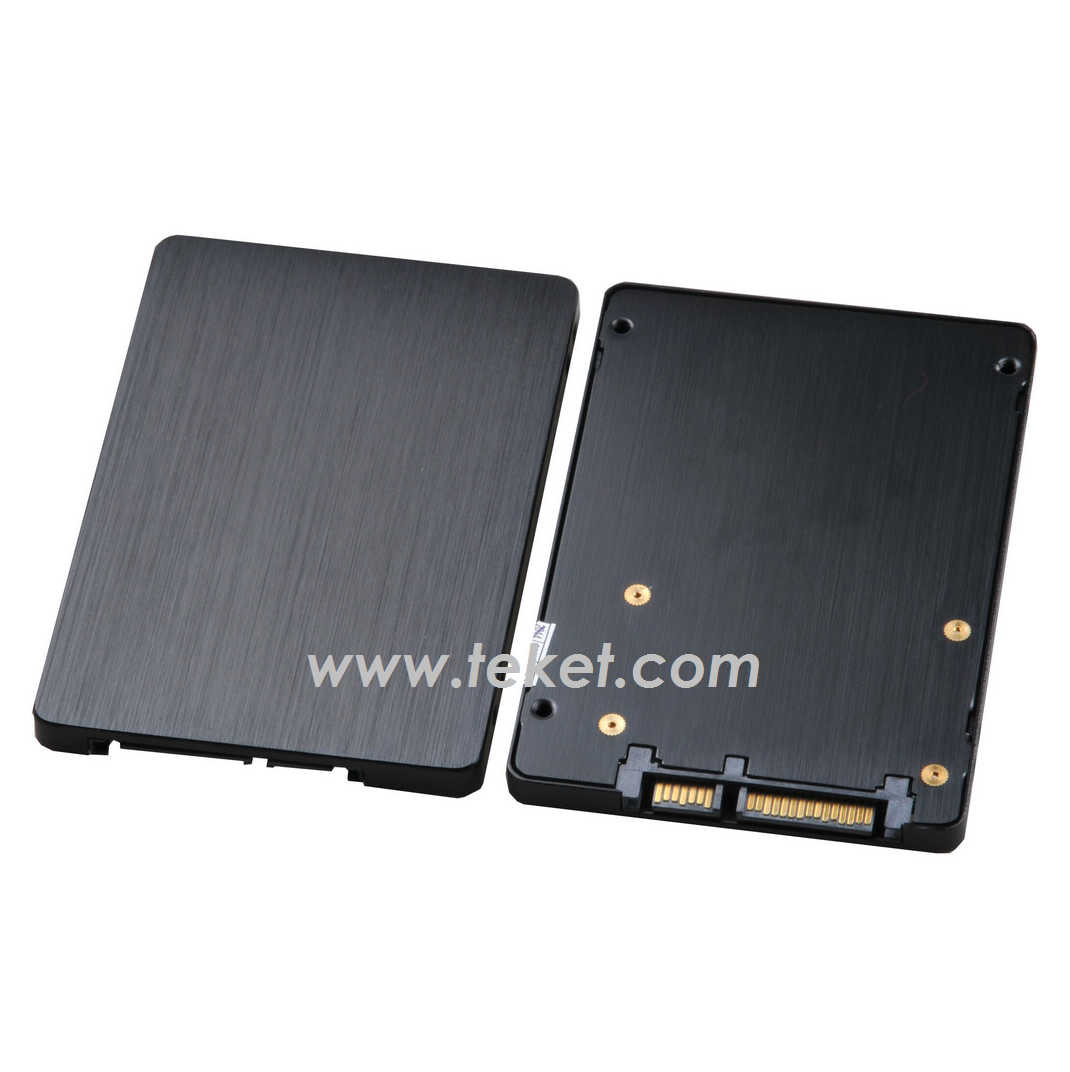

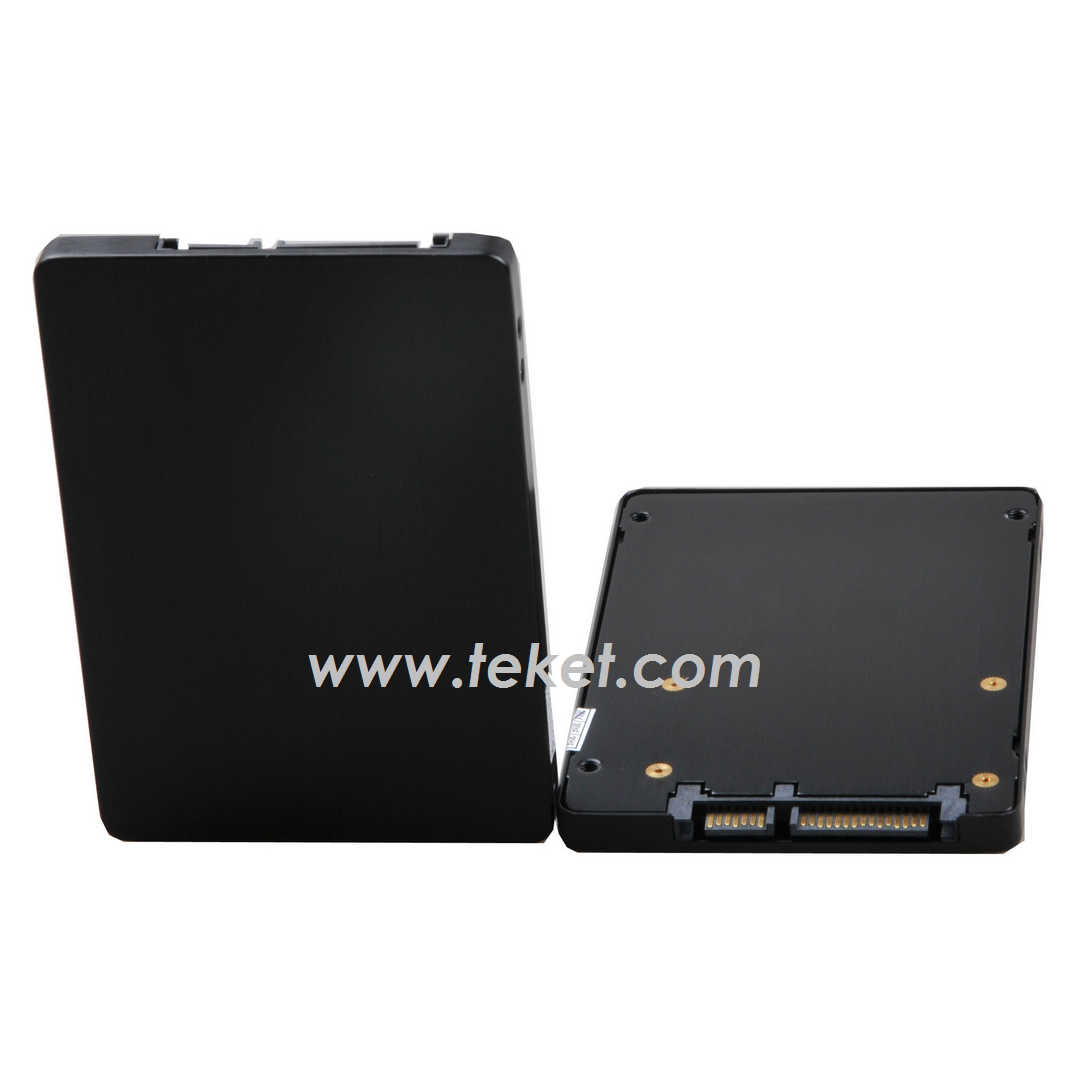

2.5 " SATA 3.0 SSD Black metal case package
2.5" SATA3 S860 SSD
| model | . | S860 60G |
| Gerneral | Interface | SATAIII/6.0 Gbps |
| . | Dimensions | 2.5" 100 x 70 x 7mm |
| . | Capacity | 60GB/120GB/240GB/480GB |
| Storage Media | . | MLC NAND Flash |
| Performance | Sustained Read | up to 500MB/s,520MB/s,530MB/s,530MB/s |
| . | Sustained Write | up to 85MB/s,140MB/s,285MB/s,350MB/s |
| . | 4K random I/O read | 6665,6800,6900,6900 |
| . | 4K random I/O write | 18197,16963,16600,16600 |
| Power Consumption | input Voltage | 5V |
| . | Idle | 0.2w |
| . | Active | 1.8w |
| Reliability& Endurance | Wear-Leveling | Dynamic and static wear-leveling |
| . | Data Retention | 10years at 26ºC |
| . | MTBF | >2,000,000hours |
| . | Bad Block Management | Auto Bad Block Management in system |
| . | ECC | Supports BCH ECC 66bits in 1K bytes |
| Warranty | Time limit | 3years |
| Environment | Operating Temperature | 0 - +70℃ |
| . | Storage Temperature | -40 - +100℃ |
| . | Shock | 1000G |
| . | Vibration | 15G |
| . | Ambient Humidity | 5%-95% |
| Available | . | YES,No EOL |
| Testing OS | . | Windows7 64bit |
| Testing Platform | . | Mainboard:ASUS B75M-A;CPU:G1620 2.7Ghz;DRAM:DDR3 2GB |
| Testing Software | . | CrystalDiskMark 3.01 x64 |
