>>Your Current Position: MINI PC TEKET L Series
TEKET L02 Series MINI PC

-->> Slim Mini-ITX all aluminum chassis MINI PC Intel Celeron 1037U 1.80Ghz Intel HD gracphics for Digital Signage or HTPC <<--

Model: L02-1037U

Key Specifications/Special Features:
Model No.: L02
Case dimensions(mm): 197x197x33mm
Color: white+black

A mini ultra low power mini computer with celeron, low power processor Celeron 1037U, support DirectX11, can be the perfect running the WIN8 operating system, processor power consumption for 17W. machine using sandblasting processing wire drawing aluminum, exquisite technology firm, rich interface, to business, cloud terminal, thin client, BT download, household HTPC provides products perfect.
Total aluminium, ultra-thin, good texture, no noise.

Product Specifications
Computing System
Processor
Intel Celeron Processor 1037U (2M Cache, 1.80 GHz)
# of Cores 2, # of Threads 2, Processor Base Frequency 1.8GHz TDP 17W
Chipset N/A
System Memory 2 x DDR3L-1333 SODIMM Slots,Max 16GB
Graphics Graphics Engine Intel HD Graphics
Storage Hard Drive
Mass Storage 1x 2.5" SATA 3Gbps HDD/SSD Slot (onboard design)
Optical Drive None
mSATA Yes
LAN: Realtek 8111E Gigabit Ethernet
Audio: Realtek ALC662, Audio Microphone, Headphone
USB Port
4xUSB 2.0(back)
2xUSB 2.0(front)
Antenna 1x WiFI SMA connetor(optional)

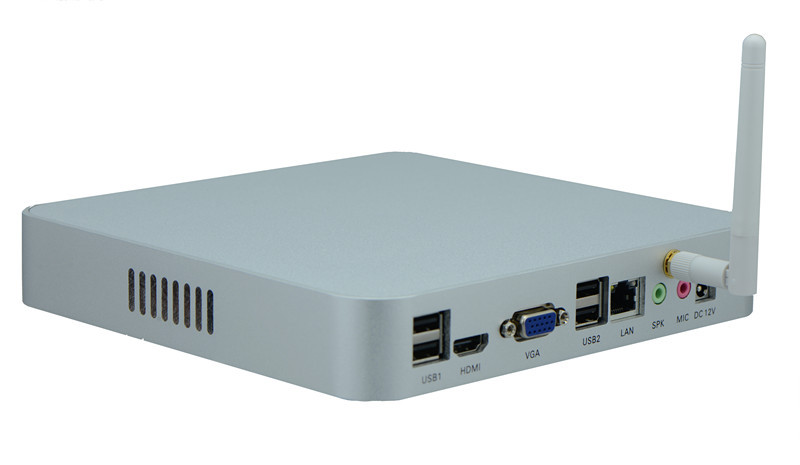

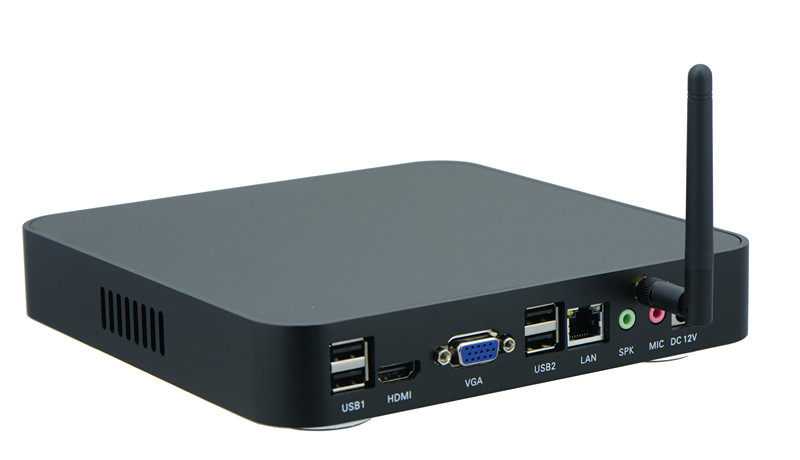

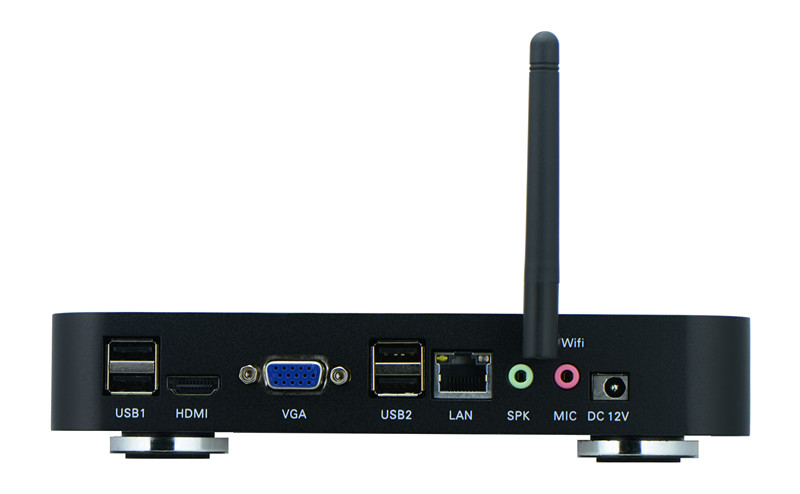

Display VGA+HDMI

Power Supply AC Adapter O/P: DC 12V/36W,12V3A
Cooling system Fan + Heatsink
Dimensions 197mm x 197mm x 33mm

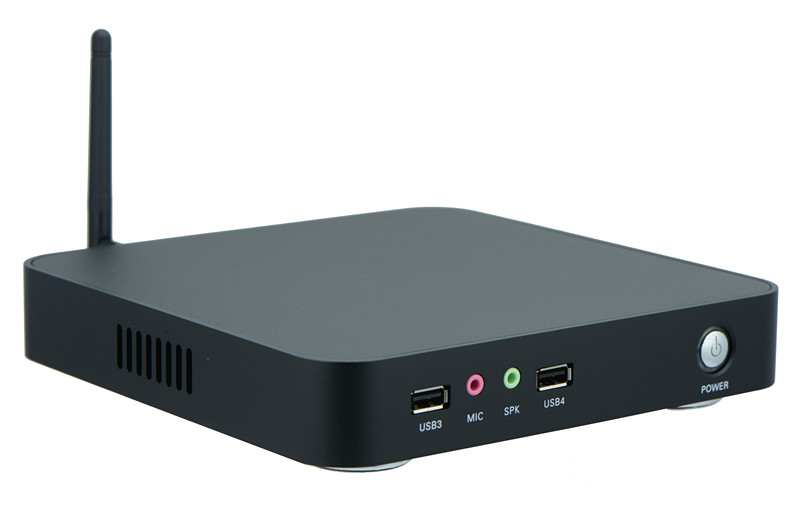

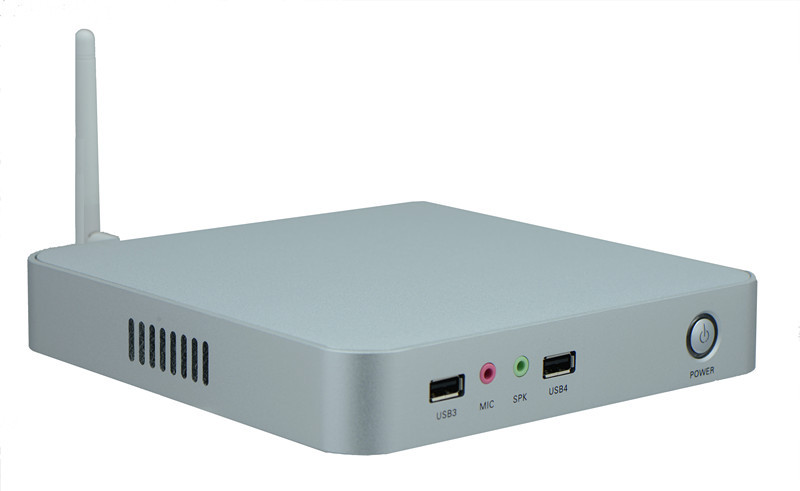

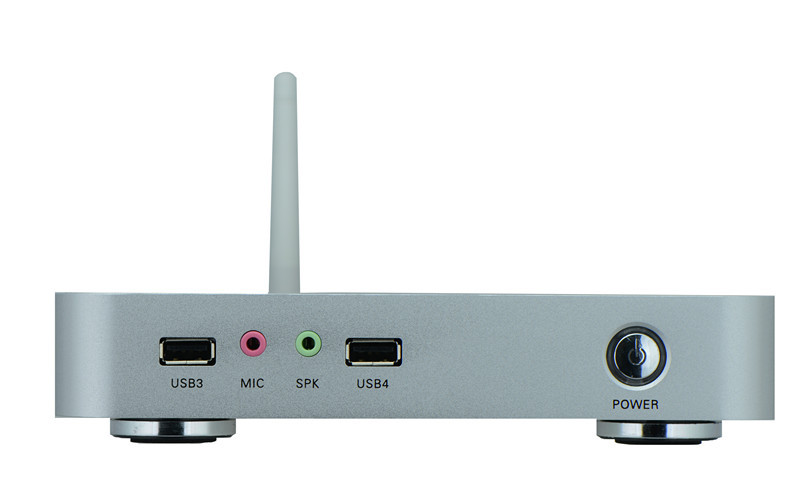

Front port: 2*USB,1*POWER_SW,1*MIC,1*SPK

Application: Digital Signage,HTPC,OA,Thin client,living room

Net Weight:
Inner Packing:
Outer Packing:

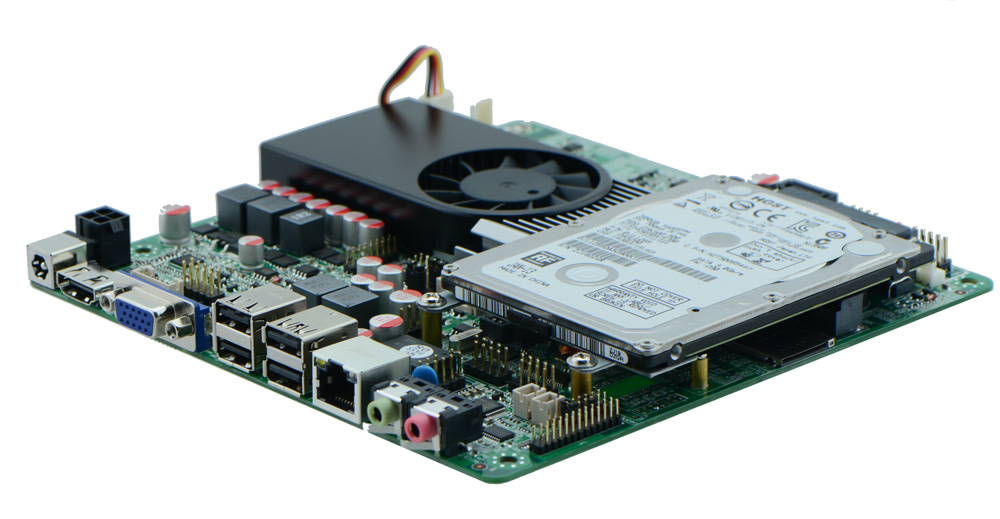

Motherboard info:
C1037HM



optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5

* Wireless mini-keyboard with 88 keys
* Ergonomic design.
* RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation.
* 16 function keys. Offer 16 frequent used multimedia, E-mail & Internet hotkeys for easy enjoy.
* Integrated trackball and two click buttons to provide mouse function.
* Ice-white color and Mac stylish Design to satisfy your test.
* Keyboard ergonomic Design.
* Quiet stroke and tactile feedback due to Membrane included.
* Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure.

* Dimensions: 358 ( L ) * 156( W )* 28( H )mm
* Weight: 740g ( W/O Battery )
2.4G Wireless Keyboard with Touchpad Mouse K9

* Wireless mini-keyboard with 88 keys
* RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no
line-of-sight limitation.
* Built-in touchpad. Imitating mouse¡¯s function on both touchpad and 2 beneath buttons.
* 12 function keys
* Ultra-stylish design with concise outline.
* Plug and Play ¨C No software to Install.
* Quiet stroke and tactile feedback due to Membrane included.
* Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure.
* Dimensions: 300( L ) * 210( W ) * 19( H )mm
* Weight: 520g ( W/O Battery)
