>>Your Current Position: Interface Receiver



Part of the remote control receiver

Universal Infrared Receiver with RS232,UART,Serial Port and PS/2 Port Model: RCD1

Some custom remote control receiver

We can provide four kinds of external receiver interface mode: com(RS232, seriao port), ps/2, dual ps/2 and usb

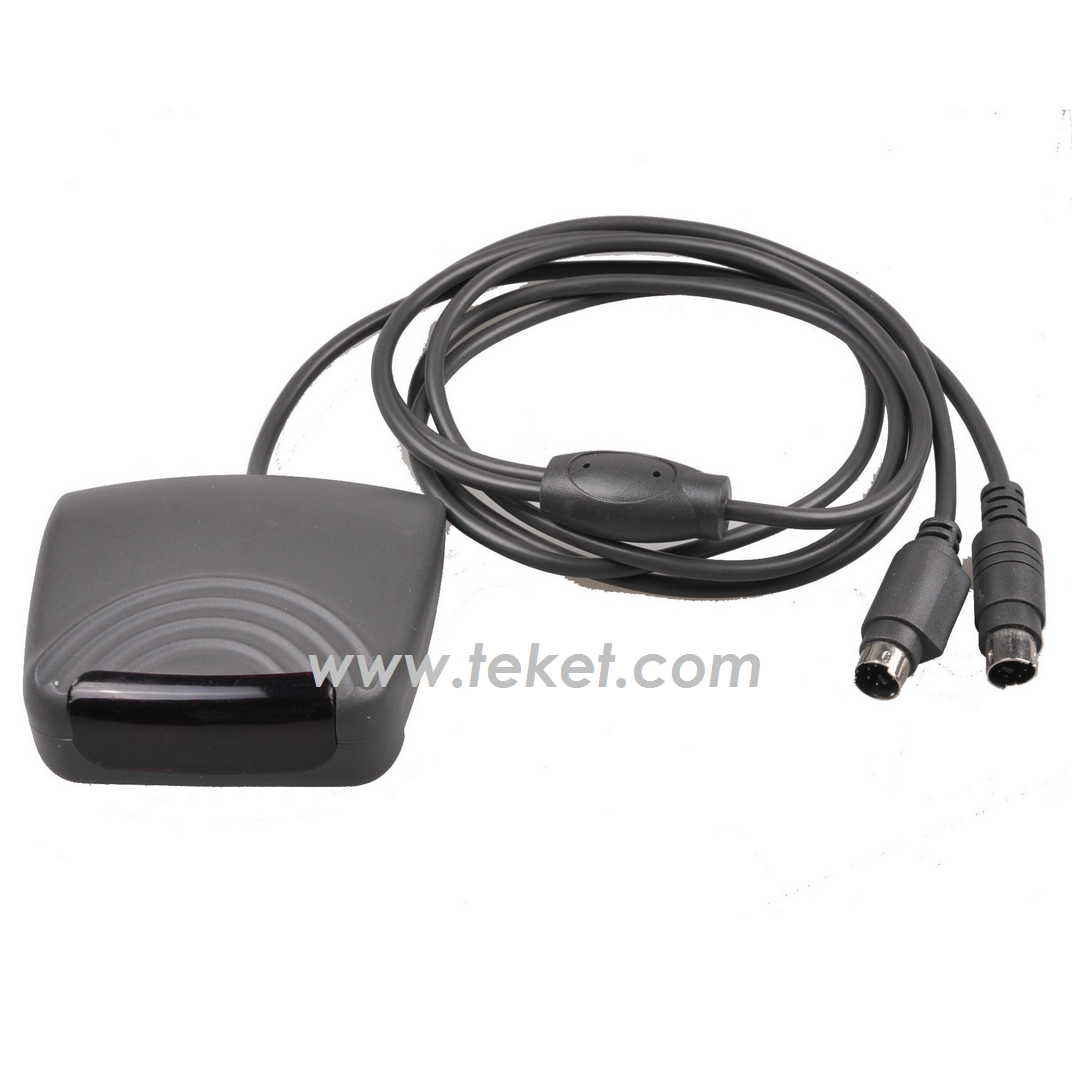

We can provide two kinds of external receiver box, JH(left) and JH(right).

Interface explained in detail

Interface Pictures Note
NONE   Provide infrared encoding format, the client to do the decoding
IC

We can provide all kinds mcu as the IR decoding IC, included SOP8, DIP8, SOP14, DIP14, SOP20, DIP20 and SOP28 etc.or we can provide the muc firmware only.

Internal IR
Module

We can designed all kinds of pcb layout accodring to the customer's requirement.

PCB size, IR output interface type(COM,USB,I2C..)

COM(RS232,Serial Port) Serial port format, such as "9600,n,8,1", the RS232 level, RS232 standard
PS/2 Keyboard

PS/2 interface, keyboard only
Every key function is programed for Keyboard function, single key or comb key such as "ctrl-alt-p"

PS/2 Kyeboard and Mouse Dual PS/2 interface
Every key function is programed for Keyboard function, single key or comb key such as "ctrl-alt-p"
mouse supported.
USB support usb keyboard and mouse


Some internal ir receiver boards installed in external receiver box (RCD serial)

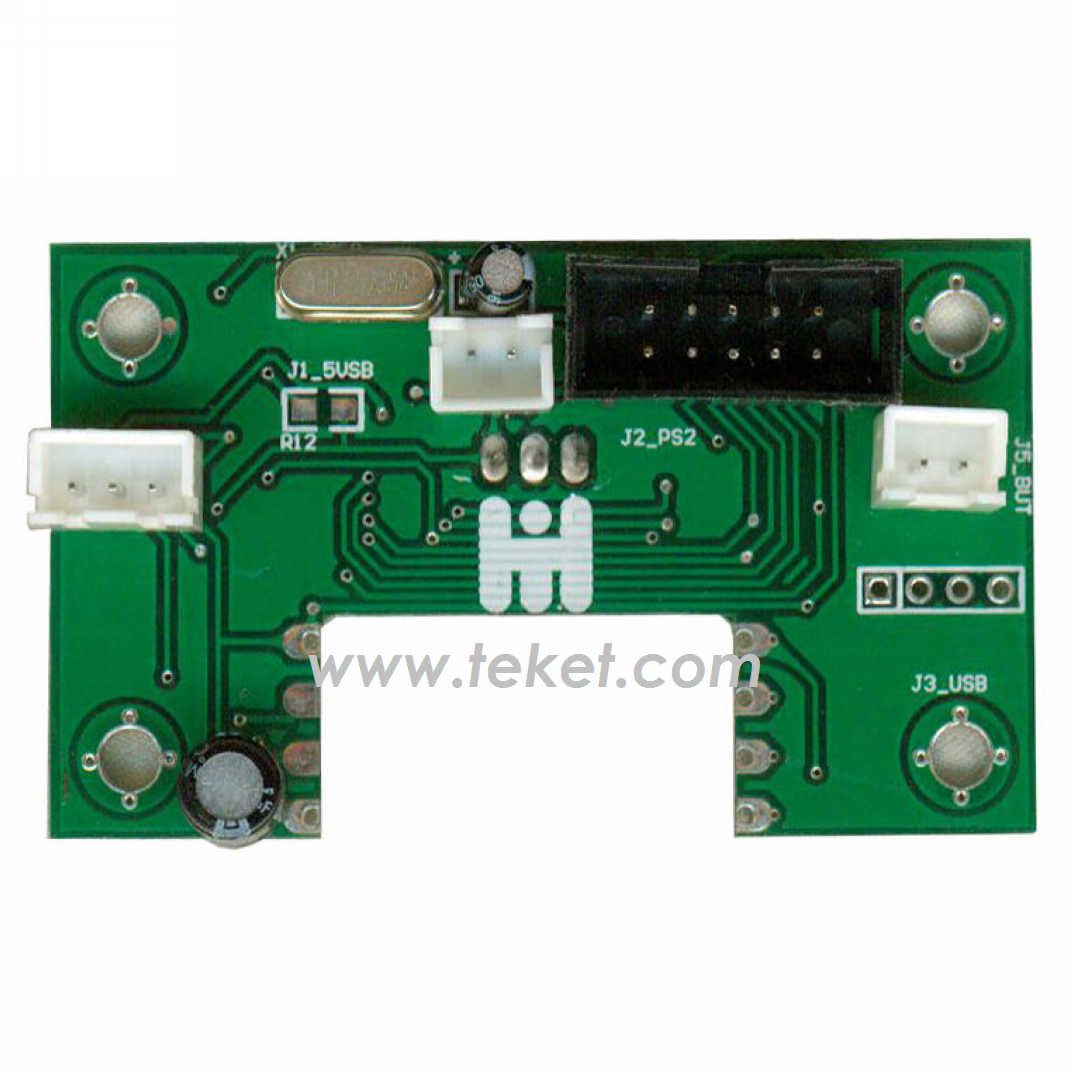

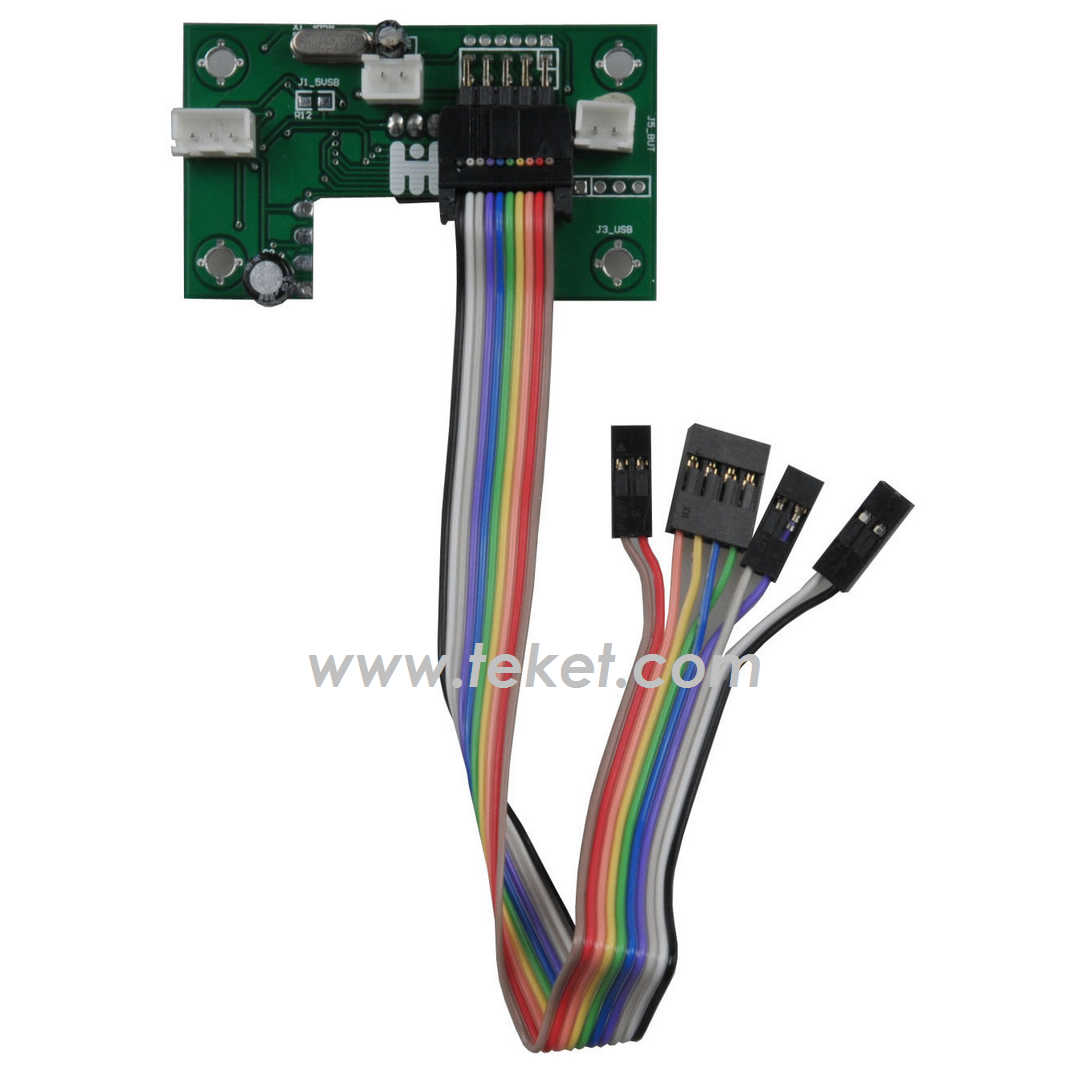

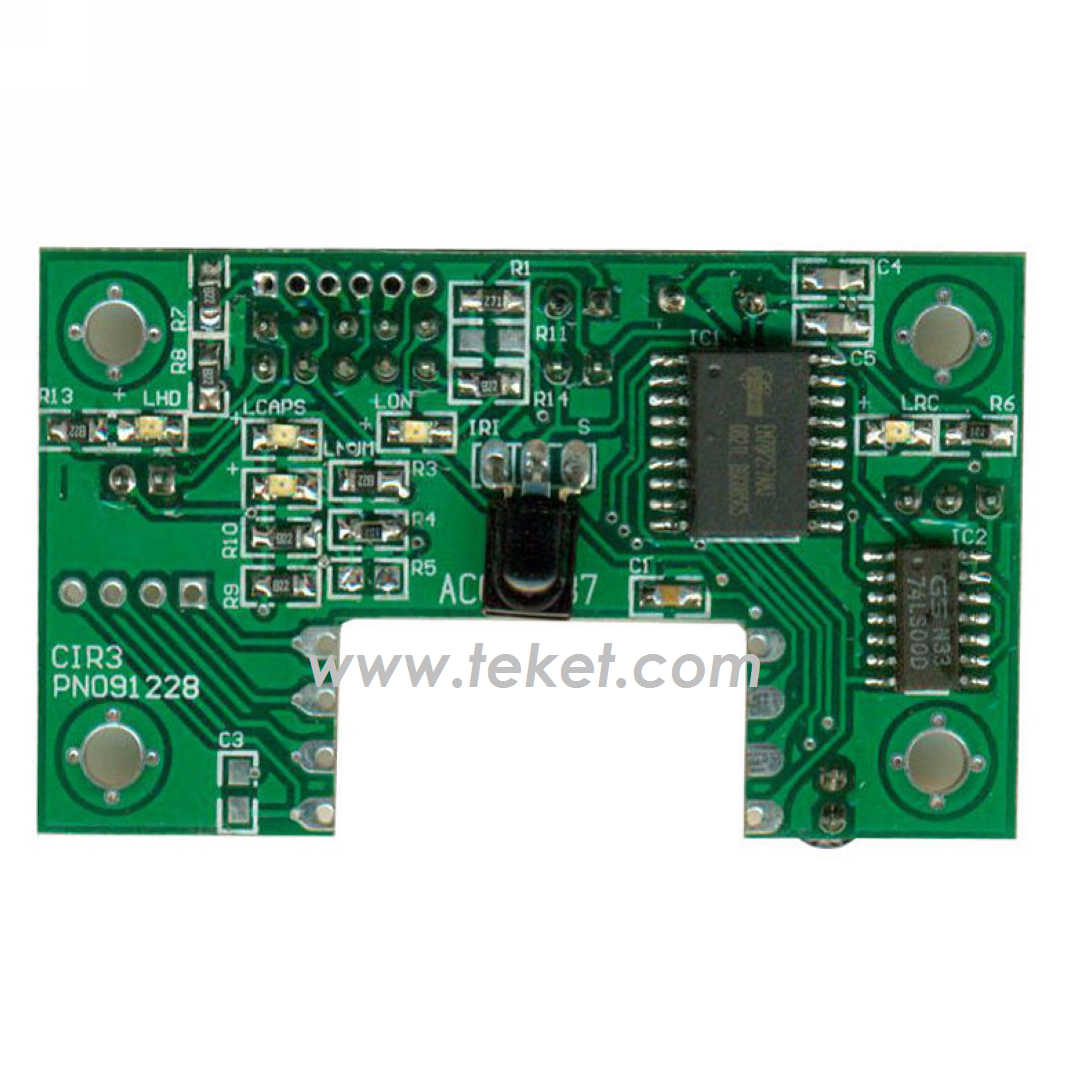

CIR3: ps/2 keyboard+mouse, com/rs232 and usb (need to add ps2-usb module)
1,ps2: 5x2pin or 6x1pin Optional
2,usb: 4x1pin
3,rf(2.4g): for future

LED
1,LRC: Remote operation led
2,LNUM: keyboard numlock led
3,LCAPS: keyboard caps led
4,LHD: hard disk led
5,LON: power on led

Support equipment
1,any infrared remote control
2,any infrared keyboard
(Processing required by the customer)

Features
1,Do not need to power on keys
2,Power on with remote control "power key" or any key of keyboard customer specified

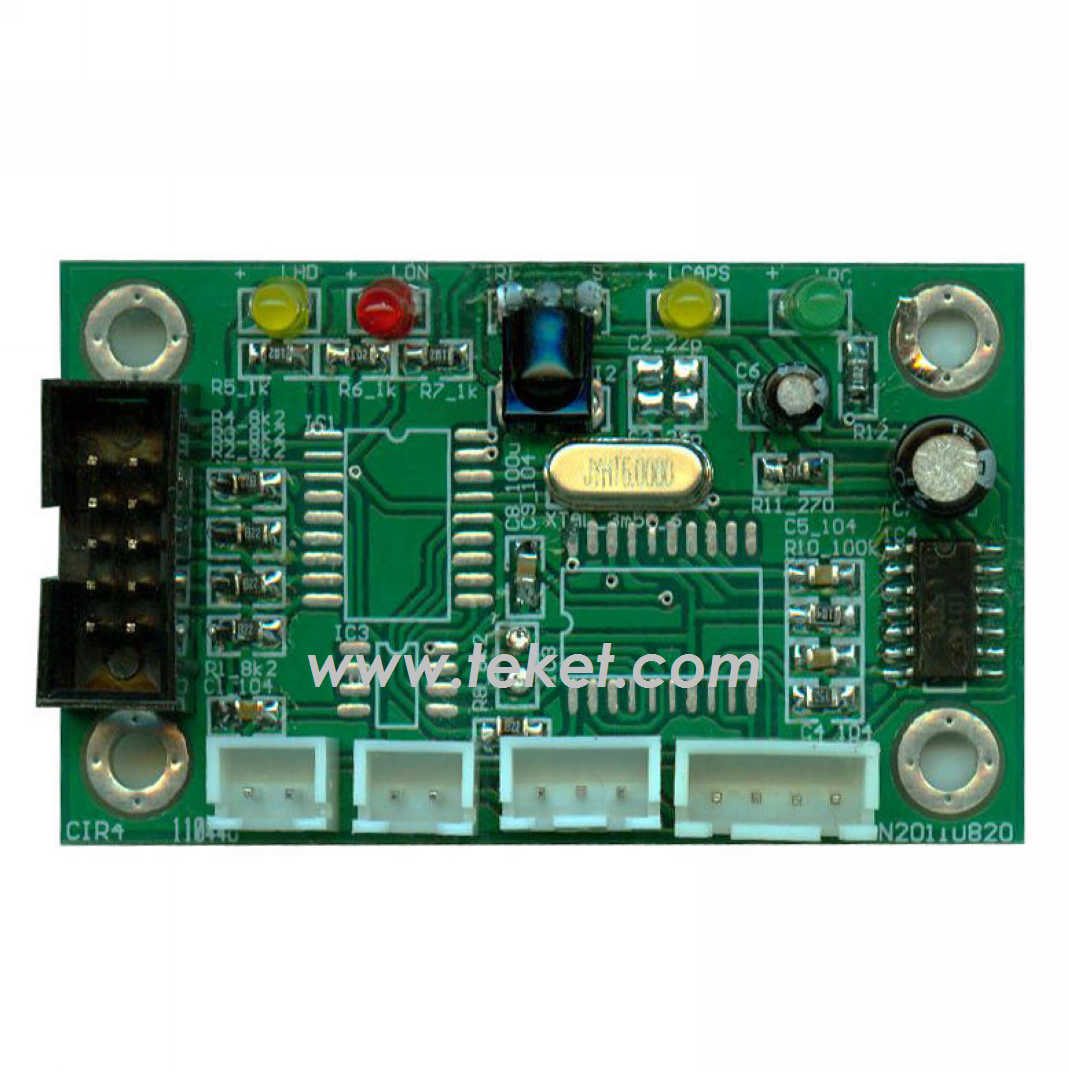

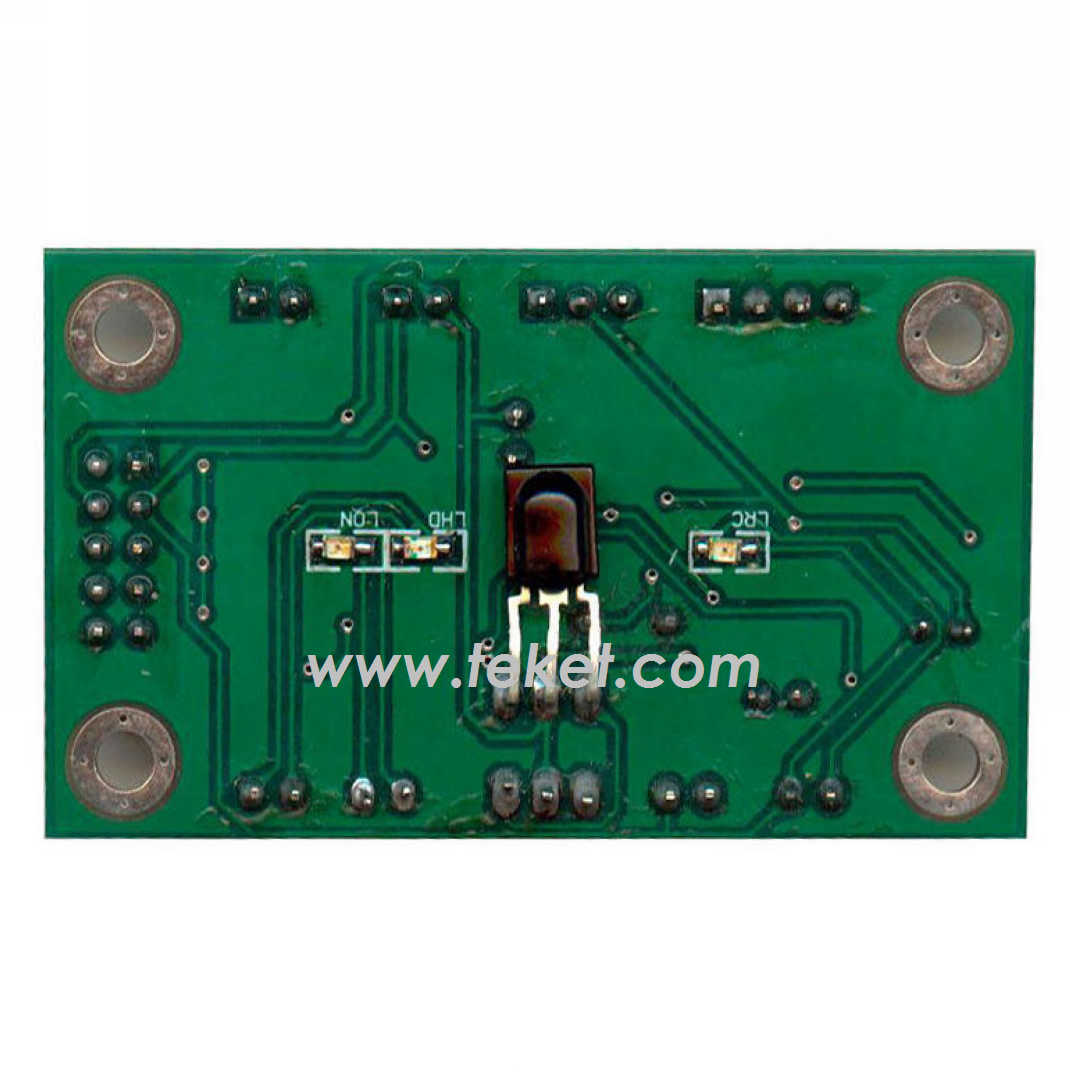

CIR4: ps/2 keyboard+mouse, com/rs232 and usb
pcb size: 62x36

1,ps2: 5x2pin or 6x1pin Optional
2,usb: 4x1pin
3,rf(2.4g): for future

LED
1,LRC: Remote operation led
2,LNUM: keyboard numlock led
3,LCAPS: keyboard caps led
4,LHD: hard disk led
5,LON: power on led

Support equipment
1,any infrared remote control
2,any infrared keyboard
(Processing required by the customer)

Features
1,Do not need to power on keys
2,Power on with remote control "power key" or any key of keyboard customer specified

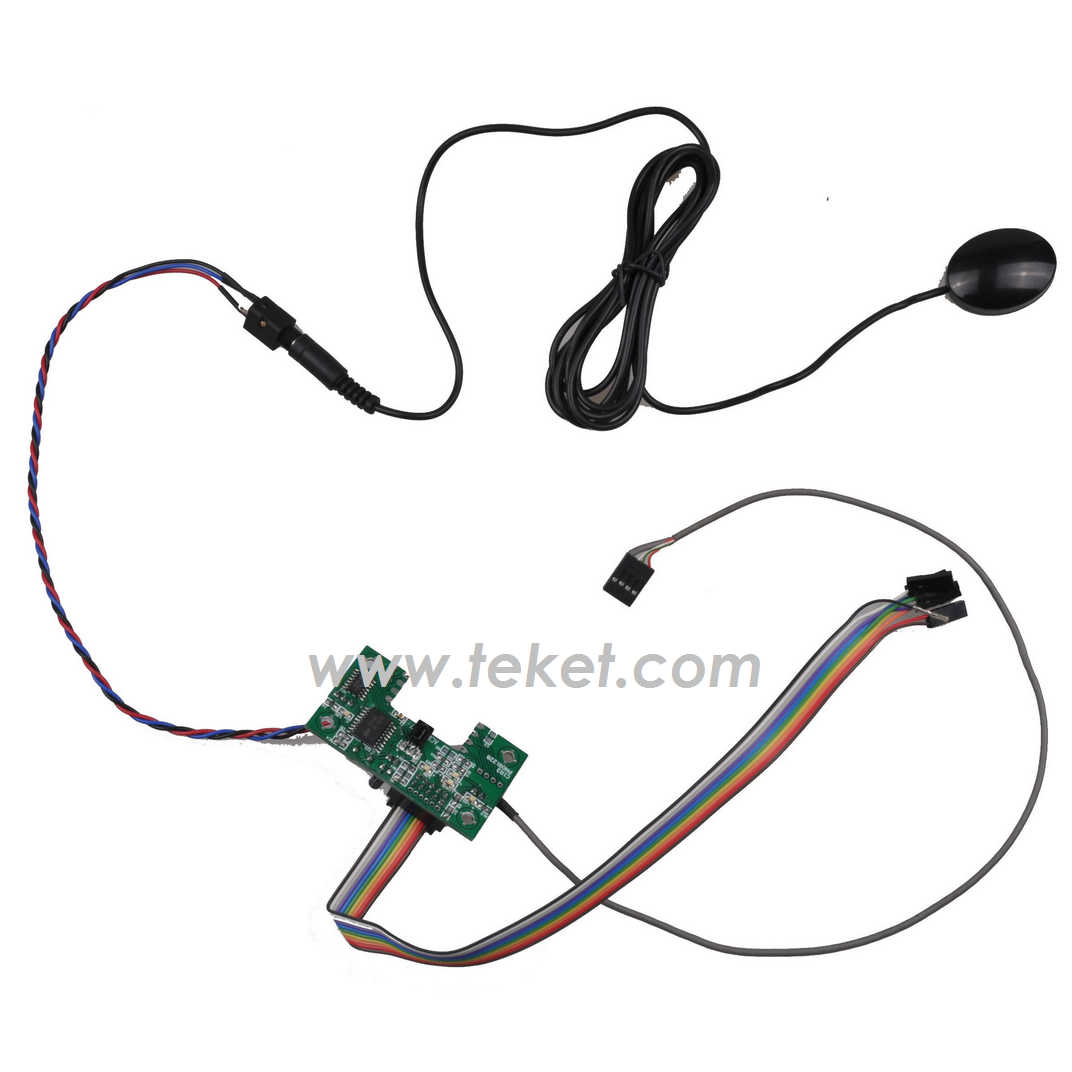

infrared extend cable, up to 5000mm with IR sensor (3pin)

infrared receive solution


Designed for STB VOD in hotel
Contrl TV set in hotel romm
Contrl STB in hotel room
Only use one RCU!

Add 2rd infrared sensor receiving point.



Some internal ir receiver boards installed in external receiver box (RCD serial)
Universal Infrared Receiver Model RCD1 for RS232,Serial,COM,PS-2 PortPort
Model: RCD1
Input: 36k,38k,40k,56k universal infrared
Output: RS232, Serial Port, COM Port or PS/2 Port data stream
Connectort: 4pin connector, length 1500mm
Dual IC (decode) support: DIP and SOIC (firmware custimzed)
Size: 50x50(mm)

RCD3

RCD3

RCD4

RCD4
