>>Your Current Position: MINI PC TEKET L Series
TEKET L06 Series MINI PC

-->> All aluminum chassis MINI PC Intel Core I7 with Intel HD gracphics for Digital Signage or HTPC <<--


Key Specifications/Special Features:
Model No.: L06
Case dimensions(mm):224x185x49/55mm
color: black

Case dimensions(mm):230x180x45mm
olor: silver,black,golden,

photo description

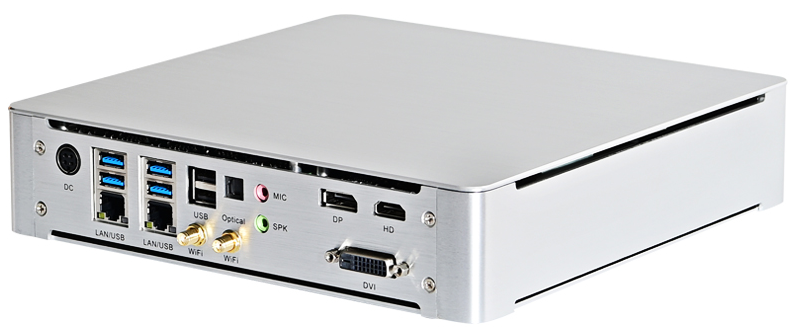

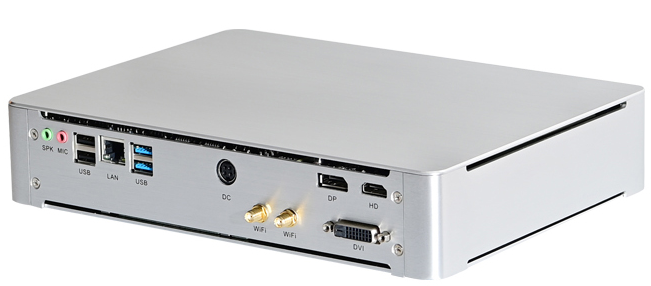

T610G7,silver240*240*52
i7-7820HQ GTX1650-4G
XEON D1581 GTX1650-4G

HT610G7,black270*240*65
i5-7300HQ 1050TI-4G
i7-7820HQ GTX1060-3G
i7-7820HQ GTX1650-4G
i7-7820HQ GTX1650-4G

HT610G9,silver280*200*52
i7-8750H+GTX1650-4G
i7-9750H+GTX1650-4G
i7-9850H+GTX1650-4G
i5-9400F+GTX1650-4G
i7-9700F+GTX1650-4G
i3-9100F+GTX1650-4G
XEON D1581(2*USB)+GTX1650-4G
BD780W,i5-8259U,200*175*45
BD780W,i3-8145U,200*175*45
BD780W,i7-7200U,200*175*45

BD780B,i5-7267U,200*170*45
BD780G10,i5-1035G1,200*170*45
BD780G10,i7-1065G7,200*170*45

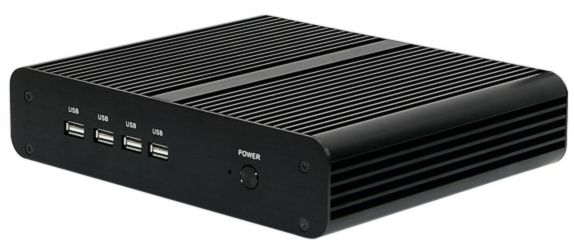

BD860,i7-8565U,224*181*49
BD860,i7-10710UU,224*181*49
BD960,i7-5500U,DP,220*170*45
BD960,i7-6567U,HDI,220*170*45

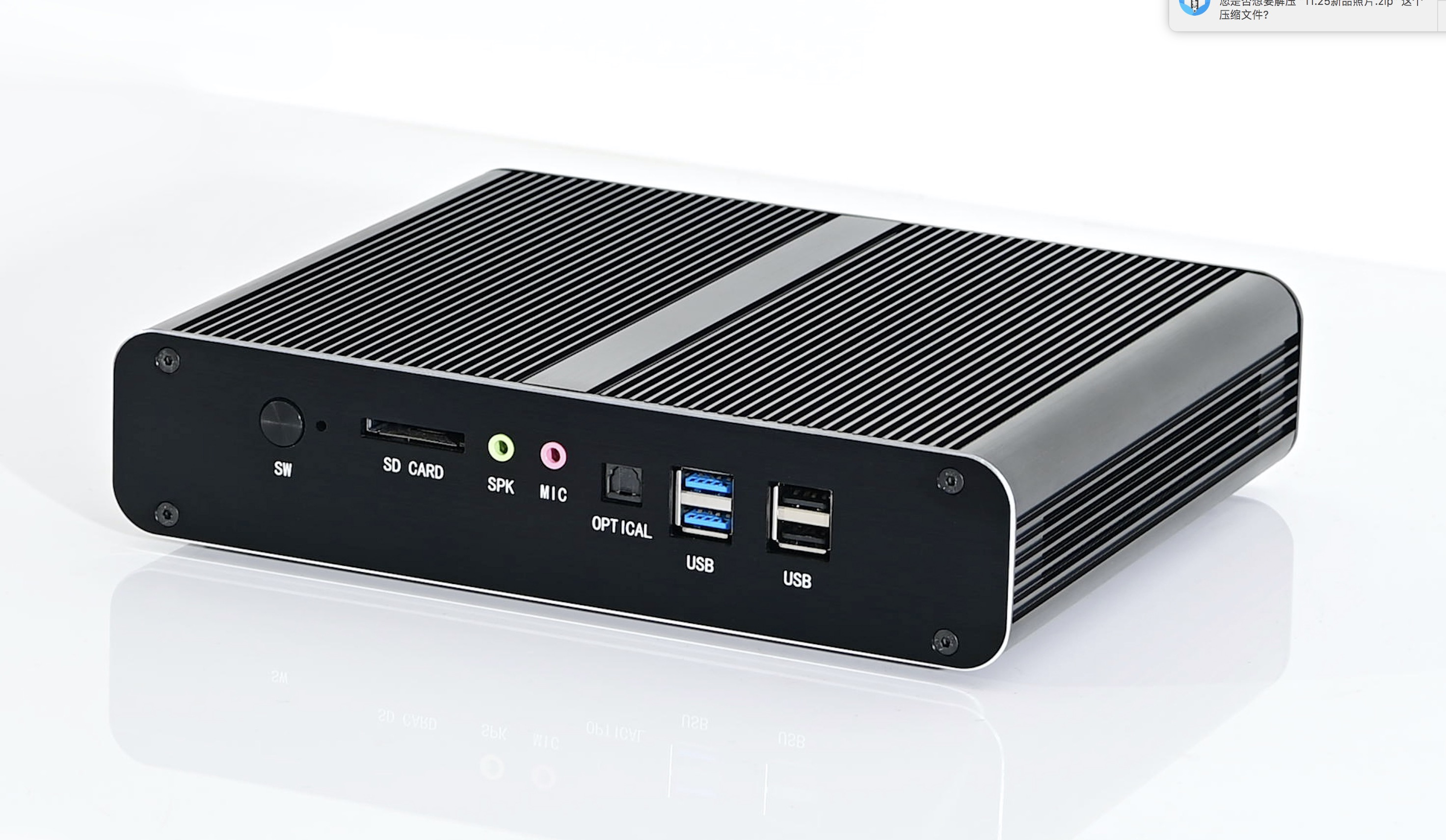

BD960-G10, i5-1035G1,220*170*50
BD960-G10,i7-1065G7,220*170*50

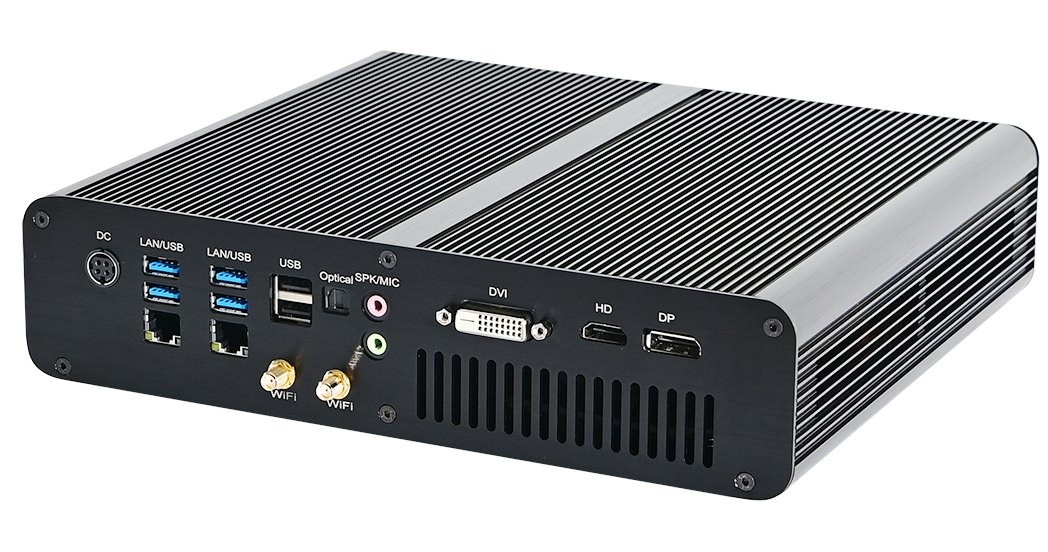

BD980-1050TI,i5-7300HQ,270*240*60
BD980-1050TI,i7-7820HK,270*240*60
BD980-GTX1650,i7-7820HK,270*240*60



L06-DB780W: Intel core i5-7260U, size 210*170*45mm
L06-DB780B: Intel core i7-7560U, size 225*185*48mm
Display Intel Iris Plus Gracphics 640
Video: 1*DP,1*HDI
Audio: 1*SPK,1*MIC+SPDIF
Storage: Msata+M.2(nvme), 2.5" SATA
Memory: Dual SO-DIMM DDR4, up to 32GB
USB: 4*USB2.0,4*USB3.0
Network: 2*LAN
Wifi: support

Order Information
BD780W,i3-8145U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size200*175*45(mm)
BD780W,i5-7260U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size200*175*45(mm)
BD780W,i5-7267U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size200*175*45(mm)
BD780W,i5-8259U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size200*175*45(mm)
BD780W,i7-7200U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size200*175*45(mm)
BD780B,i5-7267U,Iris640,2*LAN,1*DP,1*HDI,Msata,M.2,2.5"SATA,4*USB2.0,4*USB3.0,size225*185*48(mm)

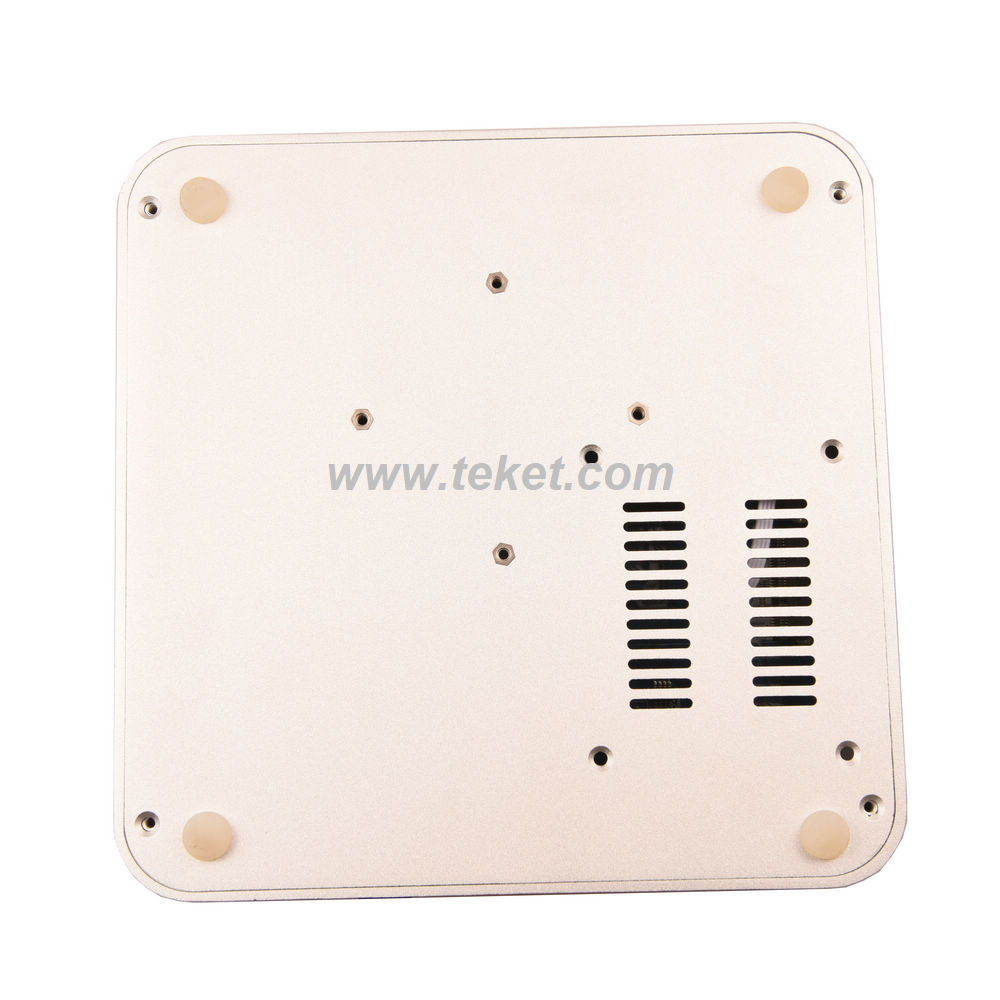

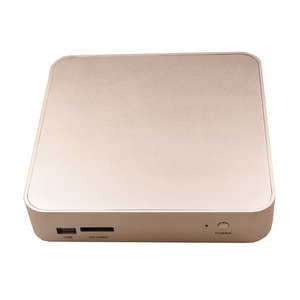

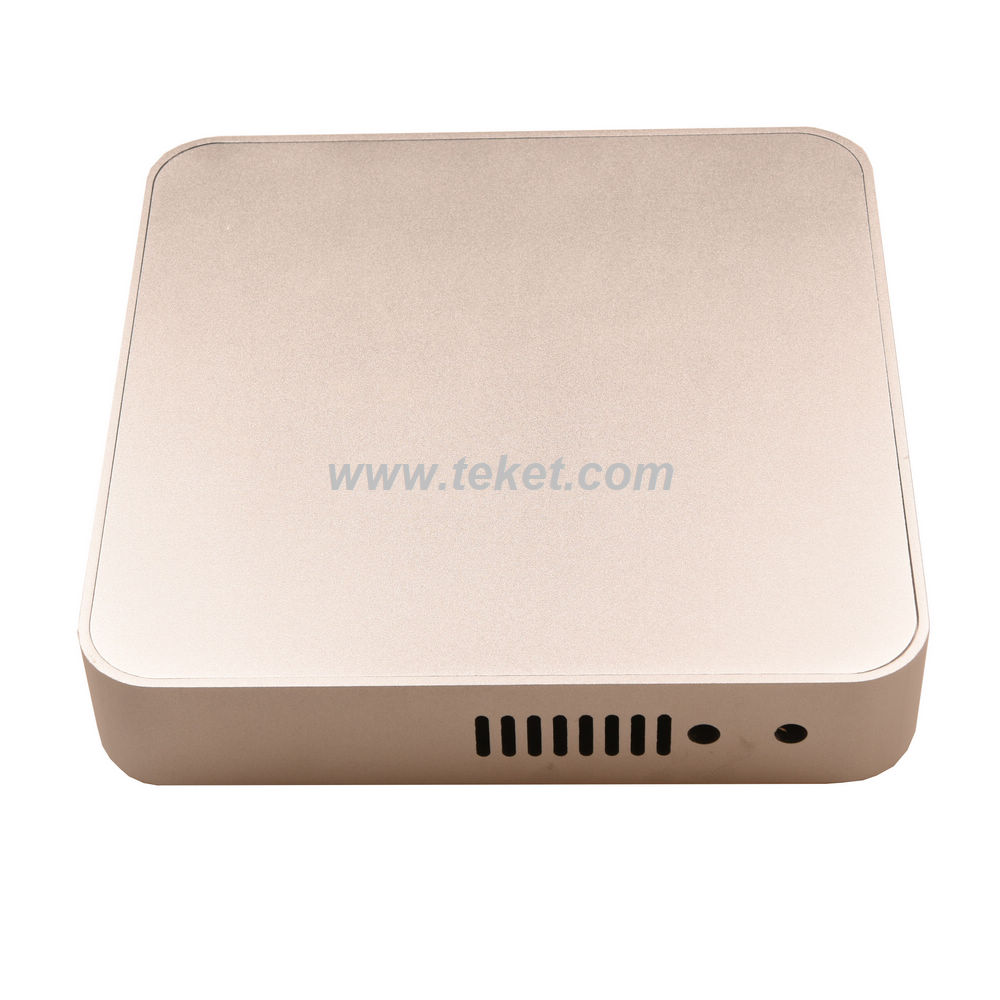

BD780W views



BD780B views

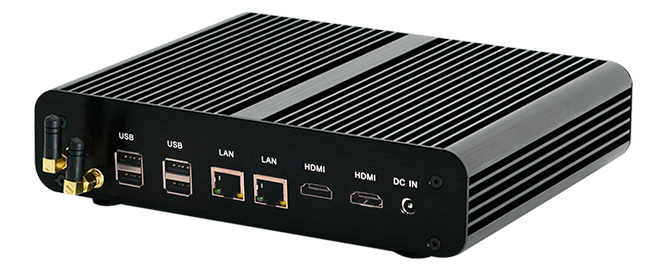

L06-BD960,i7-5500U,TDP=15w,Intel HD gracphics 5500
L06-BD960,i7-6567U,TDP=28w,Intel HD gracphics 550
Memory: Dual SO-DIMM DDR3L, up to 16GB
Storage: MSATA SSD,2.5"SATA,1*SD
Network: 2*LAN(realtek),2*WIFI
USB: 4*USB2.0,4*USB3.0
Front: 1*Power, 2*USB3.0,1*SD,1*SPDIF,1*MIC,1*SPK
Power: 12V5A adaptor
Size: 220*170*45(mm),1.4kgs






BD780G10
CPU i5-1035G1
Intel® Core™ i5-1035G1 Processor
6M Cache, up to 3.60 GHz
Product Collection 10th Generation Intel® Core™ i5 Processors
Code Name Products formerly Ice Lake
Processor Number i5-1035G1
# of Cores 4
# of Threads 8
Processor Base Frequency 1.00 GHz
Max Turbo Frequency 3.60 GHz
Cache 6 MB Intel® Smart Cache
Memory Types DDR4-3200, LPDDR4-3733 up to 64GB
Processor Graphics Intel® UHD Graphics for 10th Gen Intel® Processors

CPU i7-1065G7
Intel® Core™ i7-1065G7 Processor
8M Cache, up to 3.90 GHz
Product Collection 10th Generation Intel® Core™ i7 Processors
Code Name Products formerly Ice Lake
Processor Number i7-1065G7
# of Cores 4
# of Threads 8
Processor Base Frequency 1.30 GHz
Max Turbo Frequency 3.90 GHz
Cache 8 MB Intel® Smart Cache
Memory Types DDR4-3200, LPDDR4-3733 up to 64GB
Processor Graphics Intel® Iris® Plus Graphics

Memory: 2*SO-DIMM DDR4 up to 16GB*2
SATA: M.2, Msata3.0,SATA3.0
MINIPCIE: msata,mini pcie for wifi, mini pcie for 4G
Network: 2*LAN(RTL8111DL)
WIFI: 150/300M WIFI module option
Display: 2*HDI,support 4K@60hz (HDI to VGA disable)
USB: 4*USB2.0,4*USB3.0
Power: 12-19VDC IN
Size: 210*170*45mm
Weght: 1500-1650g
Color: silver or black

Ordering Information
L05-BD78G10,i5-1035G1,UHD,2*HDI,2*LAN(RTL8111DL),2*SO-DIMM DDR4,M.2, Msata3.0,SATA3.0,4*USB2.0,4*USB3.0,12-19VDC IN,Size: 210*170*45mm
L05-BD78G10,i7-1065G7,IrisPlus,2*HDI,2*LAN(RTL8111DL),2*SO-DIMM DDR4,M.2, Msata3.0,SATA3.0,4*USB2.0,4*USB3.0,12-19VDC IN,Size: 210*170*45mm

Ordering Information
L06-i75500U,i7-5500U,HD5500,MSATA SSD,2.5"SATA,2*LAN,4*USB2.0,4*USB3.0,size:220*170*45(mm)
L06-i76567U,i7-6567U,HD550,MSATA SSD,2.5"SATA,2*LAN,4*USB2.0,4*USB3.0,size:220*170*45(mm)


A mini ultra low power mini computer with celeron, low power processor Core i7, support DirectX11, can be the perfect running the Win7/Win8/Win8.1/Windows10 operating system, processor power consumption for 17W. machine using sandblasting processing wire drawing aluminum, exquisite technology firm, rich interface, to business, cloud terminal, thin client, BT download, household HTPC provides products perfect.
Total aluminium, ultra-thin, good texture, no noise.

Product Specifications
Computing System
Processor
Intel Core i7-4500U Processor (4M Cache, 1.8Ghz up to 3.0GHz),22nm,15W,Intel HD Graphics 4400
Intel Core i7-4558U Processor (4M Cache, 2.8Ghz up to 3.3GHz),22nm,28W,Intel Iris Graphics 5100
Intel Core i7-4600U Processor (4M Cache, 2.1Ghz up to 3.3GHz),22nm,15W,Intel HD Graphics 4400
Intel Core i7-5500U Processor (4M Cache, 2.4Ghz up to 3.0GHz),14nm,15W,Intel HD Graphics 5500
Intel Core i7-5557U Processor (4M Cache, 3.1Ghz up to 3.4GHz),14nm,28W,Intel Iris Graphics 6100

Chipset N/A
System Memory: 2*SO-DDR3 SDRAM,up to16GB DDR SDRAM
Storage Hard Drive
Mass Storage 1x 2.5" SATA 3Gbps HDD/SSD Slot
Optical Drive None
mSATA Yes
LAN: Realtek 8111E Gigabit Ethernet
Audio: Realtek ALC662, Audio Microphone, Headphone
USB Port
4xUSB 3.0(back)
0xUSB 2.(back)
Antenna 1x WiFI SMA connetor(optional)
Display HDI+DP

BIOS AMI BIOS, ACPI supported
Operating Temperature: 0°C~70°C (32°F~140°F)
Storage Temperature: -20°C~80°C (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)

Power Supply AC Adapter O/P: DC 12V/60W,12V5A
Cooling system Fan + Heatsink

IO config
old version (L06-I74500U)
Front: 1*POWER_SW,1*POWER_LED,4*USB4.0,Card reader,optic,1*MIC,1*SPK
Back: DCIN,HDI,DP(DisplayPort),LAN,4*USB3.0,1*SKP,1*MIC,2*WIFI(optional)

new version (L06-I74558U,I74600U,I75500U,I75557U)
Front: 1*POWER_SW,1*POWER_LED,2*USB2.0
Back: DCIN,2*HDI,2*LAN,4*USB2.0,2*WIFI(optional)

Application: Digital Signage,HTPC,OA,Thin client,living room

Net weight:
L06:
L06(W/O Power) NW:
L06(W/O Power) Inner:

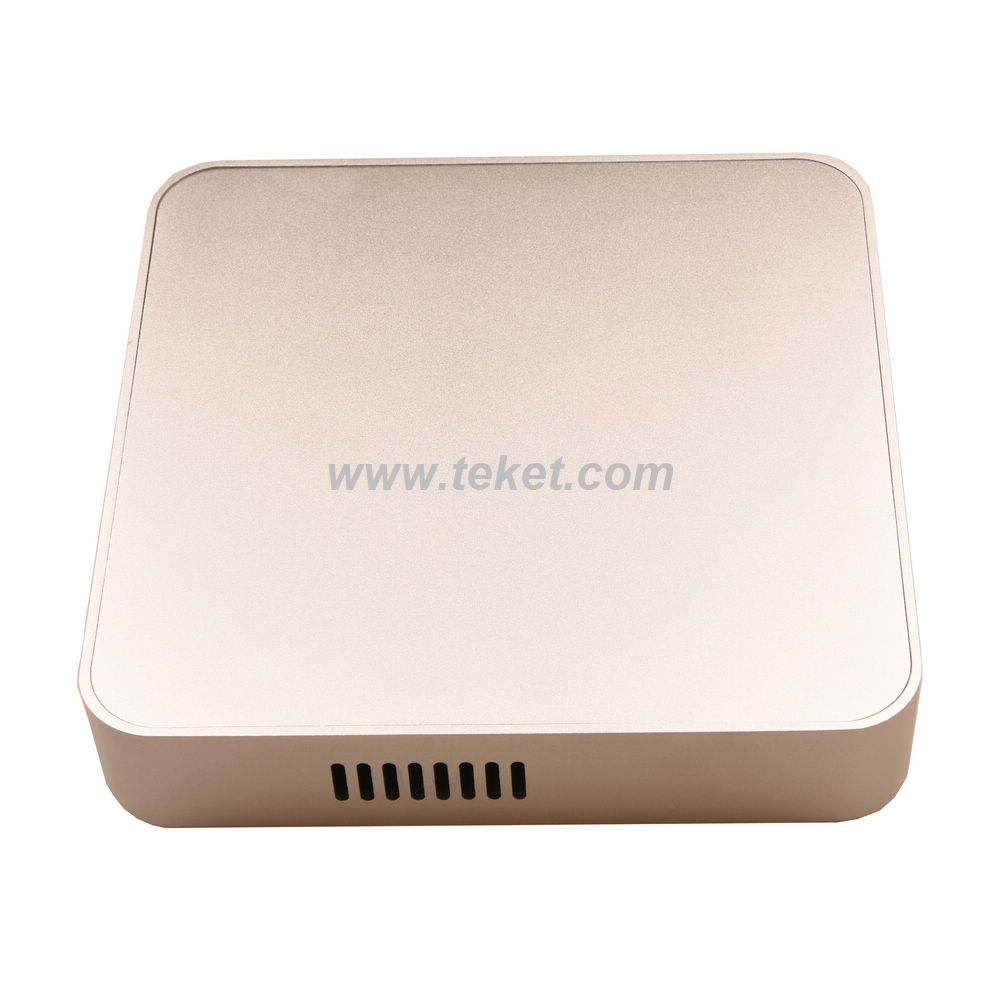

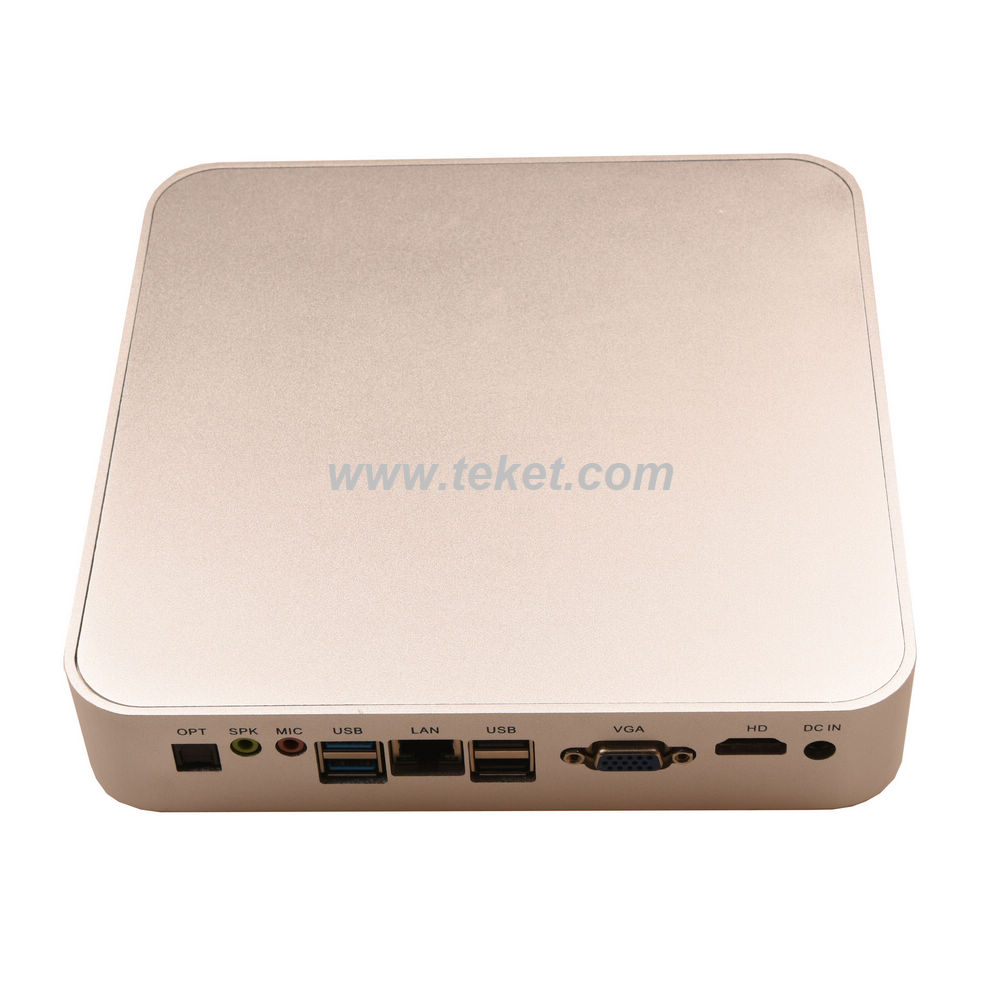

Photos for L06-I74500U


Photos for L06-I74558U,I74600U,I75500U,I75557U



optional accessories: 2.4G wireless keyboard with mouse (trackball or touchpad)

2.4G Wireless Keyboard with Trackball Mouse K5

* Wireless mini-keyboard with 88 keys
* Ergonomic design.
* RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no line-of-sight limitation.
* 16 function keys. Offer 16 frequent used multimedia, E-mail & Internet hotkeys for easy enjoy.
* Integrated trackball and two click buttons to provide mouse function.
* Ice-white color and Mac stylish Design to satisfy your test.
* Keyboard ergonomic Design.
* Quiet stroke and tactile feedback due to Membrane included.
* Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure.

* Dimensions: 358 ( L ) * 156( W )* 28( H )mm
* Weight: 740g ( W/O Battery )
2.4G Wireless Keyboard with Touchpad Mouse K9

* Wireless mini-keyboard with 88 keys
* RF transmission at 2.4GHz to deliver 10 meters of cordless freedom with no
line-of-sight limitation.
* Built-in touchpad. Imitating mouse¡¯s function on both touchpad and 2 beneath buttons.
* 12 function keys
* Ultra-stylish design with concise outline.
* Plug and Play ¨C No software to Install.
* Quiet stroke and tactile feedback due to Membrane included.
* Slim in Shape - due to "X-Type", "Scissor Type" key cap design. Advantage to shorten key travel and reduce the finger pressure.
* Dimensions: 300( L ) * 210( W ) * 19( H )mm
* Weight: 520g ( W/O Battery)
