Your Current Position: PC Chassis


-->> All Metal Aluminum MINI-ITX chassis A Series <<--

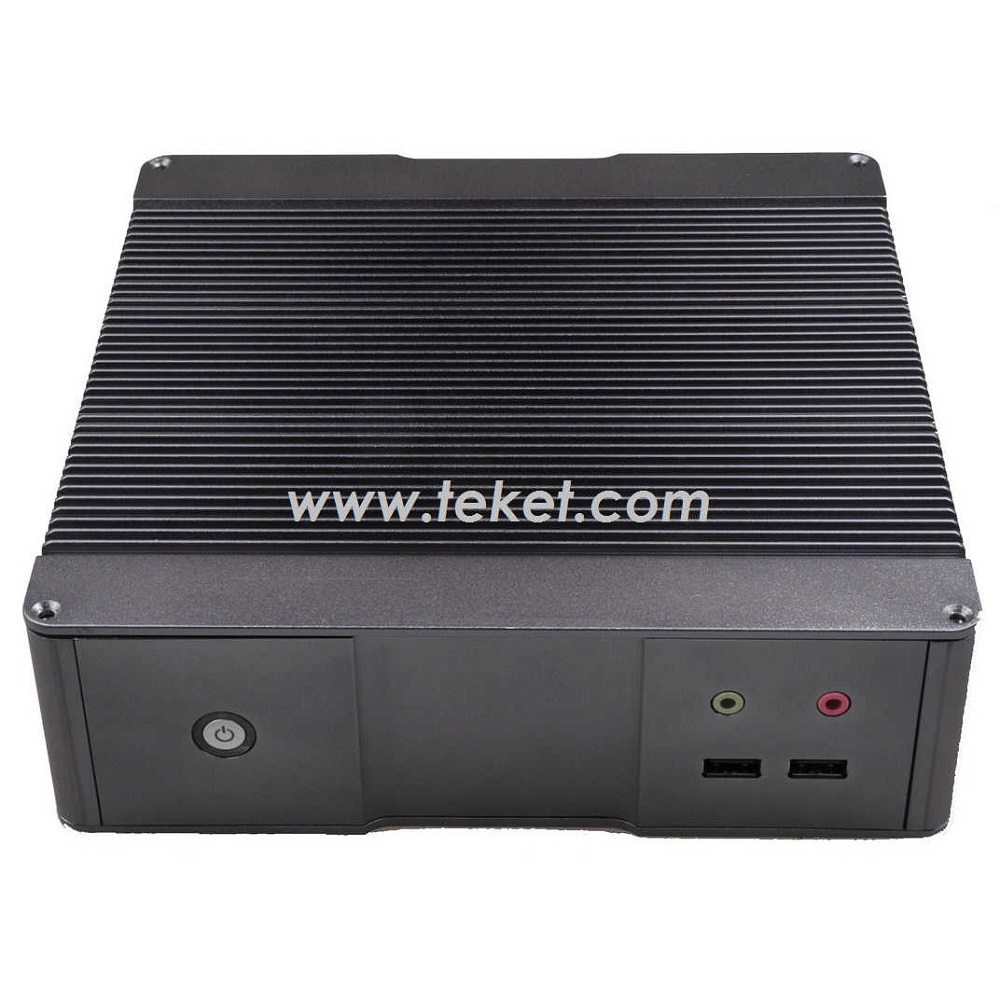

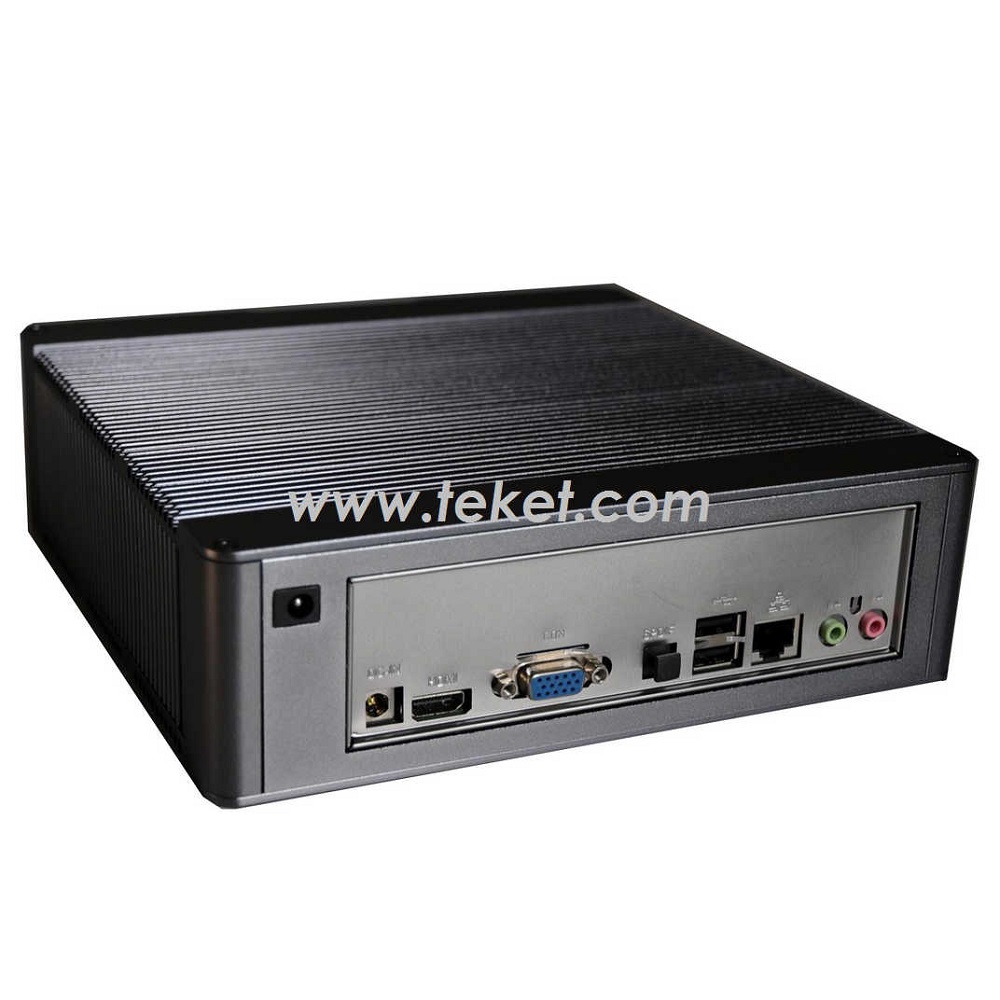

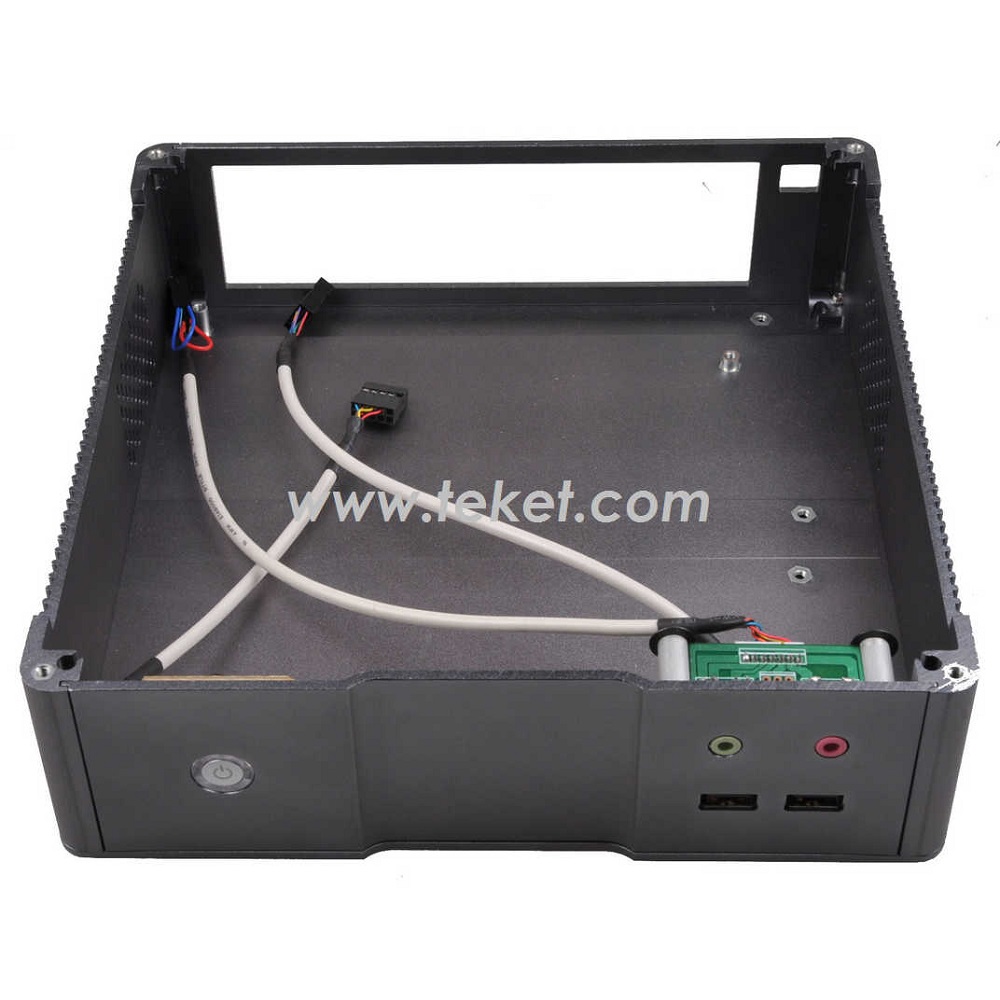

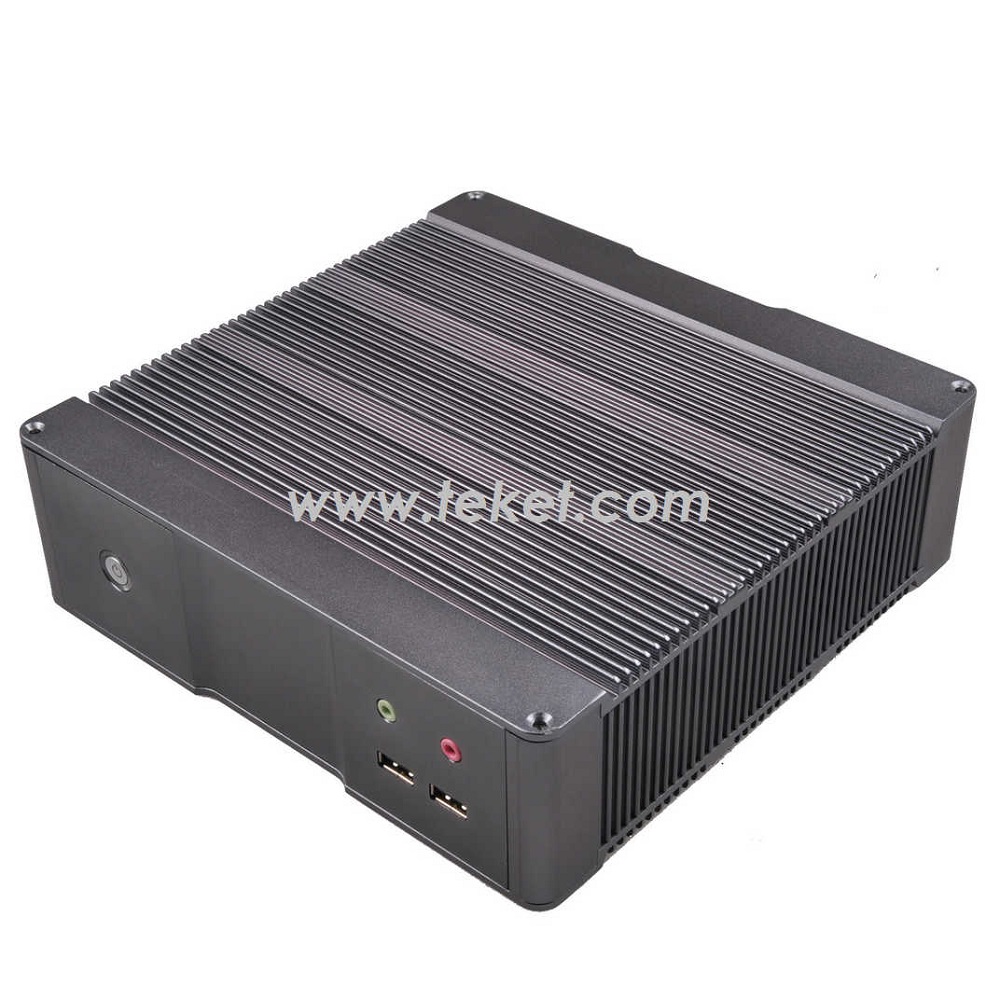

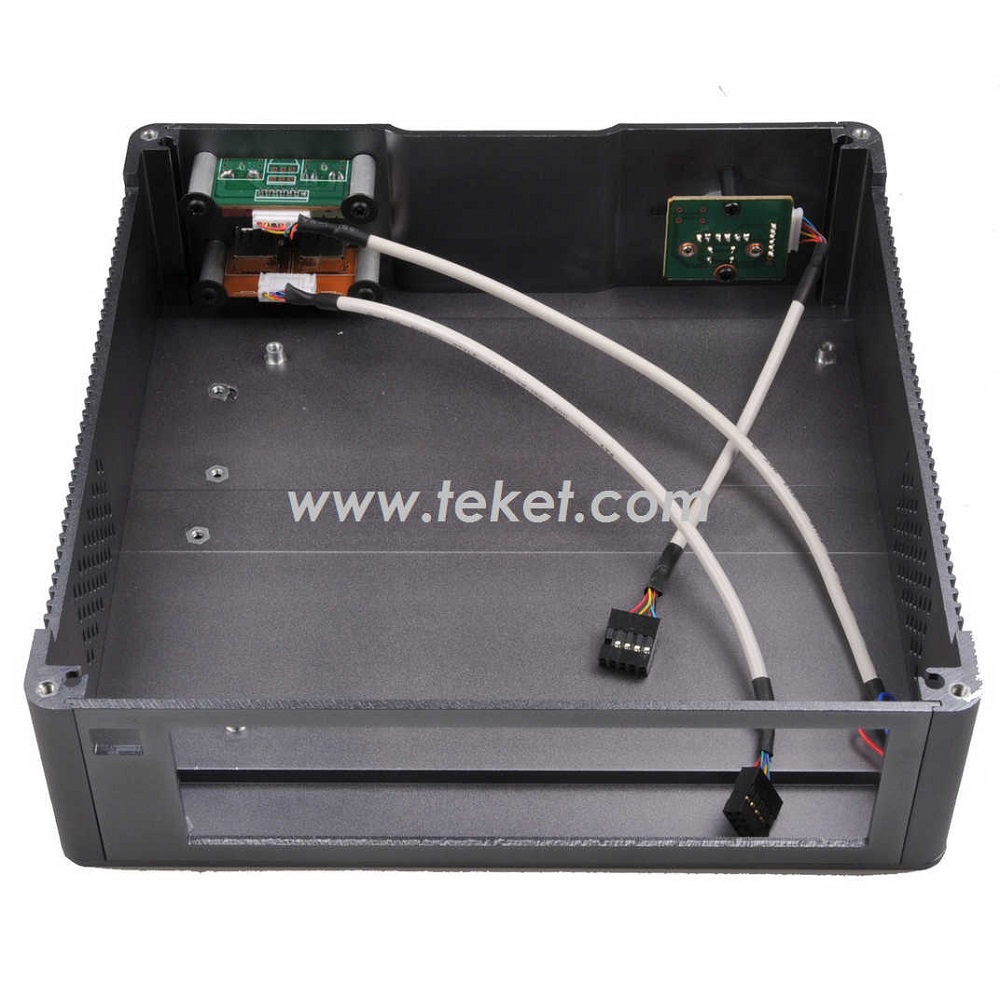

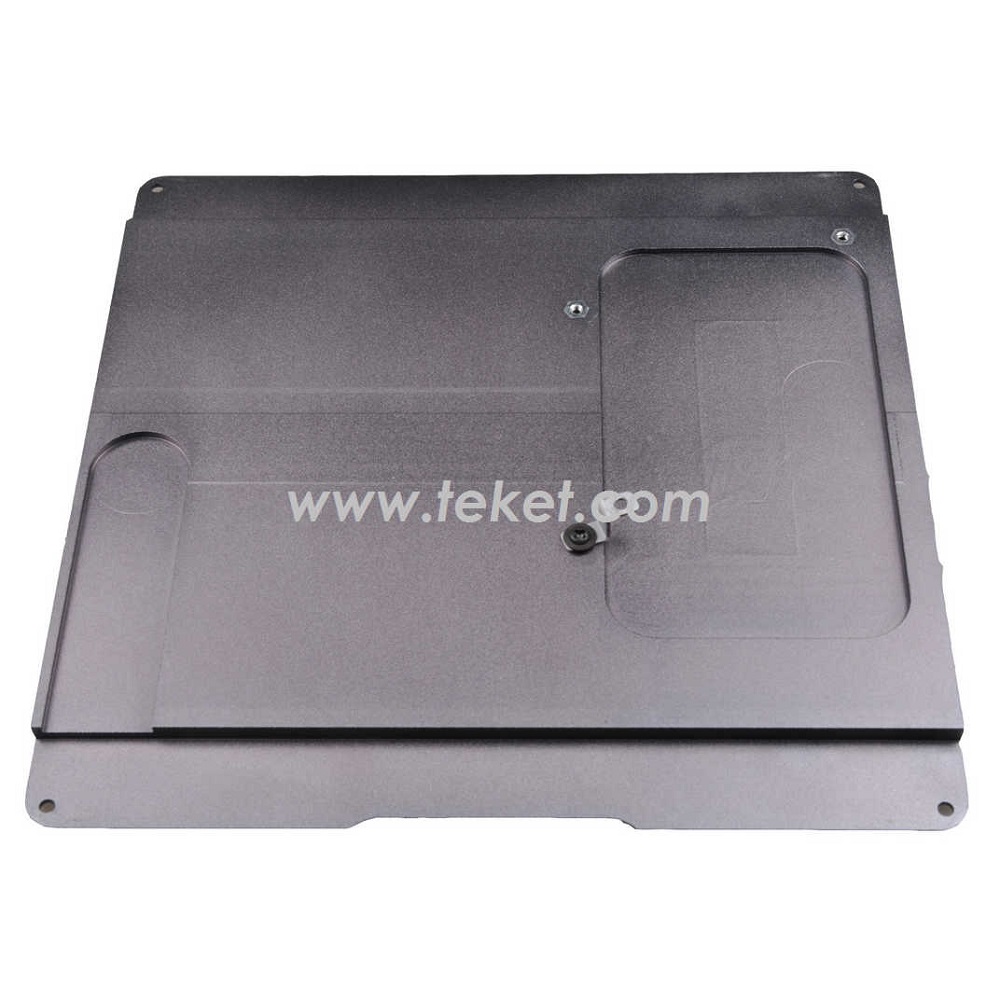

A01 MINI-ITX Chassis Series Case

Key Specifications/Special Features: Model No.: A01
Case dimensions(mm): 211x210x63
Color: gray, blue or other
Main board size(mm): 170x170
All aluminum material with EMI approval

Front port: 2*USB,1*POWER_SW,1*MIC,1*SPK

Application: HTPC

Net weight: 2.3kgs

A01: mini-itx,dc-dc convertor,80w,211x210x63,12v5a adaptor
A01(W/O Power) NW: 1.351kg,212x210x6.4(mm)
A01(W/O Power) Inner: 1.7kg,260x155x270(mm)

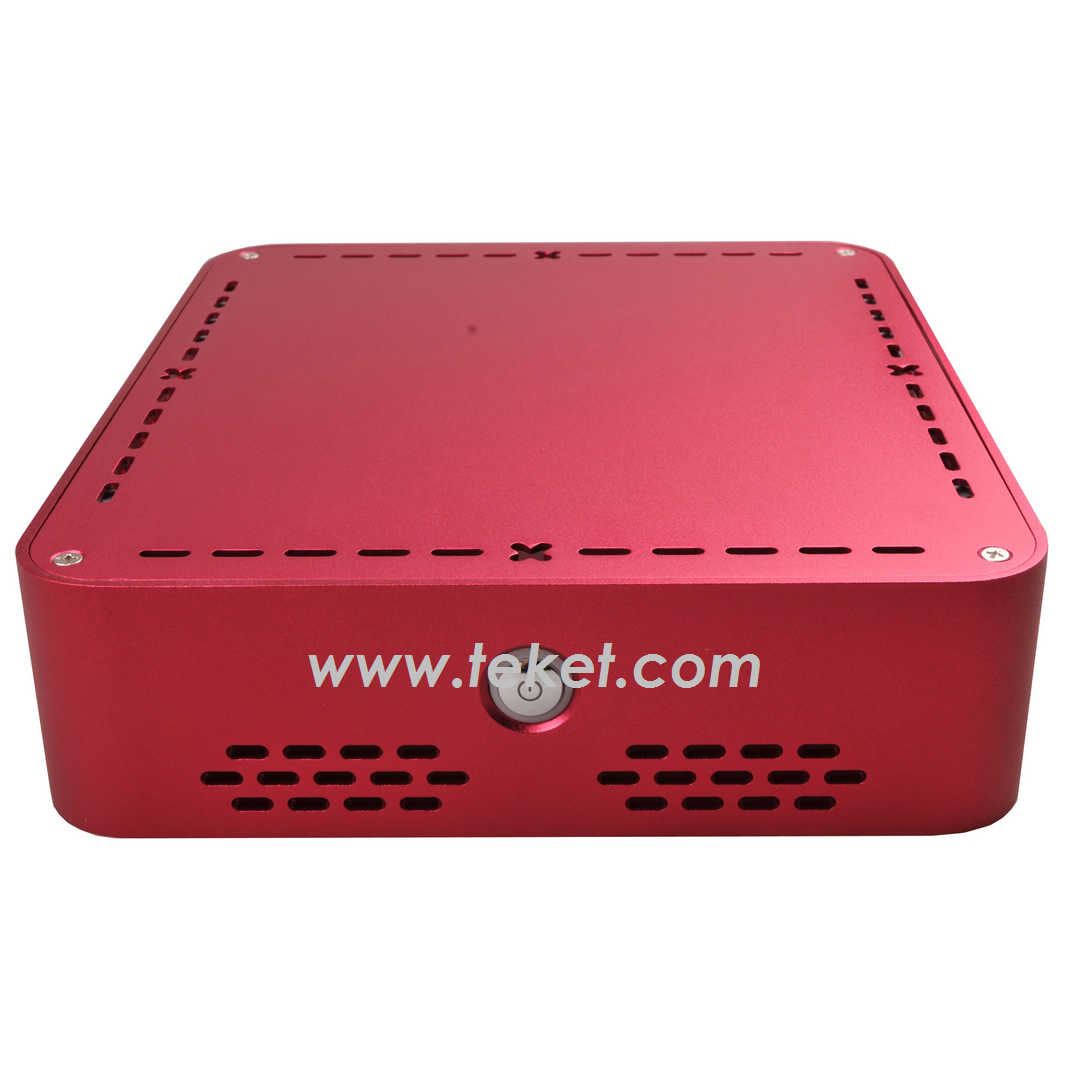

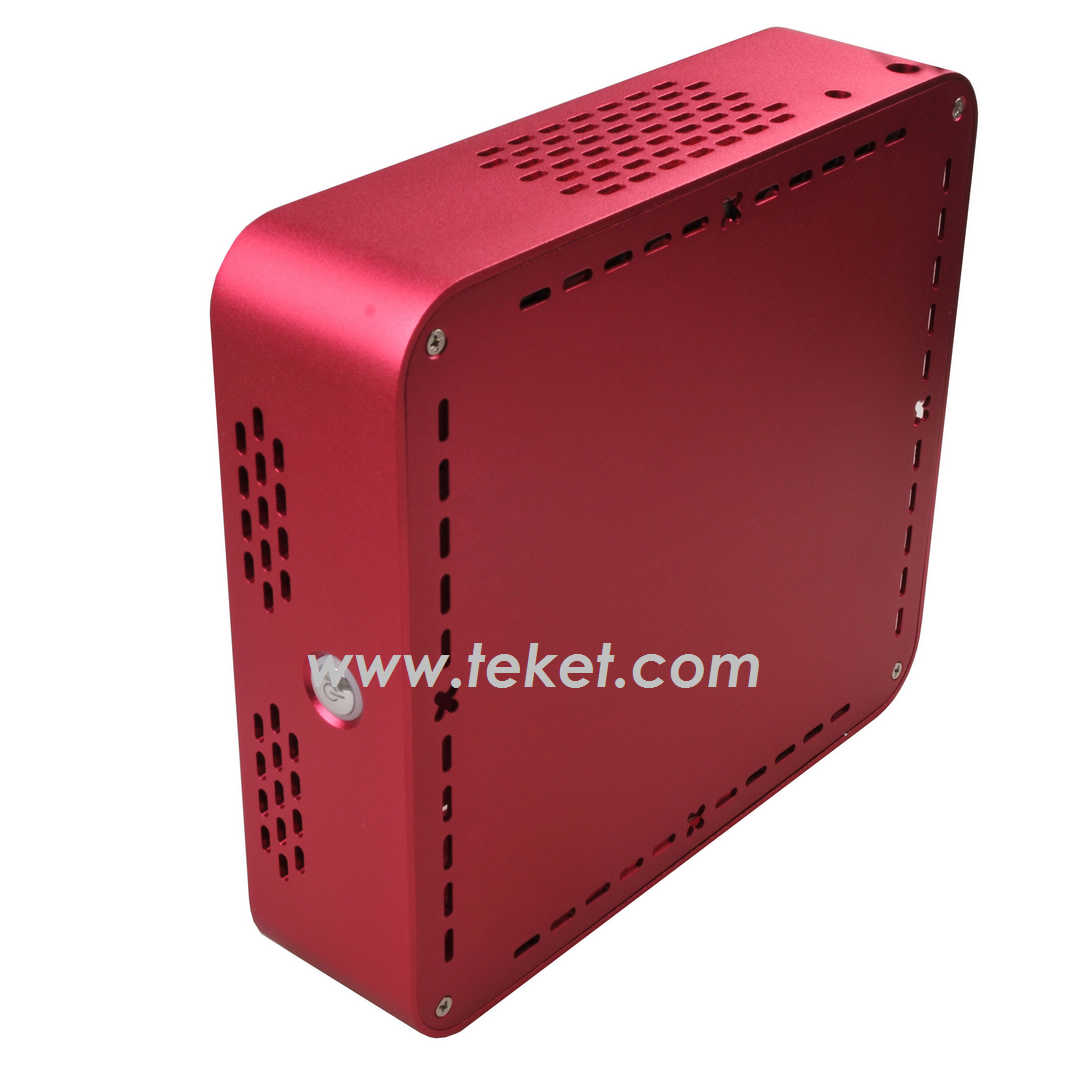

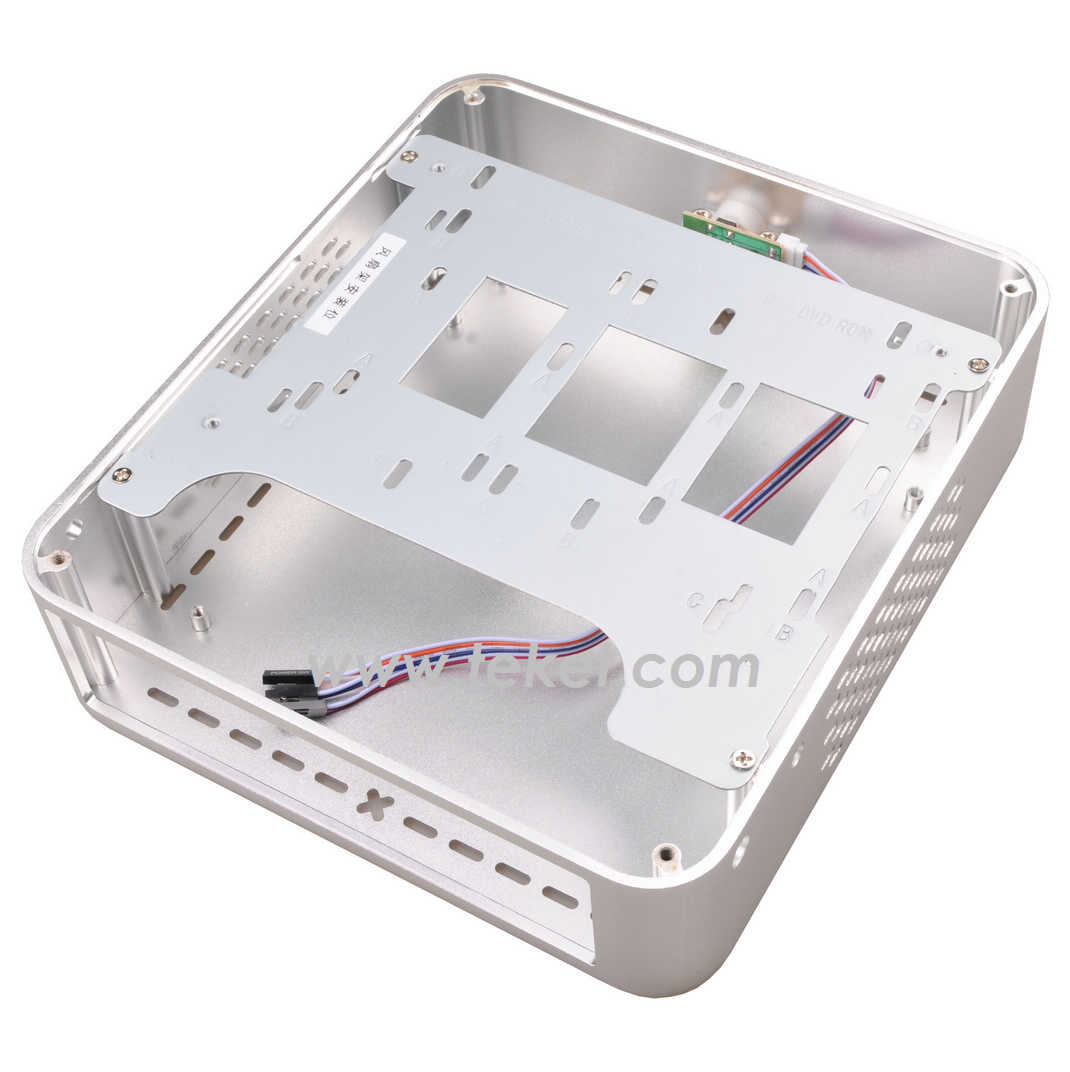

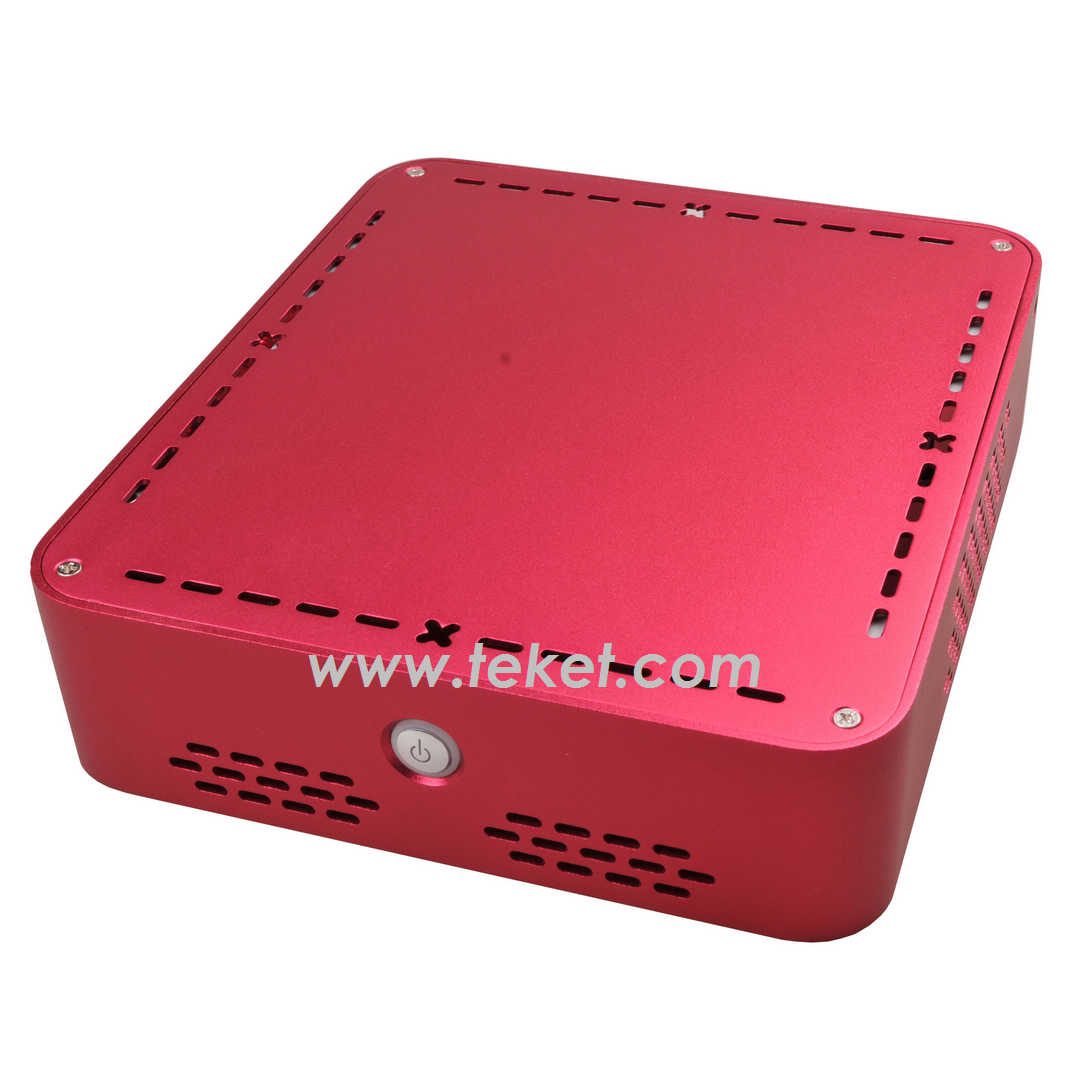

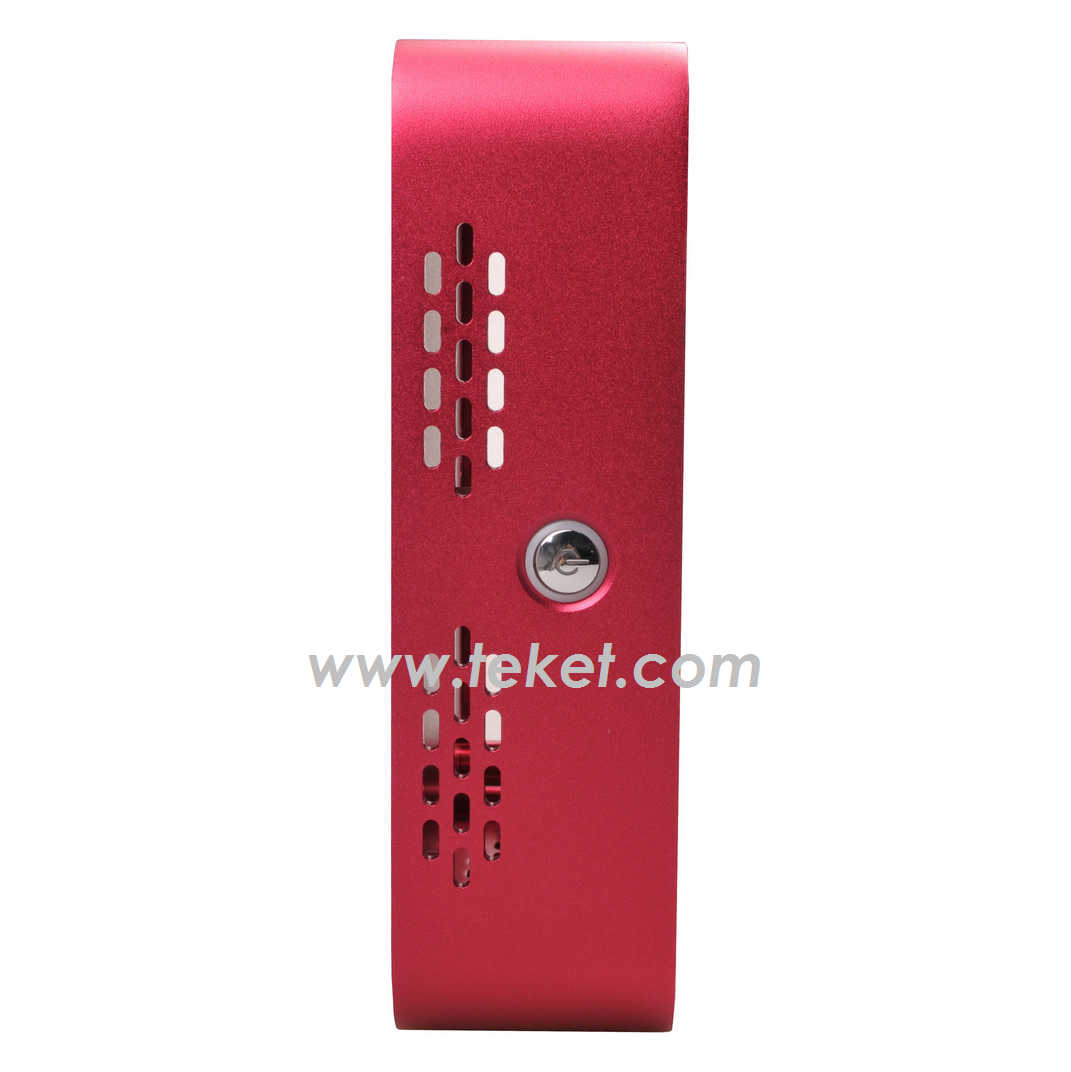

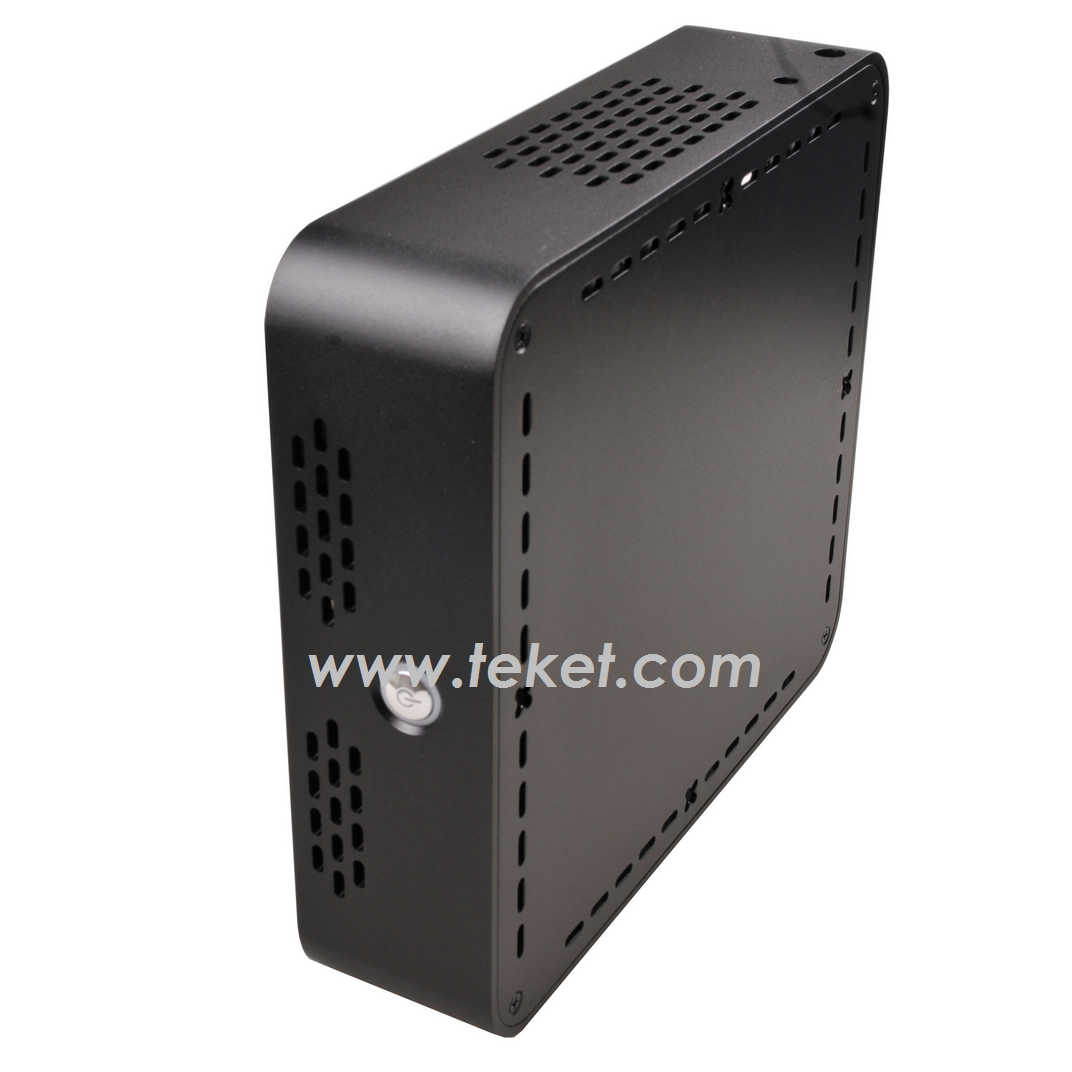

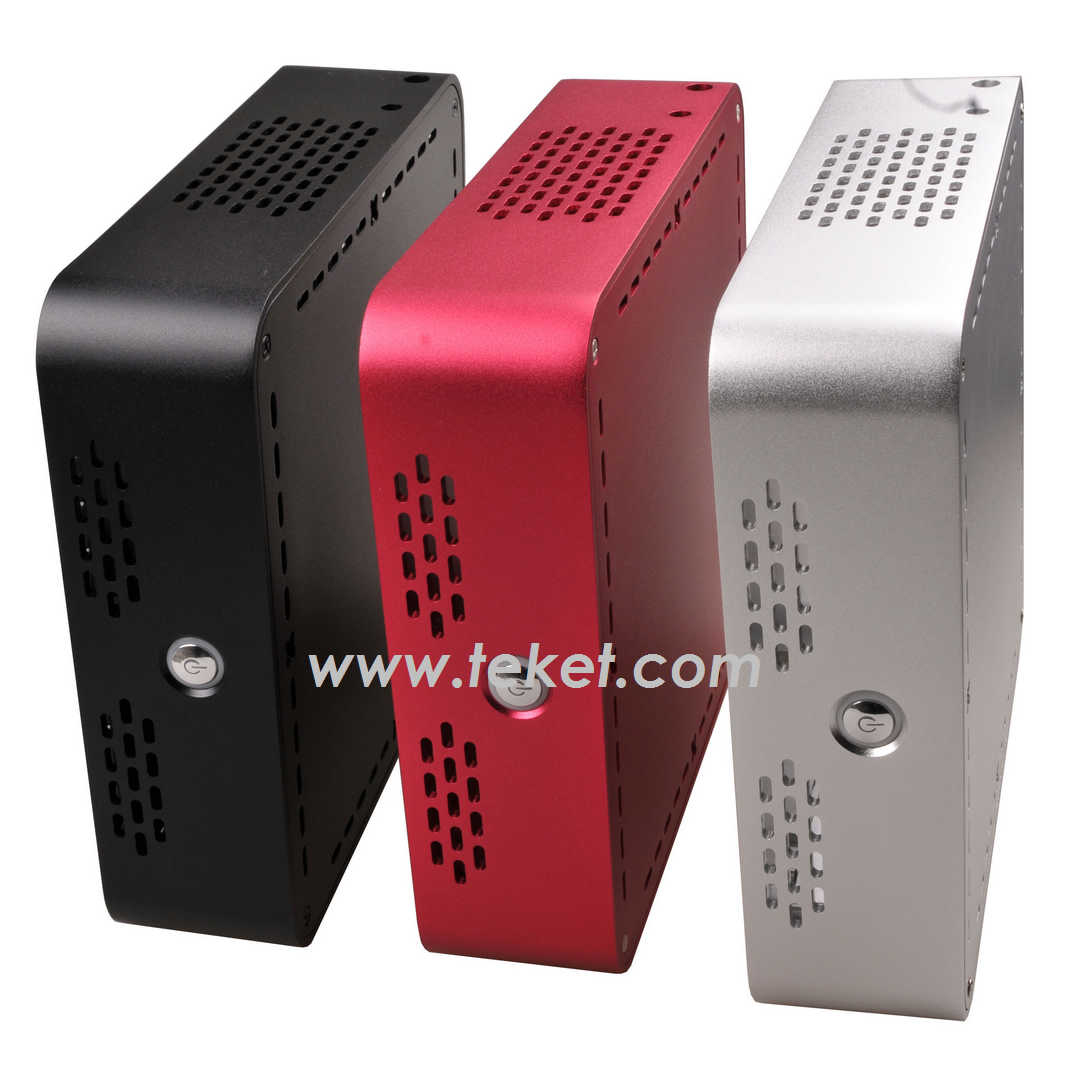

A02 MINI-ITX Chassis Series Case

Key Specifications/Special Features: Model No.: A02
Case dimensions(mm): 225x200x56/80
A02-H56 (height 56mm, standard model)
A02-H70 (height 70mm)
A02-H80 (height 80mm, support DVD bay)
Color: gray, black, white or other
Main board size(mm): 170x170
All aluminum material with EMI approval

Front port: 2*USB,1*POWER_SW,1*MIC,1*SPK
Application: HTPC

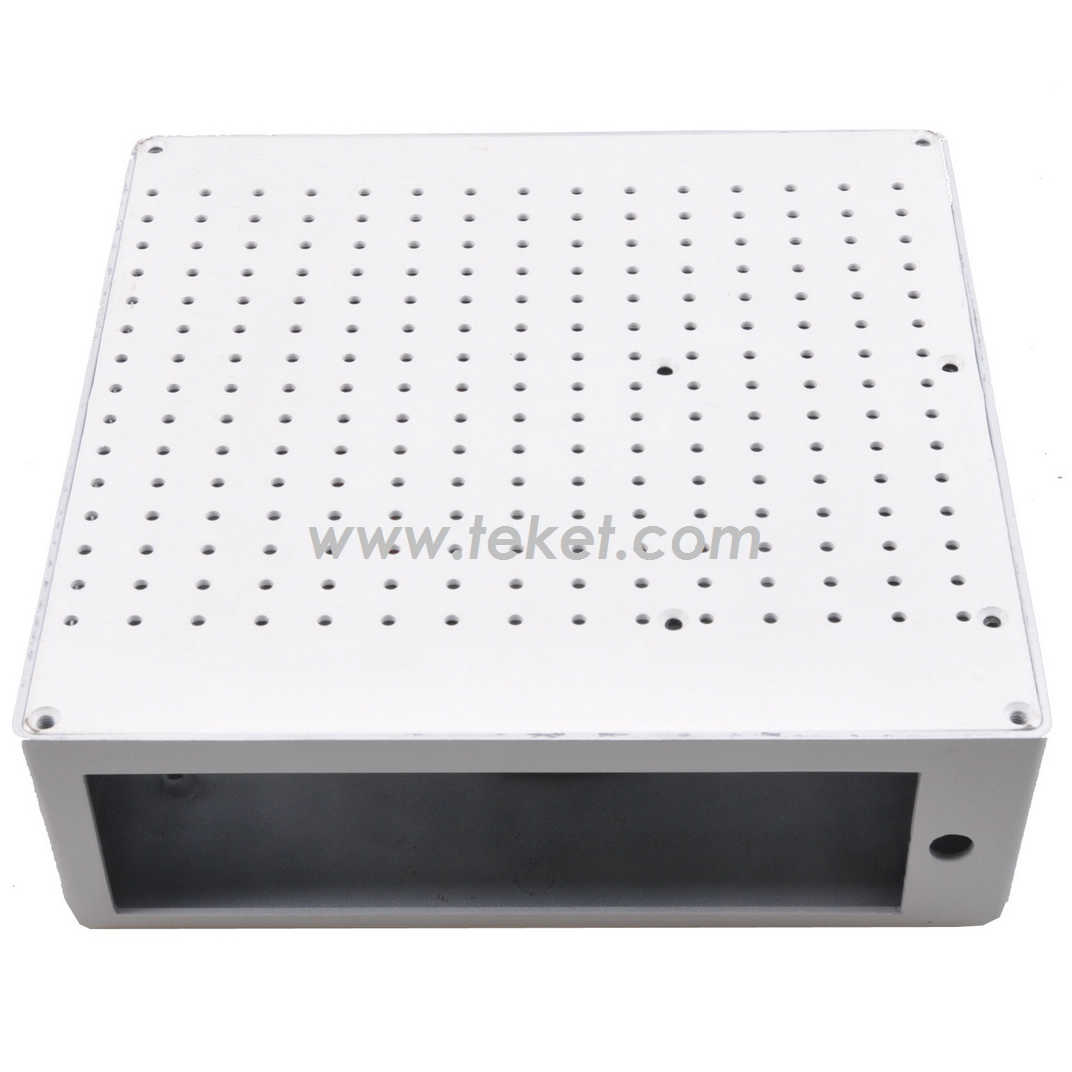

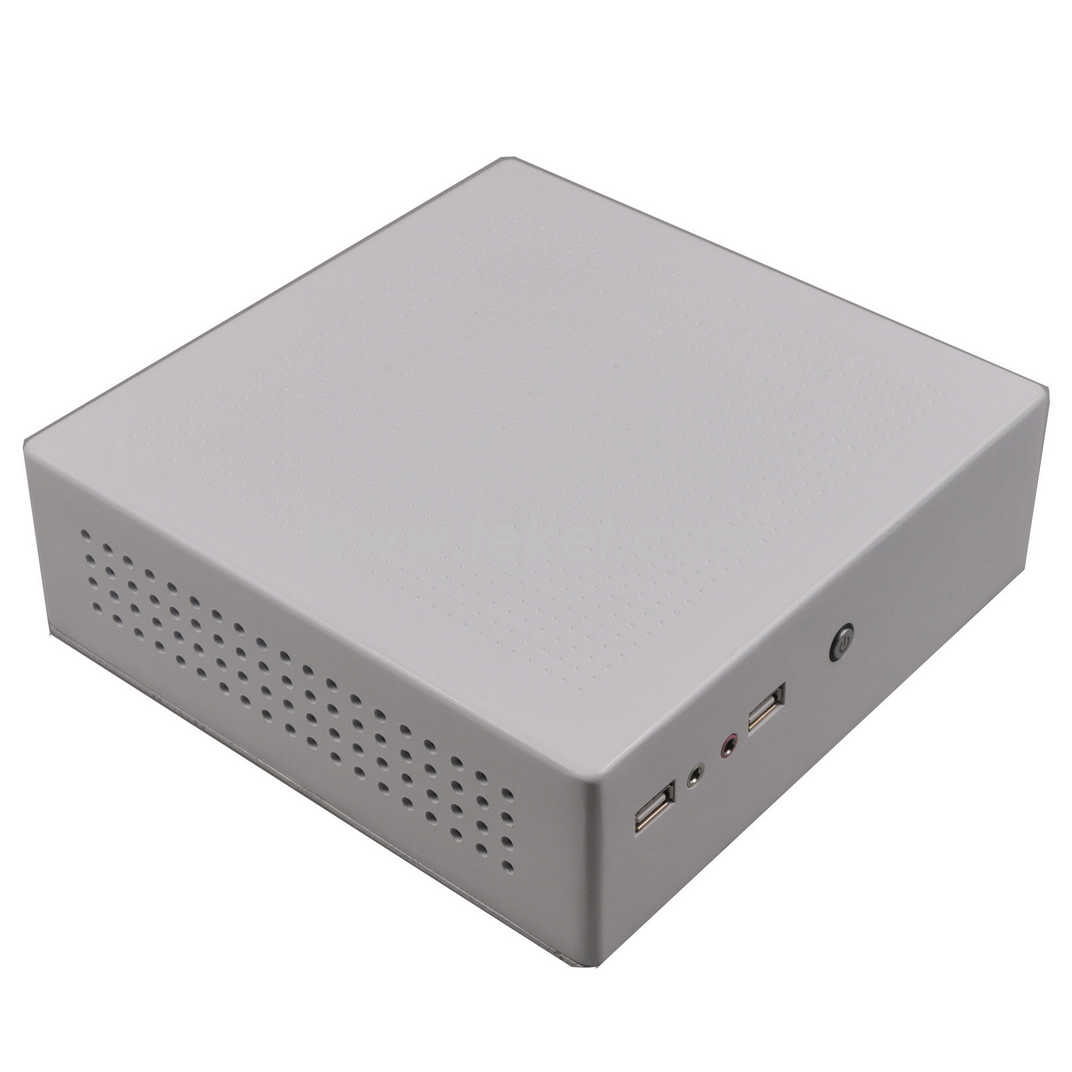

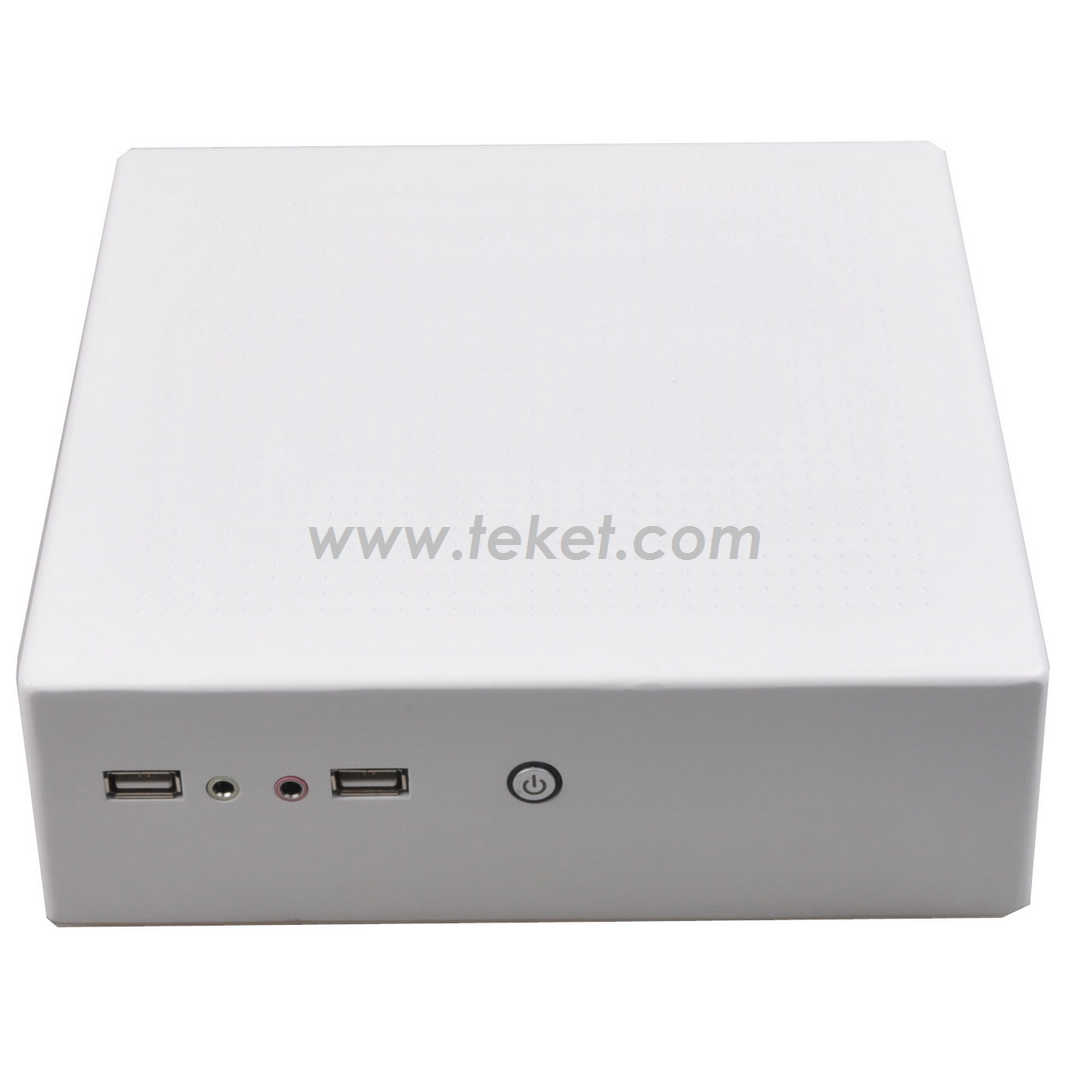

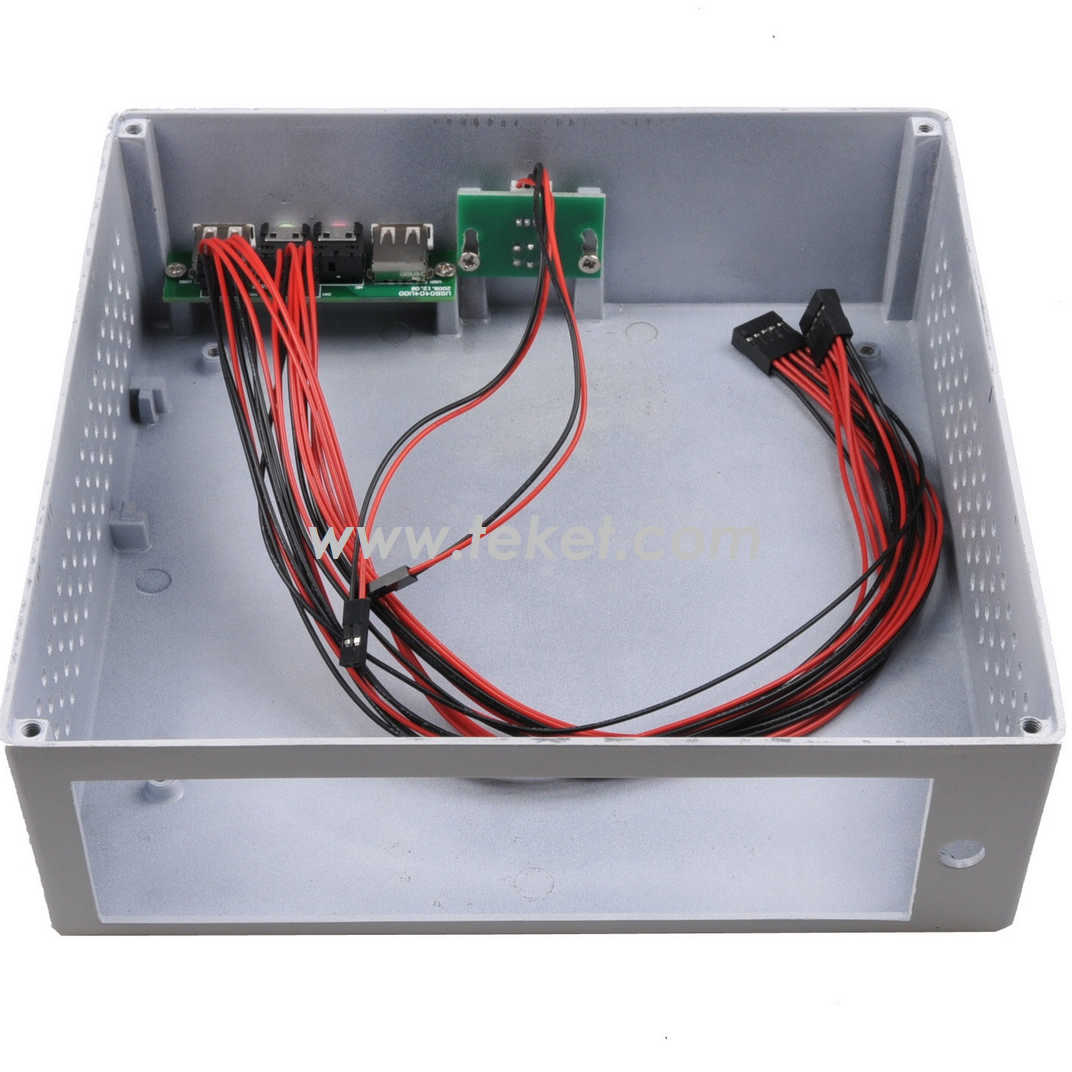

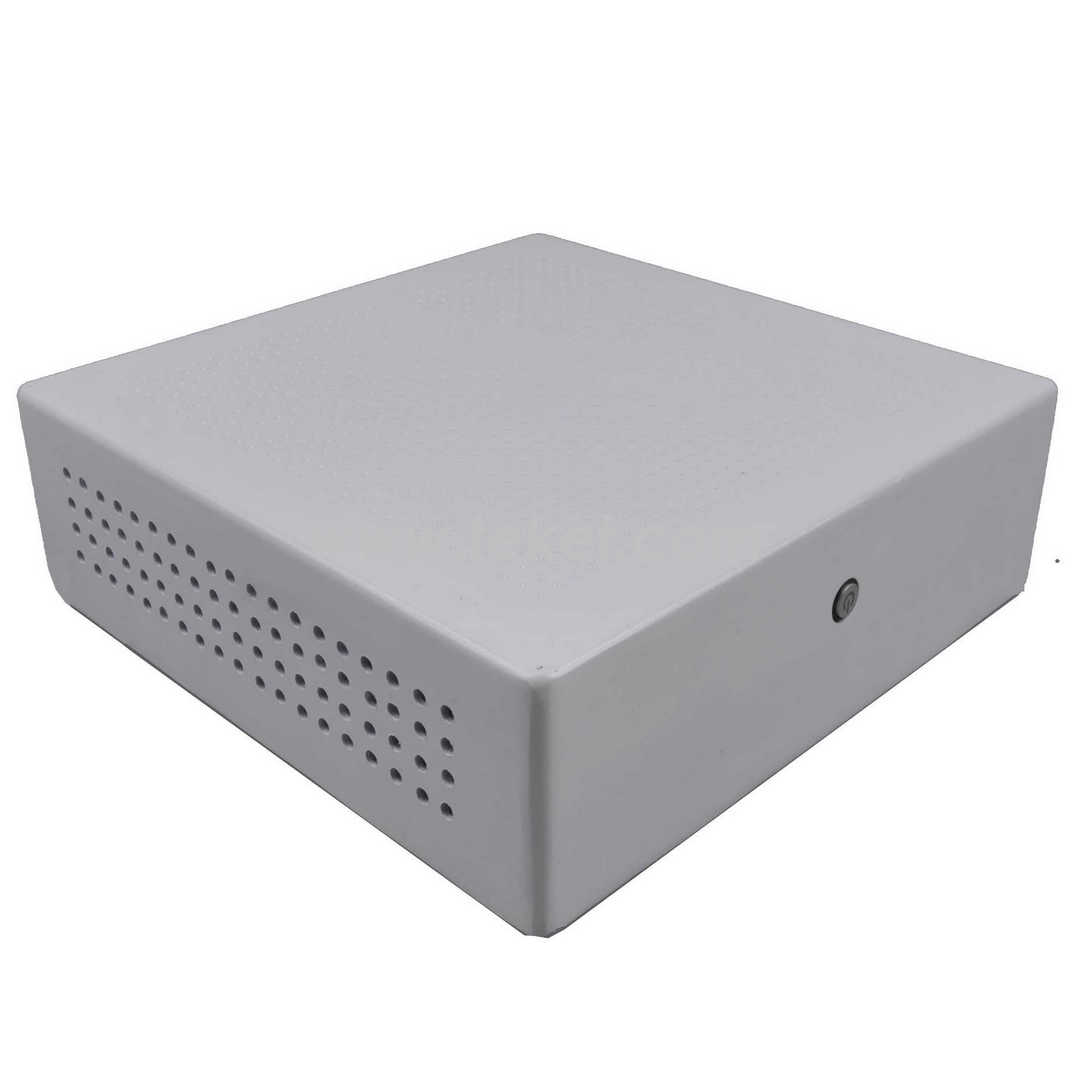

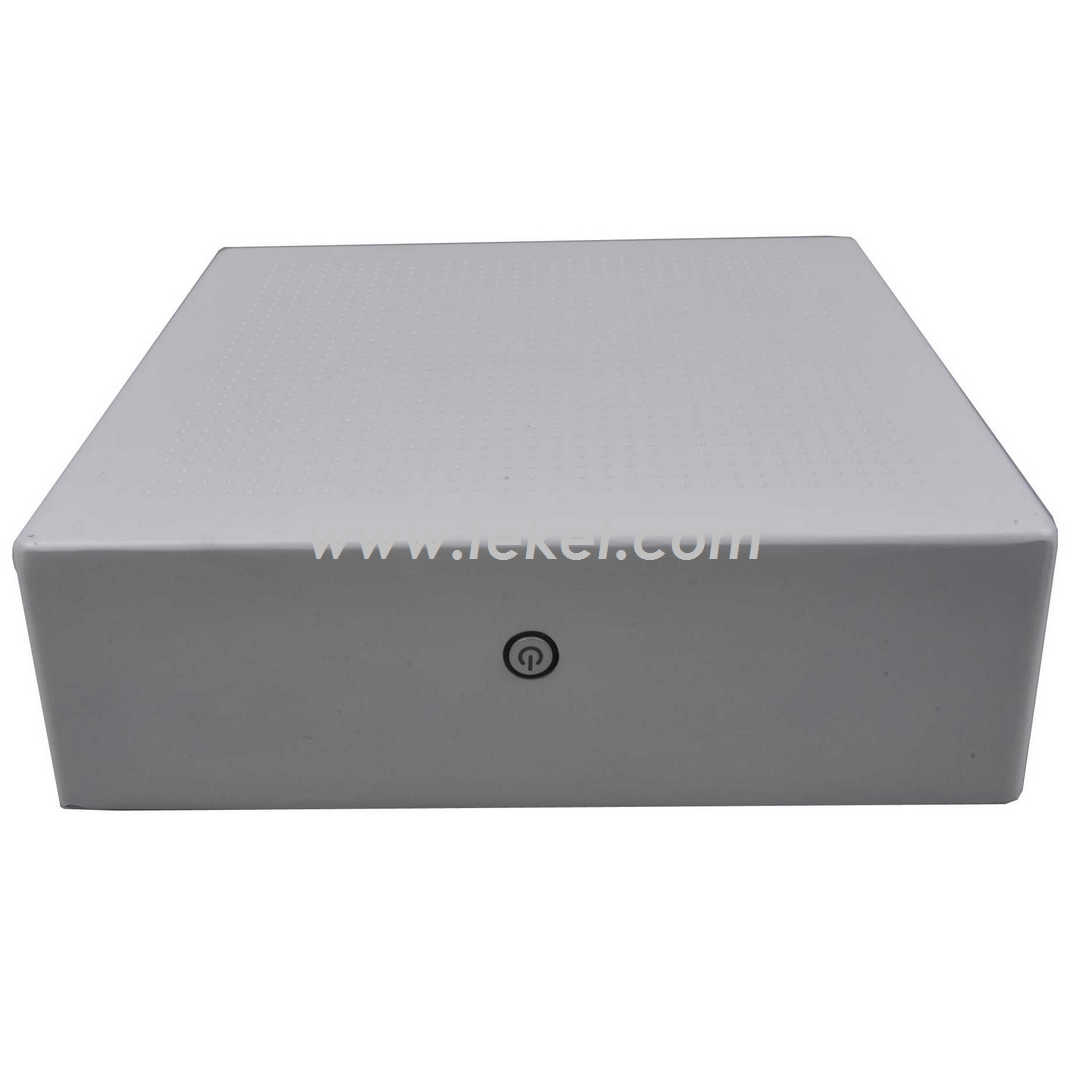

A03 MINI-ITX Chassis Series Case

Key Specifications/Special Features: Model No.: A03
Case dimensions(mm): 193x193x60
Color: gray
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 2*USB,1*POWER_SW,1*MIC,1*SPK

Power: PSU_DC2ATX

Application: HTPC

Net weight: 1.8kg

A03: mini-itx,dc-dc convertor,90w,193x193x60,12v5a adaptor
A03(W/O Power) NW: 0.678kg
A03(W/O Power) Inner: 1.054kg,420x312x75(mm)
A03(W/O Power) Outer: 7.53kg/ctn,6sets/ctn,485x430x330(mm)

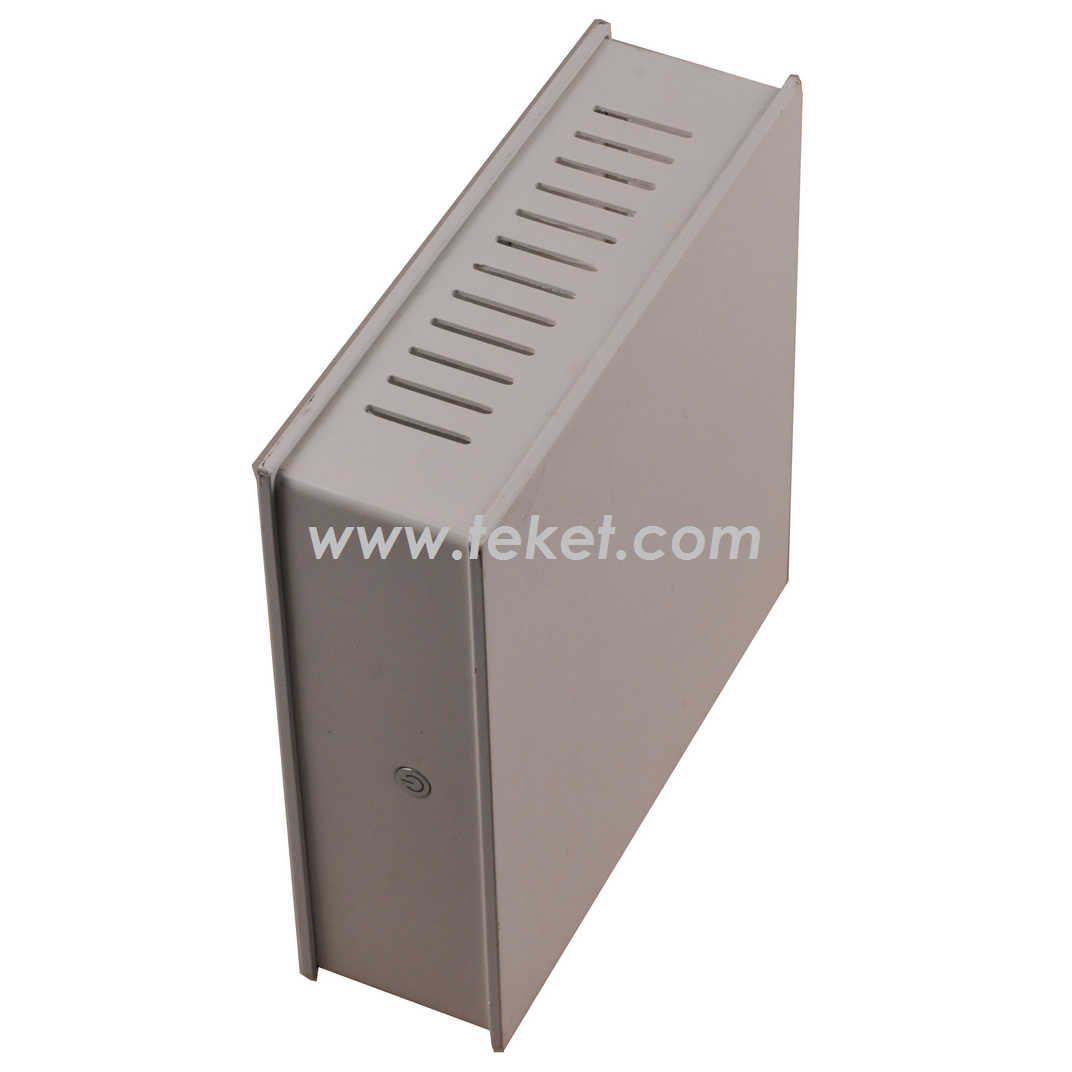

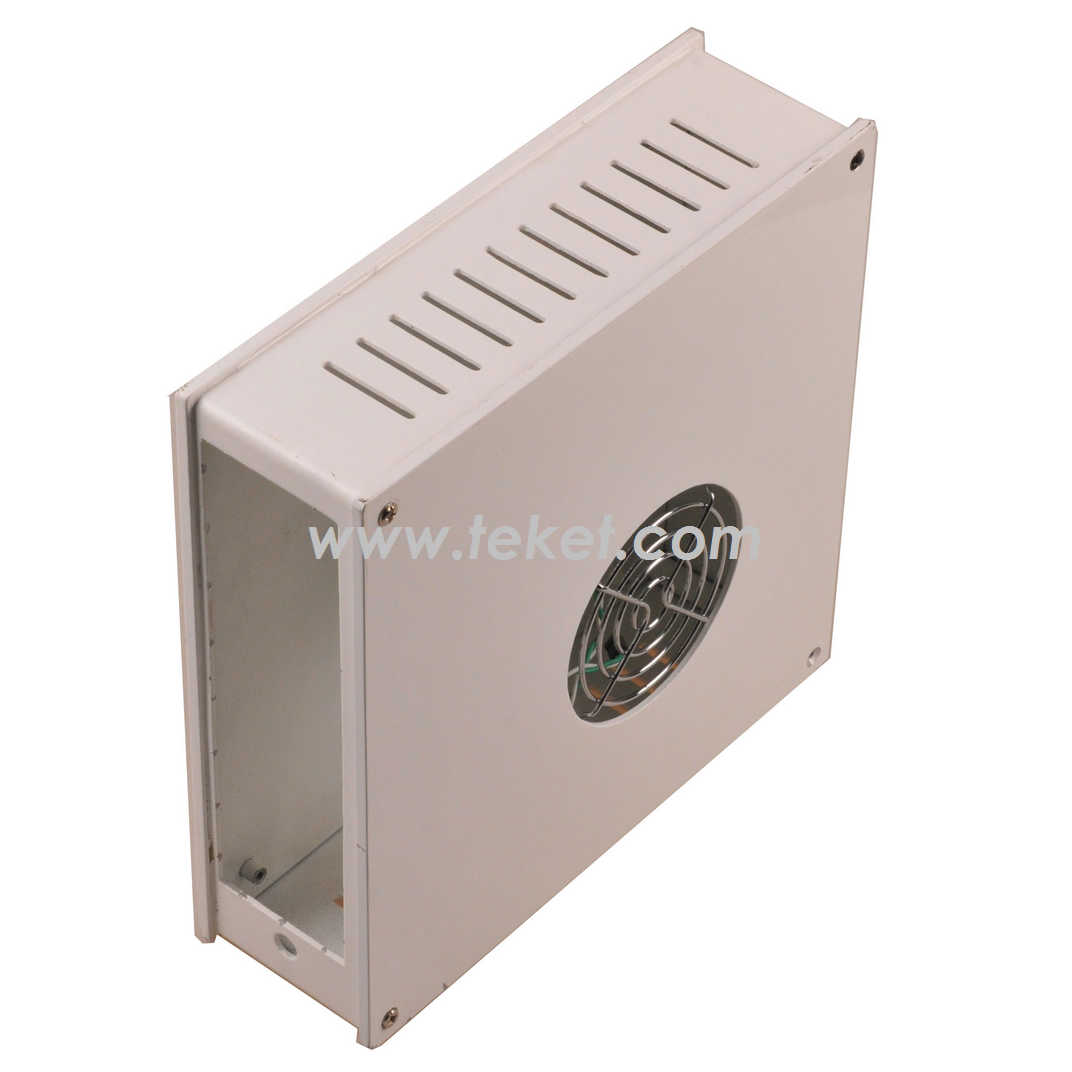

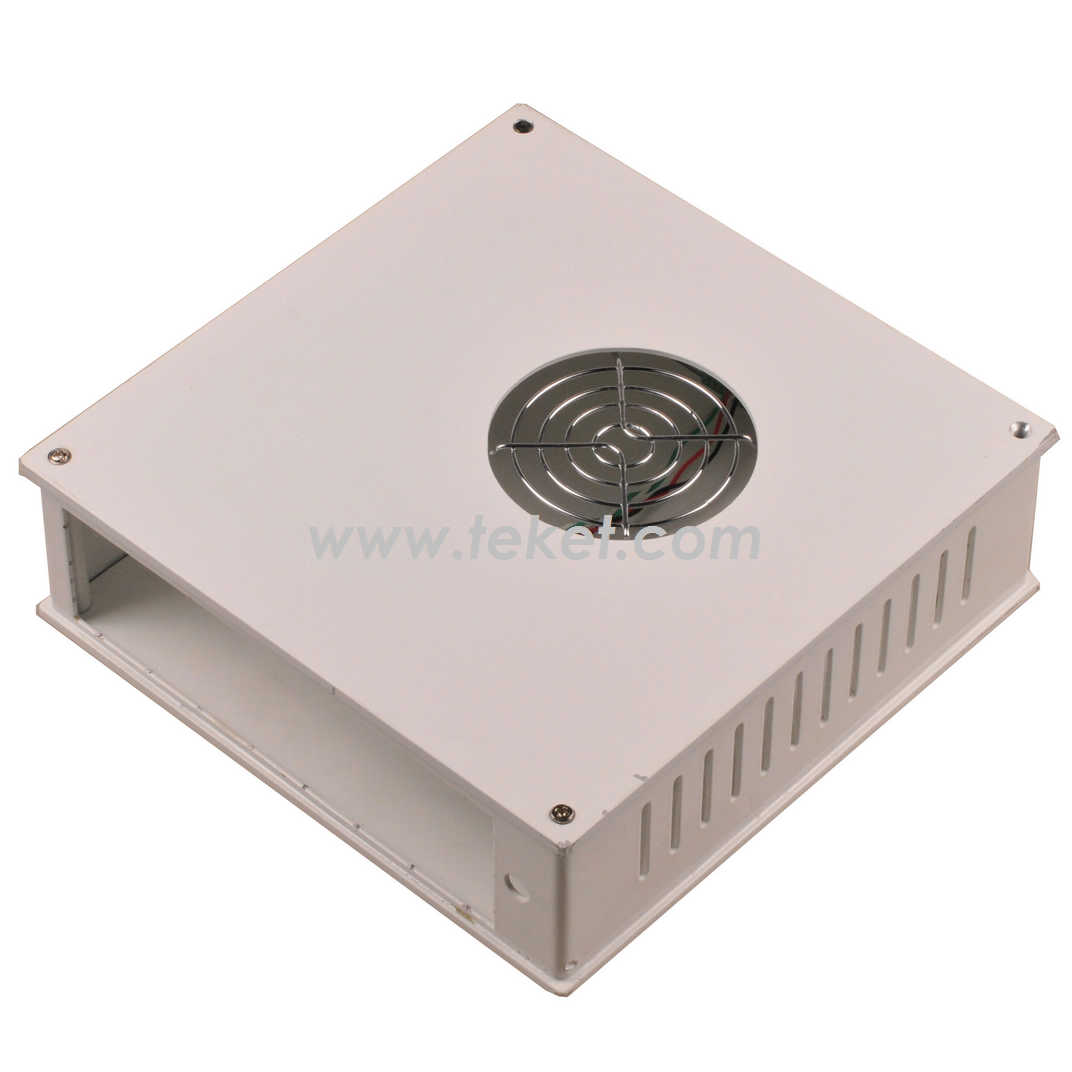

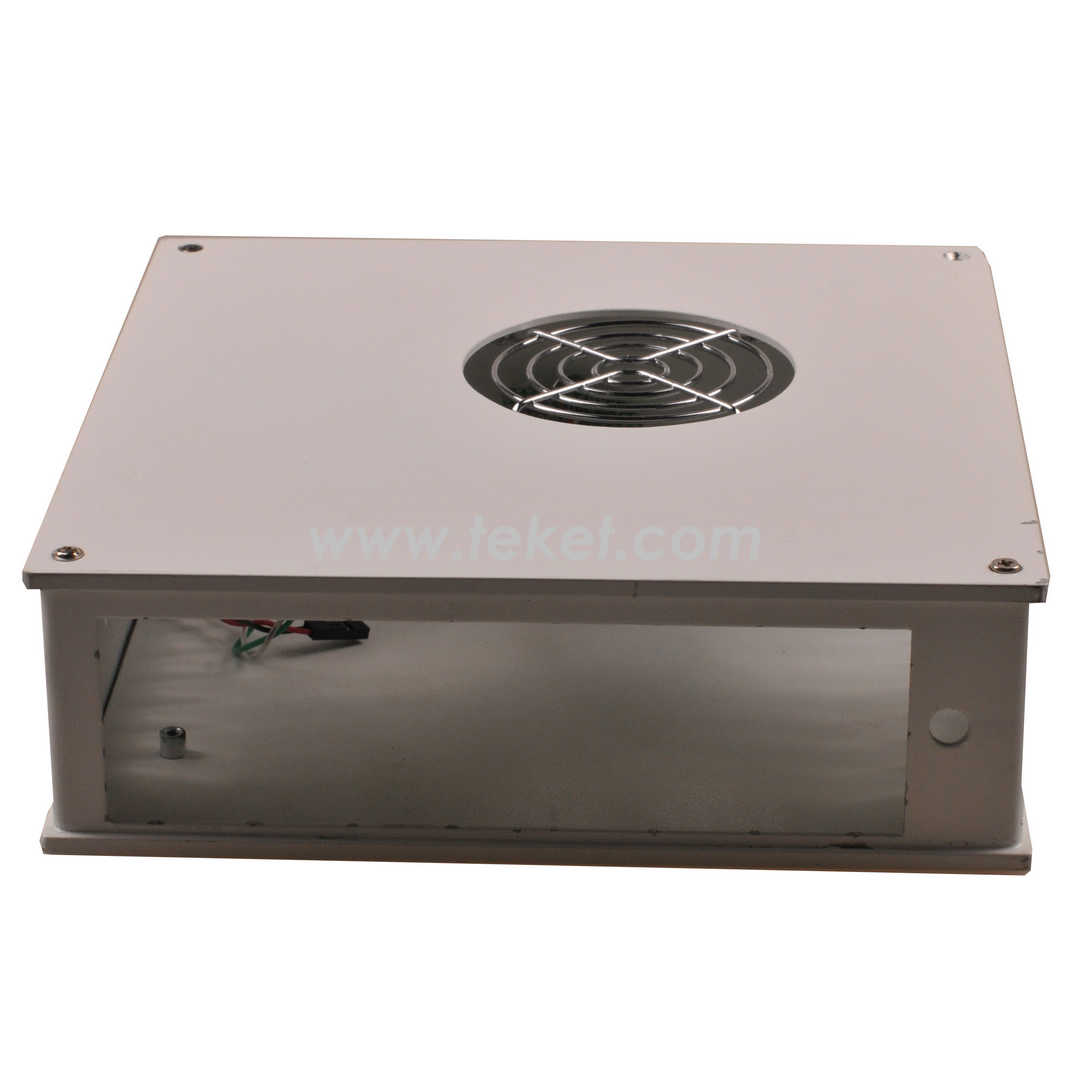

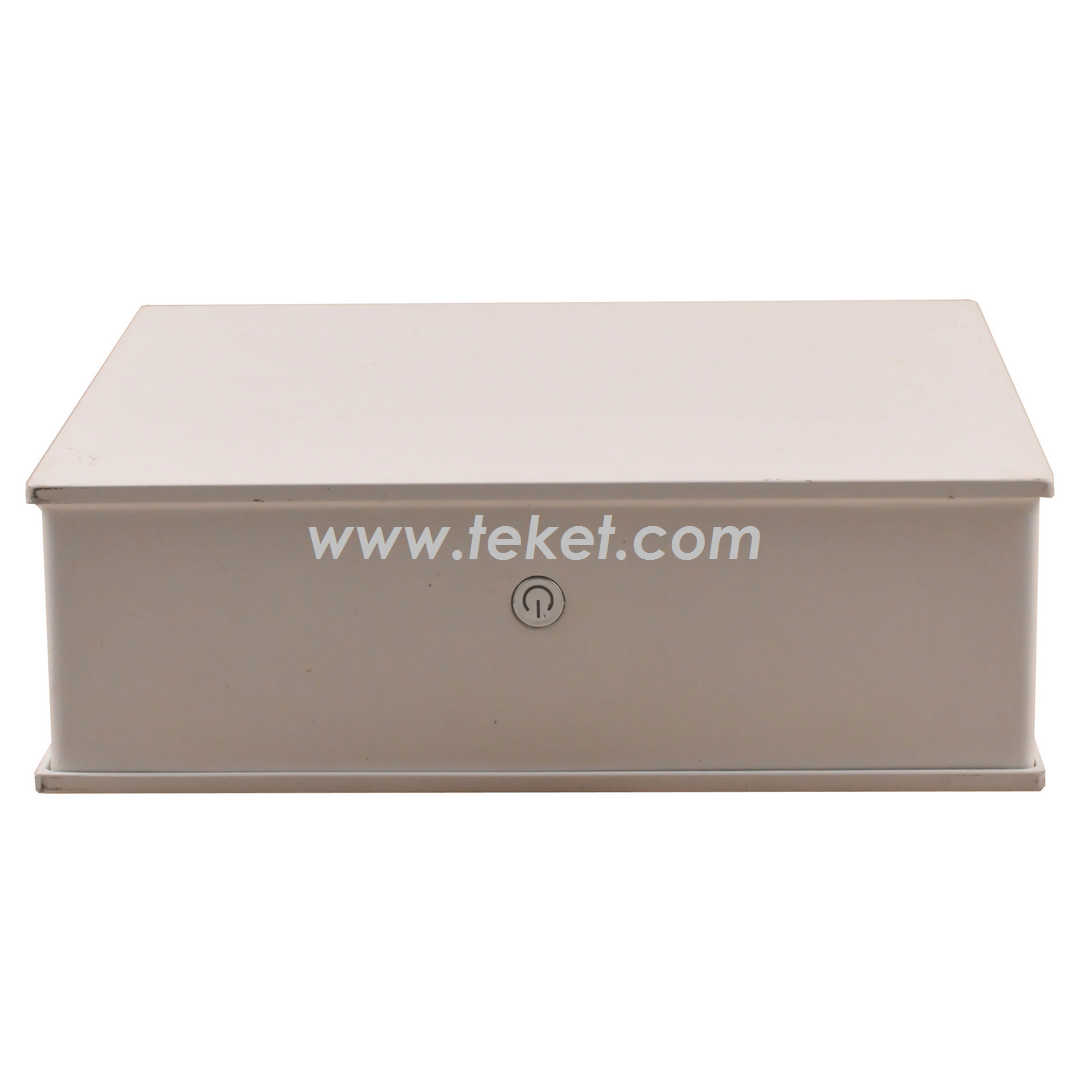

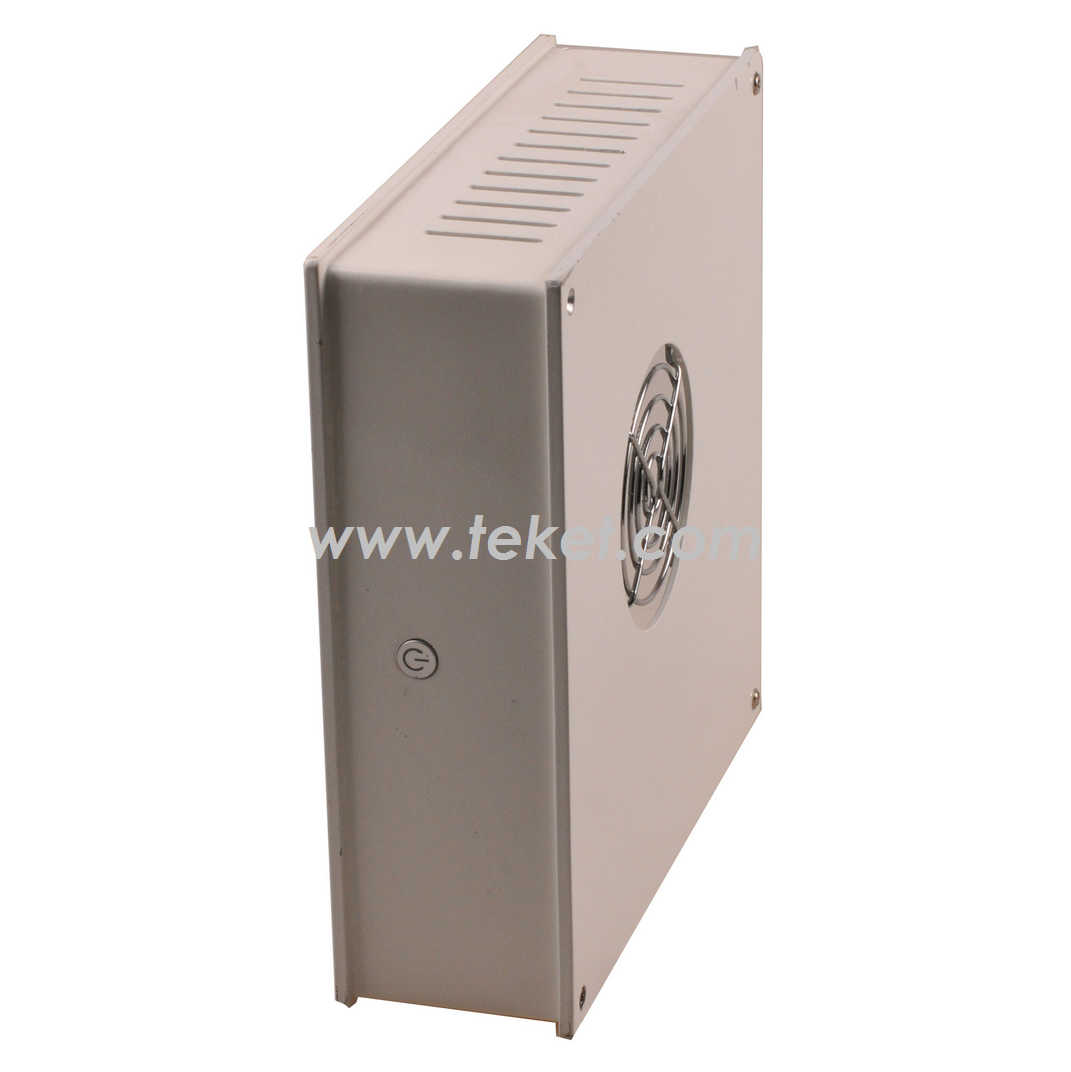

A04 MINI-ITX Chassis Series Case

Key Specifications/Special Features: Model No.: A04
Case dimensions(mm): 199x199x64.5
Color: white
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,1*HDD
Application: HTPC
Net weight: 1115g

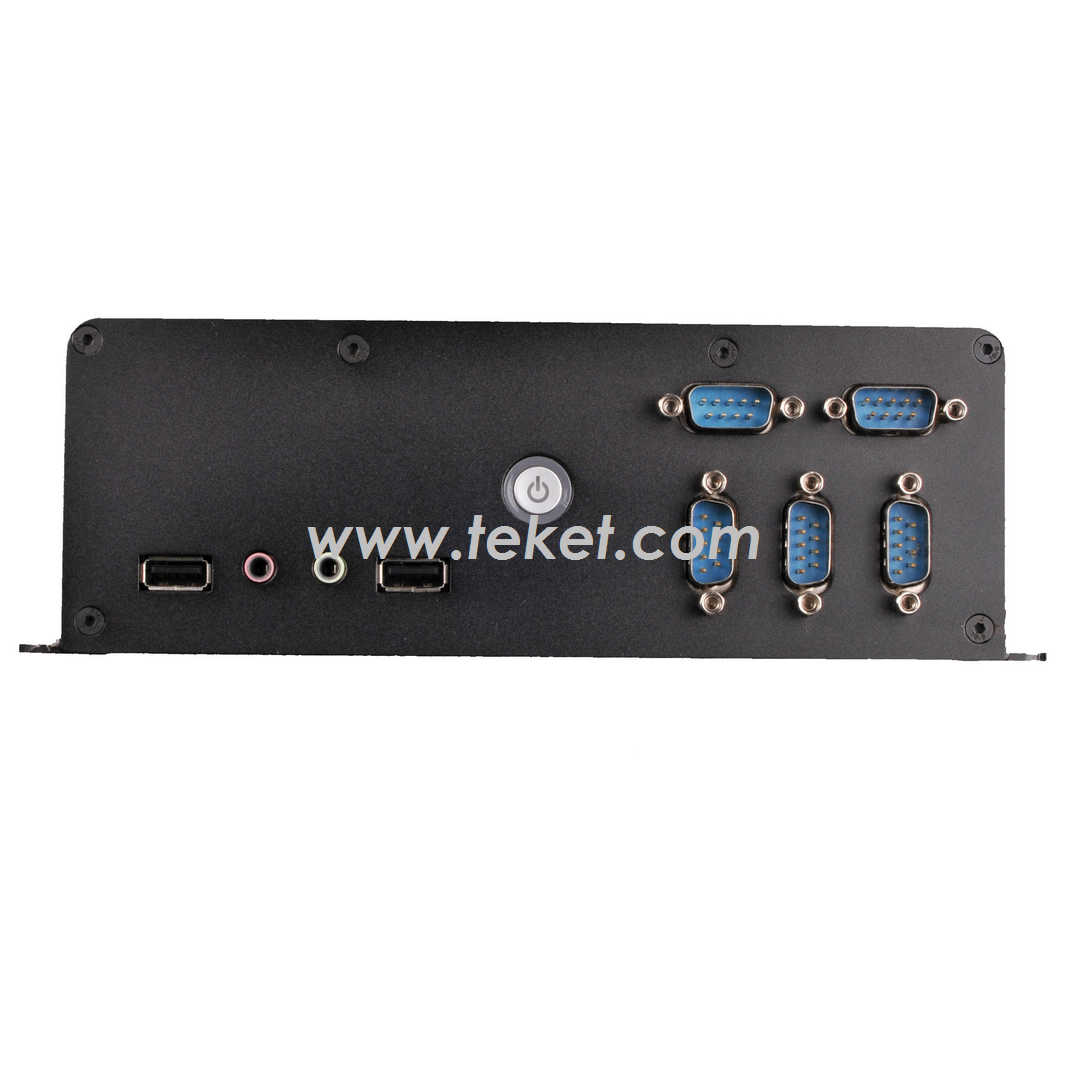

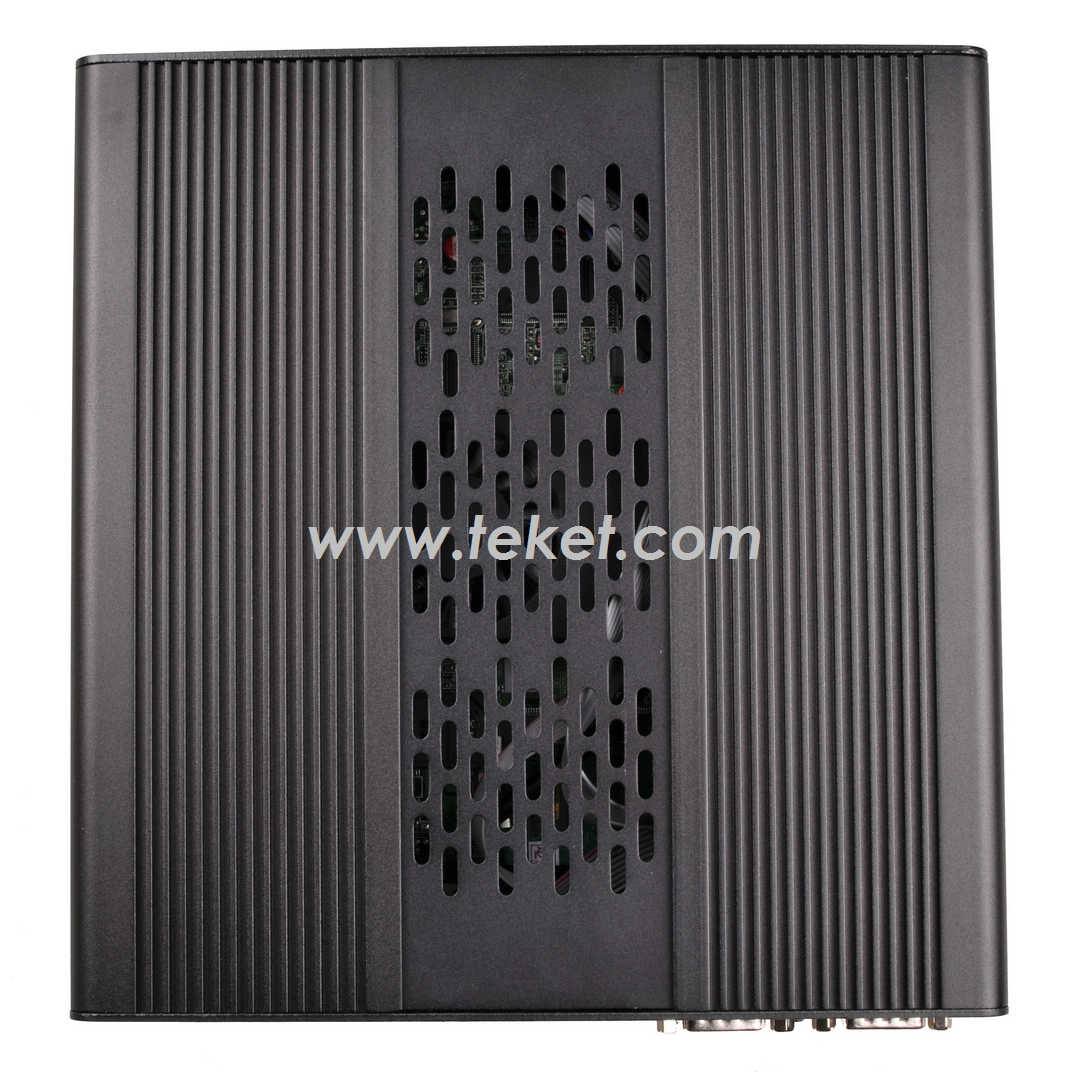

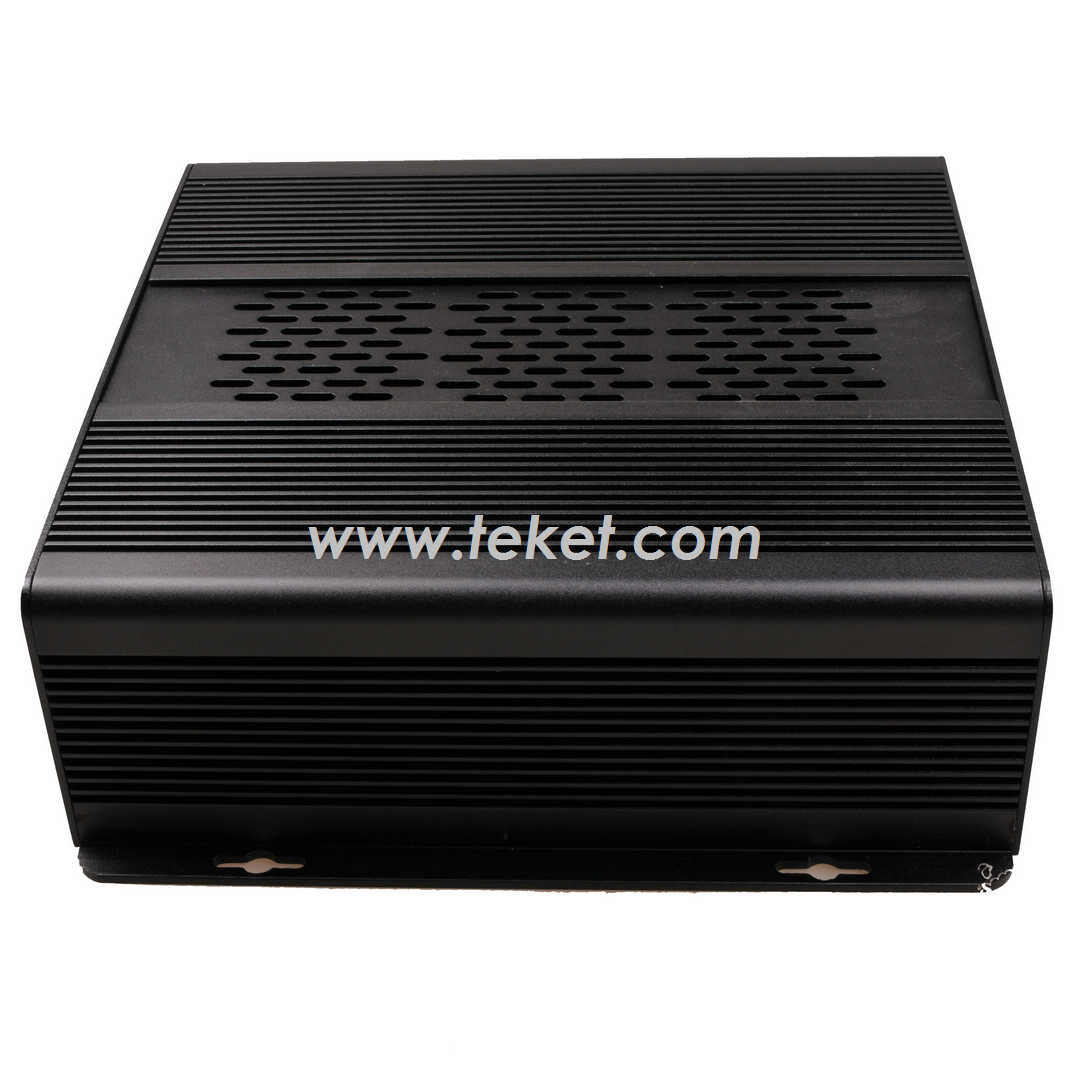

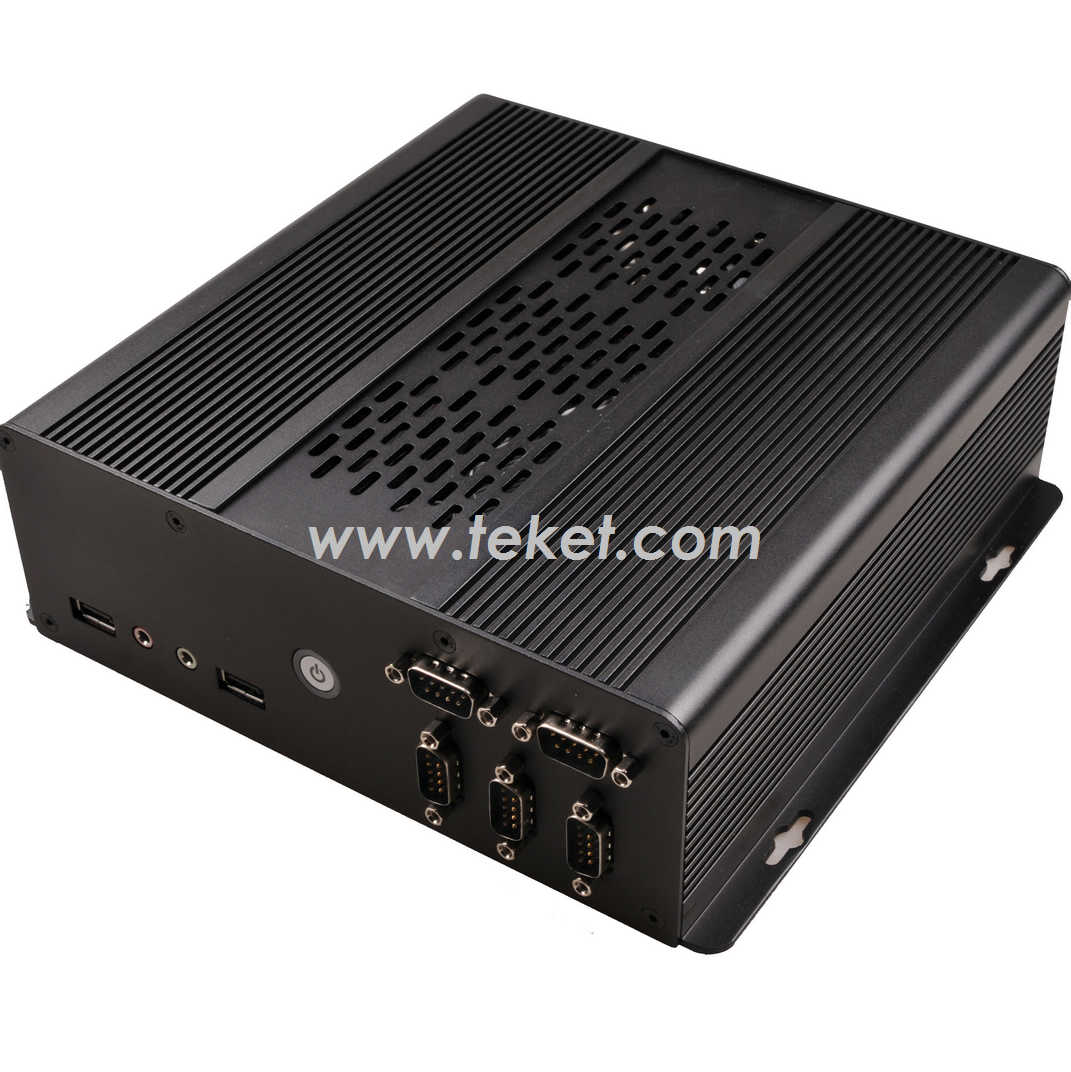

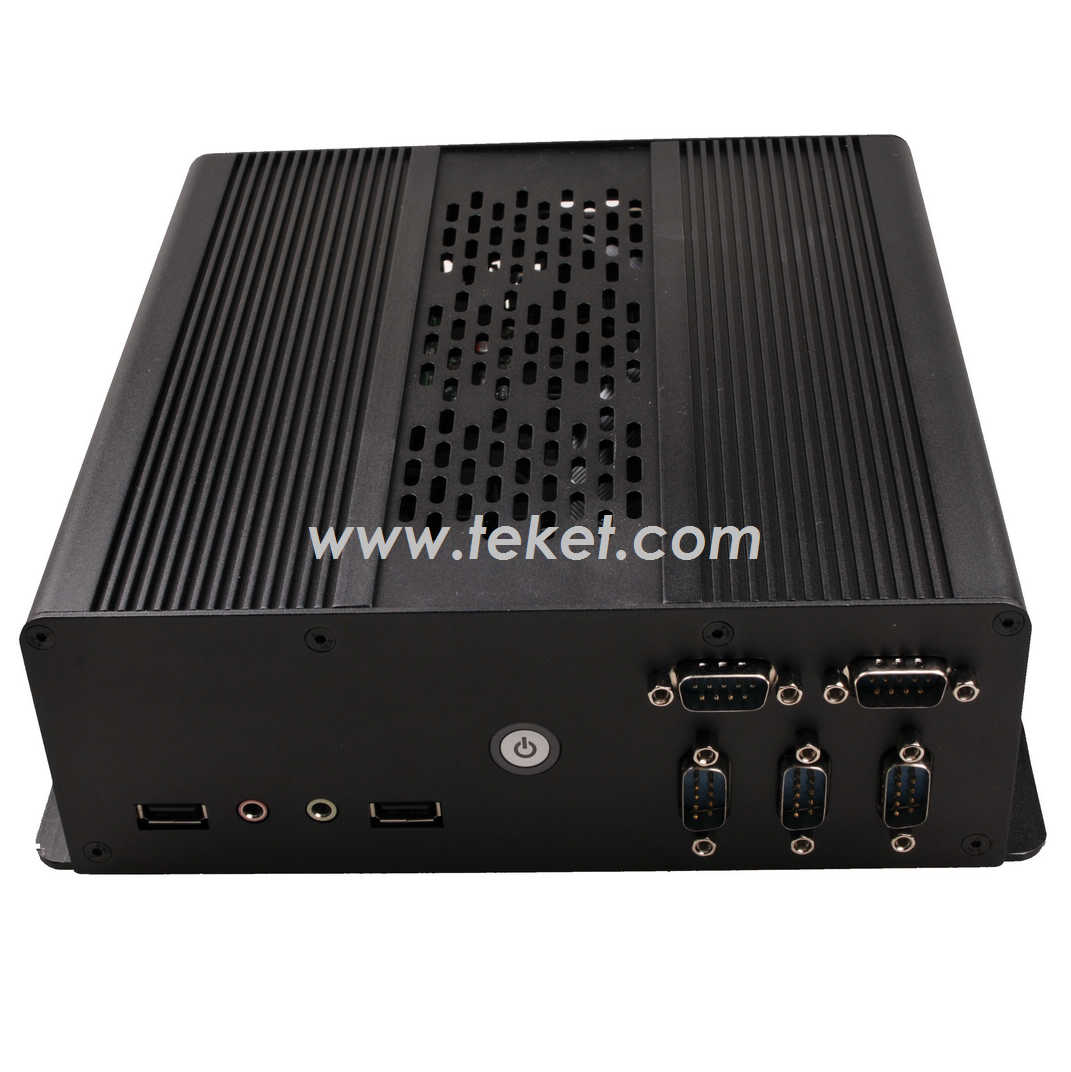

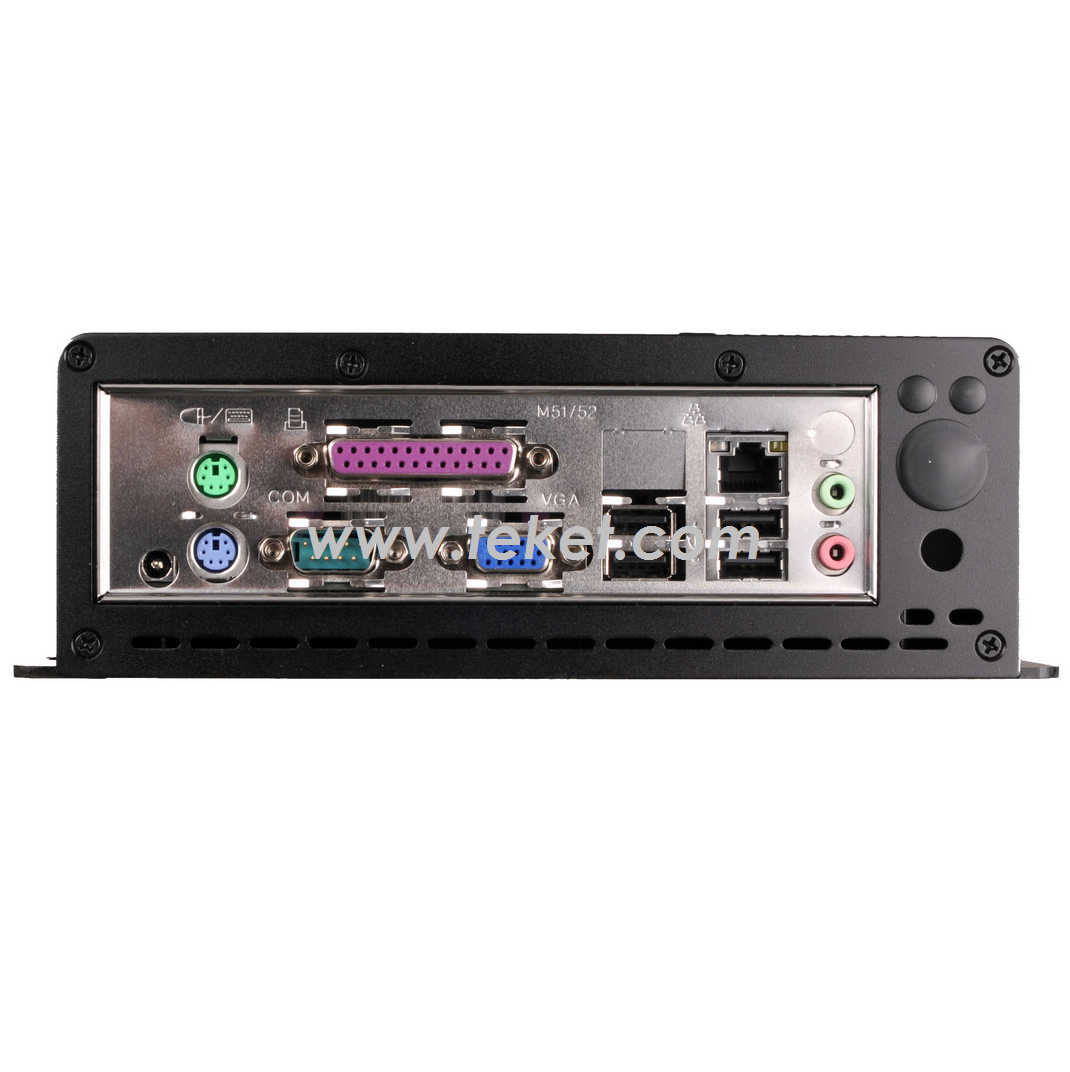

A05 MINI-ITX Chassis Series Case (S100/S120/S170/S180)

Key Specifications/Special Features: Model No.: A05
Case dimensions(mm):
A05-S100: 204x214x70 (standard model)
A05-S120: 256*217*70
A05-S170: 294*200*63
A05-S180: 254*234*80

Color: white
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,1*HDD
Application: IPC with multiple series ports up to 5 ports
Net weight: 1115g

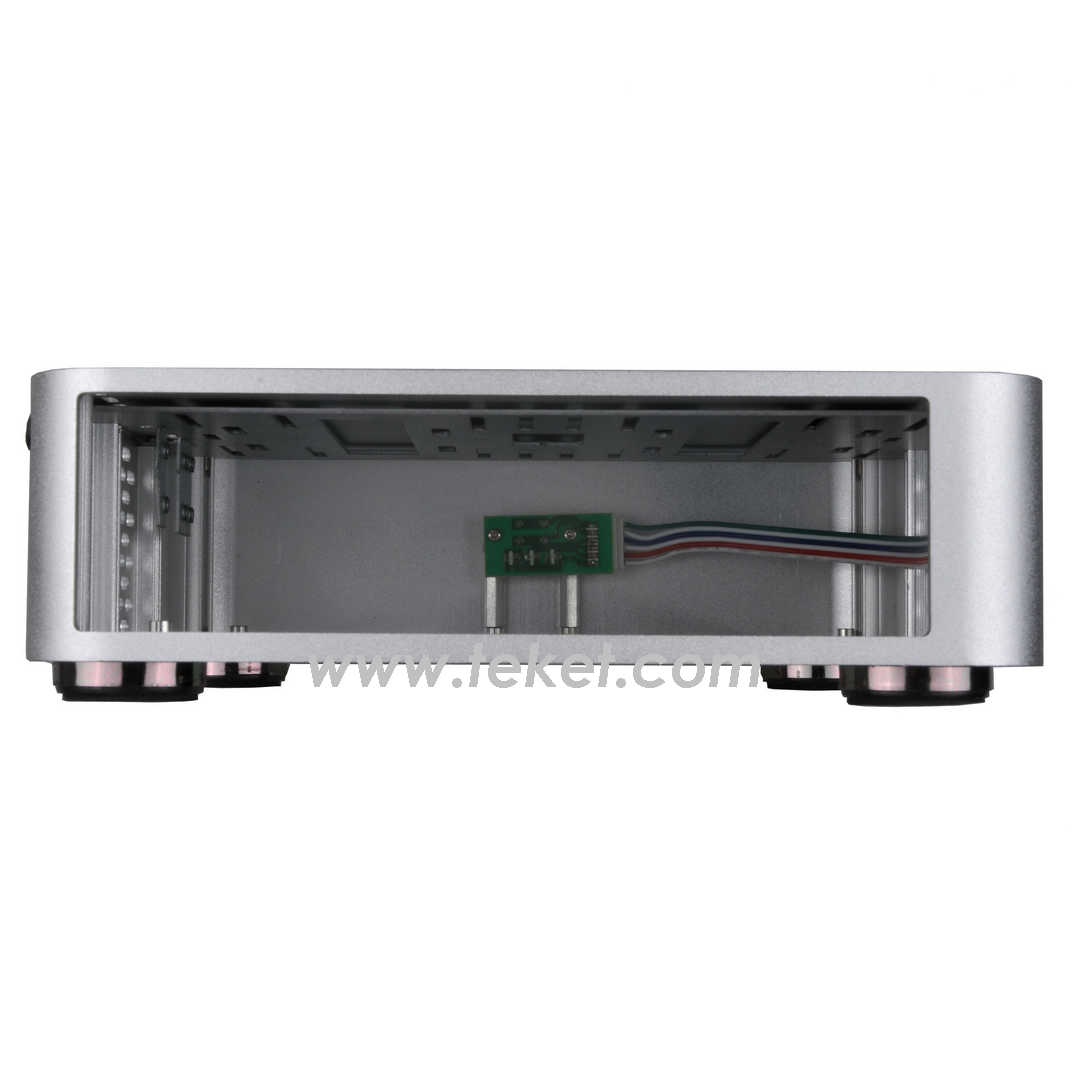

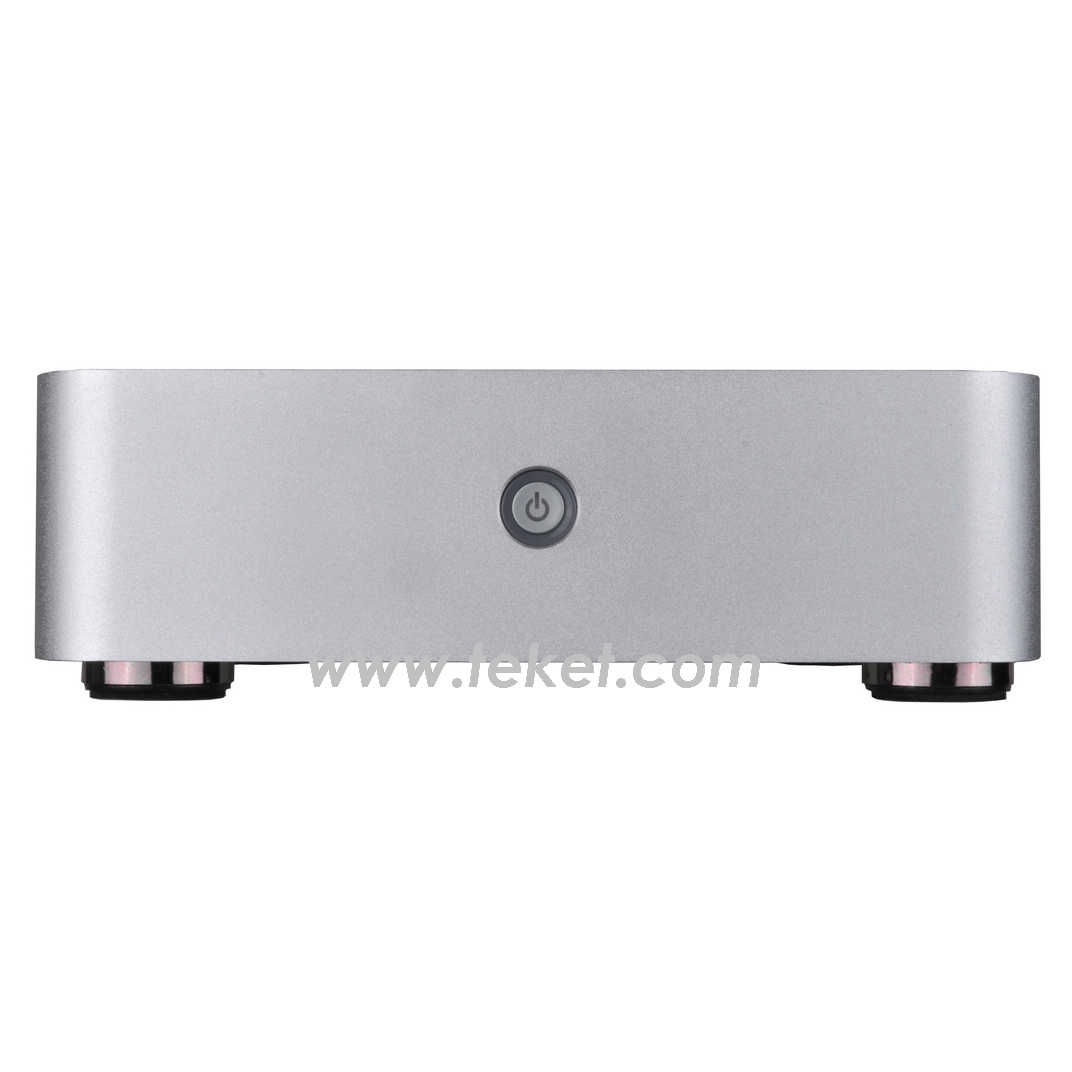

A06 MINI-ITX Chassis Series Case (S197)

Key Specifications/Special Features:
A06-H47 (47mm height): slim model,half height I/O shield
A06-H55 (55mm height): standard model, full height I/O shield
A06-H80 (80mm height): add slot-in DVD bay
Case dimensions(mm): 197x197x47/55/80
Color: white, black or other
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,1*POWR_LED,2*USB(option)
Application: HTPC,Think client

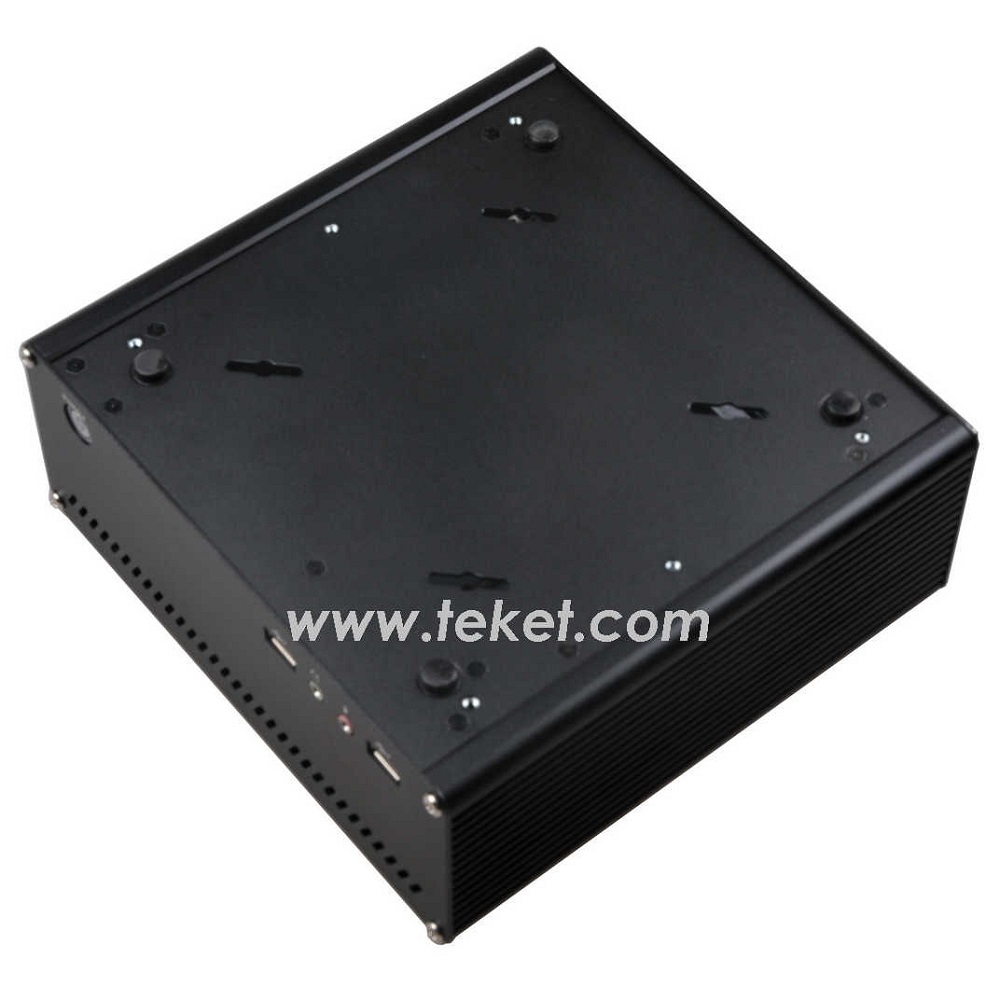

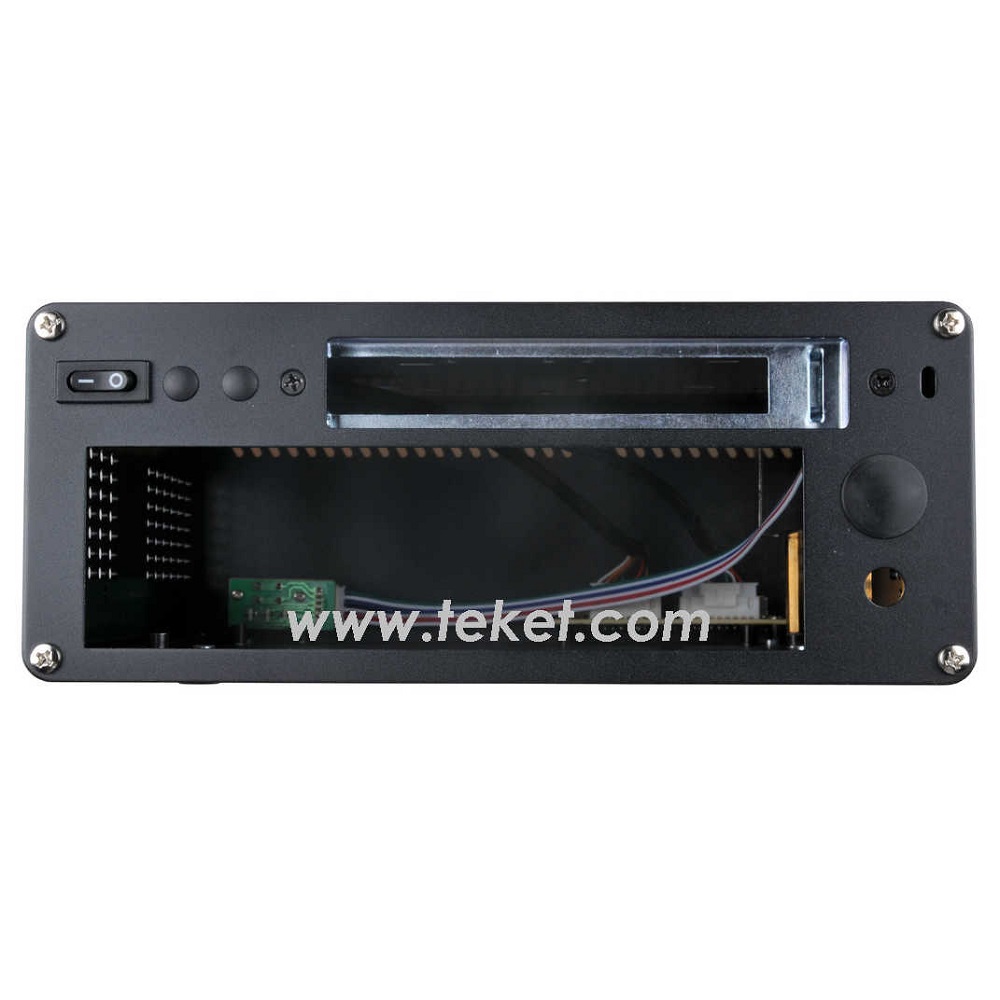

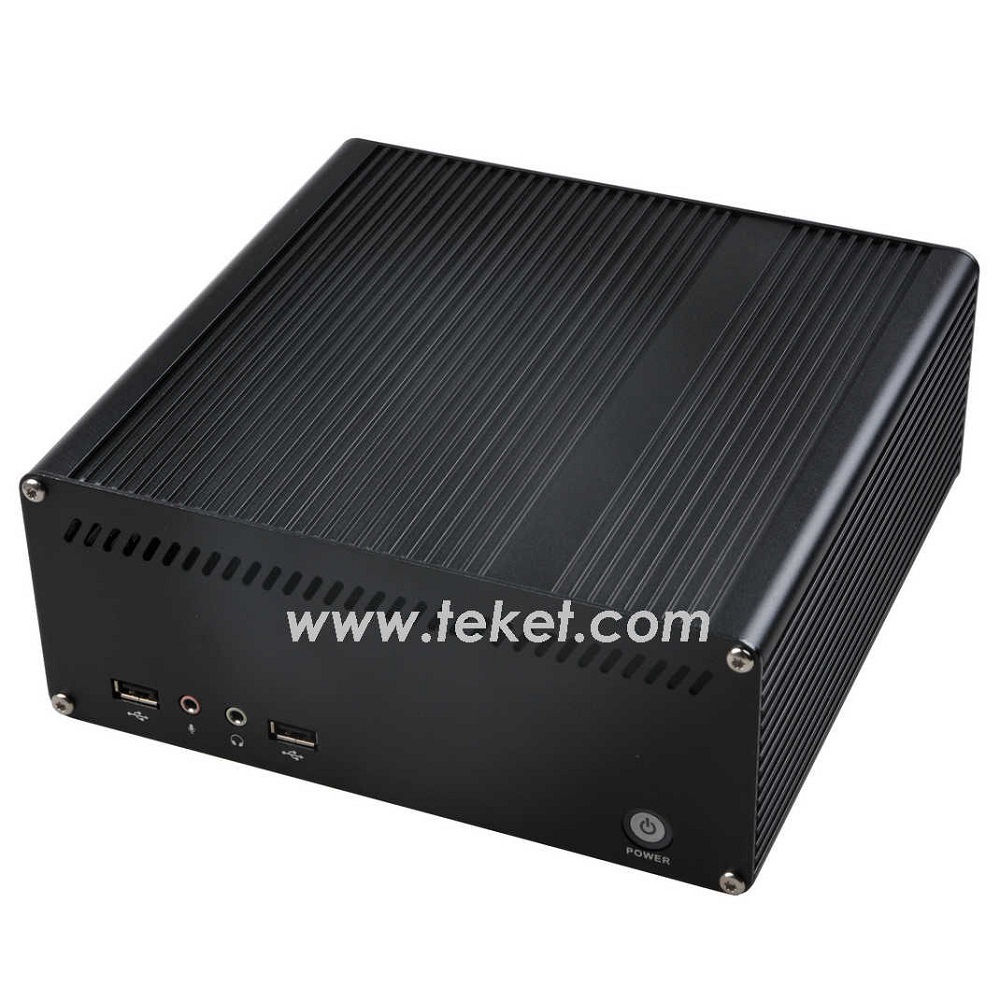

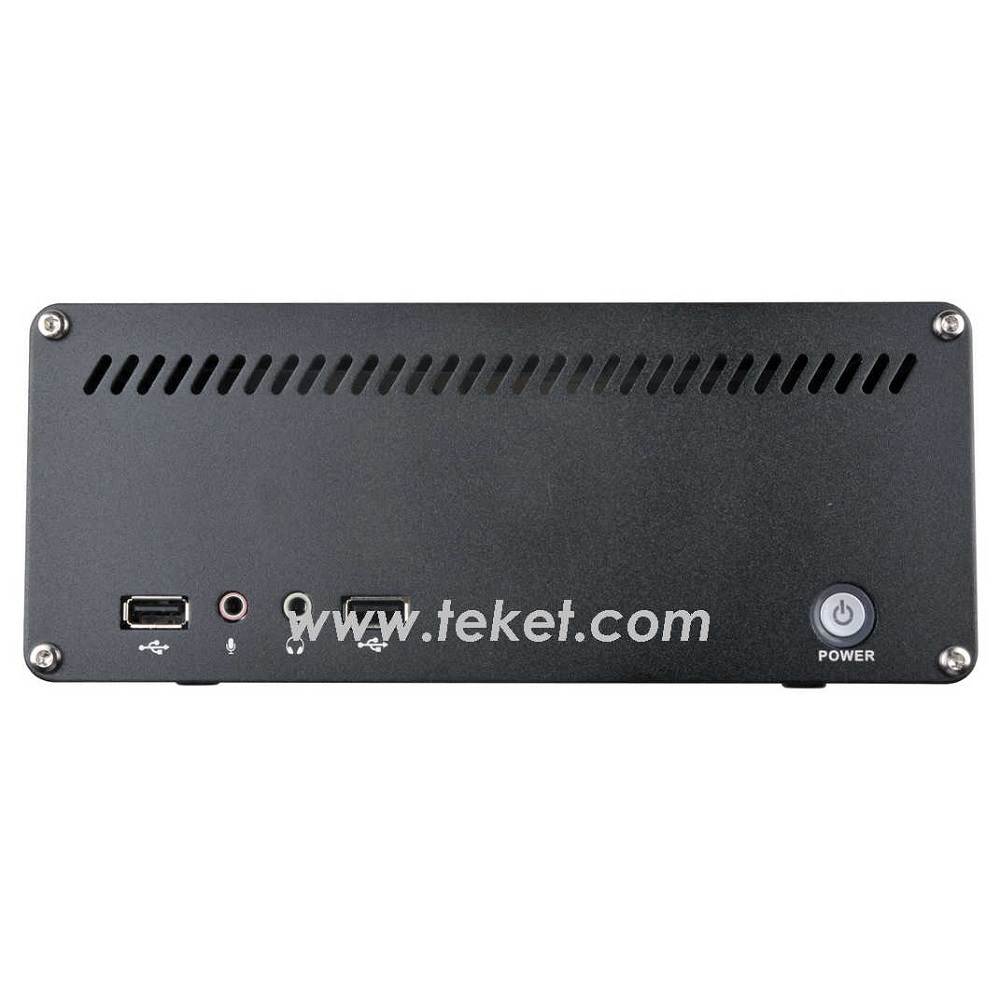

A07 MINI-ITX Chassis Series Case (X series)

Key Specifications/Special Features:
A07-H45 (45mm height): slim model,half height I/O shield
A07-H85 (85mm height): add pci/pcie slot,full height I/O shield
A07-D257 (85mm height): add pci/pcie slot,full height I/O shield

Case dimensions(mm): 204x211x45(X4),204x211x85(X7),257x211x85(X8)
Color: Black/Red/Silver other
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,1*POWR_LED,2*USB+Audio
Application: Industral PC
Net weight: 810g(A07-H45),970g(A07-H85),1010g(A07X-H85)

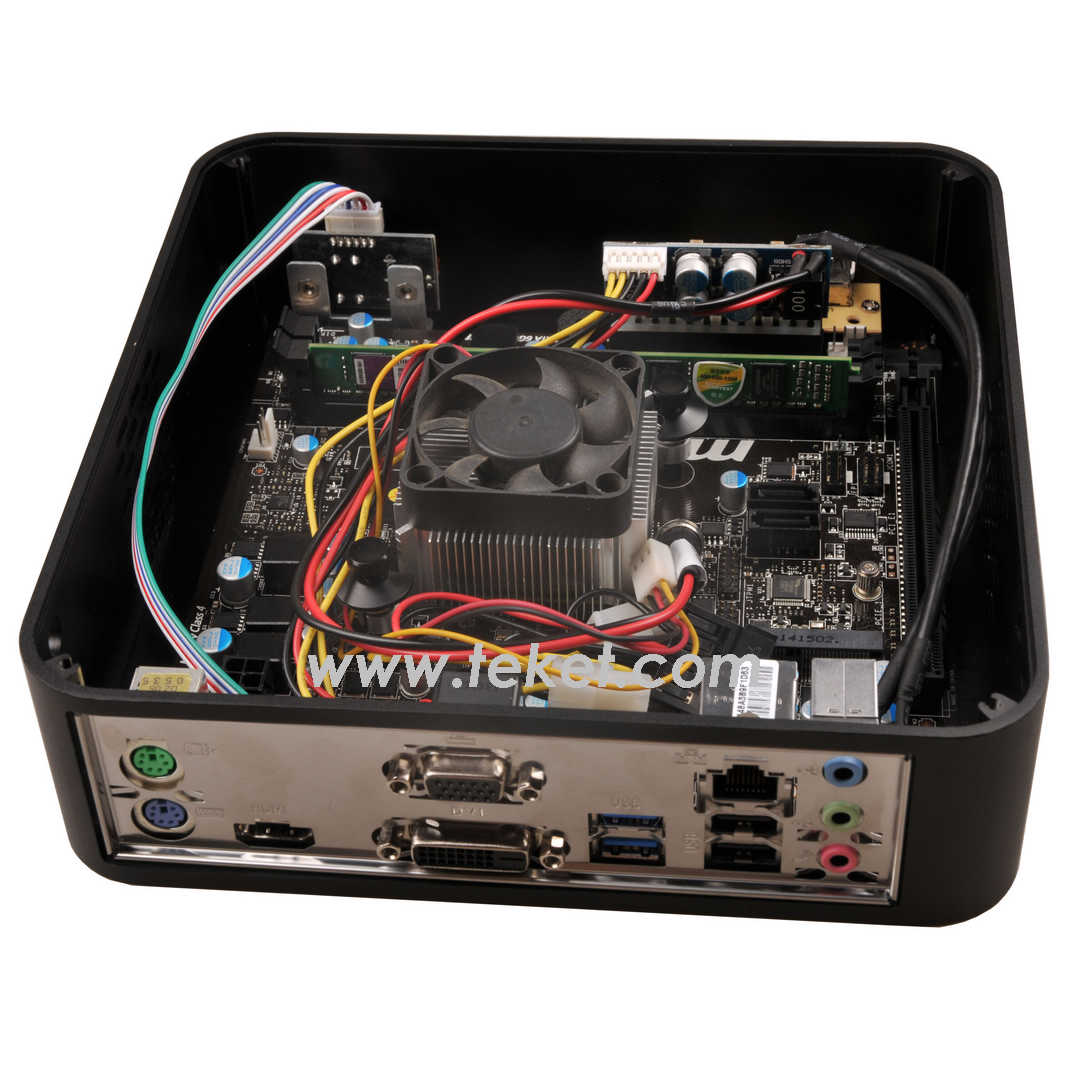

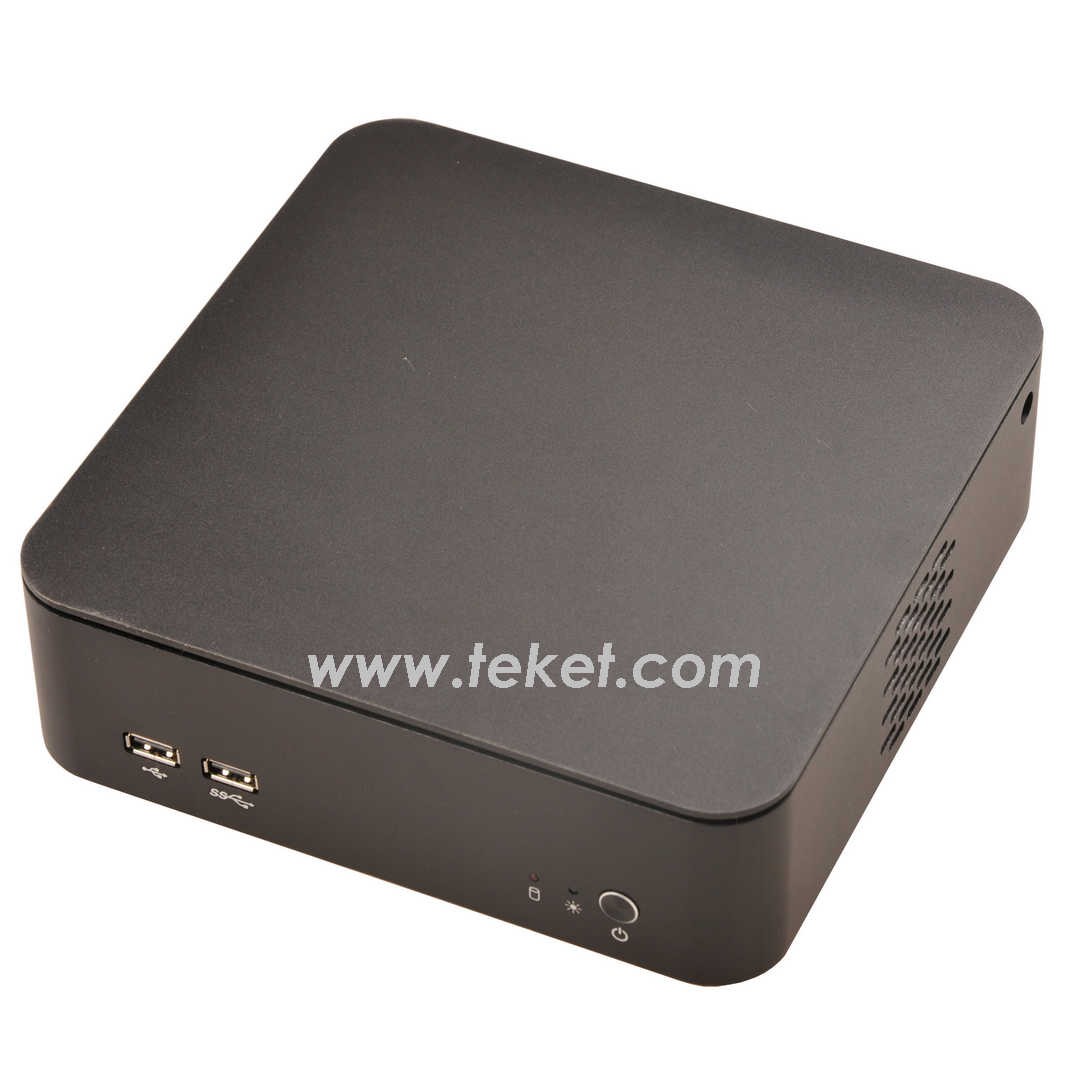

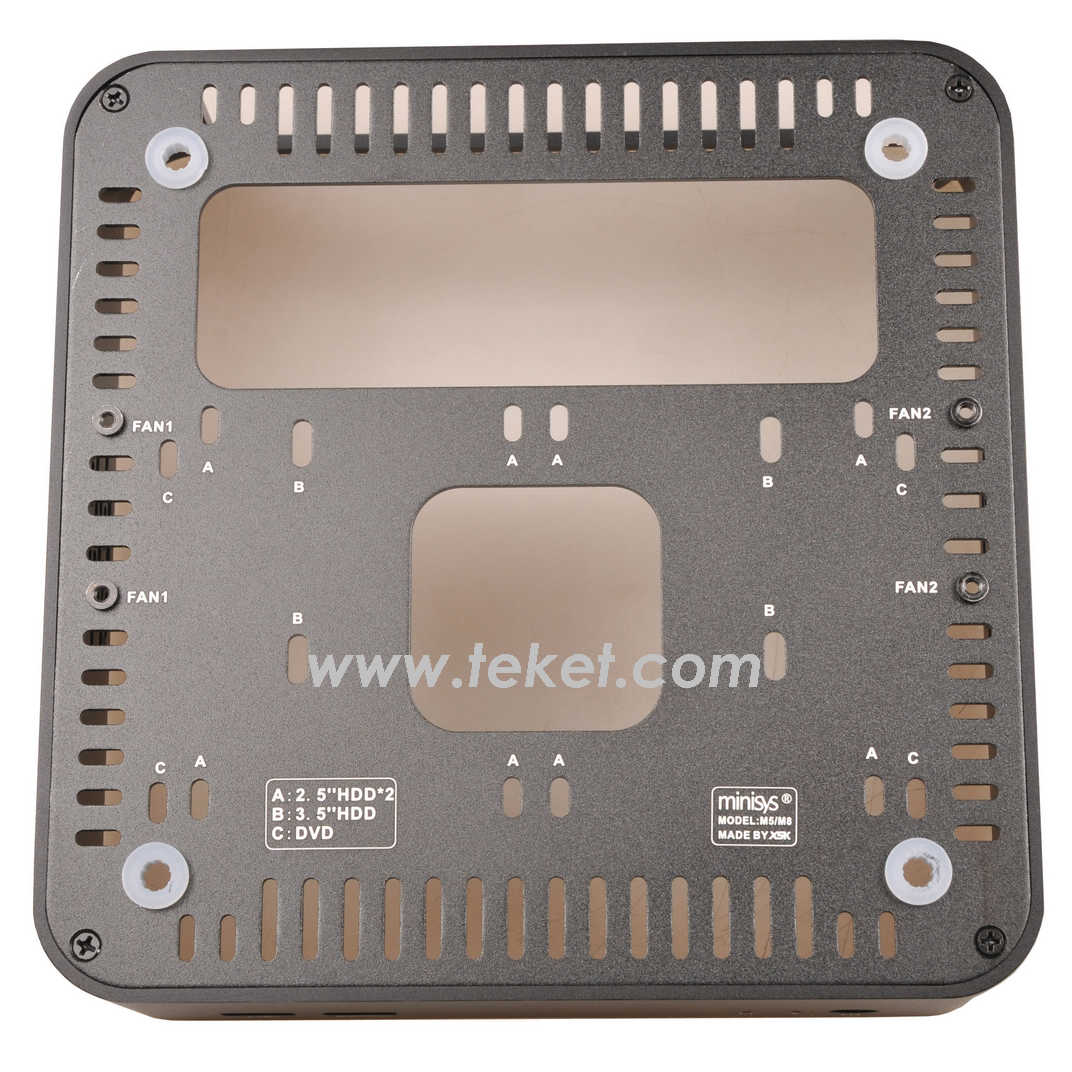

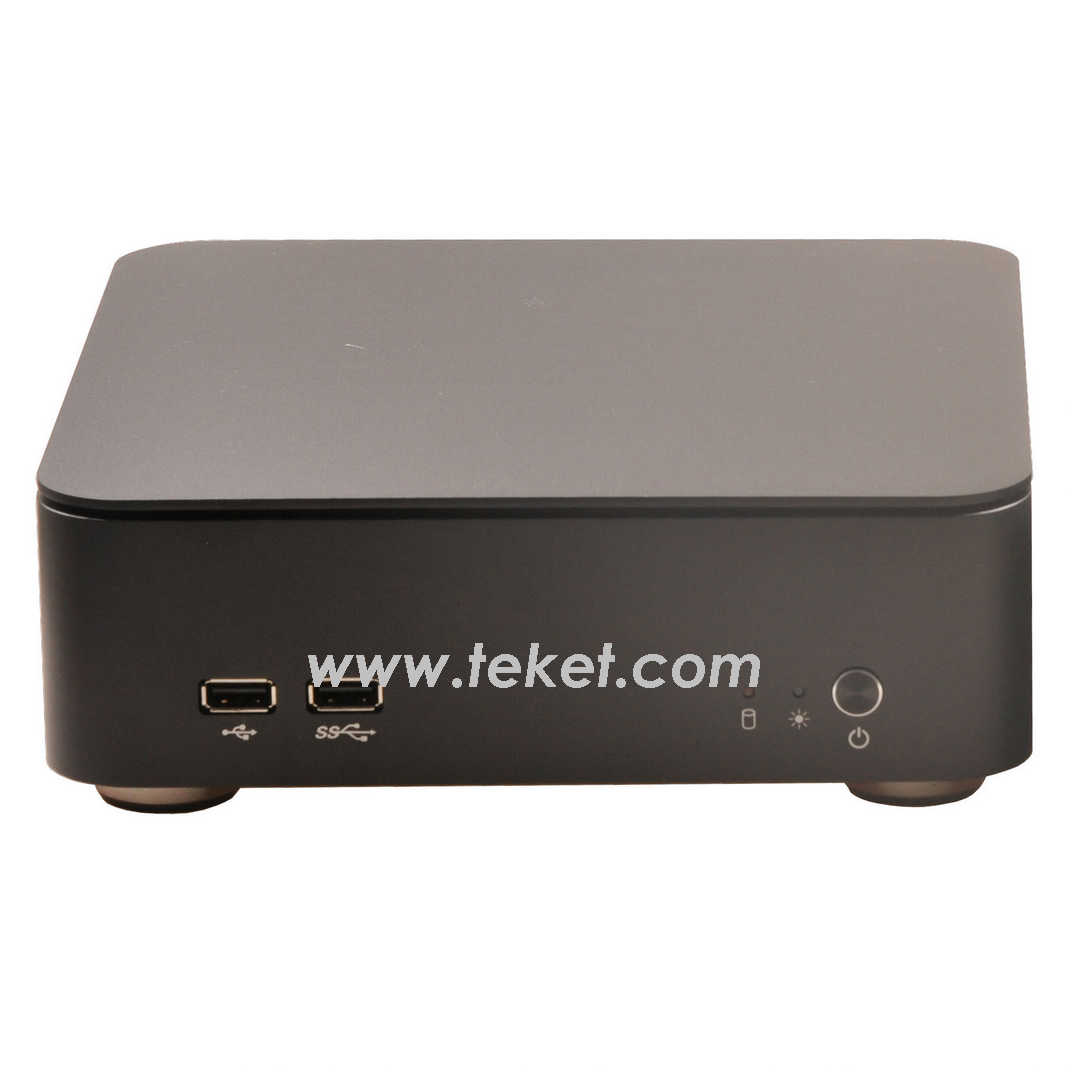

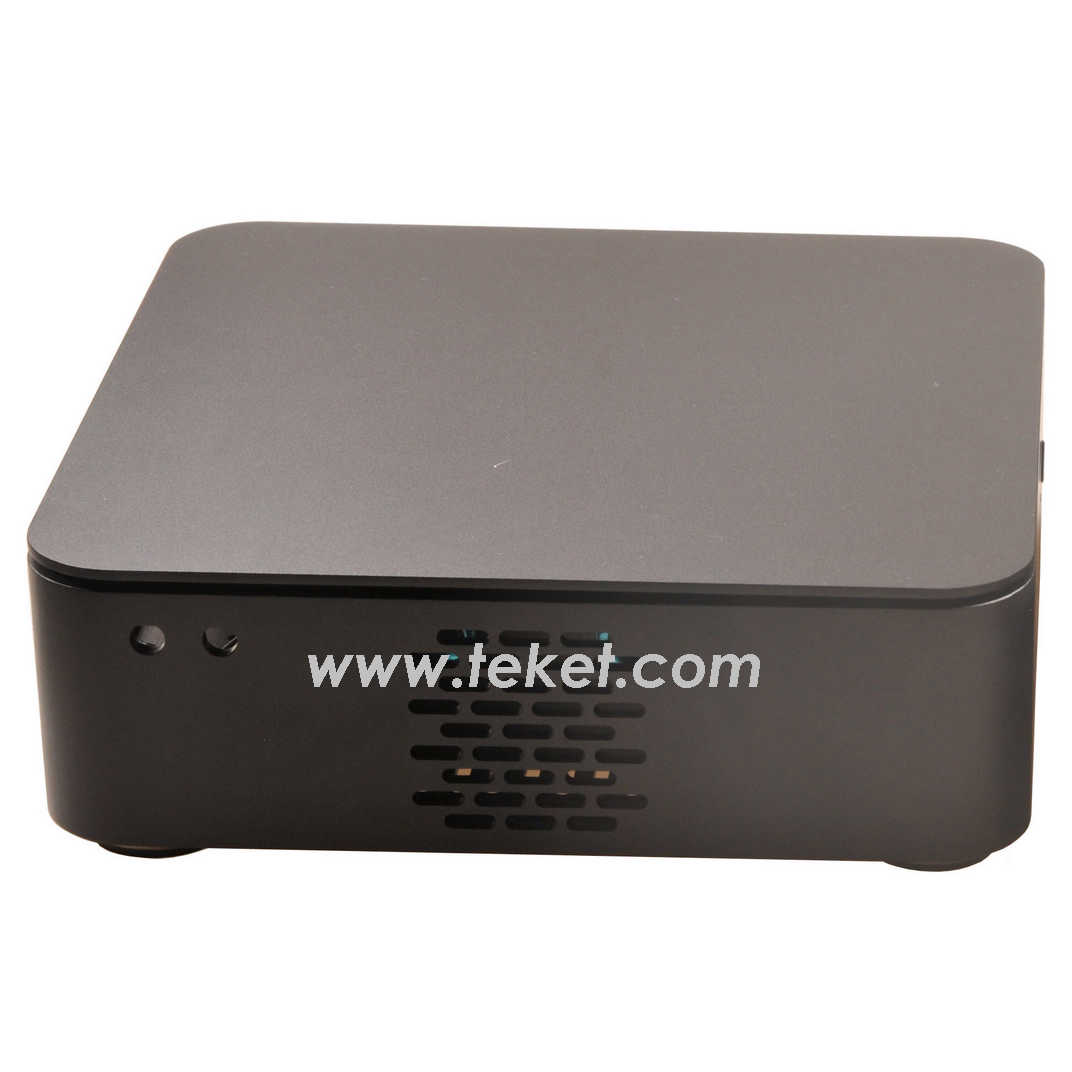

A08 MINI-ITX Chassis Series Case (S197,M5,M8)

Key Specifications/Special Features:
A08-H42 (42mm height): slim model,no I/O shield for specific motherboard
A08-H47 (47mm height): slim model,half height I/O shield
A08-H60 (60mm height): standard model, full height I/O shield
A08-H80 (80mm height): add slot-in DVD bay

Case dimensions(mm): 197x197x32/42/60/80
Color: Black/Red/Silver other
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,1*POWR_LED,2*USB(option)
Application: HTPC,Think client

Net weight: 853g (H60)

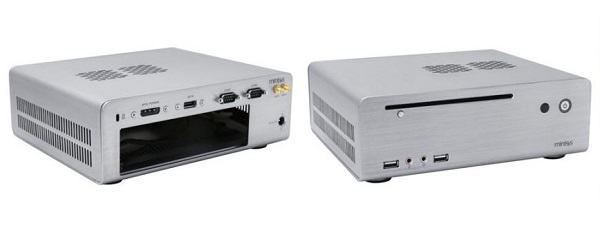

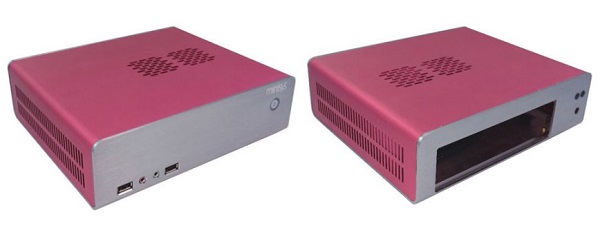

A09 MINI-ITX Chassis Series Case (HT70,HT80)

Key Specifications/Special Features:
A09-H70 (70mm height): 2*2.5"hdd or 1*3.5"hdd support
A09-H80 (80mm height): add slot-in DVD bay,1*2.5"or 1*3.5" hdd only

Case dimensions(mm): 240*204*70 or 240*204*80
Color: Black/Red/Silver other
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,1*POWR_LED,2*USB(option)
Application: HTPC,Think client

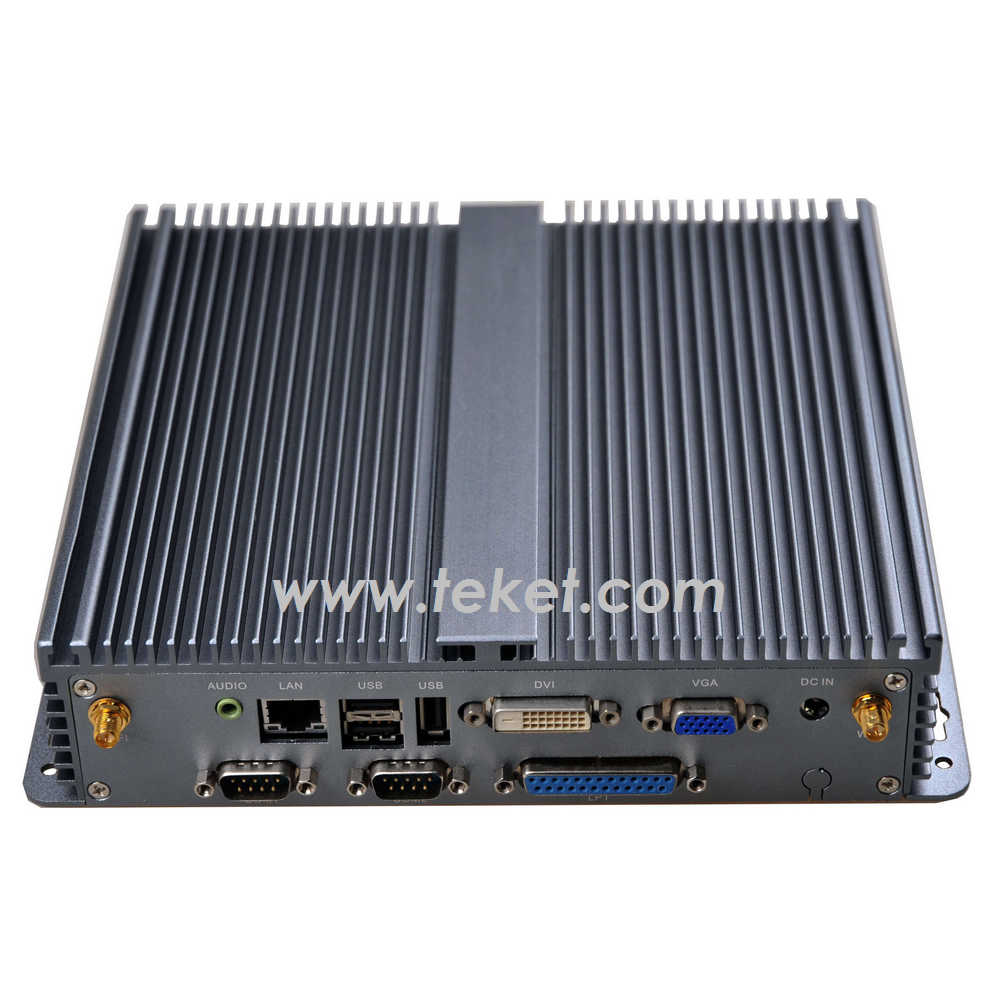

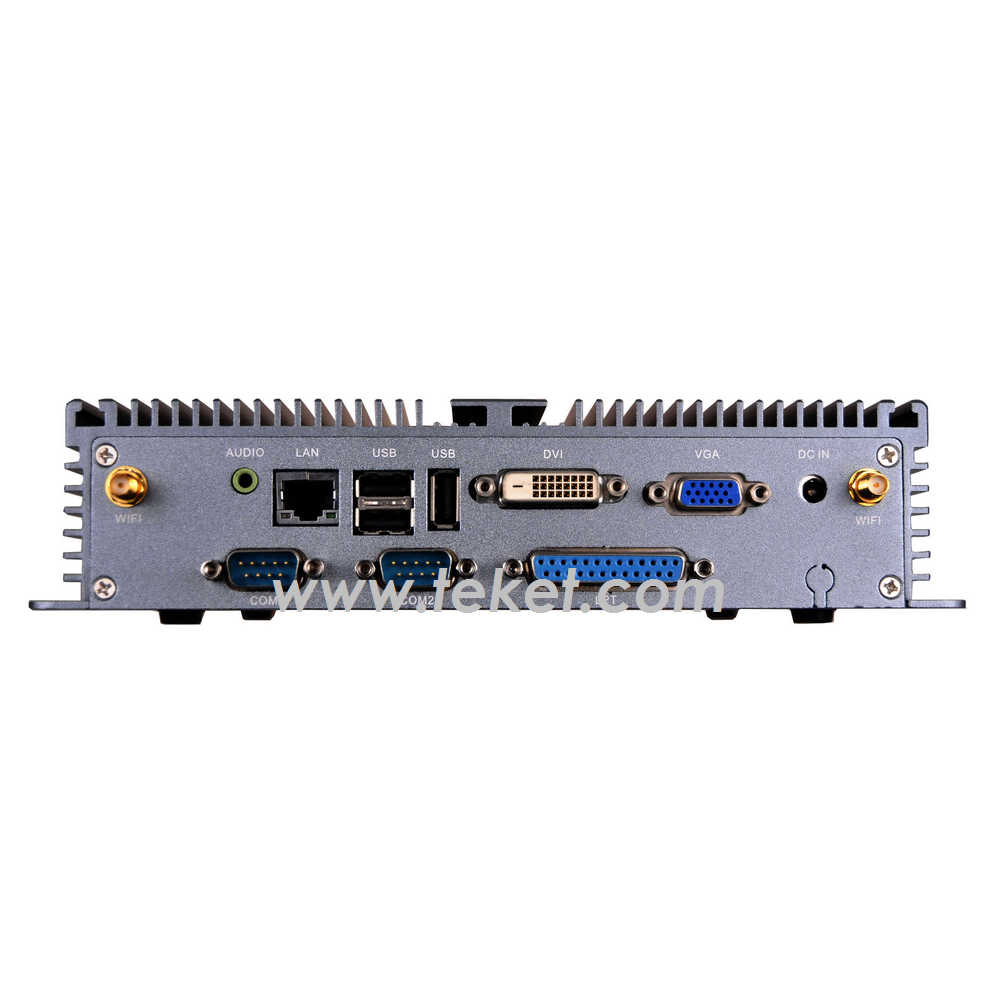

A10 MINI-ITX Chassis Series Case

Key Specifications/Special Features:
A10: 1*2.5 driver

Case dimensions(mm): 234*204*54
Color: Black/Red/Silver other
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,4*USB
Application: Industral Applicaton

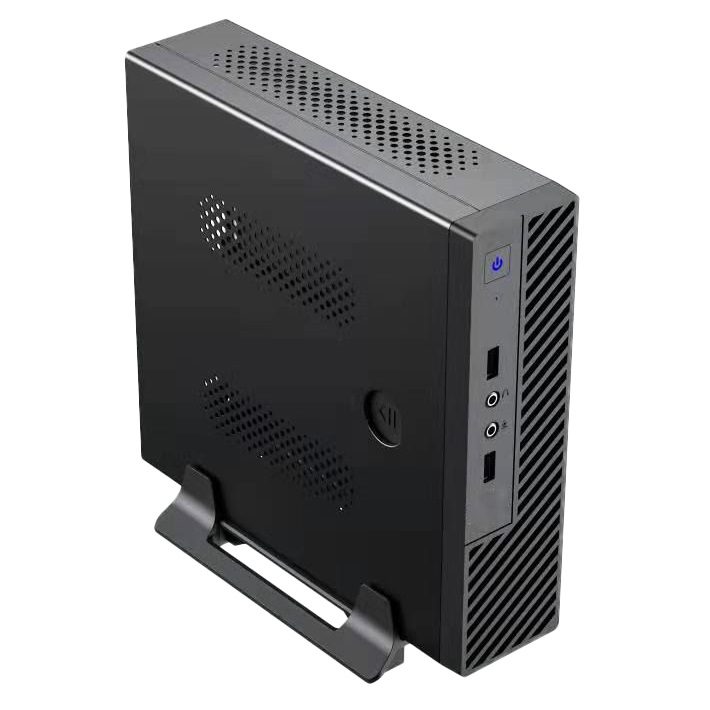

A11 MINI-ITX Chassis Series Case

Key Specifications/Special Features:
A11:N/A
Case dimensions(mm): 212*200*55
Color: Black/Red/Silver other
Main board size(mm): 170x170
All metal material with EMI approval

Front port: 1*POWER_SW,2*USB
Application: Industral Applicaton
