-->> Intel NUC Kits MINI PC <<--

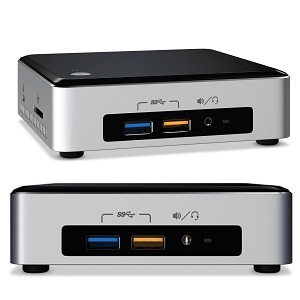

The Intel® NUC is a powerful 4x4-inch mini PC with
entertainment, gaming, and productivity features, including a customizable
board that is ready to accept the memory, storage, and operating systems
that you want.
The Intel® NUC kit features a customizable board and chassis that are
ready to accept a wide variety of memory, storage, and operating systems.
For businesses, students, educators, and DIYers.
Intel® NUC Kits
•Customizable kit, configurable features
•Choose memory, storage, and operating system
•Supported by a range of processors from Intel Atom® to Intel® Core™

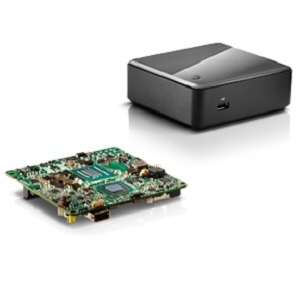

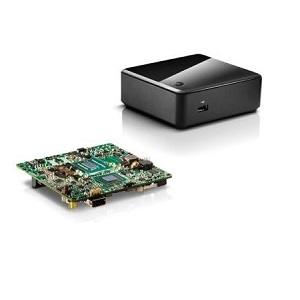

Intel® NUC Boards
•4x4-inch form factor with soldered-on processor
•Board can be purchased independently of the kit for select SKUs
•Flexible chassis configuration
|

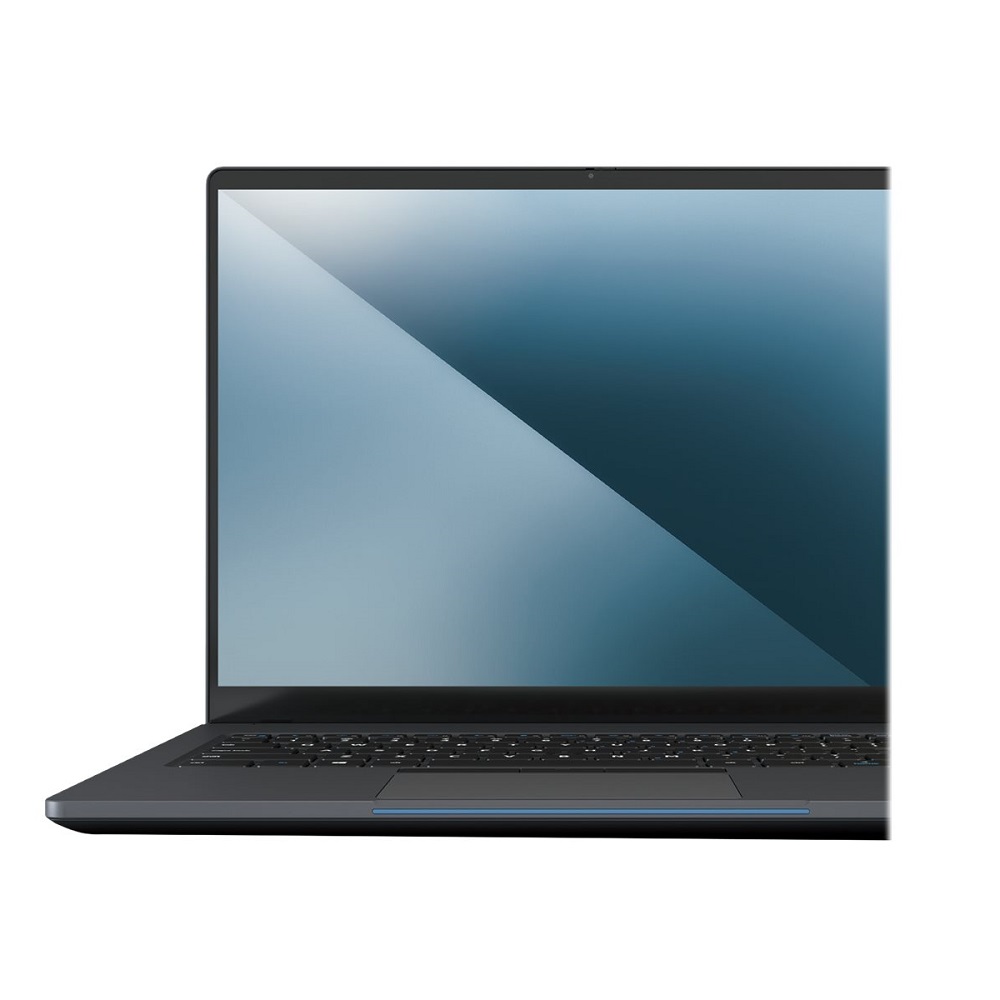

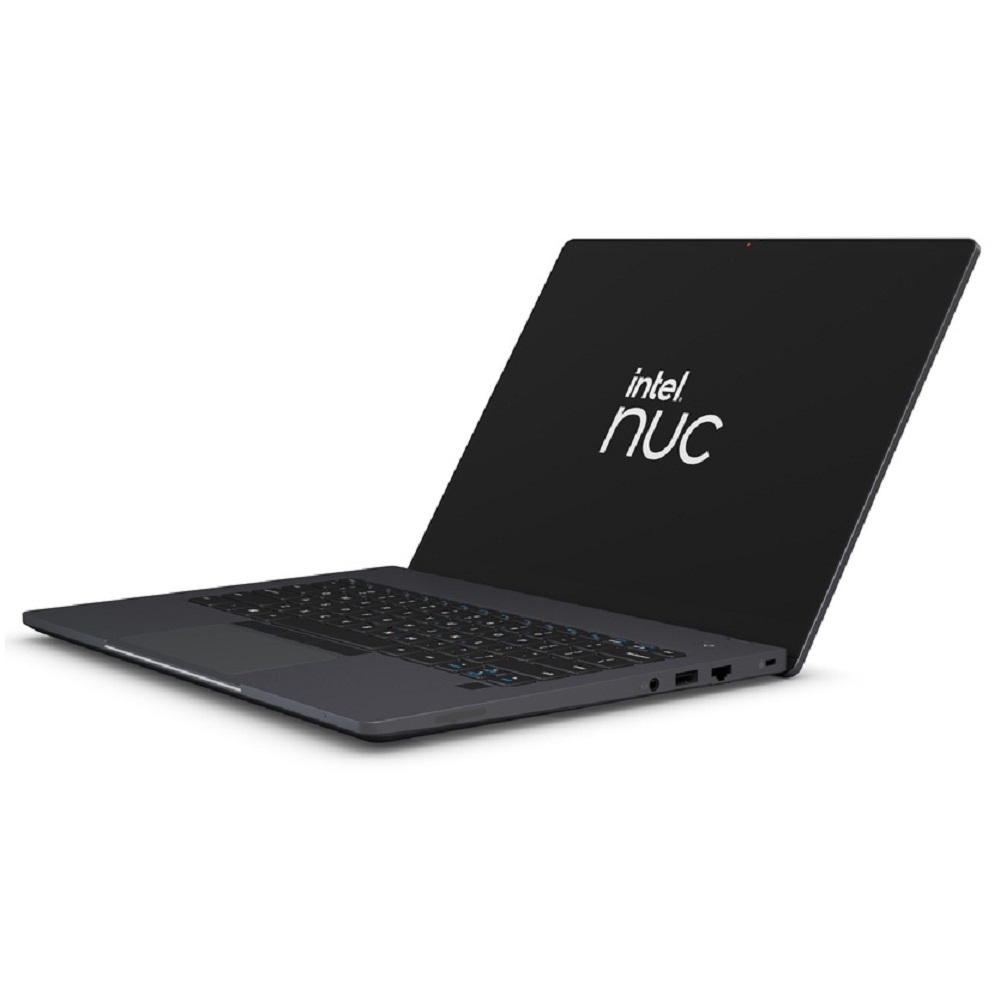

| Intel NUC 12th Gen CPU P14E Laptop Whitebook |
  |
12th Generation Intel Core Processors
i5-1240P i7-1255U i7-1260P

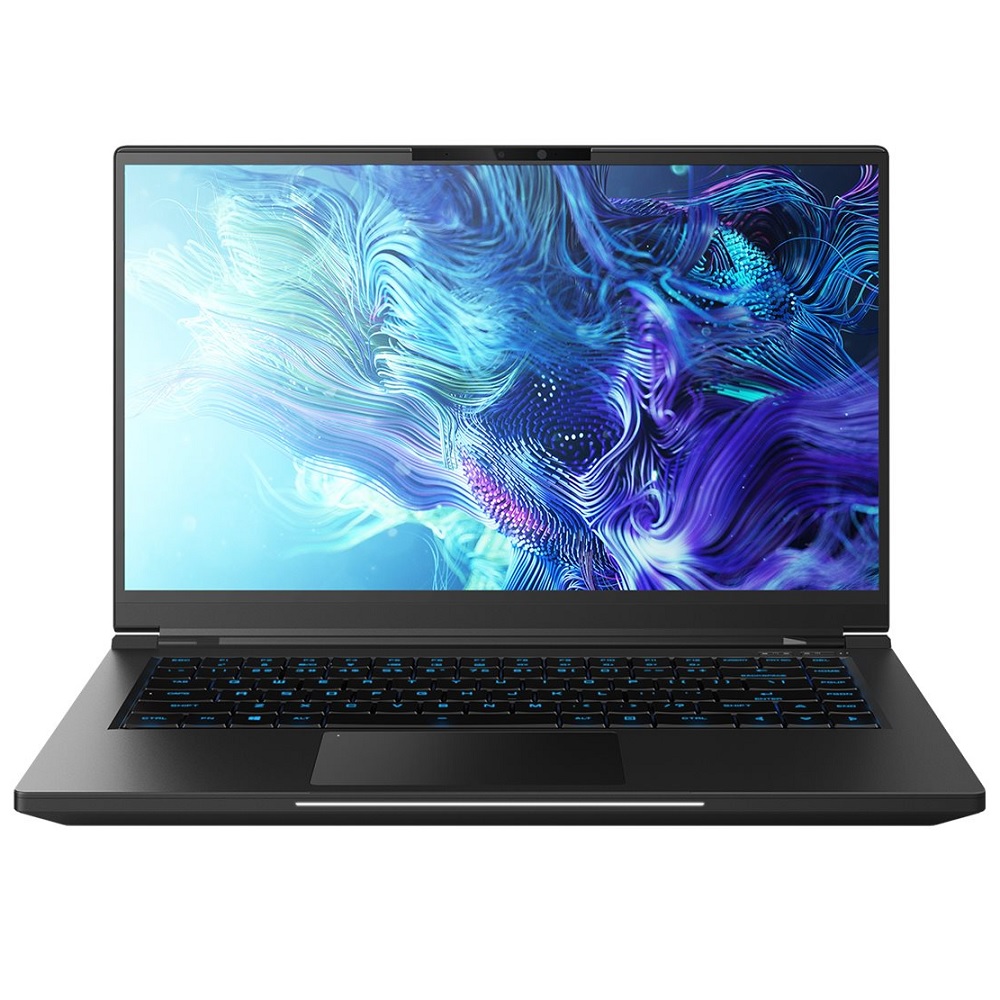

Intel® NUC P14E Laptop Kit - CMCN1CC i5-1240P
Intel® NUC P14E Laptop Kit - CMCN1CC i7-1260P
Intel® Core™ i5-1240P Processor (12M Cache, up to 3.30/4.40 GHz, with
IPU) Cores 12 Threads 16 Threads Intel Iris Xe Graphics 1.30 GHz
Intel® Core™ i7-1255U Processor (12M Cache, up to 3.50/4.70 GHz, with
IPU) Cores 10 Threads 12 Threads Intel Iris Xe Graphics 1.25 GHz
Intel® Core™ i7-1260P Processor (18M Cache, up to 3.40/4.70 GHz, with
IPU) Cores 12 Threads 16 Threads Intel Iris Xe Graphics 1.40 GHz
Code Name Products formerly Alder Lake
Processor Graphics ‡ Intel® Iris® Xe Graphics eligible
IPS panel resolution 3000x2000 400nits
Lithography intel7
TDP 28 W
16GB LPDDR5-5200Mhz
Chassis Dimensions 303.6mm x 229.4mm x 16.55mm
Warranty Period 2 yrs |
| Intel NUC 12th Gen CPU M15 Laptop Whitebook |
  |
12th Generation Intel Core Processors
i5-1240P i7-1255U i7-1260P
Intel® NUC M15 Laptop Kit - LAPRC710
Intel® NUC M15 Laptop Kit - LAPBC710
Intel® Core™ i5-1240P Processor (12M Cache, up to 3.30/4.40 GHz, with
IPU) Cores 12 Threads 16 Threads Intel Iris Xe Graphics 1.30 GHz
Intel® Core™ i7-1255U Processor (12M Cache, up to 3.50/4.70 GHz, with
IPU) Cores 10 Threads 12 Threads Intel Iris Xe Graphics 1.25 GHz
Intel® Core™ i7-1260P Processor (18M Cache, up to 3.40/4.70 GHz, with
IPU) Cores 12 Threads 16 Threads Intel Iris Xe Graphics 1.40 GHz
Code Name Products formerly Alder Lake
Processor Graphics ‡ Intel® Iris® Xe Graphics eligible
IPS panel resolution 1920x1080
Lithography intel7
TDP 28 W
16GB LPDDR5-5200Mhz
Chassis Dimensions 355mm x 230mm x 15mm
Warranty Period 2 yrs |

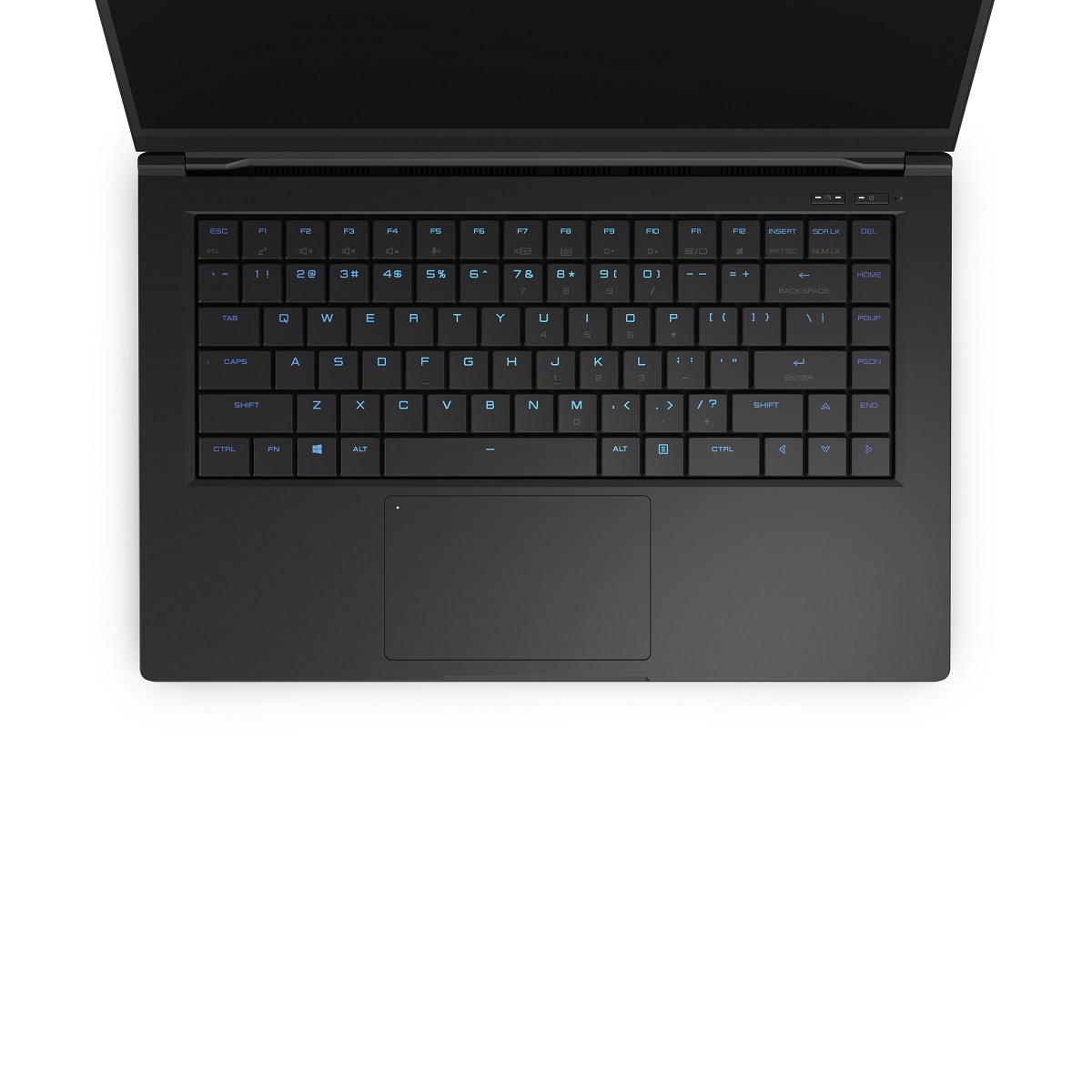

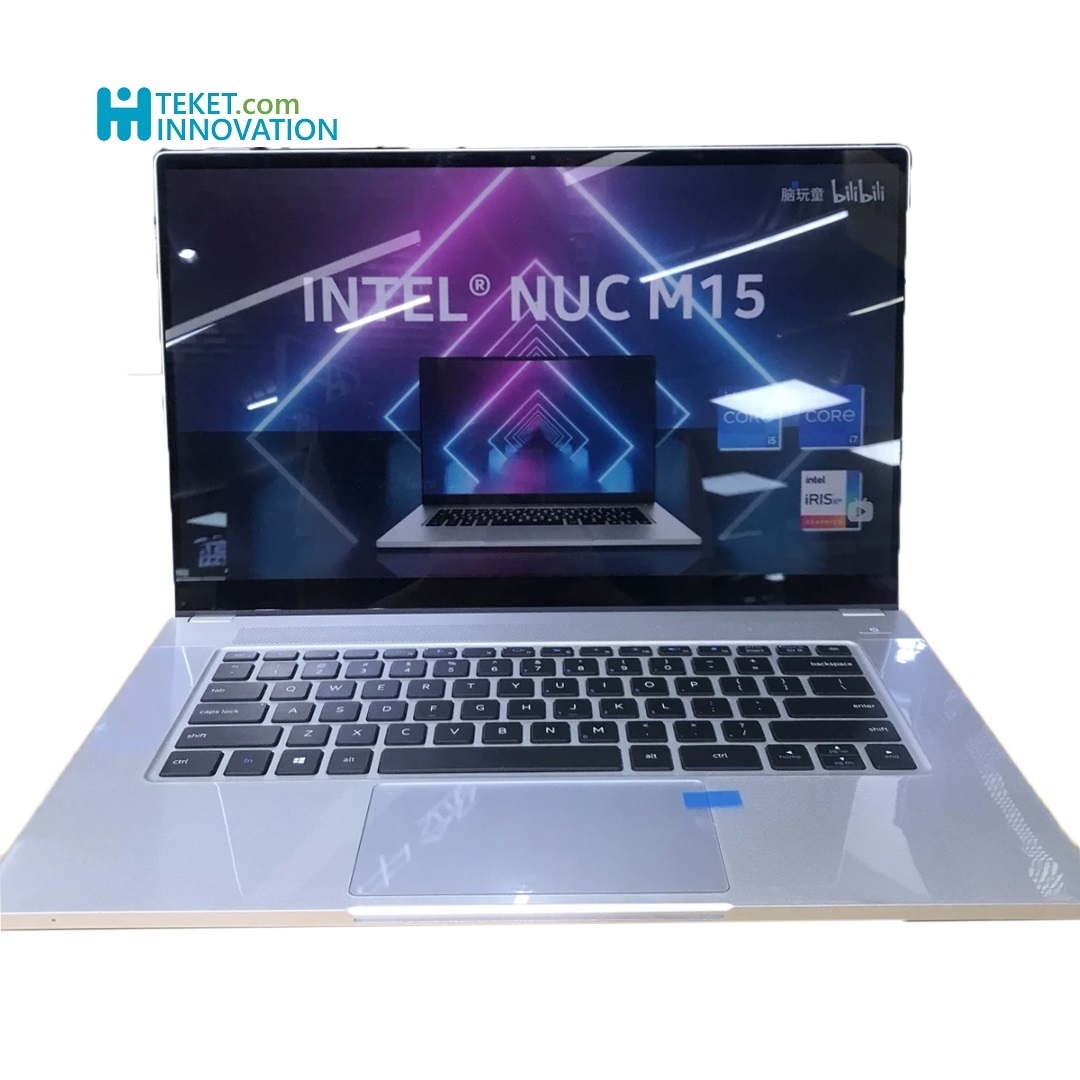

| Intel NUC King County Series M15 Laptop Whitebook |
  |
Intel NUC M15 Laptop Kit LAPBC510 with
11th Generation Intel Core Processors i5-1135G7
Intel NUC M15 Laptop Kit LPABC710 with 11th Generation Intel Core Processors
i7-1165G7
Intel NUC M15 Laptop Kits feature a premium-quality design and Intel's
latest processors and technology.
Intel Core i5-1135G7 Processor (8M Cache, up to 4.20 GHz, with IPU) Intel
Wi-Fi 6 AX201
Intel Core i7-1165G7 Processor (12M Cache, up to 4.70 GHz, with IPU) Intel
Wi-Fi 6 AX201
Lithography 10 nm SuperFin
TDP 28 W
Included Memory 8GB/16GB Dual-Channel LPDDR4x-4266MHz
M.2 Card Slot (storage) 1
Ports 2x Thunderbolt 4
Chassis Dimensions355mm x 230mm x 14.9mm
Warranty Period 2 yrs |

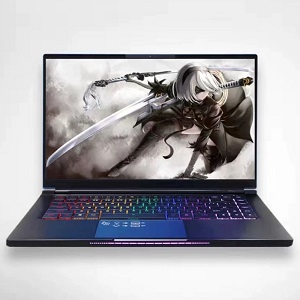

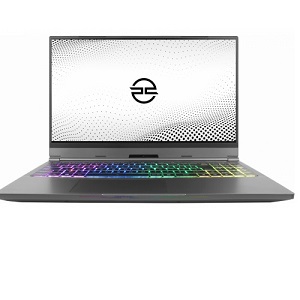

| Intel NUC 9th CPU X15 LAPQC71 Gaming Laptop Whitebook |
  |
LAPQC71
|

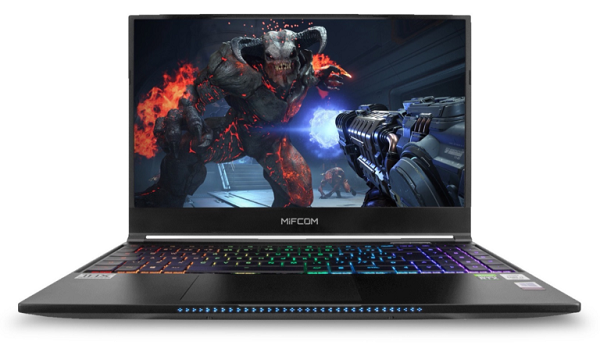

| Intel NUC 11th Gen CPU X15 LAPKC71 Gaming Laptop Whitebook |
 |
Intel NUC X15: Premium Thin and Light Laptop
for High-Performance Gaming
Features
15.6" thin and light magnesium-alloy chassis
11th Gen Intel® Core™ i7/i5 processors
NVIDIA GeForce RTX 3060/3070 graphics
Narrow bezel, IPS 16:9 display with FHD 144 Hz or new FHD 240 Hz or QHD
165 Hz
Up to 64 GB dual-channel DDR4-3200 memory
Support for Intel® Extreme Memory Profile (Intel® XMP)
PCIe Gen 4 SSD directly connected to CPU
Thunderbolt™ 4 port, 3 USB 3.2 ports, full-size HDMI port
Massive 94Whr battery
Optical-mechanical keyboard with silent switches and programmable per-key
RGB backlighting
Intel NUC X15:
Premium Thin and Light Laptop for High-Performance Gaming
Features
15.6" thin and light magnesium-alloy chassis
9th Gen Intel® Core™ i7/i5 processors
NVIDIA GeForce RTX 2060/2070S graphics
|
| Intel® NUC Products Powered by 12th Generation Intel® Core™
Processors |
  |

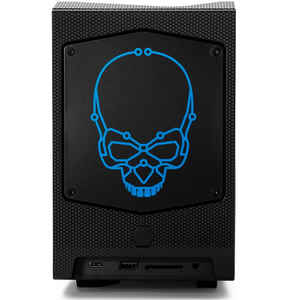

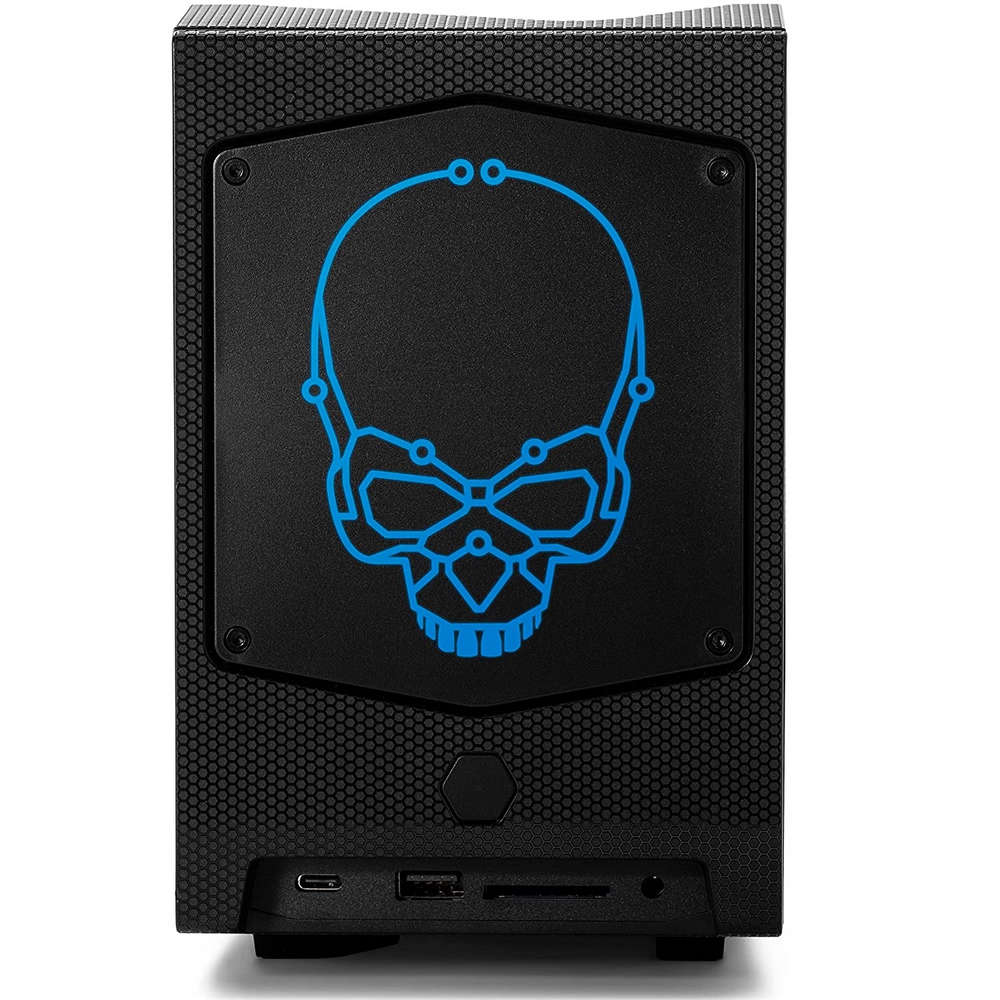

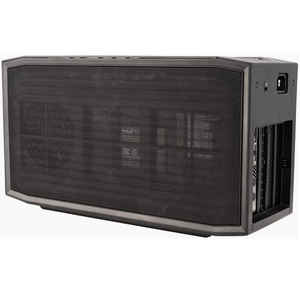

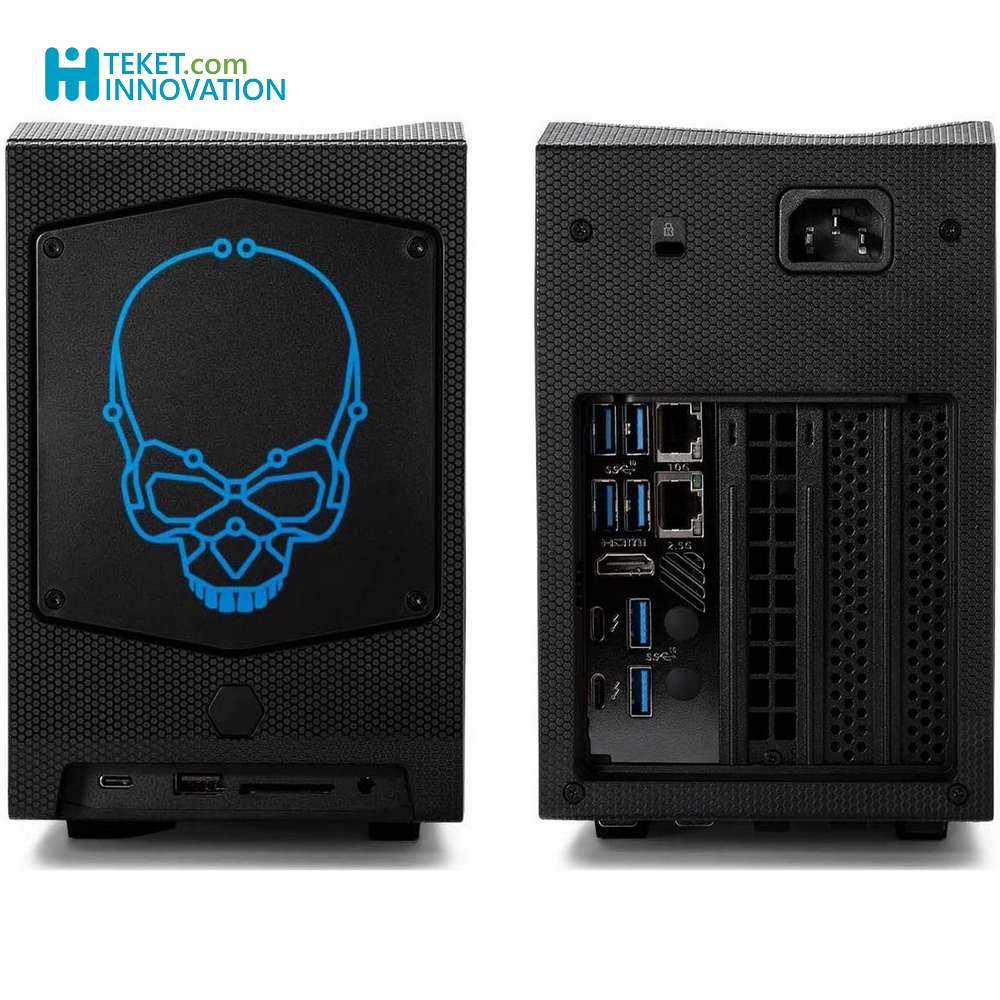

Intel NUC 12 Extreme Kit - NUC12DCMi9
Internal Drive Form Factor M.2 SSD
Processor Base Power 65W
Board Chipset Intel® Z690 Chipset
Processor Included Intel Core i9-12900 Processor (30M Cache, up to 5.10
GHz)
Total Cores 20 Total Threads 24
Efficient-core Base Frequency 1.80 GHz
Max Turbo Frequency 5.10 GHz
DDR4 3200MHz 1.2V SO-DIMM
Chassis Dimensions 357 x 189 x 120mm
Intel
NUC 12 Extreme Kit - NUC12DCMv9
Board Chipset Intel W680 Chipset
Intel vPro Platform Eligibility Yes |
  |

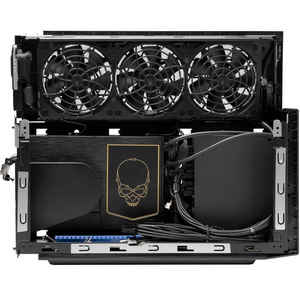

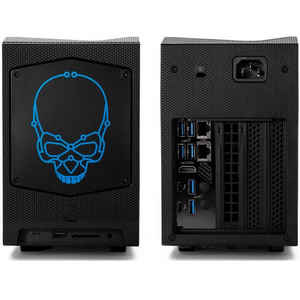

Intel NUC 12 Extreme Kit - NUC12DCMi7
Internal Drive Form Factor M.2 SSD
Processor Base Power 65W
Board Chipset Intel® Z690 Chipset
Processor Included Intel Core i7-12900 Processor (25M Cache, up to 4.90
GHz)
Total Cores 12 Total Threads 20
Efficient-core Base Frequency 1.60 GHz
Max Turbo Frequency 4.90 GHz
DDR4 3200MHz 1.2V SO-DIMM
Chassis Dimensions 357 x 189 x 120mm
Intel
NUC 12 Extreme Kit - NUC12DCMv7
Board Chipset Intel W680 Chipset
Intel vPro Platform Eligibility Yes |
  |

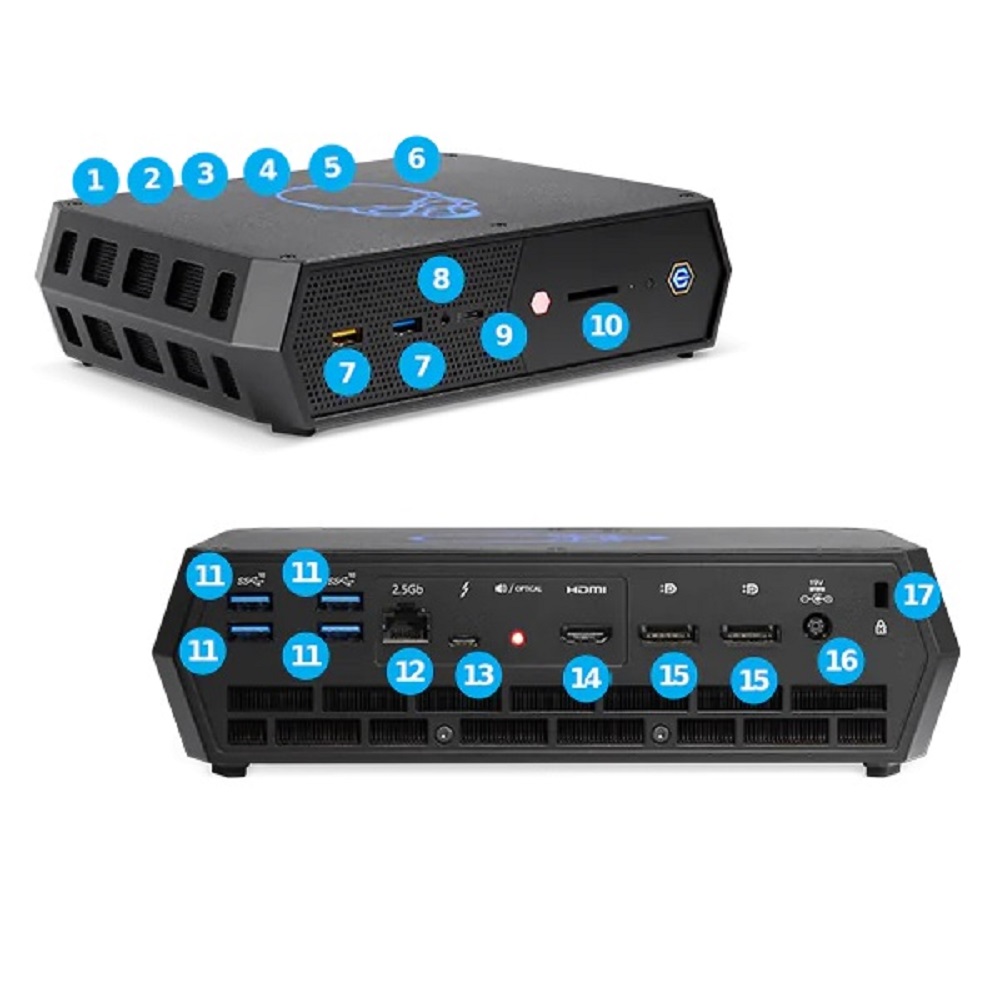

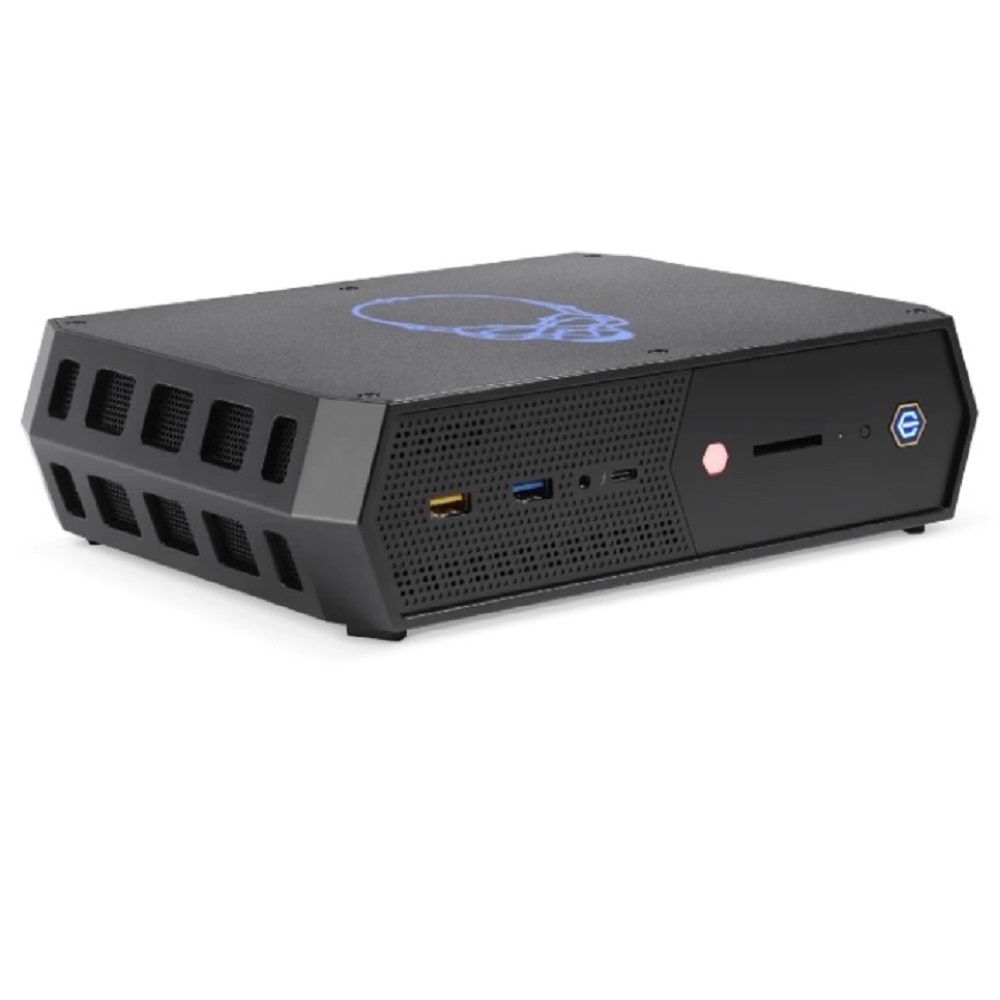

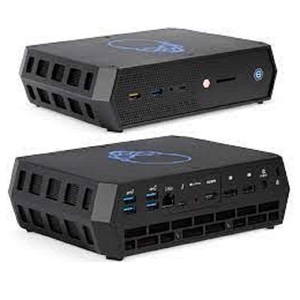

NUC12SNKi7
|
  |

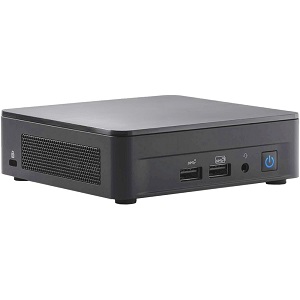

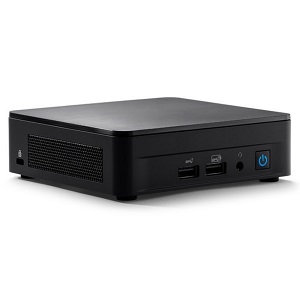

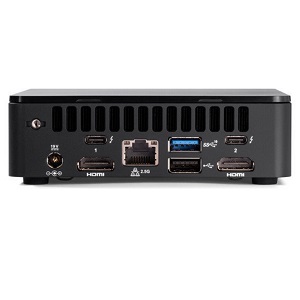

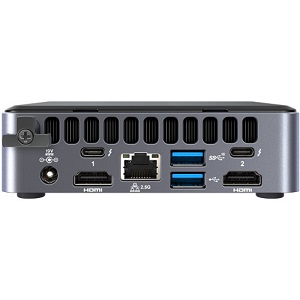

NUC12WSK
|
  |
NUC12WSKv
|
  |

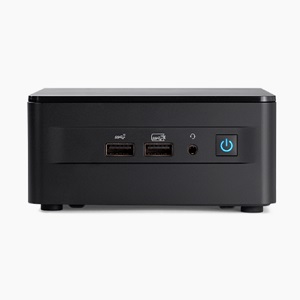

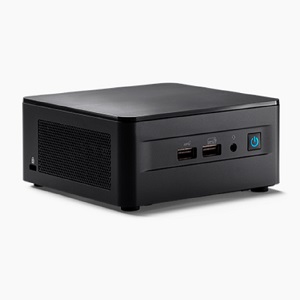

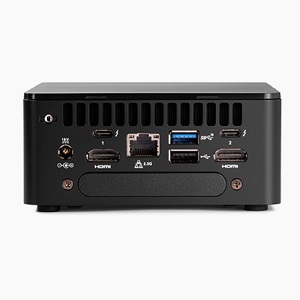

NUC12WSH
|
 |
NUC12WSHv
|
  |
NUC12WSHv70L
|
  |

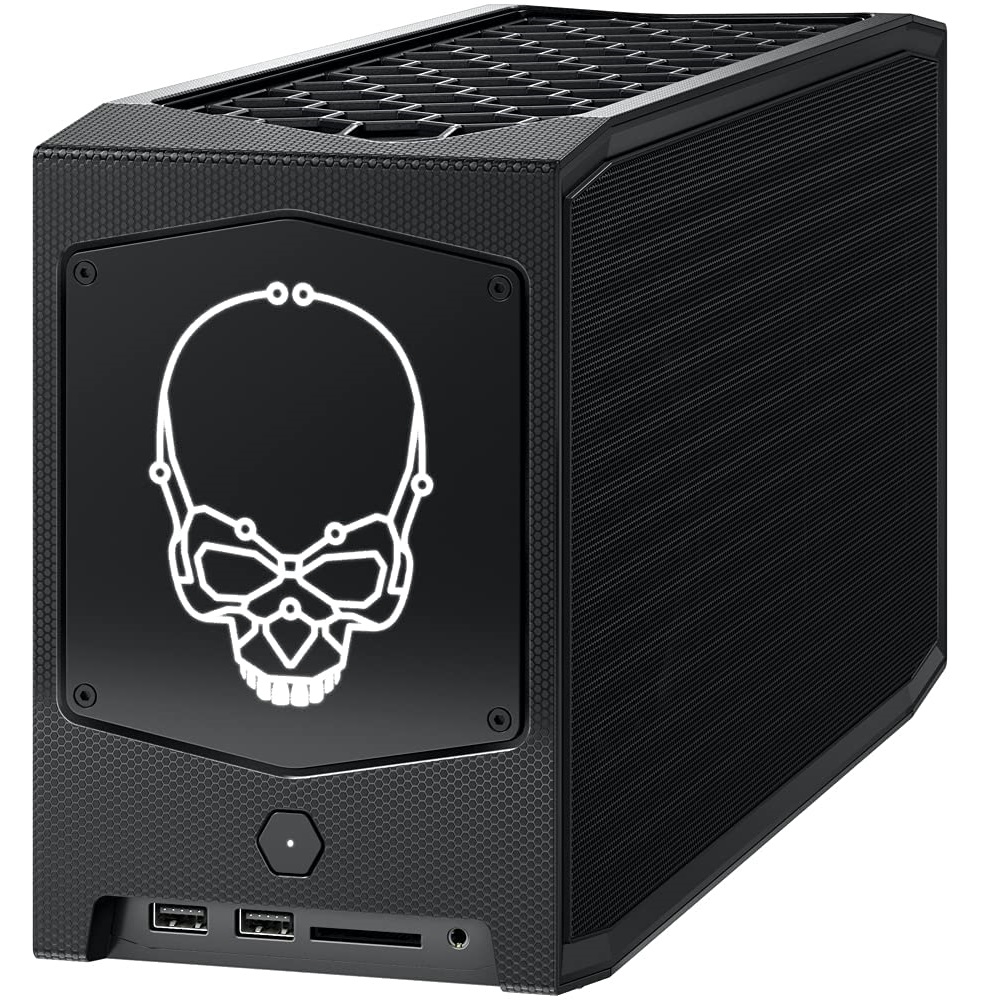

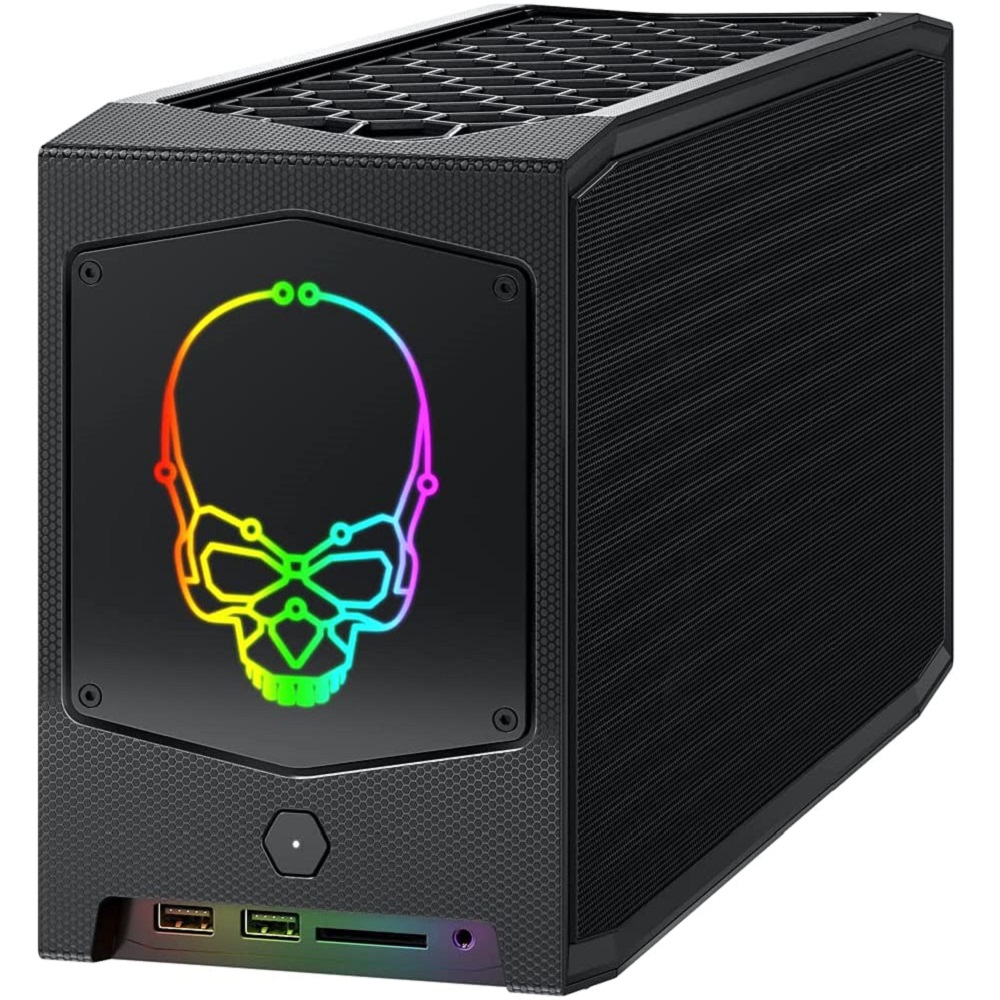

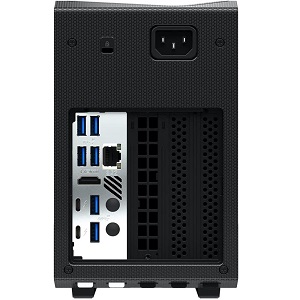

Intel NUC 11 Extreme Kit - NUC11BTMi9
Internal Drive Form Factor M.2 SSD
Lithography 10 nm SuperFin TDP 65 W
Board Chipset Intel® WM590 Chipset
Processor Included Intel Core i9-11900KB Processor (24M Cache, up to 4.90
GHz)
Total Cores 8 Total Threads 16
Processor Base Frequency 3.30 GHz
Max Turbo Frequency 4.90 GHz
DDR4 3200MHz 1.2V SO-DIMM
Chassis Dimensions 357 x 189 x 120mm |
  |

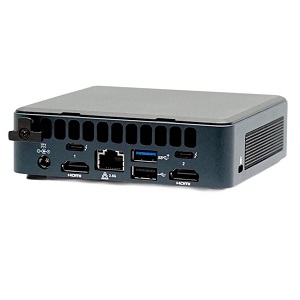

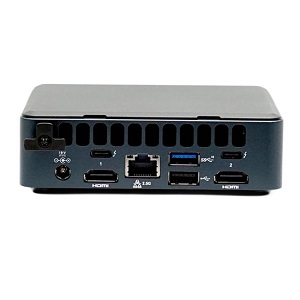

Intel® NUC 11 Pro Kit NUC11TNKi3
Intel® Core™ i3-1115G4 Processor (6M Cache, up to 4.10 GHz)
M.2 SSD Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 37 [mm] (LxWxH) Chassis Dimensions
Intel®
NUC 11 Pro Kit NUC11TNKi5
Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
M.2 SSD Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 37 [mm] (LxWxH) Chassis Dimensions
Intel®
NUC 11 Pro Kit NUC11TNKi7
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
M.2 SSD Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 37 [mm] (LxWxH) Chassis Dimensions |
  |

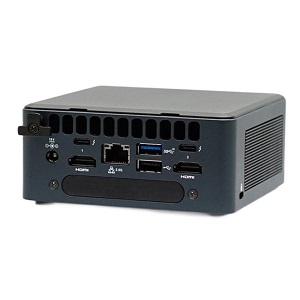

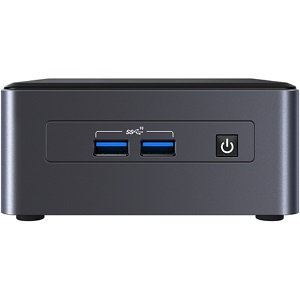

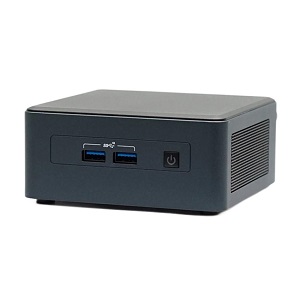

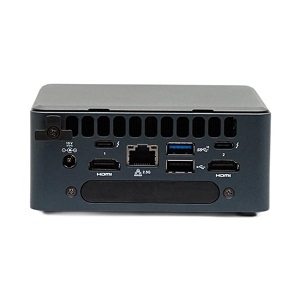

Intel® NUC 11 Pro Kit NUC11TNHi3
Intel® Core™ i3-1115G4 Processor (6M Cache, up to 4.10 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions
Intel®
NUC 11 Pro Kit NUC11TNHi5
Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions
Intel®
NUC 11 Pro Kit NUC11TNHi7
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions |
| |
|
  |

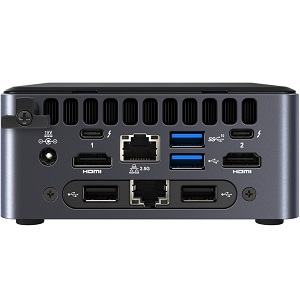

Intel® NUC 11 Pro Kit NUC11TNHi30L
Intel® Core™ i3-1115G4 Processor (6M Cache, up to 4.10 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions
Intel®
NUC 11 Pro Kit NUC11TNHi50L
Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions
Intel® NUC 11 Pro Kit NUC11TNHi70L
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions |
|
Intel® NUC 11 Pro Kit NUC11TNHi30P
Intel® Core™ i3-1115G4 Processor (6M Cache, up to 4.10 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions
Intel® NUC 11 Pro Kit NUC11TNHi50W
Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions
Intel® NUC 11 Pro Kit NUC11TNHi70Q
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions |
 |
Intel® NUC 11 Pro Kit NUC11TNKv5
Intel® Core™ i5-1145G7 Processor (8M Cache, up to 4.40 GHz, with IPU)
M.2 SSD Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 37 [mm] (LxWxH) Chassis Dimensions
Intel®
NUC 11 Pro Kit NUC11TNKv7
Intel® Core™ i7-1185G7 Processor (12M Cache, up to 4.80 GHz)
M.2 SSD Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 37 [mm] (LxWxH) Chassis Dimensions |
 |
Intel® NUC 11 Pro Kit NUC11TNHv5
Intel® Core™ i5-1145G7 Processor (8M Cache, up to 4.40 GHz, with IPU)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions
Intel®
NUC 11 Pro Kit NUC11TNHv7
Intel® Core™ i7-1185G7 Processor (12M Cache, up to 4.80 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions |
  |
Intel® NUC 11 Pro Kit NUC11TNHv50L
Intel® Core™ i5-1145G7 Processor (8M Cache, up to 4.40 GHz, with IPU)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions
Intel®
NUC 11 Pro Kit NUC11TNHv70L
Intel® Core™ i7-1185G7 Processor (12M Cache, up to 4.80 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions |
  |

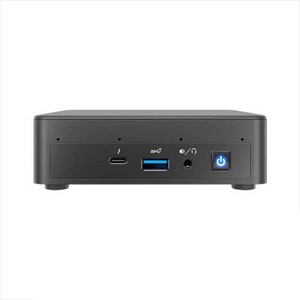

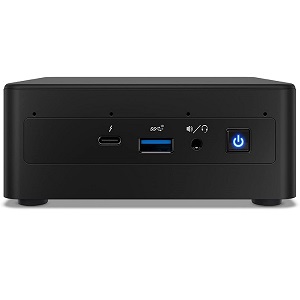

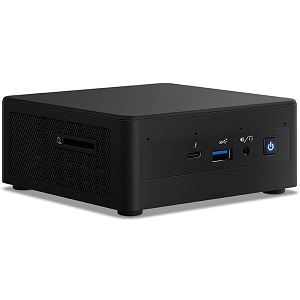

Intel® NUC 11 Pro Kit NUC11PAHi3
Intel® Core™ i3-1115G4 Processor (6M Cache, up to 4.10 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions Intel®
NUC 11 Pro Kit NUC11PAHi5
Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions
Intel® NUC 11 Pro Kit NUC11PAHi7
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 54 [mm] (LxWxH) Chassis Dimensions |
  |

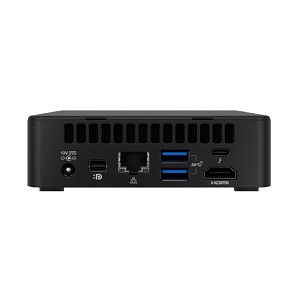

Intel® NUC 11 Pro Kit NUC11PAKi3
Intel® Core™ i3-1115G4 Processor (6M Cache, up to 4.10 GHz)
M.2 Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 38[mm] (LxWxH) Chassis Dimensions Intel®
NUC 11 Pro Kit NUC11PAKi5
Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
M.2 Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 38[mm] (LxWxH) Chassis Dimensions
Intel® NUC 11 Pro Kit NUC11PAKi7
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
M.2 Internal Drive Form Factor
Dual HDI 2.0b w/HDI CEC, Dual DP 1.4a via Type C Graphics Output
117 x 112 x 38[mm] (LxWxH) Chassis Dimensions |
  |
Intel® NUC 11 Enthusiast Kit - NUC11PHKi7C
Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
M.2 SSD Internal Drive Form Factor
2x TBT4; HDI 2.0a; mDP 1.4 Graphics Output |
  |
Intel NUC 11 Essential Kit --NUC11ATK
Atlas Canyon support eMMC and TPM
NUC11ATKPE N6005
NUC11ATKC4 N5105
NUC11ATKC2 N4505
minic pc NUC11ATKC2: 4GB RAM 64GB eMMC Windows 10 pre_installed |
| |
|
| Intel® NUC Products Powered by 10th Generation Intel® Core™
Processors |
  |
Intel® NUC 10 Performance Kit - NUC10i3FNH
Intel® Core™ i3-10110U Processor (4M Cache, Up to 4.10 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
HDI 2.0b; USB-C (DP1.2) Graphics Output
117 x 112 x 51mm Chassis Dimensions
Intel®
NUC 10 Performance Kit - NUC10i5FNH
Intel® Core™ i5-10210U Processor (6M Cache, Up to 4.20 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
HDI 2.0b; USB-C (DP1.2) Graphics Output
117 x 112 x 51mm Chassis Dimensions
Intel® NUC 10 Performance kit - NUC10i7FNH
Intel® Core™ i7-10710U Processor (12M Cache, up to 4.70 GHz)
M.2 and 2.5" Drive Internal Drive Form Factor
HDI 2.0b; USB-C (DP1.2) Graphics Output
117 x 112 x 51mm Chassis Dimensions |
  |
Intel® NUC 10 Performance Kit - NUC10i3FNK
Intel® Core™ i3-10110U Processor (4M Cache, Up to 4.10 GHz)
M.2 Drive Internal Drive Form Factor
HDI 2.0b; USB-C (DP1.2) Graphics Output
117 x 112 x 36mm Chassis Dimensions
Intel®
NUC 10 Performance Kit - NUC10i5FNK
Intel® Core™ i5-10210U Processor (6M Cache, Up to 4.20 GHz)
M.2 Internal Drive Form Factor
HDI 2.0b; USB-C (DP1.2) Graphics Output
117 x 112 x 36mm Chassis Dimensions
Intel® NUC 10 Performance kit -
NUC10i7FNH
Intel® Core™ i7-10710U Processor (12M Cache, up to 4.70 GHz)
M.2 Drive Internal Drive Form Factor
HDI 2.0b; USB-C (DP1.2) Graphics Output
117 x 112 x 36mm Chassis Dimensions |
| Intel® NUC Products Powered by 9th Generation Intel® Core™
Processors |
  |
Mini PC Intel NUC9 Extreme Kit Ghost Canyon
NUC9i5QNX with 9th Generation Intel Core Processors i5-9300H
Mini PC Intel NUC9 Extreme Kit Ghost Canyon NUC9i7QNX
with 9th Generation Intel Core Processors i7-9750H
Mini
PC Intel NUC9 Extreme Kit Ghost Canyon NUC9i9QNX with 9th Generation Intel
Core Processors i9-9980HK |
 |
Intel® NUC 9 Extreme Kit - NUC9V7QNX
Mini PC Intel NUC9 Extreme Kit Quartz Canyon NUC9V7QNX with 9th Generation
Intel Core Processors i7-9850H
Intel®
NUC 9 Extreme Kit - NUC9VXQNX
Mini PC Intel NUC9 Extreme Kit Quartz Canyon NUC9VXQNX with 9th Generation
Intel Core Processors Xeon E-2286M |
| Intel® NUC Products Powered by 8th Generation Intel® Core™
Processors |
  |
Mini PC Intel Original NUC Kit BEAN CANYON
NUC8i3BEHS with 8th Generation Intel Core Processors i3-8140U
Mini PC Intel Original NUC Kit BEAN CANYON
NUC8i3BEH with 8th Generation Intel Core Processors i3-8109U
Mini PC Intel Original NUC Kit BEAN CANYON
NUC8i5BEHS with 8th Generation Intel Core Processors i5-8260U
Mini PC Intel NUC Kit BEAN CANYON NUC8i5BEH
with 8th Generation Intel Core Processors i5-8259U
Mini PC Intel Original NUC Kit BEAN CANYON NUC8i7BEH with 8th Generation
Intel Core Processors i5-8259U
|
  |
Mini PC Intel Original NUC Kit BEAN
CANYON NUC8i3BEK with 8th Generation Intel Core Processors i3-8109U
Mini PC Intel Original NUC Kit BEAN CANYON
NUC8i5BEK with 8th Generation Intel Core Processors i5-8259U
Mini PC Intel Original NUC Kit BEAN CANYON NUC8i7BEK with 8th Generation
Intel Core Processors i7-8559U
|
|
Intel® NUC Kit NUC8i3PNH
Intel® NUC Kit NUC8v5PNH
Intel® NUC Kit NUC8v7PNH
Mini PC Intel Original NUC Kit BEAN CANYON NUC8i3PNH NUC8v5PNH NUC8v7PNH
with 8th Generation Intel Core Processors i3-8145U i5-8365U i7-8665U |
|
Intel® NUC Kit NUC8i3PNK
Intel® NUC Kit NUC8v5PNK
Intel® NUC Kit NUC8v7PNK
Mini PC Intel Original NUC Kit BEAN CANYON NUC8i3PNK NUC8v5PNK NUC8v7PNK
with 8th Generation Intel Core Processors i3-8145U i5-8365U i7-8665U
|
 |
Intel® NUC Kit NUC8i5INH
Intel Original NUC 8 Mainstream-G mini PC Islay Canyon NUC8i5INH with 8th
Generation Intel Core Processors i5-8265U
Intel®
NUC Kit NUC8i7INH
Intel Original NUC 8 Mainstream-G mini PC Islay Canyon NUC8i7INH with 8th
Generation Intel Core Processors i7-8565U |
|
Intel® NUC 8 Home, a Mini PC with Windows® 10 - NUC8i3CYSN
Included Memory 4GB LPDDR4-2400
Intel® NUC 8 Home, a Mini PC with Windows® 10 - NUC8i3CYSM
Included Memory 8GB LPDDR4-2400
Mini PC Intel Original NUC Kit CRIMSON CANYON NUC8i3CYSN NUC8i3CYSM with
8th Generation Intel Core Processors i3-8121U |
  |
Intel® NUC Kit NUC8i7HNK
Mini PC Intel Original NUC Kit HADES CANYON NUC8i7HNK with 8th Generation
Intel Core Processors i7-8705G
TDP=65W
Discrete Graphics:Radeon™ RX Vega M GL graphics
Intel® Core™ i7-8705G Processor with Radeon™ RX Vega M GL graphics (8M Cache,
up to 4.10 GHz) |
|
Intel® NUC Kit NUC8i7HVK
Mini PC Intel Original NUC Kit HADES CANYON NUC8i7HVK with 8th Generation
Intel Core Processors i7-8809G
TDP=100W
Discrete Graphics:Radeon™ RX Vega M GH graphics
Intel® Core™ i7-8809G Processor with Radeon™ RX Vega M GH graphics (8M Cache,
up to 4.20 GHz) |
| Intel® NUC Products Powered by 7th Generation Intel® Core™
Processors |
  |
Intel® NUC Kit NUC7i3BNH
Intel® NUC Kit NUC7i3BNHX1 With Intel® Optane™ Memory
Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz)
DDR4-2133 1.2V SO-DIMM
Intel® NUC Kit NUC7i5BNH
Intel® NUC Kit NUC7i5BNHX1 With Intel® Optane™ Memory
Intel® Core™ i5-7260U Processor (4M Cache, up to 3.40 GHz)
DDR4-2133 1.2V SO-DIMM
Intel® NUC Kit NUC7i7BNH
Intel® NUC Kit NUC7i7BNHX1 With Intel® Optane™ Memory
Intel® Core™ i5-7260U Processor (4M Cache, up to 3.40 GHz)
DDR4-2133 1.2V SO-DIMM
|
  |
Intel® NUC Kit NUC7i3BNK
Intel® Core™ i3-7100U Processor (3M Cache, 2.40 GHz)
DDR4-2133 1.2V SO-DIMM
Graphics Output HDI 2.0a; USB-C (DP1.2)
Internal Drive Form Factor M.2 SSD
Intel® NUC Kit NUC7i5BNK
Intel® Core™ i5-7260U Processor (4M Cache, up to 3.40 GHz)
DDR4-2133 1.2V SO-DIMM
Graphics Output HDI 2.0a; USB-C (DP1.2)
Internal Drive Form Factor M.2 SSD
Intel® NUC Kit NUC7i7BNK
Intel® Core™ i5-7260U Processor (4M Cache, up to 3.40 GHz)
DDR4-2133 1.2V SO-DIMM
Graphics Output HDI 2.0a; USB-C (DP1.2)
Internal Drive Form Factor M.2 SSD |
|
-->> Mini PC Intel Original NUC KitDawson
Canyon NUC7i3DNHE with 7th Generation Intel Core Processors i3-7100U <<--
-->> Mini PC Intel Original NUC KitDawson Canyon NUC7i5DNHE with 7th
Generation Intel Core Processors i5-7300U <<--
-->> Mini PC Intel Original NUC KitDawson Canyon NUC7i7DNHE with 7th
Generation Intel Core Processors i7-8650U <<-- |
|
-->> Mini PC Intel Original NUC KitDawson
Canyon NUC7i3DNKE with 7th Generation Intel Core Processors i3-7100U <<--
-->> Mini PC Intel Original NUC KitDawson Canyon NUC7i5DNKE with
7th Generation Intel Core Processors i5-7300U <<--
-->> Mini PC Intel Original NUC KitDawson Canyon NUC7i7DNKE with
7th Generation Intel Core Processors i7-8650U <<-- |
|
Intel® NUC Kit NUC7CJYH
Intel® NUC Kit NUC7CJYHN
Mini PC Intel Original NUC Kit JUNE CANYON NUC7CJYH NUC7CJYHN with 7th Generation
Intel Celeron Processors J4005
Intel® NUC Kit NUC7PJYH
Intel® NUC Kit NUC7PJYHN
Mini PC Intel Original NUC Kit JUNE CANYON NUC7PJYH NUC7PJYHN with 7th Generation
Intel Celeron Processors J5005
|
| Intel® NUC Products Powered by 6th Generation Intel® Core™
Processors |
  |
Intel® NUC Kit NUC6i7KYK
Intel® Core™ i7-6770HQ Processor (6M Cache, up to 3.50 GHz)
DDR4-2133+ 1.2V, 1.35V SO-DIMM
Graphics Output Mini-DP 1.2; HDI 2.0; USB-C (DP1.2)
Internal Drive Form Factor M.2 SSD |
  |
Intel® NUC Kit NUC6i3SYH
Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
DDR4-2133 1.2V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; HDI 1.4b
Intel® NUC Kit NUC6i5SYH
Intel® Core™ i5-6260U Processor (4M Cache, up to 2.90 GHz)
DDR4-2133 1.2V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; HDI 1.4b |
  |
Intel® NUC Kit NUC6i3SYK
Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz)
DDR4-2133 1.2V SO-DIMM
Internal Drive Form Factor M.2 SSD
Graphics Output Mini-DP 1.2; HDI 1.4b
Intel® NUC Kit NUC6i5SYK
Intel® Core™ i5-6260U Processor (4M Cache, up to 2.90 GHz)
DDR4-2133 1.2V SO-DIMM
Internal Drive Form Factor M.2 SSD
Graphics Output Mini-DP 1.2; HDI 1.4b |
  |
Intel® NUC Kit NUC6CAYH
Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz)
DDR3L-1600/1866 1.35V SO-DIMM
Internal Drive Form Factor 2.5" Drive
Graphics Output VGA (HDB15); HDI 2.0
Intel® NUC Kit NUC6CAYS
Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz)
DDR3L-1600/1866 1.35V SO-DIMM
Internal Drive Form Factor 2.5" Drive
Graphics Output VGA (HDB15); HDI 2.0
Pre-Installed Operating System Windows 10 Home x64 |
| Intel® NUC Products Powered by 5th Generation Intel® Core™
Processors |
  |
Intel® NUC Kit NUC5i3RYH
Intel® Core™ i3-5010U Processor (3M Cache, 2.10 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a
Intel® NUC Kit NUC5i5RYH
Intel® Core™ i5-5250U Processor (3M Cache, up to 2.70 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a
Intel® NUC Kit NUC5i7RYH
Intel® Core™ i7-5557U Processor (4M Cache, up to 3.40 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a |
  |
Intel® NUC Kit NUC5i3RYK
Intel® Core™ i3-5010U Processor (3M Cache, 2.10 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 SSD
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a
Intel® NUC Kit NUC5i5RYK
Intel® Core™ i5-5250U Processor (3M Cache, up to 2.70 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 SSD
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a |
  |
Intel® NUC Kit NUC5i3MYHE
Intel® Core™ i3-5010U Processor (3M Cache, 2.10 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output 2x mDP, 1x eDP
Intel® NUC Kit NUC5i5MYHE
Intel® Core™ i5-5300U Processor (3M Cache, up to 2.90 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor M.2 and 2.5" Drive
Graphics Output 2x mDP, 1x eDP |
  |
Intel® NUC Kit NUC5CPYH
Intel® Celeron® Processor N3050 (2M Cache, up to 2.16 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Graphics Output VGA (HDB15); HDI 1.4b
Internal Drive Form Factor 2.5" Drive
Intel®
NUC Kit NUC5PPYH
Intel® Pentium® Processor N3700 (2M Cache, up to 2.40 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor 2.5" Drive
Graphics Output VGA (HDB15); HDI 1.4b
Intel®
NUC Kit NUC5PGYH
Intel® Pentium® Processor N3700 (2M Cache, up to 2.40 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor 2.5" Drive
Graphics Output VGA (HDB15); HDI 1.4b
Pre-Installed Operating System Windows 10 Home x64 |
| Intel® NUC Products Powered by 4th Generation Intel® Core™
Processors |
  |
Intel® NUC Kit D54250WYK
Intel® Core™ i5-4250U Processor (3M Cache, up to 2.60 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor mSATA SSD
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a
Intel® NUC Kit D54250WYKH
Intel® Core™ i5-4250U Processor (3M Cache, up to 2.60 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor mSATA and 2.5" Drive
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a |
  |
Intel® NUC Kit D34010WYK
Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor mSATA SSD
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a
Intel®
NUC Kit D34010WYKH
Intel® Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
DDR3L-1333/1600 1.35V SO-DIMM
Internal Drive Form Factor mSATA and 2.5" Drive
Graphics Output Mini-DP 1.2; Mini-HDI 1.4a |
| Intel® NUC Products Powered by 3rd Generation Intel® Core™
Processors |
  |
Intel® NUC Kit DC53427HYE
Intel® Core™ i5-3427U Processor (3M Cache, up to 2.80 GHz)
DDR3-1333/1600 1.5V SO-DIMM
Internal Drive Form Factor mSATA SSD
Graphics Output 2 x mDP/1 x HDI |
  |
Intel® NUC Kit DC3217IYE
Intel® Core™ i3-3217U Processor (3M Cache, 1.80 GHz)
Mobile Intel® QS77 Express Chipset
DDR3-1333/1600 1.5V SO-DIMM
Internal Drive Form Factor mSATA SSD
Graphics Output Dual HDI |
| Intel® NUC Products Powered by Intel® Pentium®, Intel® Celeron®
and Intel® Atom™ Processors |
  |
Intel® NUC Kit DE3815TYKHE
Intel Atom® Processor E3815 (512K Cache, 1.46 GHz)
DDR3L-1066 1.35V SO-DIMM
Internal Drive Form Factor 2.5" Drive
Graphics Output HDI, VGA, eDP |
  |
Intel® NUC Kit DN2820FYKH
Intel® Celeron® Processor N2830 (1M Cache, up to 2.41 GHz)
DDR3L-1066/1333 1.35V SO-DIMM
Internal Drive Form Factor 2.5" Drive
Graphics Output HDI 1.4a |
  |
Intel® NUC Kit DCCP847DYE
Intel® Celeron® Processor 847 (2M Cache, 1.10 GHz)
Mobile Intel® QS77 Express Chipset
DDR3-1333/1600 1.5V SO-DIMM
Internal Drive Form Factor mSATA SSD
Graphics Output Dual HDI |
@2003-2022, Teket Innovation Technology Company Limited,
ICP No: 05050856
BEIJING: 2004, 20/F, Building 2, 1 Information Road, Shangdi, Haidian,
Beijing 100085, China
Tel: 0086-10-82894738 Fax: 0086-10-82893738
HONG KONG: Room 504, President Commercial Centre, 602-608 Nathan Road,
Mongkok, Kowloon, Hong Kong
Tel: 00852-2781-6070 Fax: 00852-2781-6078
 teket@teket.com
or teket@bbn.cn teket@teket.com teket@teket.com 80048010 Twitter Facebook Linkedin |
